Technical Information · issue 35 of 2001
Muffler / Increased Power
Model 036 Chainsaws – Series 1125
IssueTI 35/2001
Engine family 1125
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1125 140 0607 | 1125 140 0611 | The present muffler 1125 140 0607 will be replaced by the new muffler 1125 140 0611 from serial number 3 50 668 300. |
Full text

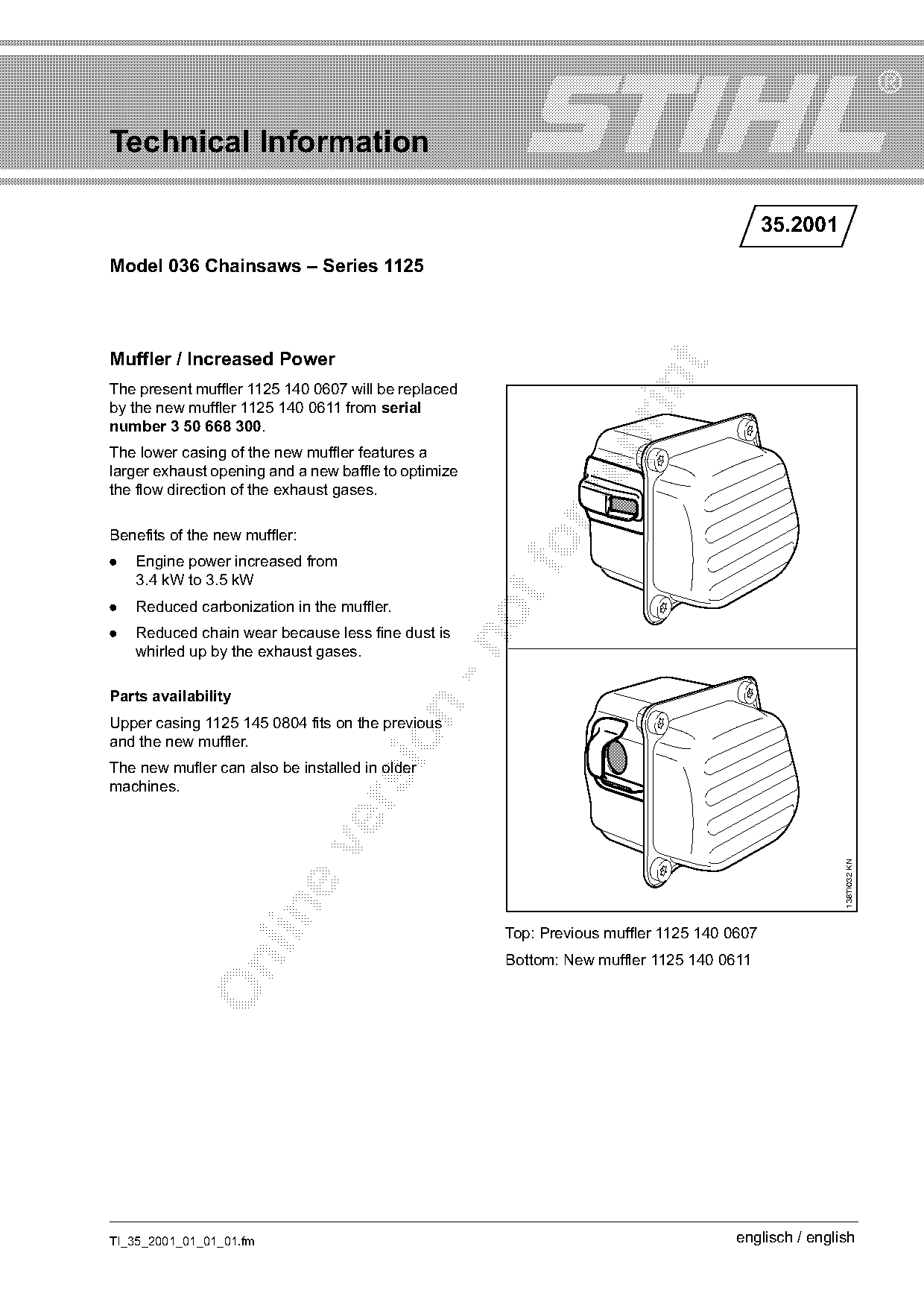

Page 1 of 2
Technical Information
35.2001
Model 036 Chainsaws – Series 1125
Muffler / Increased Power
The present muffler 1125 140 0607 will be replaced
by the new muffler 1125 140 0611 from serial
number 3 50 668 300.
The lower casing of the new muffler features a
larger exhaust opening and a new baffle to optimize
the flow direction of the exhaust gases.
Benefits of the new muffler:
. Engine power increased from
3.4 kW to 3.5 kW
. Reduced carbonization in the muffler.
. Reduced chain wear because less fine dust is
whirled up by the exhaust gases.
Parts availability
Upper casing 1125 145 0804 fits on the previous
and the new muffler.
The new mufler can also be installed in older
machines.
138TI032 KN
Top: Previous muffler 1125 140 0607
Bottom: New muffler 1125 140 0611
TI_35_2001_01_01_01.fm englisch / english

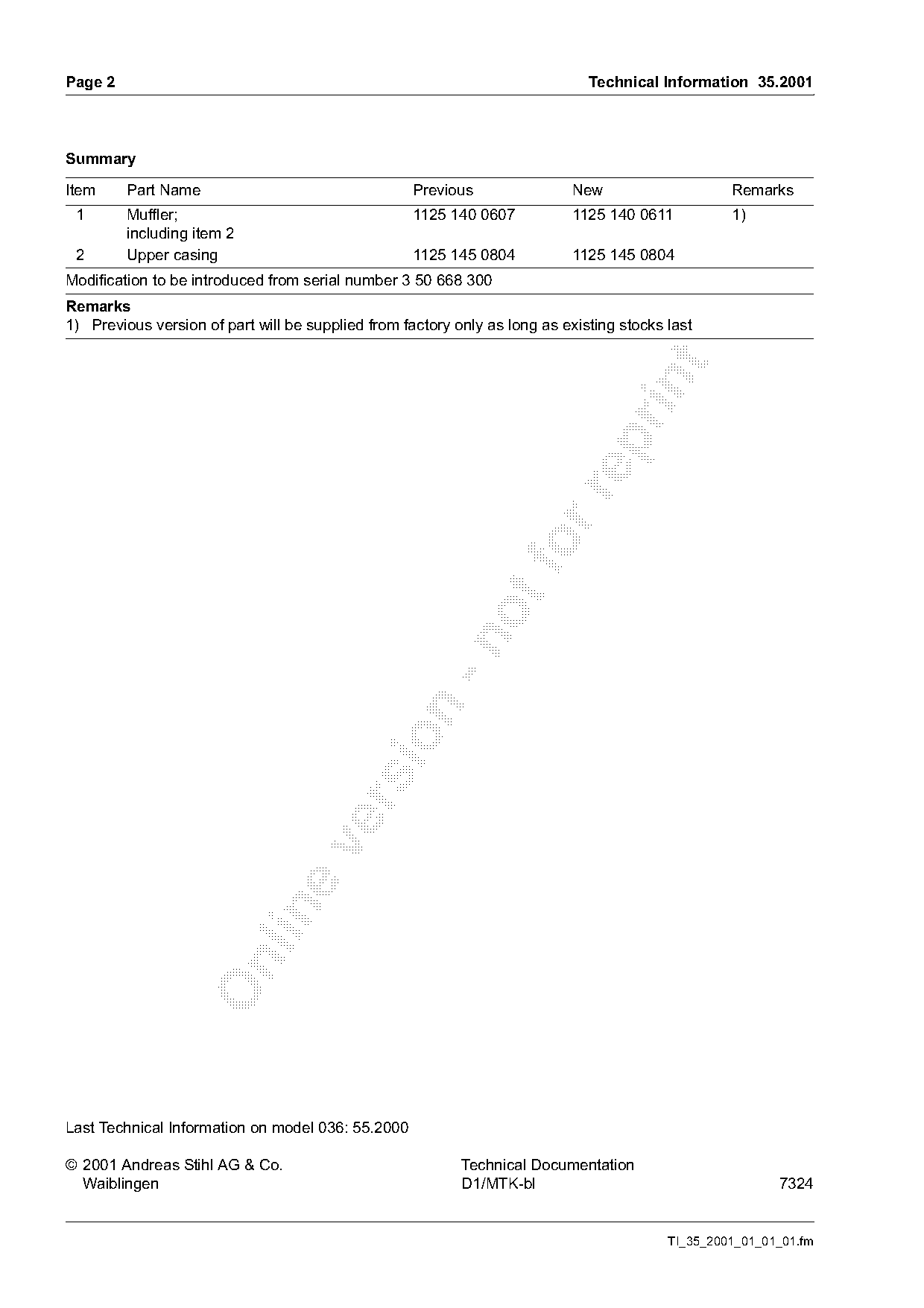

)m~ge 2 Technical Information 35.2001
Summary
Item Part Name Previous New Remarks
1 Muffler; 1125 140 0607 1125 140 0611 1)
including item 2
2 Upper casing 1125 145 0804 1125 145 0804
Modification to be introduced from serial number 3 50 668 300
Remarks
1) Previous version of part will be supplied from factory only as long as existing stocks last
Last Technical Information on model 036: 55.2000
© 2001 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7324
TI_35_2001_01_01_01.fm Page 2 of 2
