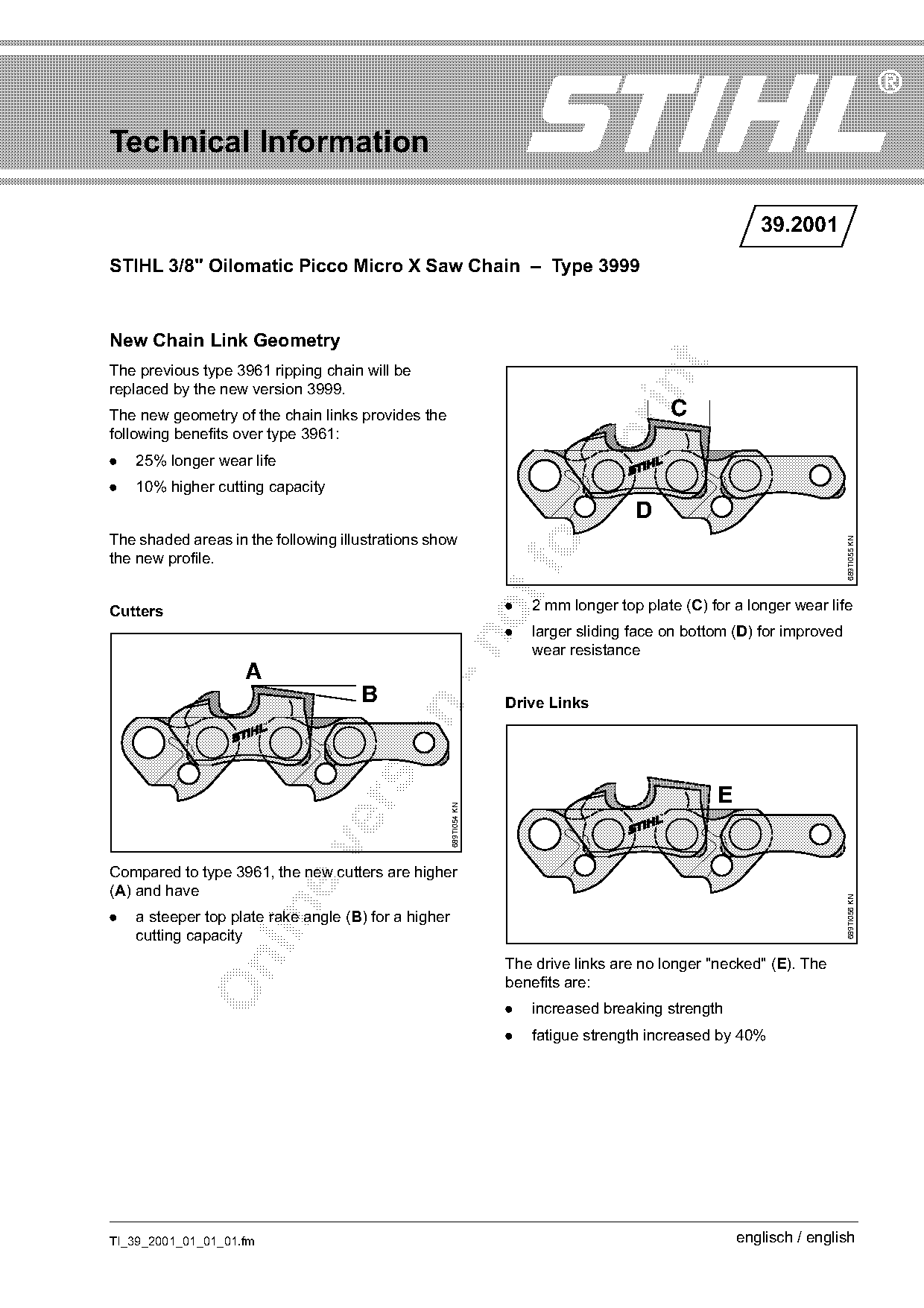

STIHL 3/8" Oilomatic Picco Micro X Saw Chain – Type 3999
New Chain Link Geometry
The previous type 3961 ripping chain will be
replaced by the new version 3999.
The new geometry of the chain links provides the C
following benefits over type 3961:
. 25% longer wear life
. 10% higher cutting capacity
D
The shaded areas in the following illustrations show
689TI055 KN
the new profile.
Cutters . 2 mm longer top plate (C) for a longer wear life
. larger sliding face on bottom (D) for improved
wear resistance
A
B Drive Links
689TI054 KN
Compared to type 3961, the new cutters are higher
(A) and have
689TI056 KN
. a steeper top plate rake angle (B) for a higher
cutting capacity
The drive links are no longer "necked" (E). The
benefits are:
. increased breaking strength
. fatigue strength increased by 40%
TI_39_2001_01_01_01.fm englisch / english
)m~ge 2 Technical Information 39.2001

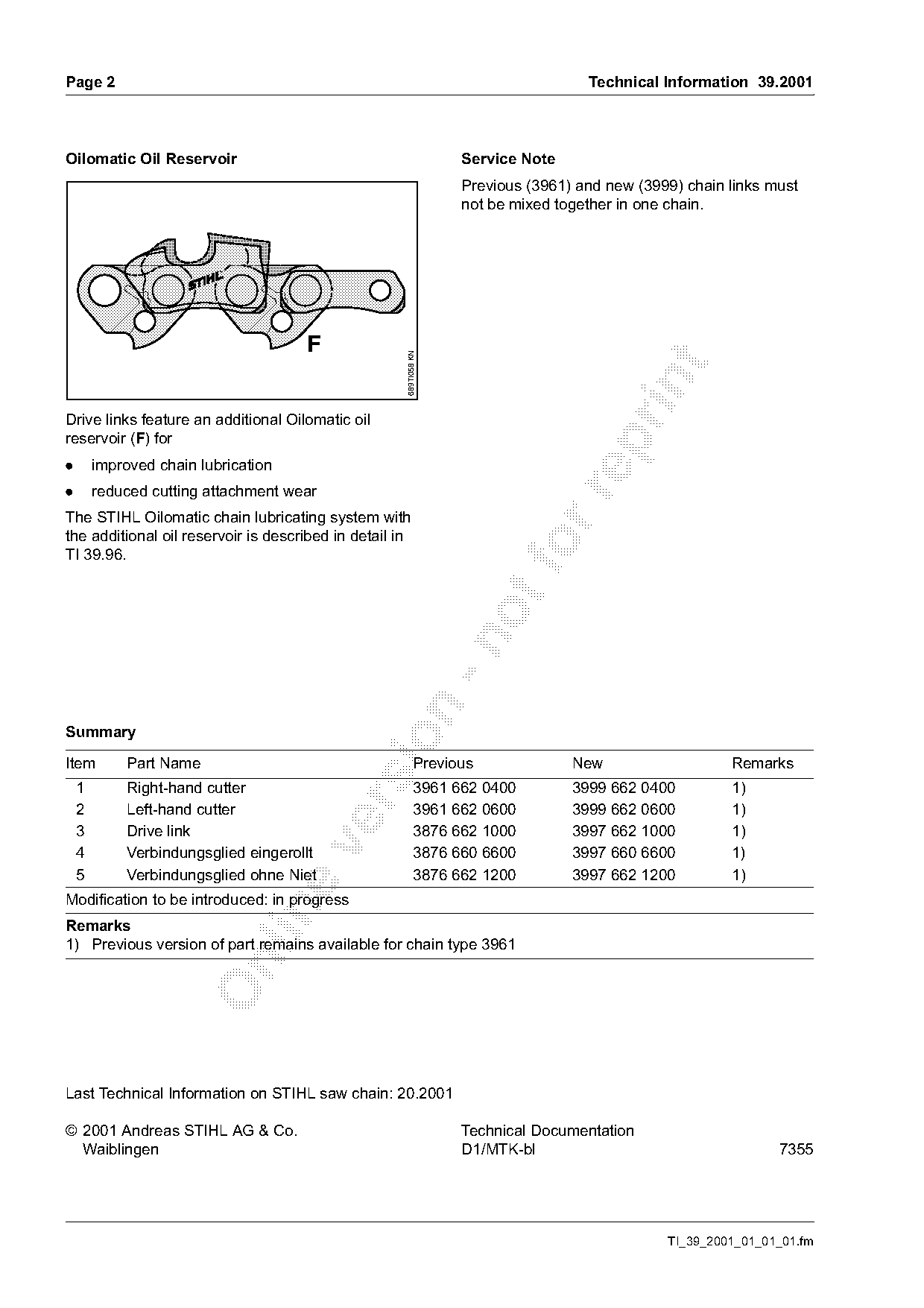

Oilomatic Oil Reservoir Service Note
Previous (3961) and new (3999) chain links must
not be mixed together in one chain.
689TI058 KN
Drive links feature an additional Oilomatic oil
reservoir (F) for
. improved chain lubrication
. reduced cutting attachment wear
The STIHL Oilomatic chain lubricating system with
the additional oil reservoir is described in detail in
TI 39.96. fo
Summary
Item Part Name Previous New Remarks
1 Right-hand cutter 3961 662 0400 3999 662 0400 1)
2 Left-hand cutter 3961 662 0600 3999 662 0600 1)
3 Drive link 3876 662 1000 3997 662 1000 1)
4 Verbindungsglied eingerollt 3876 660 6600 3997 660 6600 1)
5 Verbindungsglied ohne Niet 3876 662 1200 3997 662 1200 1)
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available for chain type 3961
Last Technical Information on STIHL saw chain: 20.2001
