Technical Information · issue 44 of 2001
New Sales Designations for 017 and 018; Uprated En
Model 017, 018 Chainsaws – Series 1130
IssueTI 44/2001
Engine family 1130
Full text
Page 1 of 5

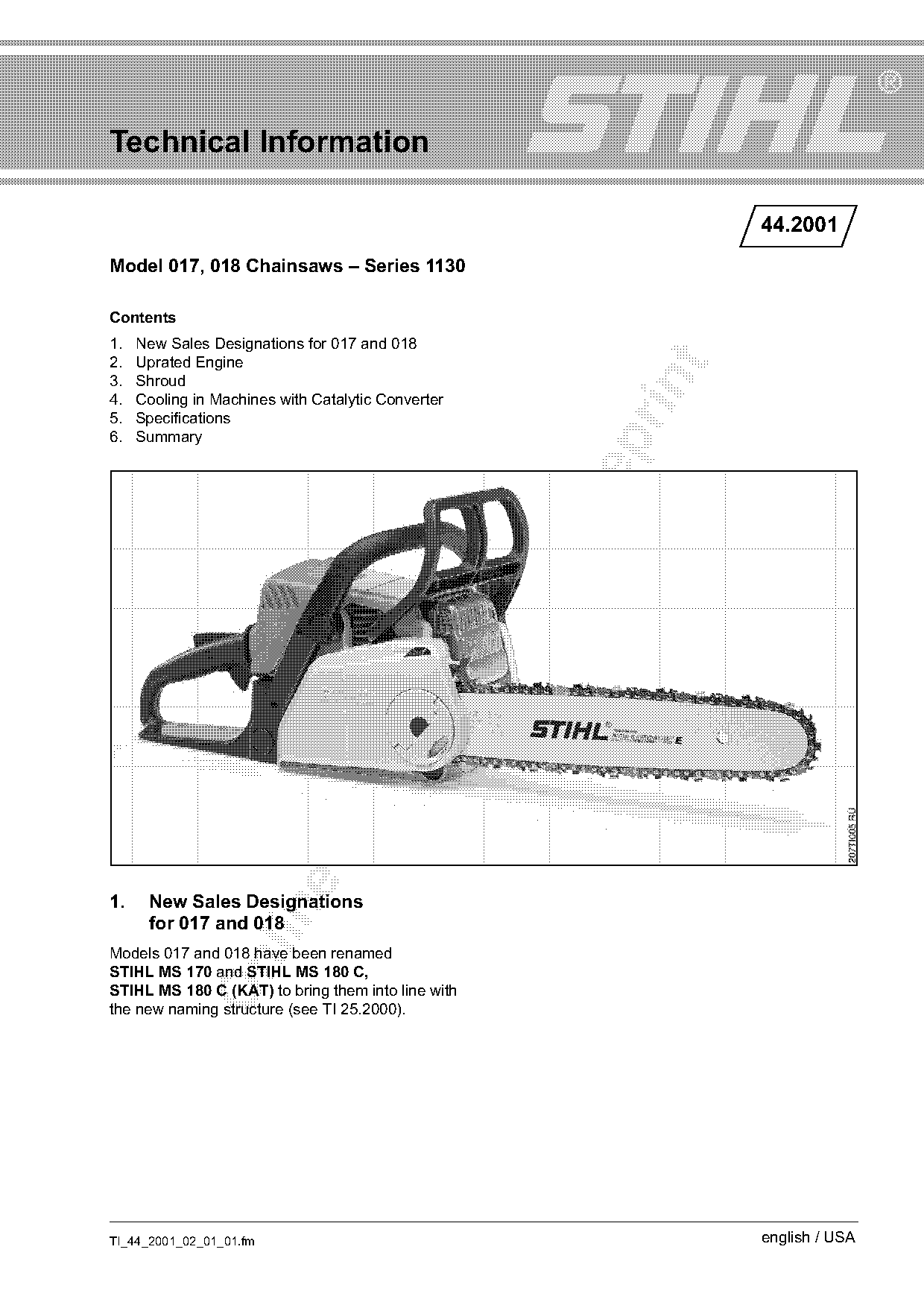

Technical Information
44.2001
Model 017, 018 Chainsaws – Series 1130
Contents
1. New Sales Designations for 017 and 018
2. Uprated Engine
3. Shroud
4. Cooling in Machines with Catalytic Converter
5. Specifications
6. Summary
1. New Sales Designations
for 017 and 018
Models 017 and 018 have been renamed
STIHL MS 170 and STIHL MS 180 C,
STIHL MS 180 C (KAT) to bring them into line with
the new naming structure (see TI 25.2000).
TI_44_2001_02_01_01.fm english / USA
)m~ge 2 Technical Information 44.2001

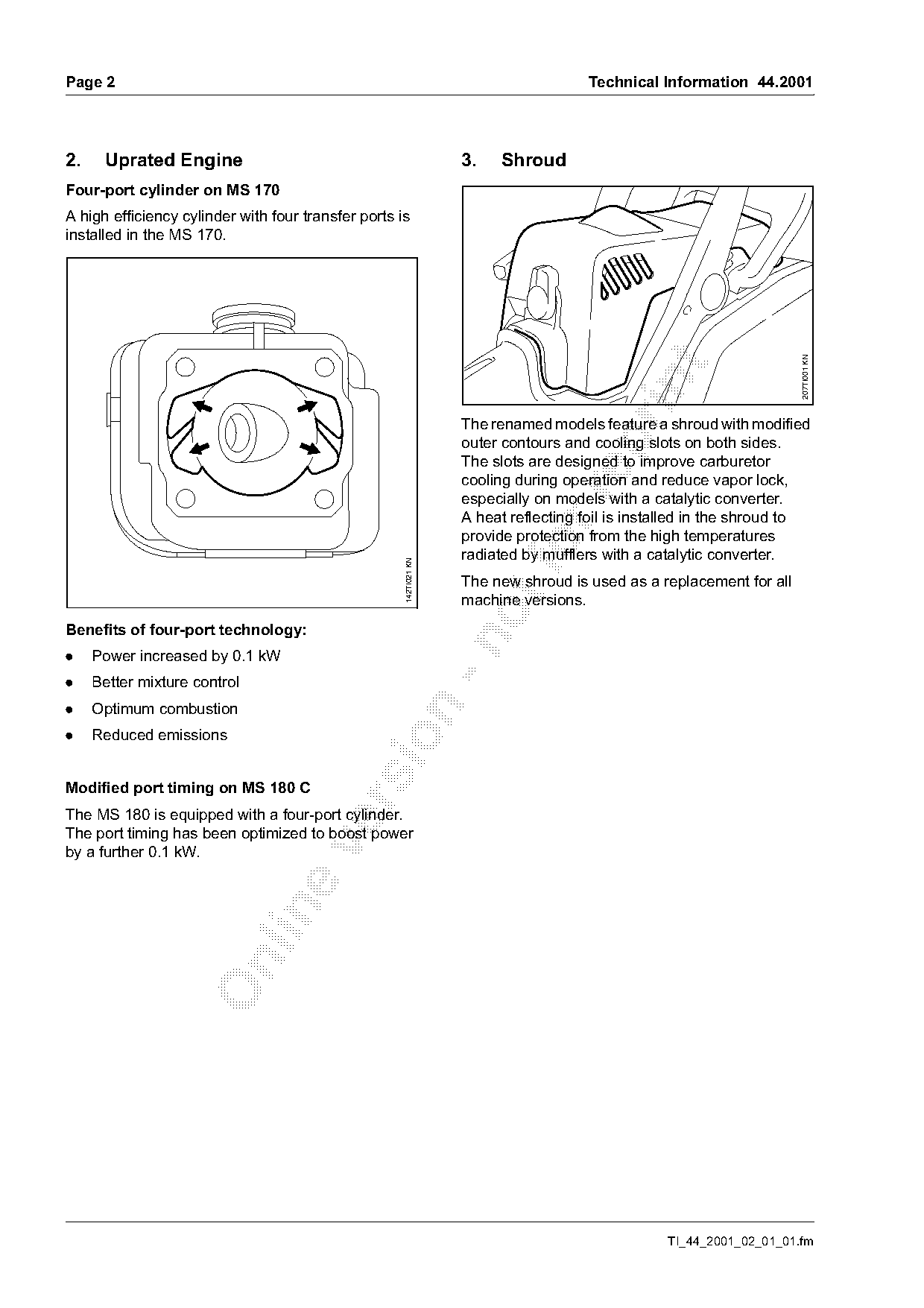

2. Uprated Engine 3. Shroud
Four-port cylinder on MS 170
A high efficiency cylinder with four transfer ports is
installed in the MS 170.
207TI001 KN
The renamed models feature a shroud with modified
outer contours and cooling slots on both sides.
The slots are designed to improve carburetor
cooling during operation and reduce vapor lock,
especially on models with a catalytic converter.
A heat reflecting foil is installed in the shroud to
provide protection from the high temperatures
radiated by mufflers with a catalytic converter.
142TI021 KN
The new shroud is used as a replacement for all
machine versions.
Benefits of four-port technology:
. Power increased by 0.1 kW
. Better mixture control
. Optimum combustion
. Reduced emissions
Modified port timing on MS 180 C
The MS 180 is equipped with a four-port cylinder.
The port timing has been optimized to boost power
by a further 0.1 kW.
TI_44_2001_02_01_01.fm Page 2 of 5
Technical Information 44.2001 Page 3

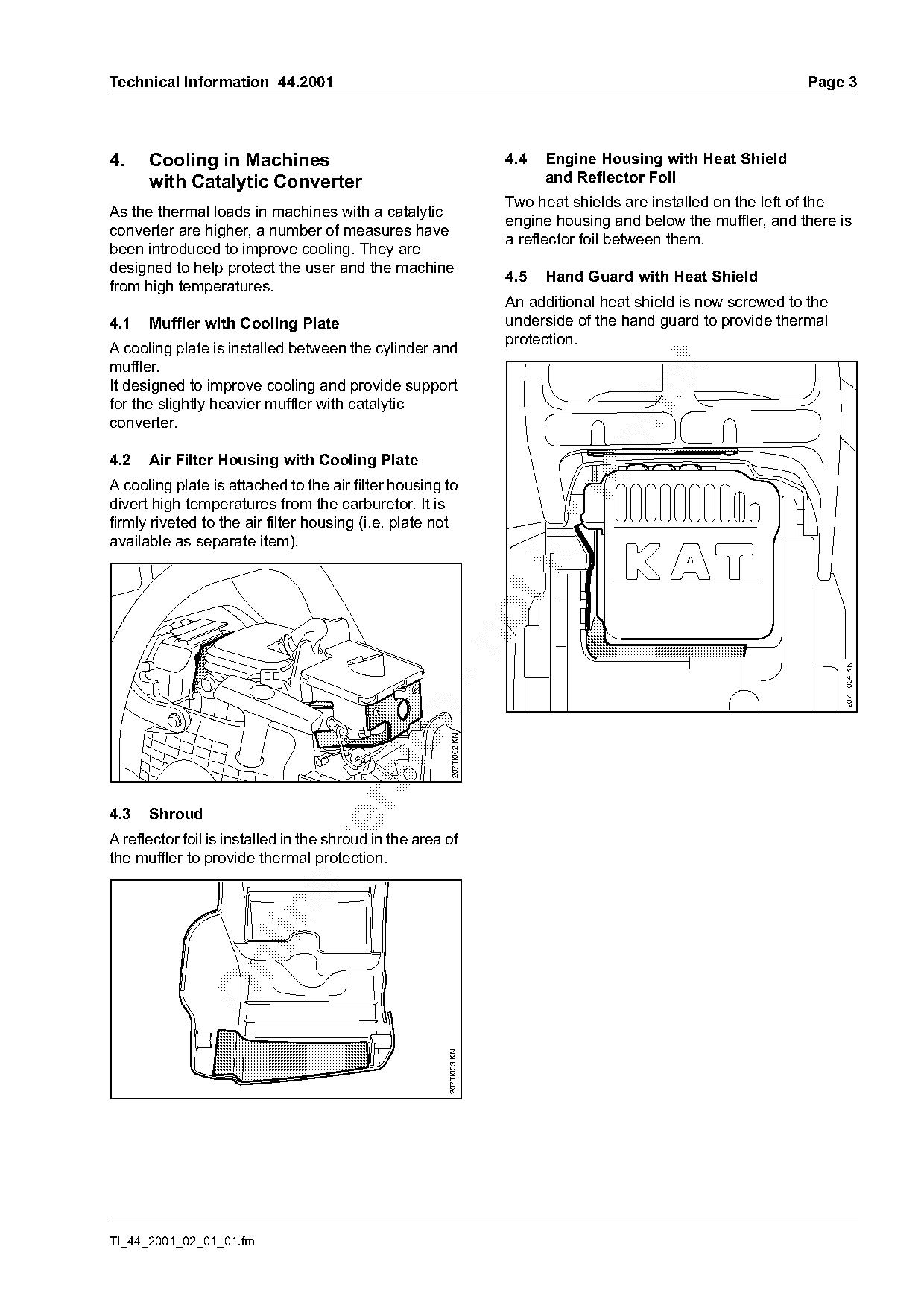

4. Cooling in Machines 4.4 Engine Housing with Heat Shield
with Catalytic Converter and Reflector Foil
Two heat shields are installed on the left of the
As the thermal loads in machines with a catalytic
engine housing and below the muffler, and there is
converter are higher, a number of measures have
a reflector foil between them.
been introduced to improve cooling. They are
designed to help protect the user and the machine
4.5 Hand Guard with Heat Shield
from high temperatures.
An additional heat shield is now screwed to the
4.1 Muffler with Cooling Plate underside of the hand guard to provide thermal
protection.
A cooling plate is installed between the cylinder and
muffler.
It designed to improve cooling and provide support
for the slightly heavier muffler with catalytic
converter.
4.2 Air Filter Housing with Cooling Plate
A cooling plate is attached to the air filter housing to
divert high temperatures from the carburetor. It is
firmly riveted to the air filter housing (i.e. plate not
available as separate item).
207TI004 KN
207TI002 KN
4.3 Shroud
A reflector foil is installed in the shroud in the area of
the muffler to provide thermal protection.
207TI003 KN
TI_44_2001_02_01_01.fm
)m~ge 4 Technical Information 44.2001

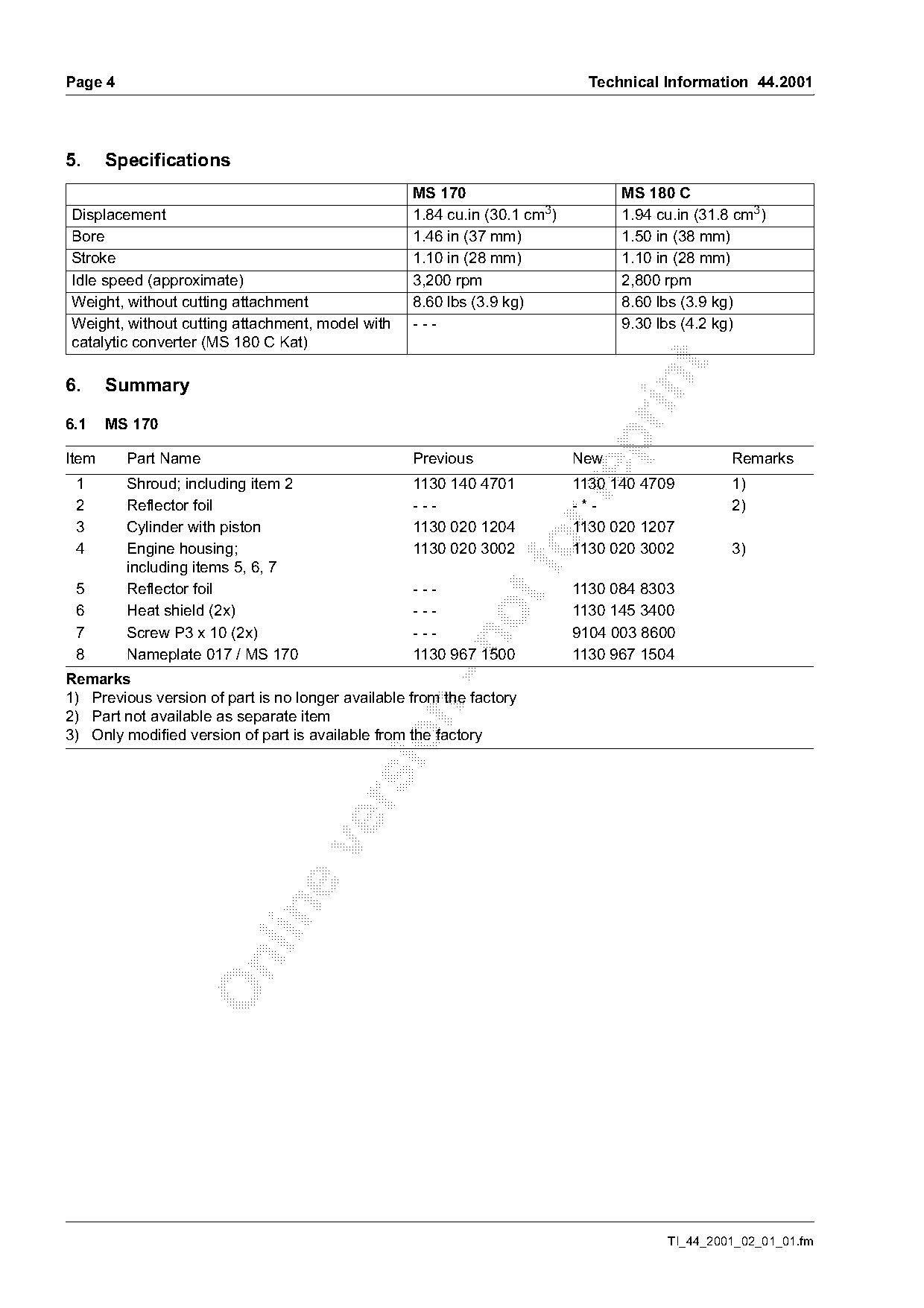

5. Specifications
MS 170 MS 180 C
Displacement 1.84 cu.in (30.1 cm3) 1.94 cu.in (31.8 cm3)
Bore 1.46 in (37 mm) 1.50 in (38 mm)
Stroke 1.10 in (28 mm) 1.10 in (28 mm)
Idle speed (approximate) 3,200 rpm 2,800 rpm
Weight, without cutting attachment 8.60 lbs (3.9 kg) 8.60 lbs (3.9 kg)
Weight, without cutting attachment, model with --- 9.30 lbs (4.2 kg)
catalytic converter (MS 180 C Kat)
6. Summary
6.1 MS 170
Item Part Name Previous New Remarks
1 Shroud; including item 2 1130 140 4701 1130 140 4709 1)
2 Reflector foil --- -*- 2)
3 Cylinder with piston 1130 020 1204 1130 020 1207
4 Engine housing;
including items 5, 6, 7
1130 020 3002 fo 1130 020 3002 3)
5 Reflector foil --- 1130 084 8303
6 Heat shield (2x) --- 1130 145 3400
7 Screw P3 x 10 (2x) --- 9104 003 8600
8 Nameplate 017 / MS 170 1130 967 1500 1130 967 1504
Remarks
1) Previous version of part is no longer available from the factory
2) Part not available as separate item
3) Only modified version of part is available from the factory
TI_44_2001_02_01_01.fm Page 3 of 5
Technical Information 44.2001 Page 5

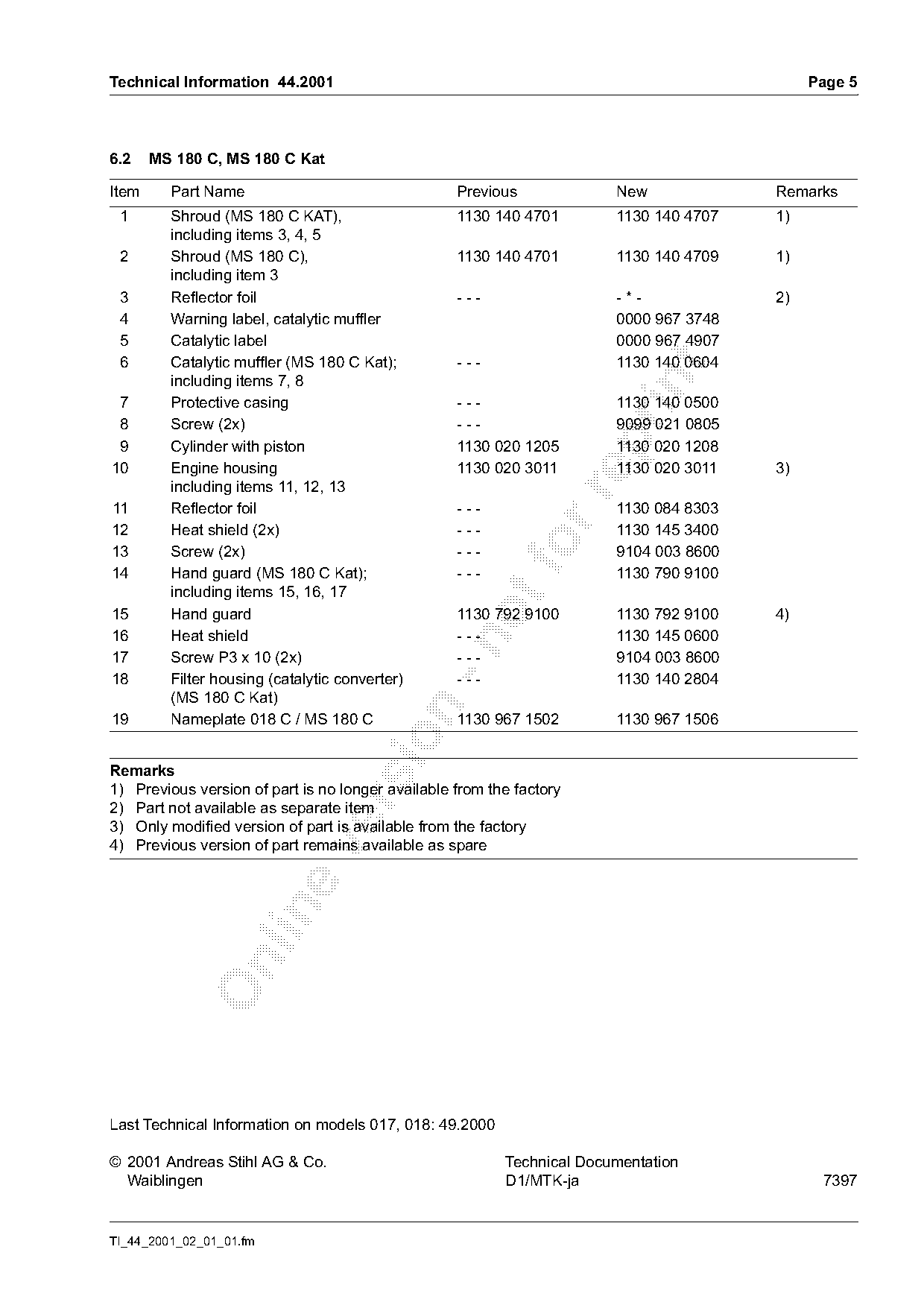

6.2 MS 180 C, MS 180 C Kat
Item Part Name Previous New Remarks
1 Shroud (MS 180 C KAT), 1130 140 4701 1130 140 4707 1)
including items 3, 4, 5
2 Shroud (MS 180 C), 1130 140 4701 1130 140 4709 1)
including item 3
3 Reflector foil --- -*- 2)
4 Warning label, catalytic muffler 0000 967 3748
5 Catalytic label 0000 967 4907
6 Catalytic muffler (MS 180 C Kat); --- 1130 140 0604
including items 7, 8
7 Protective casing --- 1130 140 0500
8 Screw (2x) --- 9099 021 0805
9 Cylinder with piston 1130 020 1205 1130 020 1208
10 Engine housing 1130 020 3011 1130 020 3011 3)
including items 11, 12, 13
11 Reflector foil --- 1130 084 8303
12 Heat shield (2x) --- 1130 145 3400
13
14
Screw (2x)
Hand guard (MS 180 C Kat);
---
---
fo 9104 003 8600
1130 790 9100
including items 15, 16, 17
15 Hand guard 1130 792 9100 1130 792 9100 4)
16 Heat shield --- 1130 145 0600
17 Screw P3 x 10 (2x) --- 9104 003 8600
18 Filter housing (catalytic converter) --- 1130 140 2804
(MS 180 C Kat)
19 Nameplate 018 C / MS 180 C 1130 967 1502 1130 967 1506
Remarks
1) Previous version of part is no longer available from the factory
2) Part not available as separate item
3) Only modified version of part is available from the factory
4) Previous version of part remains available as spare
Last Technical Information on models 017, 018: 49.2000
© 2001 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-ja 7397
TI_44_2001_02_01_01.fm Page 4 of 5
Page 5 of 5
