Technical Information · issue 45 of 2001
Fan housing, inner; Handle molding; Protective cap
Model BG/SH 45, 55, 65, 85 Blowers and Shredder Vacs – Series 4229
IssueTI 45/2001
Full text
Page 1 of 4
Technical Information
45.2001
Model BG/SH 45, 55, 65, 85 Blowers and Shredder Vacs – Series 4229
Contents
1. Fan housing, inner
2. Handle molding
3. Protective cap
4. Ground wire
5. Throttle trigger (BG 45, 55, SH 55)
6. Handle molding, right/left
(BG 65, 85, SH 85)
7. Stub in Muffler

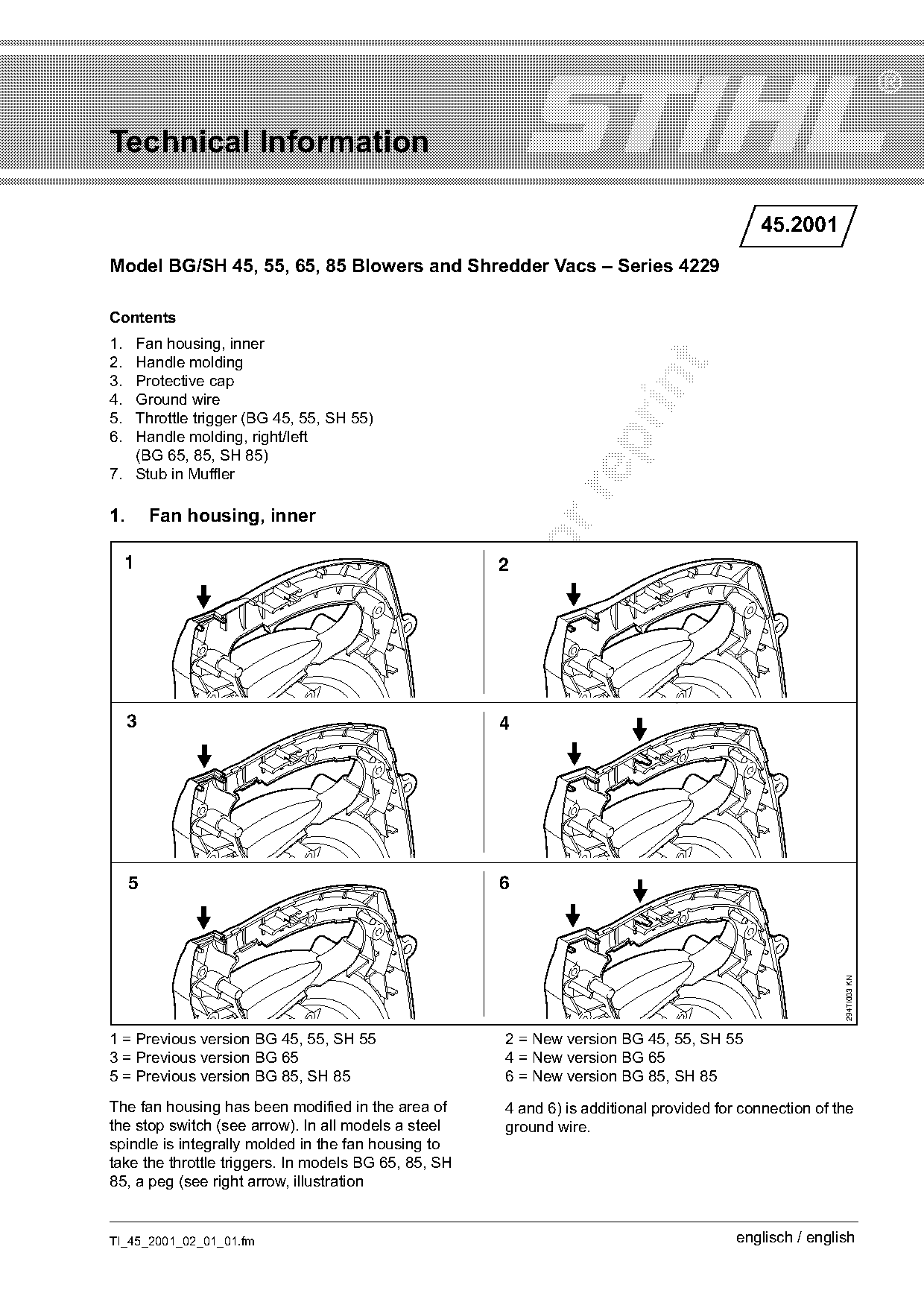

1. Fan housing, inner
1 2
3 4
5 6
294TI003 KN
1 = Previous version BG 45, 55, SH 55 2 = New version BG 45, 55, SH 55
3 = Previous version BG 65 4 = New version BG 65
5 = Previous version BG 85, SH 85 6 = New version BG 85, SH 85
The fan housing has been modified in the area of 4 and 6) is additional provided for connection of the
the stop switch (see arrow). In all models a steel ground wire.
spindle is integrally molded in the fan housing to
take the throttle triggers. In models BG 65, 85, SH
85, a peg (see right arrow, illustration
TI_45_2001_02_01_01.fm englisch / english
)m~ge 2 Technical Information 45.2001

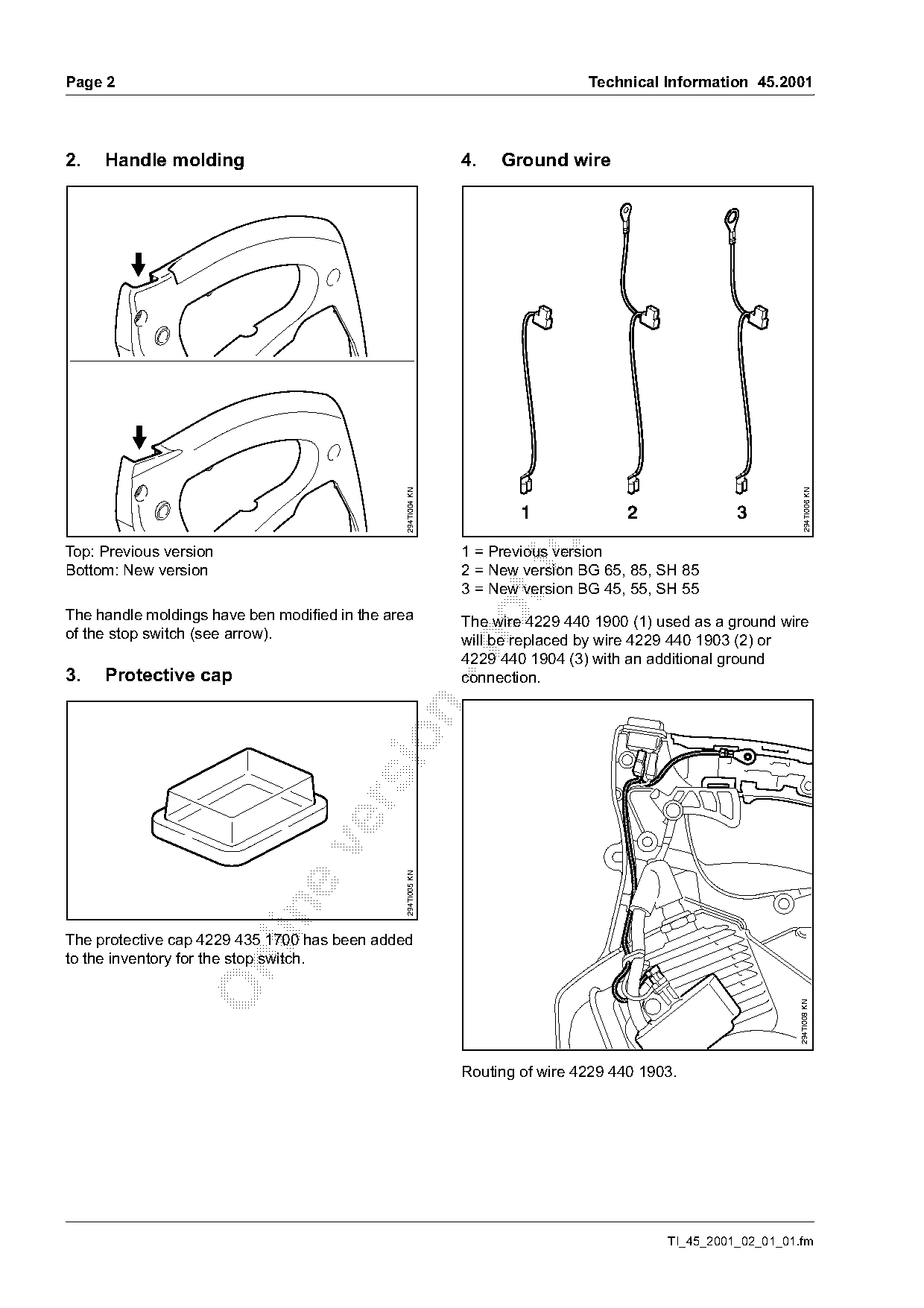

2. Handle molding 4. Ground wire
294TI006 KN
294TI004 KN
1 2 3
Top: Previous version
Bottom: New version
1 = Previous version
2 = New version BG 65, 85, SH 85
3 = New version BG 45, 55, SH 55
The handle moldings have ben modified in the area The wire 4229 440 1900 (1) used as a ground wire
of the stop switch (see arrow). will be replaced by wire 4229 440 1903 (2) or
4229 440 1904 (3) with an additional ground
3. Protective cap connection.
294TI005 KN
The protective cap 4229 435 1700 has been added
to the inventory for the stop switch.
294TI008 KN
Routing of wire 4229 440 1903.
TI_45_2001_02_01_01.fm Page 2 of 4
Technical Information 45.2001 Page 3

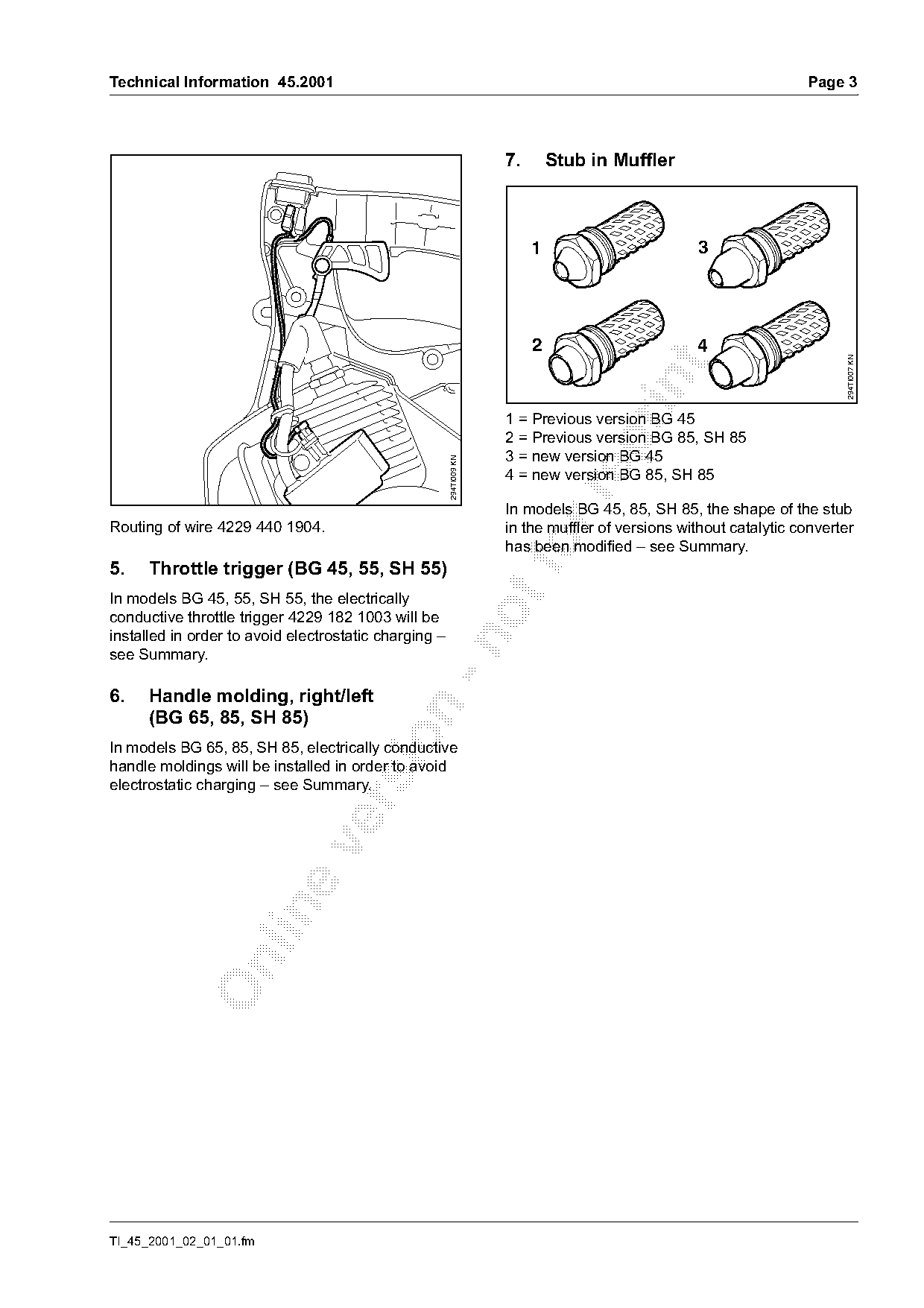

7. Stub in Muffler
1 3
2 4
294TI007 KN
1 = Previous version BG 45
2 = Previous version BG 85, SH 85
294TI009 KN
3 = new version BG 45
4 = new version BG 85, SH 85
In models BG 45, 85, SH 85, the shape of the stub
Routing of wire 4229 440 1904. in the muffler of versions without catalytic converter
5. Throttle trigger (BG 45, 55, SH 55)
has been modified – see Summary.
In models BG 45, 55, SH 55, the electrically
conductive throttle trigger 4229 182 1003 will be
installed in order to avoid electrostatic charging –
see Summary.
6. Handle molding, right/left
(BG 65, 85, SH 85)
In models BG 65, 85, SH 85, electrically conductive
handle moldings will be installed in order to avoid
electrostatic charging – see Summary.
TI_45_2001_02_01_01.fm
)m~ge 4 Technical Information 45.2001
Summary

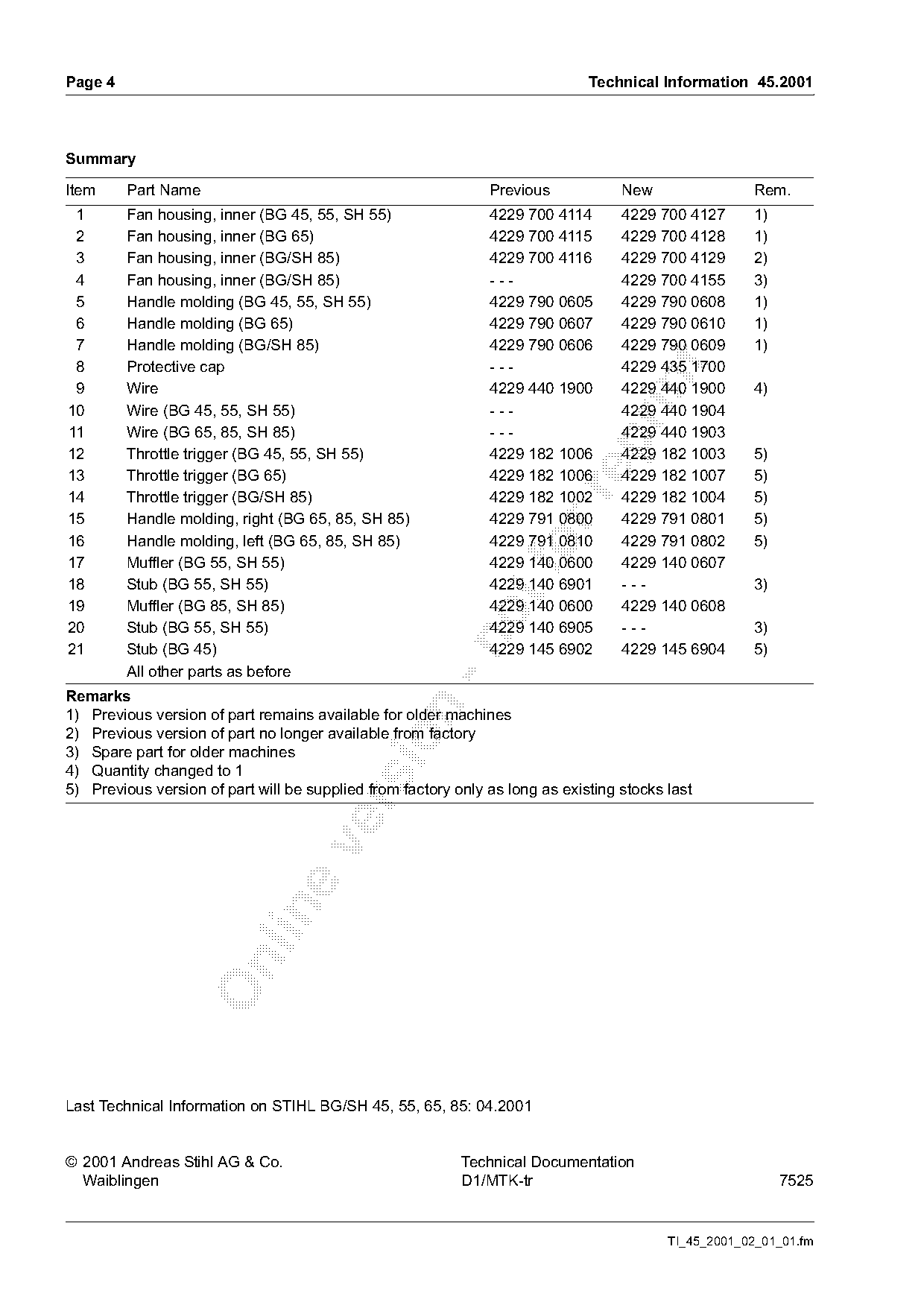

Item Part Name Previous New Rem.
1 Fan housing, inner (BG 45, 55, SH 55) 4229 700 4114 4229 700 4127 1)
2 Fan housing, inner (BG 65) 4229 700 4115 4229 700 4128 1)
3 Fan housing, inner (BG/SH 85) 4229 700 4116 4229 700 4129 2)
4 Fan housing, inner (BG/SH 85) --- 4229 700 4155 3)
5 Handle molding (BG 45, 55, SH 55) 4229 790 0605 4229 790 0608 1)
6 Handle molding (BG 65) 4229 790 0607 4229 790 0610 1)
7 Handle molding (BG/SH 85) 4229 790 0606 4229 790 0609 1)
8 Protective cap --- 4229 435 1700
9 Wire 4229 440 1900 4229 440 1900 4)
10 Wire (BG 45, 55, SH 55) --- 4229 440 1904
11 Wire (BG 65, 85, SH 85) --- 4229 440 1903
12 Throttle trigger (BG 45, 55, SH 55) 4229 182 1006 4229 182 1003 5)
13 Throttle trigger (BG 65) 4229 182 1006 4229 182 1007 5)
14 Throttle trigger (BG/SH 85) 4229 182 1002 4229 182 1004 5)
15 Handle molding, right (BG 65, 85, SH 85) 4229 791 0800 4229 791 0801 5)
16 Handle molding, left (BG 65, 85, SH 85) 4229 791 0810 4229 791 0802 5)
17 Muffler (BG 55, SH 55)
4229 140 0600 4229 140 0607
18 Stub (BG 55, SH 55) 4229 140 6901 --- 3)
19 Muffler (BG 85, SH 85) 4229 140 0600 4229 140 0608
20 Stub (BG 55, SH 55) 4229 140 6905 --- 3)
21 Stub (BG 45) 4229 145 6902 4229 145 6904 5)
All other parts as before
Remarks
1) Previous version of part remains available for older machines
2) Previous version of part no longer available from factory
3) Spare part for older machines
4) Quantity changed to 1
5) Previous version of part will be supplied from factory only as long as existing stocks last
Last Technical Information on STIHL BG/SH 45, 55, 65, 85: 04.2001
© 2001 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-tr 7525
