Technical Information · issue 52 of 2001
New Sales Designations for E 140, E 160 and E 180
Model E 140 and E 180 C Electric Chainsaws – Series 1208
IssueTI 52/2001
Full text
Page 1 of 3
Technical Information
52.2001
Model E 140 and E 180 C Electric Chainsaws – Series 1208
Contents
1. New Sales Designations for E 140 and E 180 C
2. Motor Housing
3. Air Guide Ring
4. Service Note
5. Spare Parts
6. Spare Parts Documentation
7. Summary
1. New Sales Designations for
E 140 and E 180 C

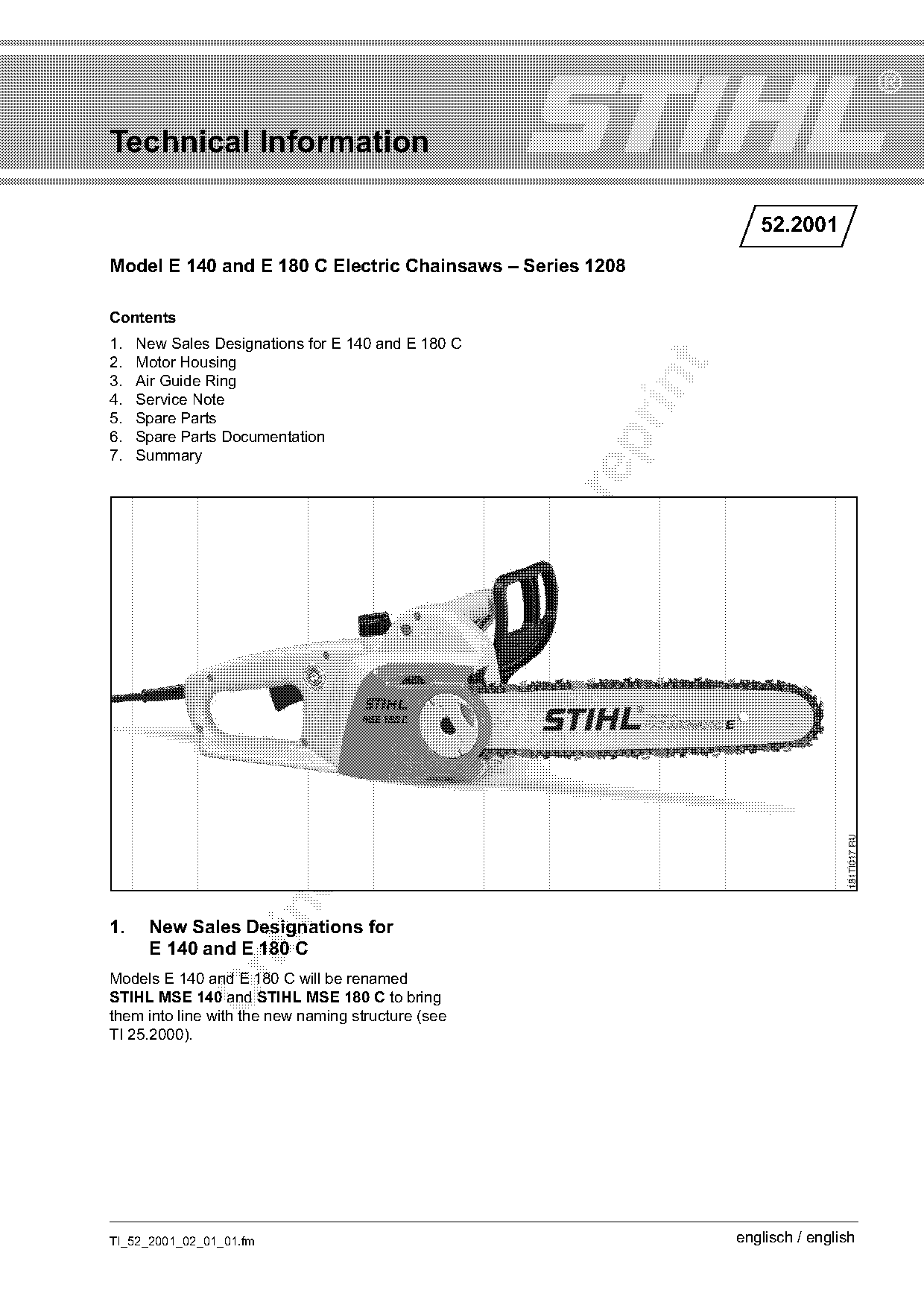

Models E 140 and E 180 C will be renamed
STIHL MSE 140 and STIHL MSE 180 C to bring
them into line with the new naming structure (see
TI 25.2000).
TI_52_2001_02_01_01.fm englisch / english
)m~ge 2 Technical Information 52.2001
2. Motor Housing 5. Spare Parts
New spare parts for MSE 140 and MSE 180 C
The new saws are based on models E 140 and
E 180 C. Different parts in the new machines are
described in the ’Summary’.
6. Spare Parts Documentation
1
The next issues of the microfiche and CD-ROM
(01.2002) include the parts list for MSE 140 and
MSE 180 C.
181TI000 KN

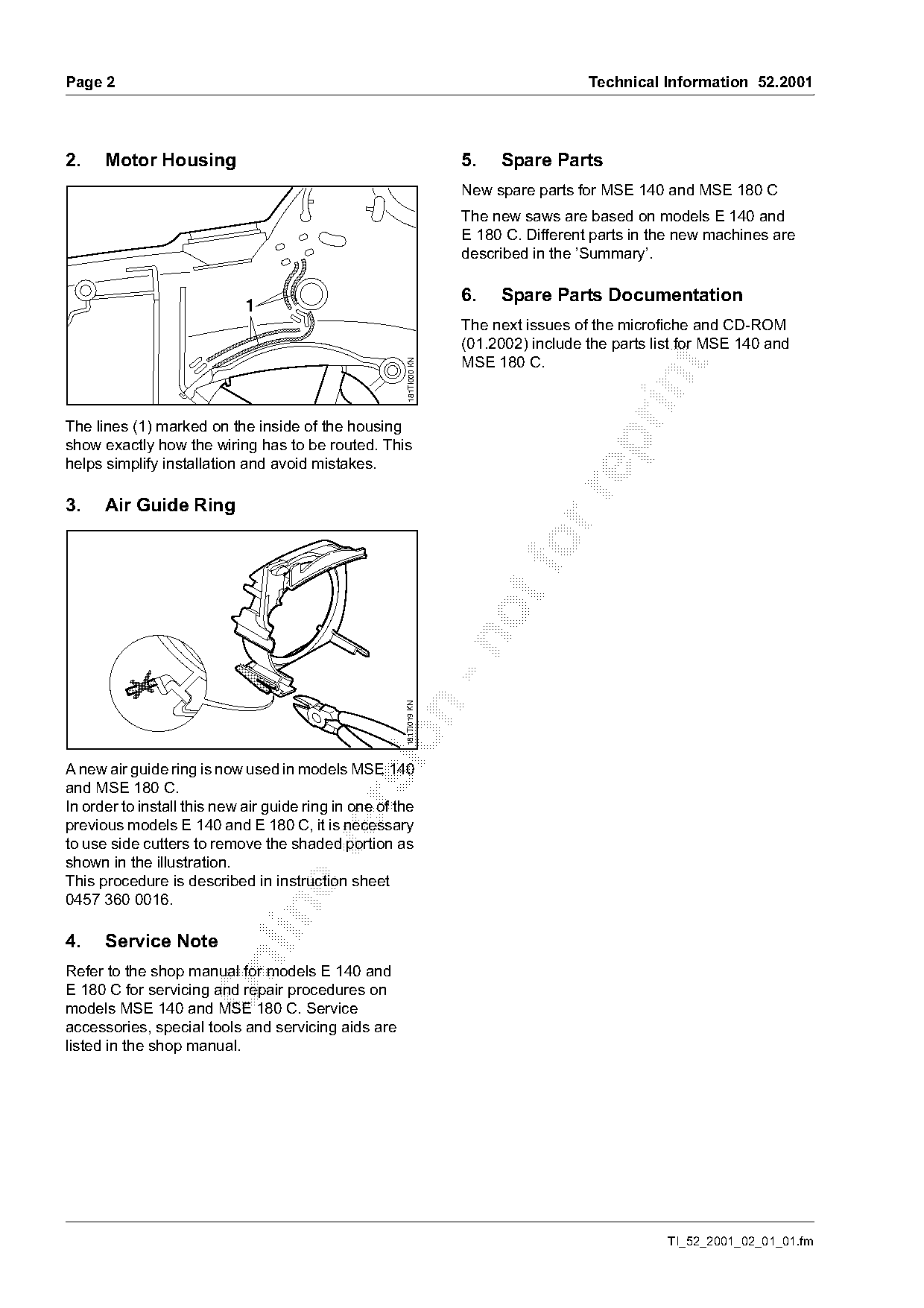

The lines (1) marked on the inside of the housing
show exactly how the wiring has to be routed. This
helps simplify installation and avoid mistakes.
3. Air Guide Ring
181TI019 KN
A new air guide ring is now used in models MSE 140
and MSE 180 C.
In order to install this new air guide ring in one of the
previous models E 140 and E 180 C, it is necessary
to use side cutters to remove the shaded portion as
shown in the illustration.
This procedure is described in instruction sheet
0457 360 0016.
4. Service Note
Refer to the shop manual for models E 140 and
E 180 C for servicing and repair procedures on
models MSE 140 and MSE 180 C. Service
accessories, special tools and servicing aids are
listed in the shop manual.
TI_52_2001_02_01_01.fm Page 2 of 3

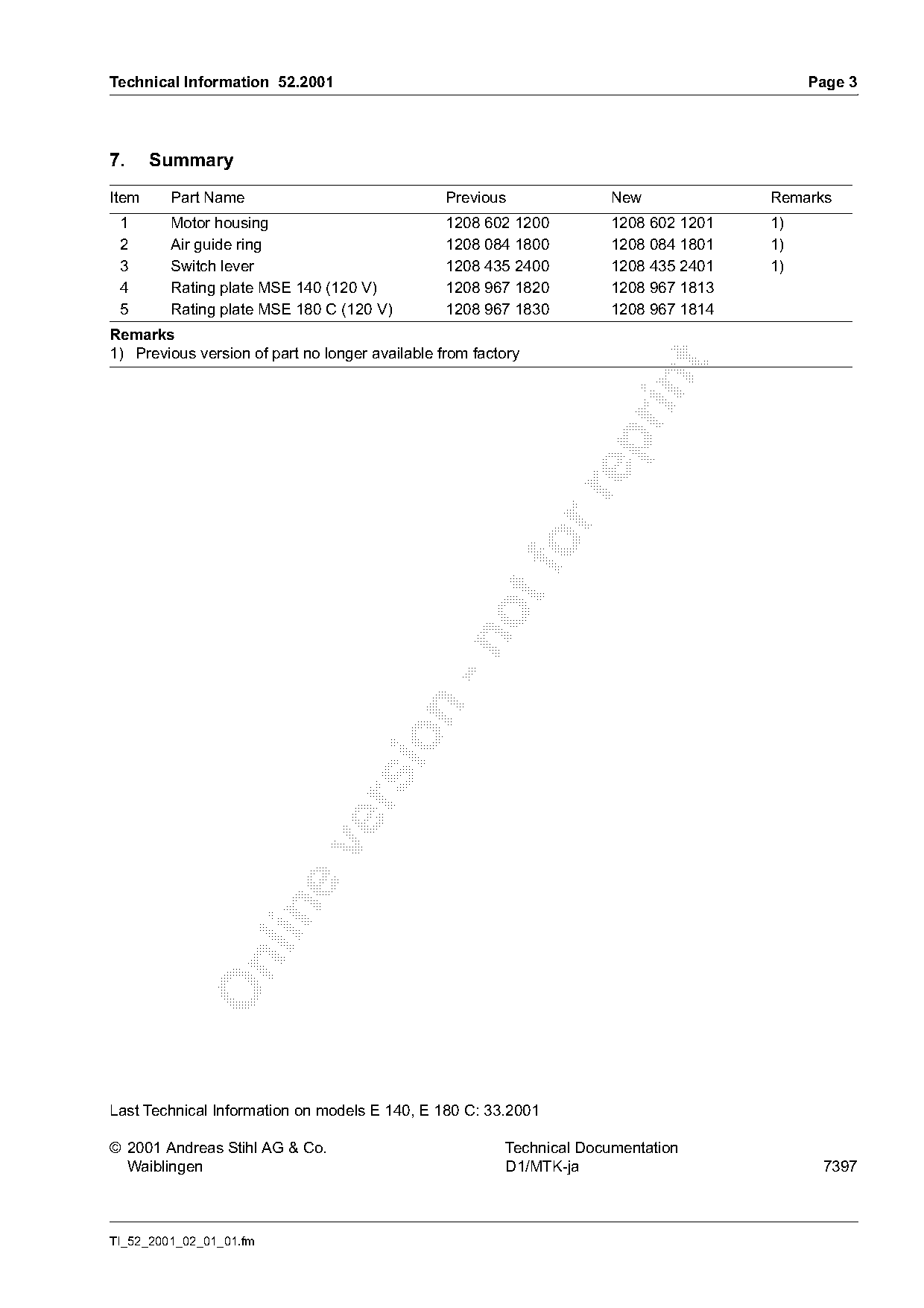

Technical Information 52.2001 Page 3 7. Summary Item Part Name Previous New Remarks 1 Motor housing 1208 602 1200 1208 602 1201 1) 2 Air guide ring 1208 084 1800 1208 084 1801 1) 3 Switch lever 1208 435 2400 1208 435 2401 1) 4 Rating plate MSE 140 (120 V) 1208 967 1820 1208 967 1813 5 Rating plate MSE 180 C (120 V) 1208 967 1830 1208 967 1814 Remarks 1) Previous version of part no longer available from factory Last Technical Information on models E 140, E 180 C: 33.2001 © 2001 Andreas Stihl AG & Co. Technical Documentation Waiblingen D1/MTK-ja 7397 TI_52_2001_02_01_01.fm
Page 3 of 3
