Technical Information · issue 56 of 2001
New Models with Catalytic Converter
IssueTI 56/2001
Full text
Page 1 of 2
Technical Information
56.2001

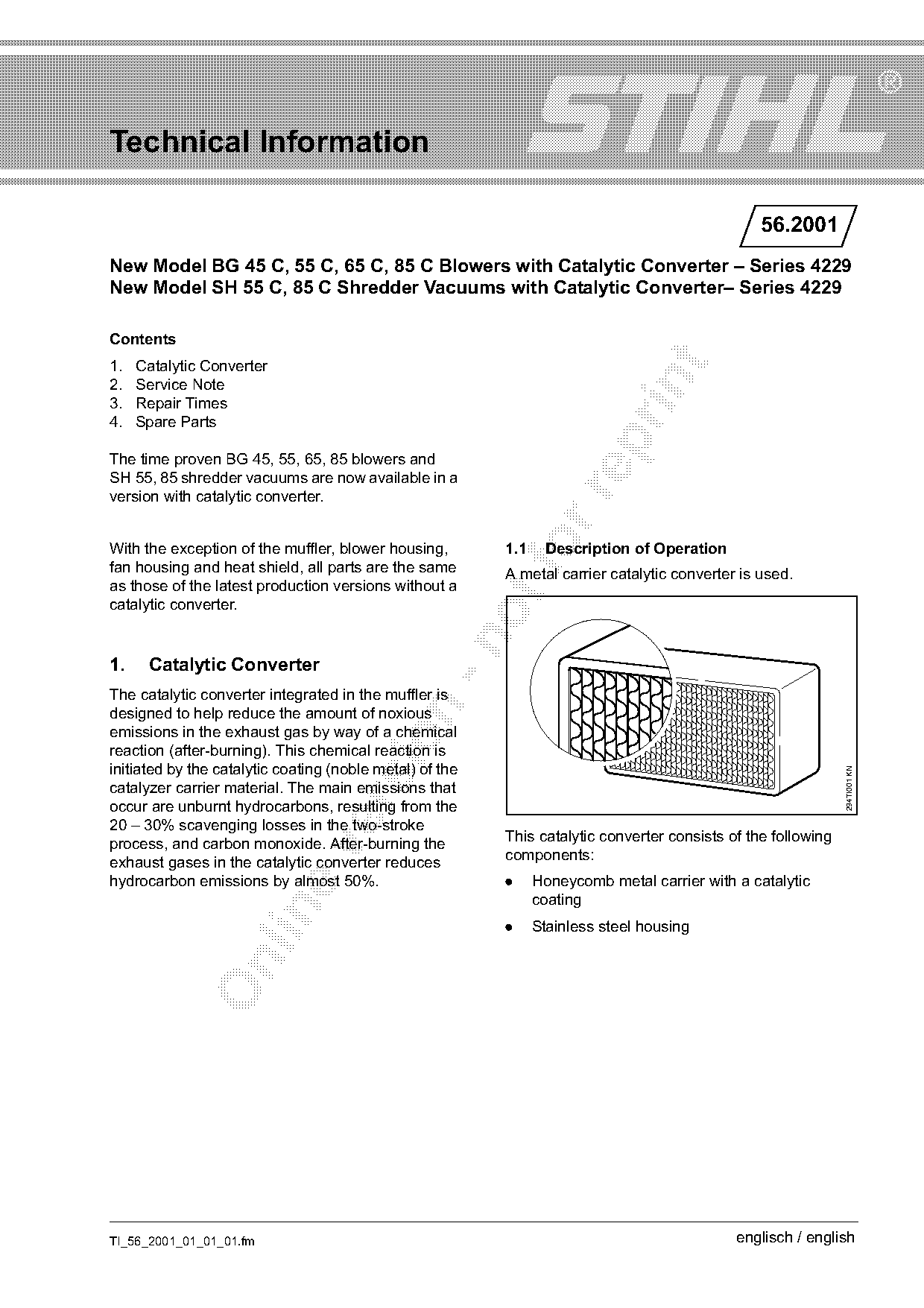

New Model BG 45 C, 55 C, 65 C, 85 C Blowers with Catalytic Converter – Series 4229
New Model SH 55 C, 85 C Shredder Vacuums with Catalytic Converter– Series 4229
Contents
1. Catalytic Converter
2. Service Note
3. Repair Times
4. Spare Parts
The time proven BG 45, 55, 65, 85 blowers and
SH 55, 85 shredder vacuums are now available in a
version with catalytic converter.
With the exception of the muffler, blower housing,
fan housing and heat shield, all parts are the same
1.1 fo Description of Operation
A metal carrier catalytic converter is used.
as those of the latest production versions without a
catalytic converter.
1. Catalytic Converter
The catalytic converter integrated in the muffler is
designed to help reduce the amount of noxious
emissions in the exhaust gas by way of a chemical
reaction (after-burning). This chemical reaction is
initiated by the catalytic coating (noble metal) of the
294TI001 KN
catalyzer carrier material. The main emissions that
occur are unburnt hydrocarbons, resulting from the
20 – 30% scavenging losses in the two-stroke
process, and carbon monoxide. After-burning the This catalytic converter consists of the following
exhaust gases in the catalytic converter reduces components:
hydrocarbon emissions by almost 50%. . Honeycomb metal carrier with a catalytic
coating
. Stainless steel housing
TI_56_2001_01_01_01.fm englisch / english
)m~ge 2 Technical Information 56.2001
Gasoline
Use only brand-name gasoline with a minimum
octane rating of 90. If the local regular gasoline has
an octane rating of less than 90, use premium grade
gasoline. Machines with a catalytic converter must
always be run on a mixture of engine oil and
unleaded gasoline.
Engine Oil
Use only STIHL 50:1 two-stroke engine oil for the
fuel mix in models with a catalytic converter to take
account of the special operating conditions.
STIHL two-stroke engine oil guarantees good
performance and reliability under high thermal
loads. Furthermore, its low-ash combustion helps
reduce the build-up of deposits in the catalytic
converter. This aspect is very important to ensure a
long catalyst service life.
294TI002 KN

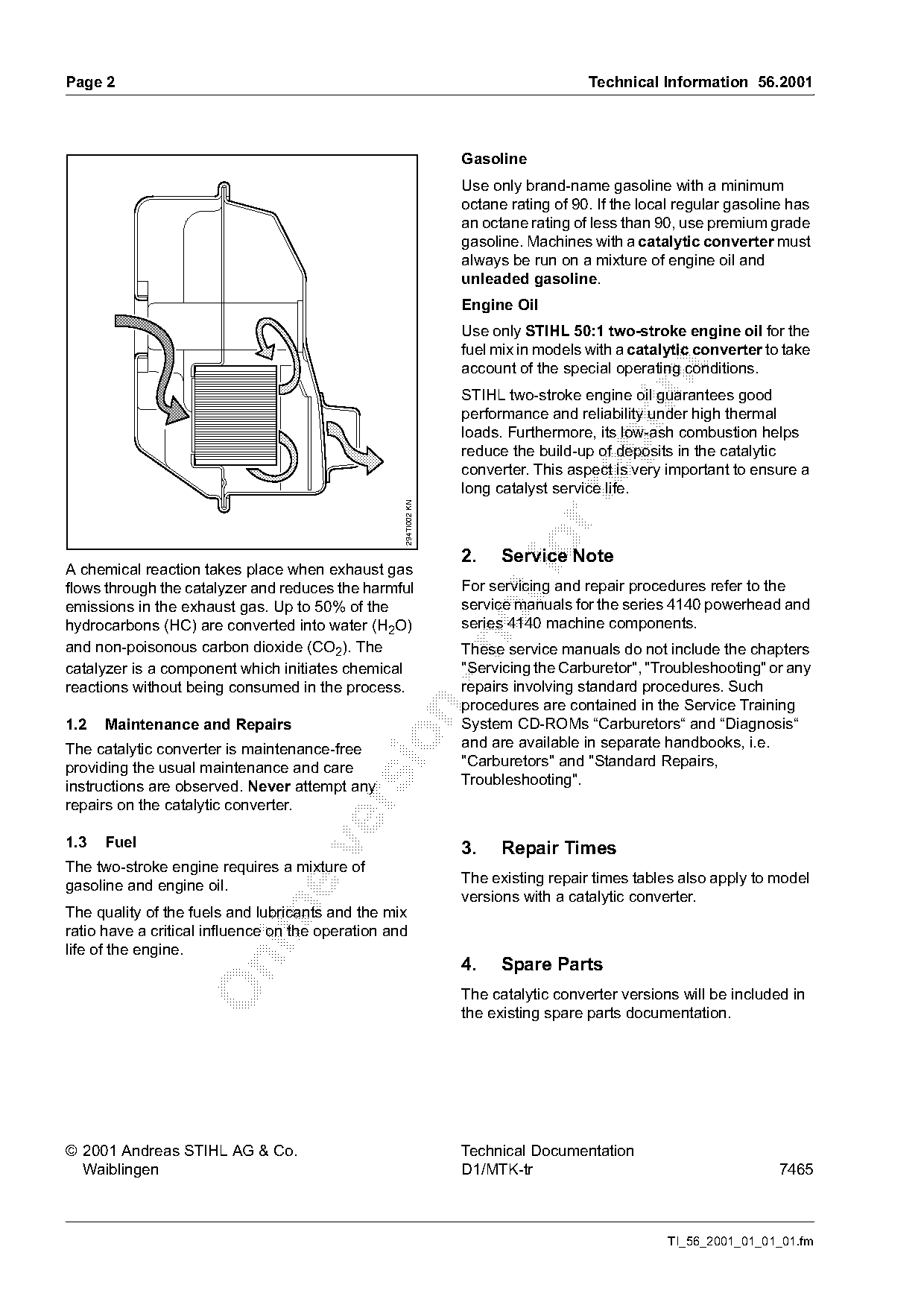

A chemical reaction takes place when exhaust gas
2. fo
Service Note
flows through the catalyzer and reduces the harmful For servicing and repair procedures refer to the
emissions in the exhaust gas. Up to 50% of the service manuals for the series 4140 powerhead and
hydrocarbons (HC) are converted into water (H2O) series 4140 machine components.
and non-poisonous carbon dioxide (CO2). The These service manuals do not include the chapters
catalyzer is a component which initiates chemical "Servicing the Carburetor", "Troubleshooting" or any
reactions without being consumed in the process. repairs involving standard procedures. Such
procedures are contained in the Service Training
1.2 Maintenance and Repairs System CD-ROMs “Carburetors“ and “Diagnosis“
The catalytic converter is maintenance-free and are available in separate handbooks, i.e.
providing the usual maintenance and care "Carburetors" and "Standard Repairs,
instructions are observed. Never attempt any Troubleshooting".
repairs on the catalytic converter.
1.3 Fuel 3. Repair Times
The two-stroke engine requires a mixture of
The existing repair times tables also apply to model
gasoline and engine oil.
versions with a catalytic converter.
The quality of the fuels and lubricants and the mix
ratio have a critical influence on the operation and
life of the engine.
4. Spare Parts
The catalytic converter versions will be included in
the existing spare parts documentation.
© 2001 Andreas STIHL AG & Co. Technical Documentation
Waiblingen D1/MTK-tr 7465
TI_56_2001_01_01_01.fm Page 2 of 2
