New brushcutter model FS 85 RX
IssueTI 3/2002
Full text
Page 1 of 4

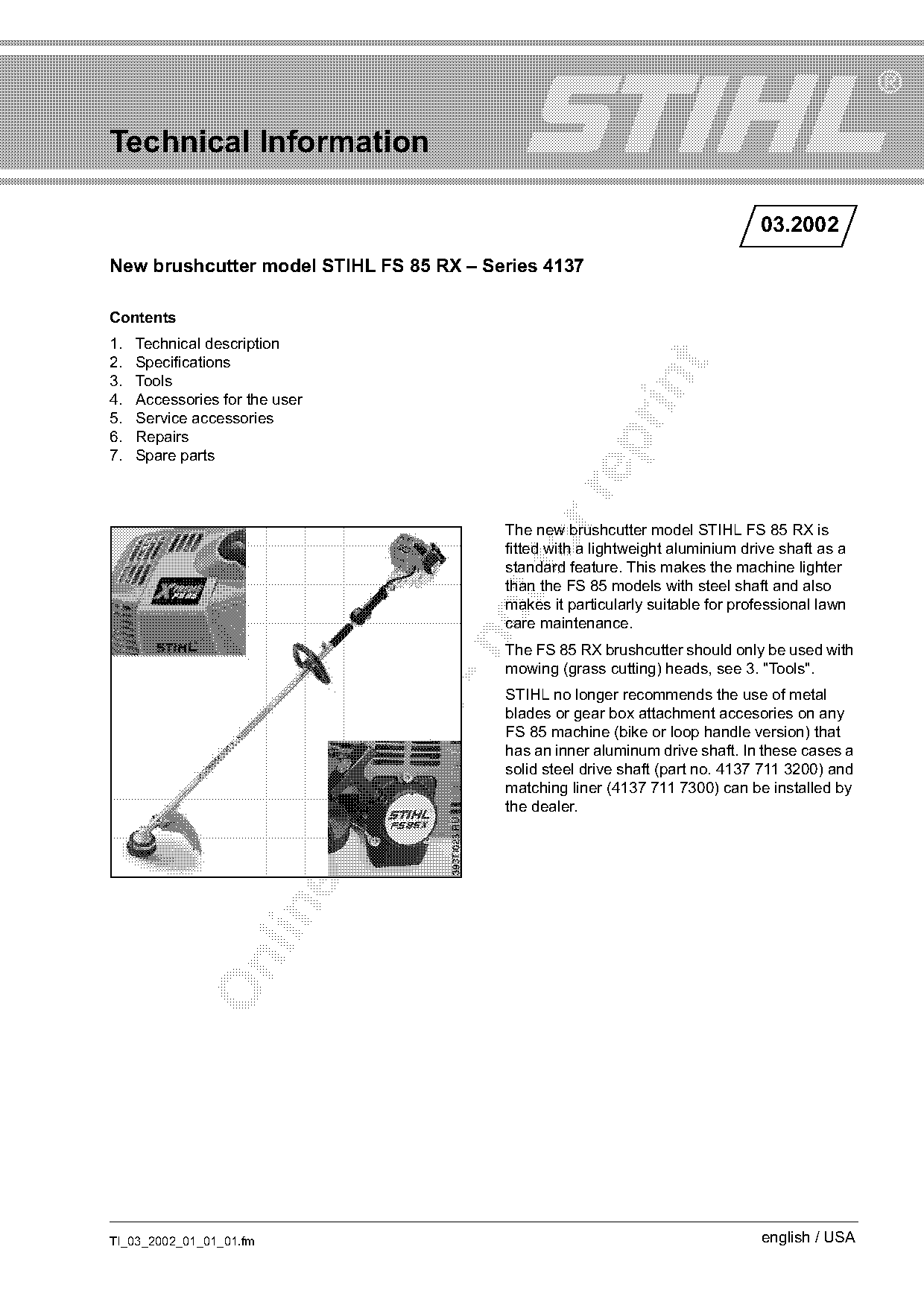

Technical Information
03.2002
New brushcutter model STIHL FS 85 RX – Series 4137
Contents
1. Technical description
2. Specifications
3. Tools
4. Accessories for the user
5. Service accessories
6. Repairs
7. Spare parts
The new brushcutter model STIHL FS 85 RX is
fitted with a lightweight aluminium drive shaft as a
standard feature. This makes the machine lighter
than the FS 85 models with steel shaft and also
makes it particularly suitable for professional lawn
care maintenance.
The FS 85 RX brushcutter should only be used with
mowing (grass cutting) heads, see 3. "Tools".
STIHL no longer recommends the use of metal
blades or gear box attachment accesories on any
FS 85 machine (bike or loop handle version) that
has an inner aluminum drive shaft. In these cases a
solid steel drive shaft (part no. 4137 711 3200) and
matching liner (4137 711 7300) can be installed by
the dealer.
TI_03_2002_01_01_01.fm english / USA

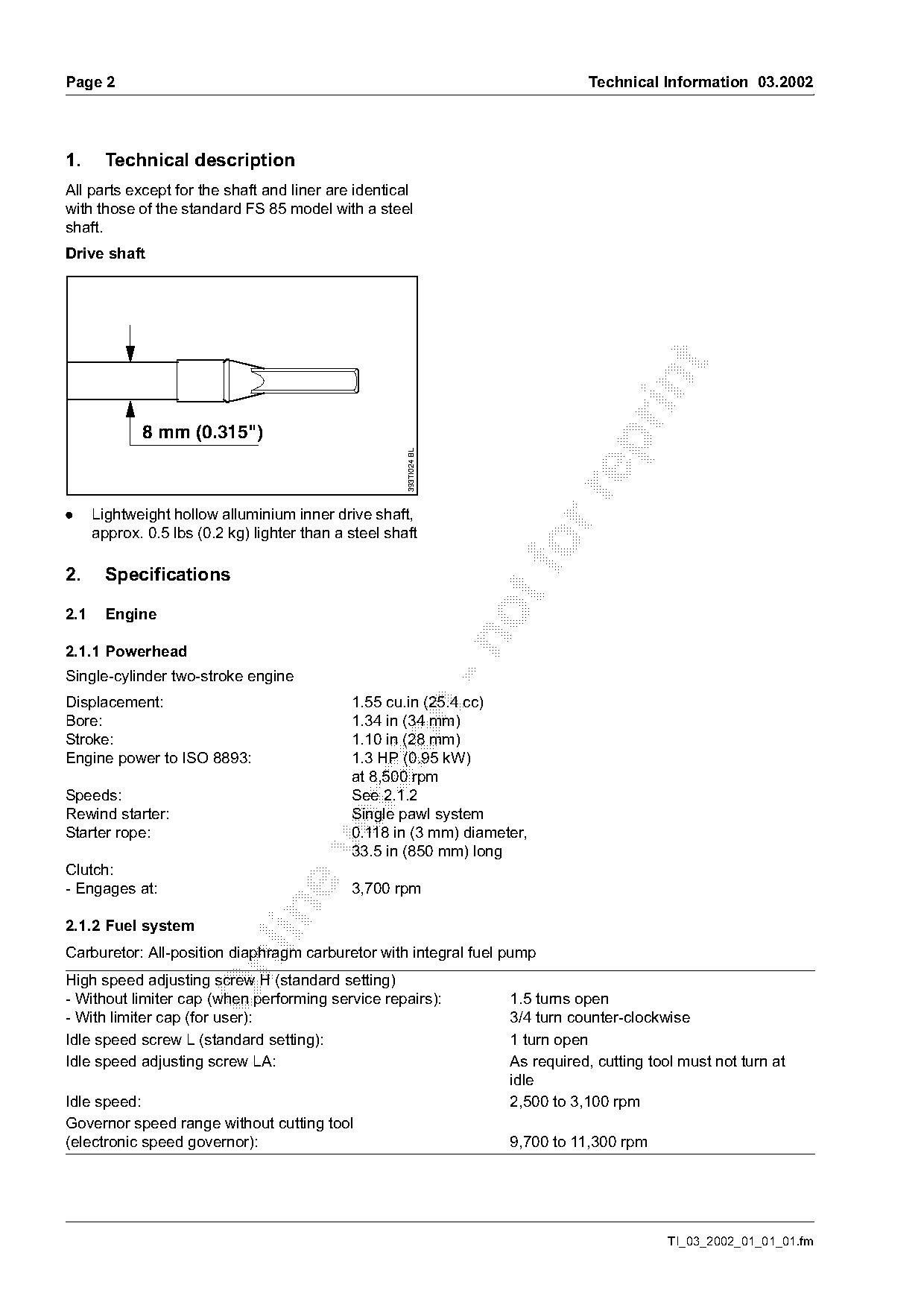

)m~ge 2 Technical Information 03.2002
1. Technical description
All parts except for the shaft and liner are identical
with those of the standard FS 85 model with a steel
shaft.
Drive shaft
8 mm (0.315")
393TI024 BL
. Lightweight hollow alluminium inner drive shaft,
approx. 0.5 lbs (0.2 kg) lighter than a steel shaft
2. Specifications
2.1 Engine
2.1.1 Powerhead
Single-cylinder two-stroke engine
Displacement: 1.55 cu.in (25.4 cc)
Bore: 1.34 in (34 mm)
Stroke: 1.10 in (28 mm)
Engine power to ISO 8893: 1.3 HP (0.95 kW)
at 8,500 rpm
Speeds: See 2.1.2
Rewind starter: Single pawl system
Starter rope: 0.118 in (3 mm) diameter,
33.5 in (850 mm) long
Clutch:
- Engages at: 3,700 rpm
2.1.2 Fuel system
Carburetor: All-position diaphragm carburetor with integral fuel pump
High speed adjusting screw H (standard setting)
- Without limiter cap (when performing service repairs): 1.5 turns open
- With limiter cap (for user): 3/4 turn counter-clockwise
Idle speed screw L (standard setting): 1 turn open
Idle speed adjusting screw LA: As required, cutting tool must not turn at
idle
Idle speed: 2,500 to 3,100 rpm
Governor speed range without cutting tool
(electronic speed governor): 9,700 to 11,300 rpm
TI_03_2002_01_01_01.fm Page 2 of 4

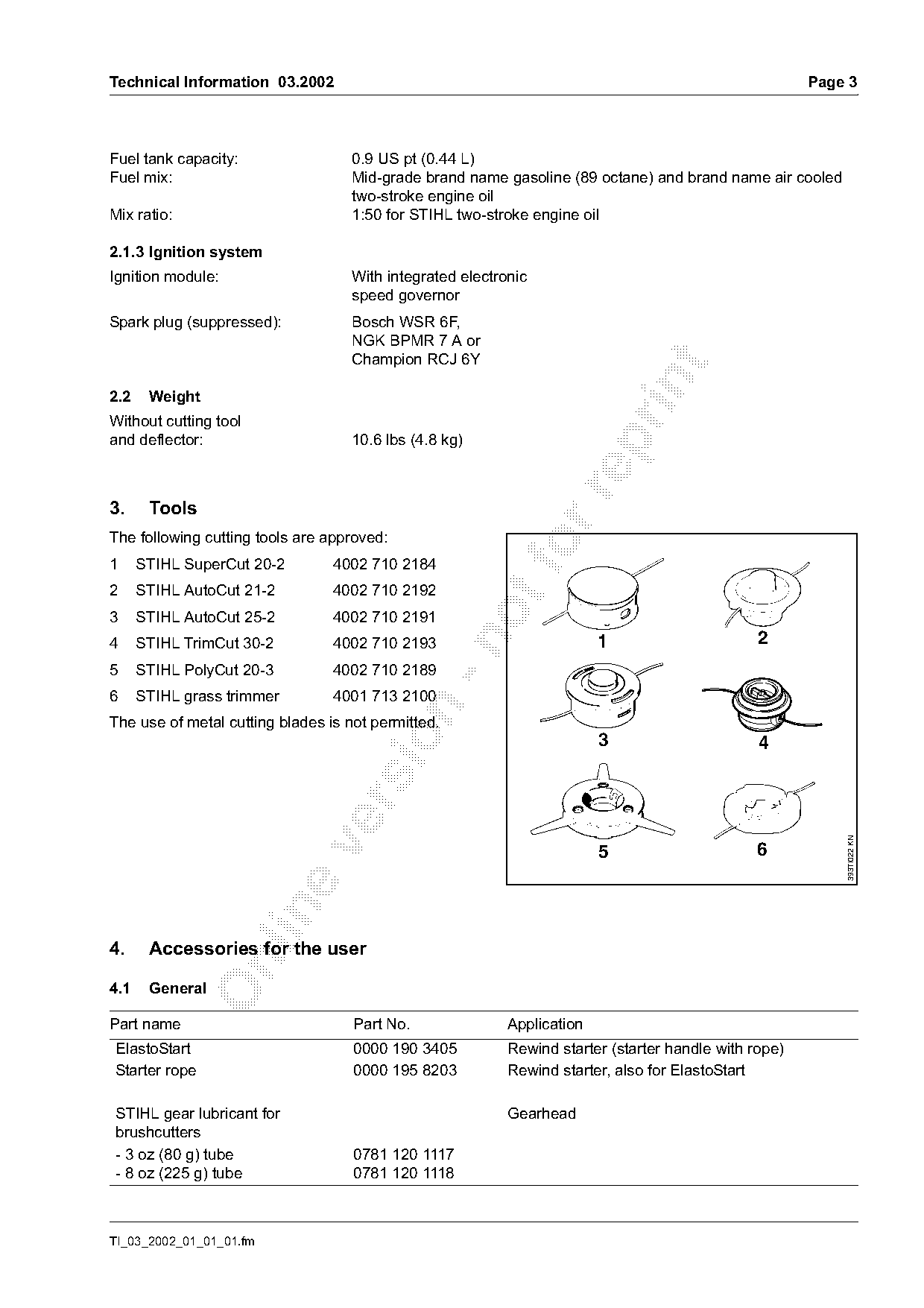

Technical Information 03.2002 Page 3
Fuel tank capacity: 0.9 US pt (0.44 L)
Fuel mix: Mid-grade brand name gasoline (89 octane) and brand name air cooled
two-stroke engine oil
Mix ratio: 1:50 for STIHL two-stroke engine oil
2.1.3 Ignition system
Ignition module: With integrated electronic
speed governor
Spark plug (suppressed): Bosch WSR 6F,
NGK BPMR 7 A or
Champion RCJ 6Y
2.2 Weight
Without cutting tool
and deflector: 10.6 lbs (4.8 kg)
3. Tools
The following cutting tools are approved:
1 STIHL SuperCut 20-2 4002 710 2184
2 STIHL AutoCut 21-2 4002 710 2192
3 STIHL AutoCut 25-2 4002 710 2191
2
4 STIHL TrimCut 30-2 4002 710 2193 1
5 STIHL PolyCut 20-3 4002 710 2189
6 STIHL grass trimmer 4001 713 2100
The use of metal cutting blades is not permitted.
3 4
393TI022 KN
5 6
4. Accessories for the user
4.1 General
Part name Part No. Application
ElastoStart 0000 190 3405 Rewind starter (starter handle with rope)
Starter rope 0000 195 8203 Rewind starter, also for ElastoStart
STIHL gear lubricant for Gearhead
brushcutters
- 3 oz (80 g) tube 0781 120 1117
- 8 oz (225 g) tube 0781 120 1118
TI_03_2002_01_01_01.fm

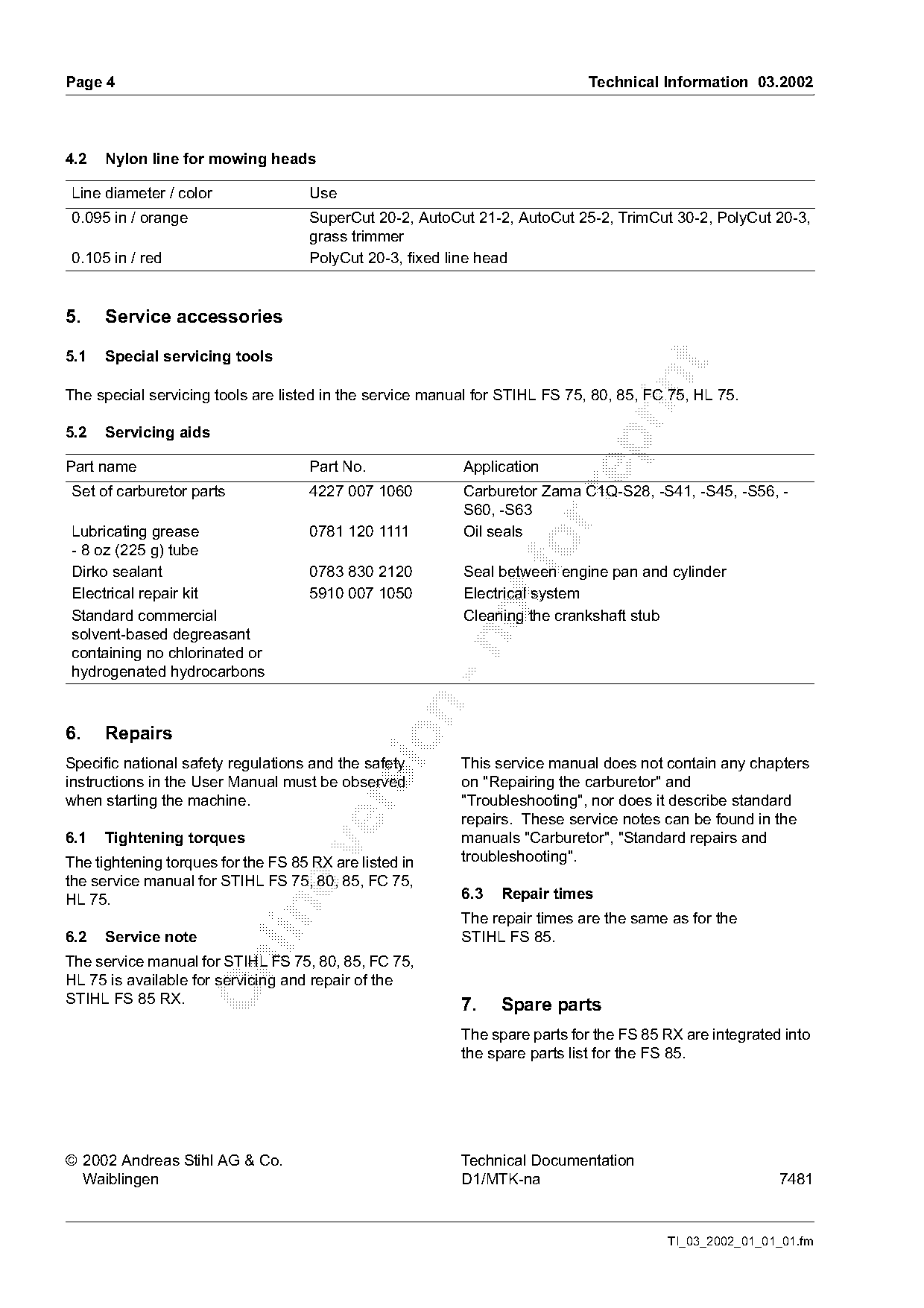

)m~ge 4 Technical Information 03.2002
4.2 Nylon line for mowing heads
Line diameter / color Use
0.095 in / orange SuperCut 20-2, AutoCut 21-2, AutoCut 25-2, TrimCut 30-2, PolyCut 20-3,
grass trimmer
0.105 in / red PolyCut 20-3, fixed line head
5. Service accessories
5.1 Special servicing tools
The special servicing tools are listed in the service manual for STIHL FS 75, 80, 85, FC 75, HL 75.
5.2 Servicing aids
Part name Part No. Application
Set of carburetor parts 4227 007 1060 Carburetor Zama C1Q-S28, -S41, -S45, -S56, -
S60, -S63
Lubricating grease 0781 120 1111 Oil seals
- 8 oz (225 g) tube
Dirko sealant 0783 830 2120
Seal between engine pan and cylinder
Electrical repair kit 5910 007 1050 Electrical system
Standard commercial Cleaning the crankshaft stub
solvent-based degreasant
containing no chlorinated or
hydrogenated hydrocarbons
6. Repairs
Specific national safety regulations and the safety This service manual does not contain any chapters
instructions in the User Manual must be observed on "Repairing the carburetor" and
when starting the machine. "Troubleshooting", nor does it describe standard
repairs. These service notes can be found in the
6.1 Tightening torques manuals "Carburetor", "Standard repairs and
The tightening torques for the FS 85 RX are listed in troubleshooting".
the service manual for STIHL FS 75, 80, 85, FC 75,
HL 75. 6.3 Repair times
The repair times are the same as for the
6.2 Service note STIHL FS 85.
The service manual for STIHL FS 75, 80, 85, FC 75,
HL 75 is available for servicing and repair of the
STIHL FS 85 RX. 7. Spare parts
The spare parts for the FS 85 RX are integrated into
the spare parts list for the FS 85.
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-na 7481
TI_03_2002_01_01_01.fm Page 3 of 4
