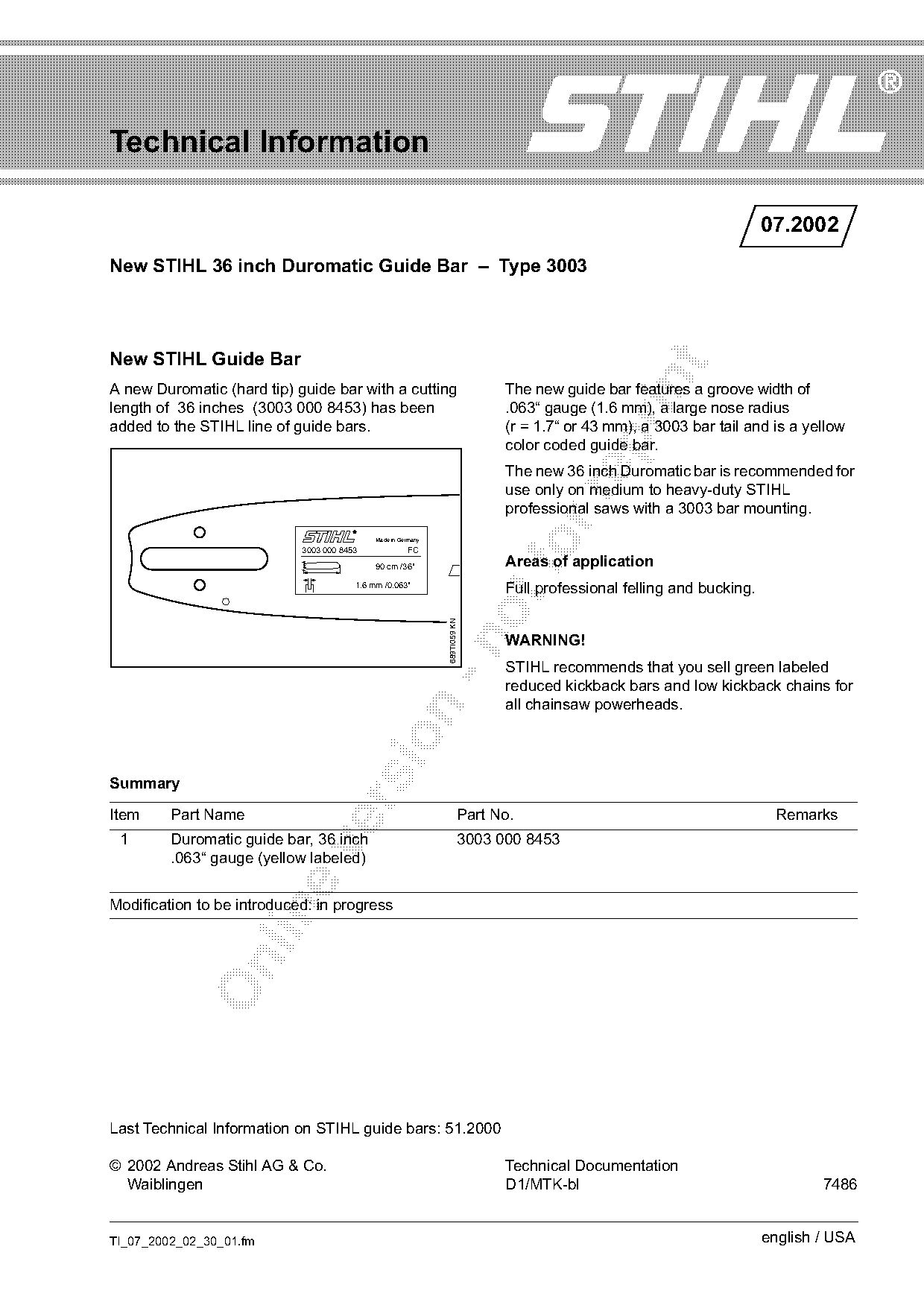

Technical Information
07.2002
New STIHL 36 inch Duromatic Guide Bar – Type 3003
New STIHL Guide Bar
A new Duromatic (hard tip) guide bar with a cutting The new guide bar features a groove width of
length of 36 inches (3003 000 8453) has been .063“ gauge (1.6 mm), a large nose radius
added to the STIHL line of guide bars. (r = 1.7“ or 43 mm), a 3003 bar tail and is a yellow
color coded guide bar.
The new 36 inch Duromatic bar is recommended for
use only on medium to heavy-duty STIHL
professional saws with a 3003 bar mounting.
3003 000 8453
Made in Germany
90 cm /36"
FC fo
Areas of application
1.6 mm /0.063"
Full professional felling and bucking.
689TI059 KN
WARNING!
STIHL recommends that you sell green labeled
reduced kickback bars and low kickback chains for
all chainsaw powerheads.
Summary
Item Part Name Part No. Remarks
1 Duromatic guide bar, 36 inch 3003 000 8453
.063“ gauge (yellow labeled)
Modification to be introduced: in progress
Last Technical Information on STIHL guide bars: 51.2000
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7486
