Technical Information · issue 10 of 2002
Cover Washer; Chain Catcher; Aluminium Handlebar (
Model MS 360 Chainsaws – Series 1125
IssueTI 10/2002
Engine family 1125
Part changes (3)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1128 162 1000 | 1128 162 1001 | Cover Washer The previous cover washer 1128 162 1000 will be The contour of the shoe (see arrows) on clutch replaced by the new version 1128 162 1001 to 1125 160 2005 now has a shoulder to provide the further safeguard the oil pump and clutch. |
| 1125 160 2002 | 1125 160 2005 | 2001, the previous clutch 1125 160 2002 with shoes 1128 162 0800 has been The previous cover washer 1128 162 1000 may be replaced by the clutch version 1125 160 2005 with installed together with the previous and new clutch shoes 1128 162 0806. |
| 1119 656 7705 | 1125 650 7700 | Chain Catcher To further enhance reliability, the previous chain The mounting hole in the new chain catcher is catcher 1119 656 7705 will be replaced by the new countersunk to take the countersunk mounting version 1125 650 7700. |
Full text

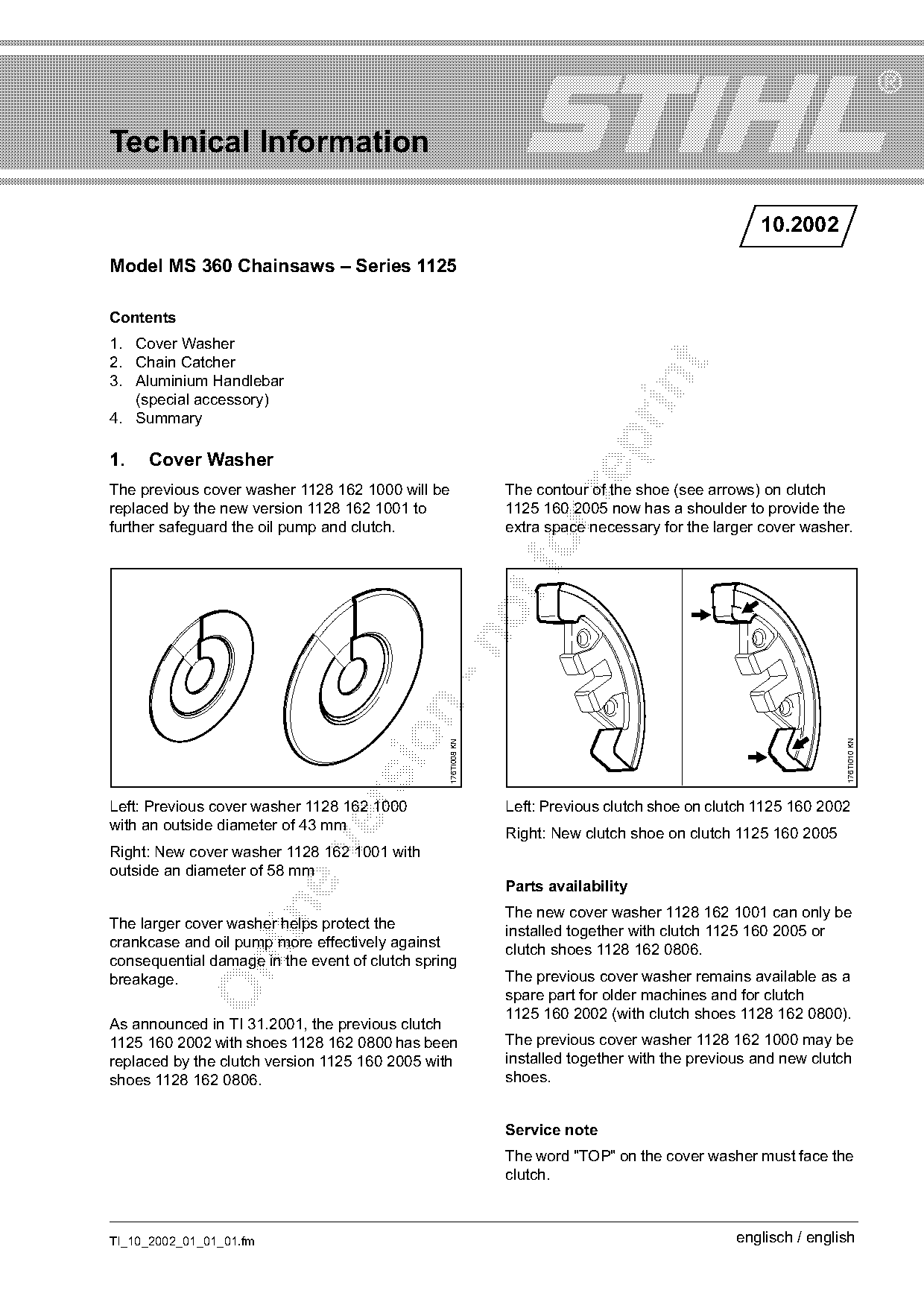

Page 1 of 2
Technical Information
10.2002
Model MS 360 Chainsaws – Series 1125
Contents
1. Cover Washer
2. Chain Catcher
3. Aluminium Handlebar
(special accessory)
4. Summary
1. Cover Washer
The previous cover washer 1128 162 1000 will be The contour of the shoe (see arrows) on clutch
replaced by the new version 1128 162 1001 to 1125 160 2005 now has a shoulder to provide the
further safeguard the oil pump and clutch. extra space necessary for the larger cover washer.
176TI010 KN
176TI008 KN
Left: Previous cover washer 1128 162 1000 Left: Previous clutch shoe on clutch 1125 160 2002
with an outside diameter of 43 mm
Right: New clutch shoe on clutch 1125 160 2005
Right: New cover washer 1128 162 1001 with
outside an diameter of 58 mm
Parts availability
The new cover washer 1128 162 1001 can only be
The larger cover washer helps protect the
installed together with clutch 1125 160 2005 or
crankcase and oil pump more effectively against
clutch shoes 1128 162 0806.
consequential damage in the event of clutch spring
breakage. The previous cover washer remains available as a
spare part for older machines and for clutch
1125 160 2002 (with clutch shoes 1128 162 0800).
As announced in TI 31.2001, the previous clutch
1125 160 2002 with shoes 1128 162 0800 has been The previous cover washer 1128 162 1000 may be
replaced by the clutch version 1125 160 2005 with installed together with the previous and new clutch
shoes 1128 162 0806. shoes.
Service note
The word "TOP" on the cover washer must face the
clutch.
TI_10_2002_01_01_01.fm englisch / english

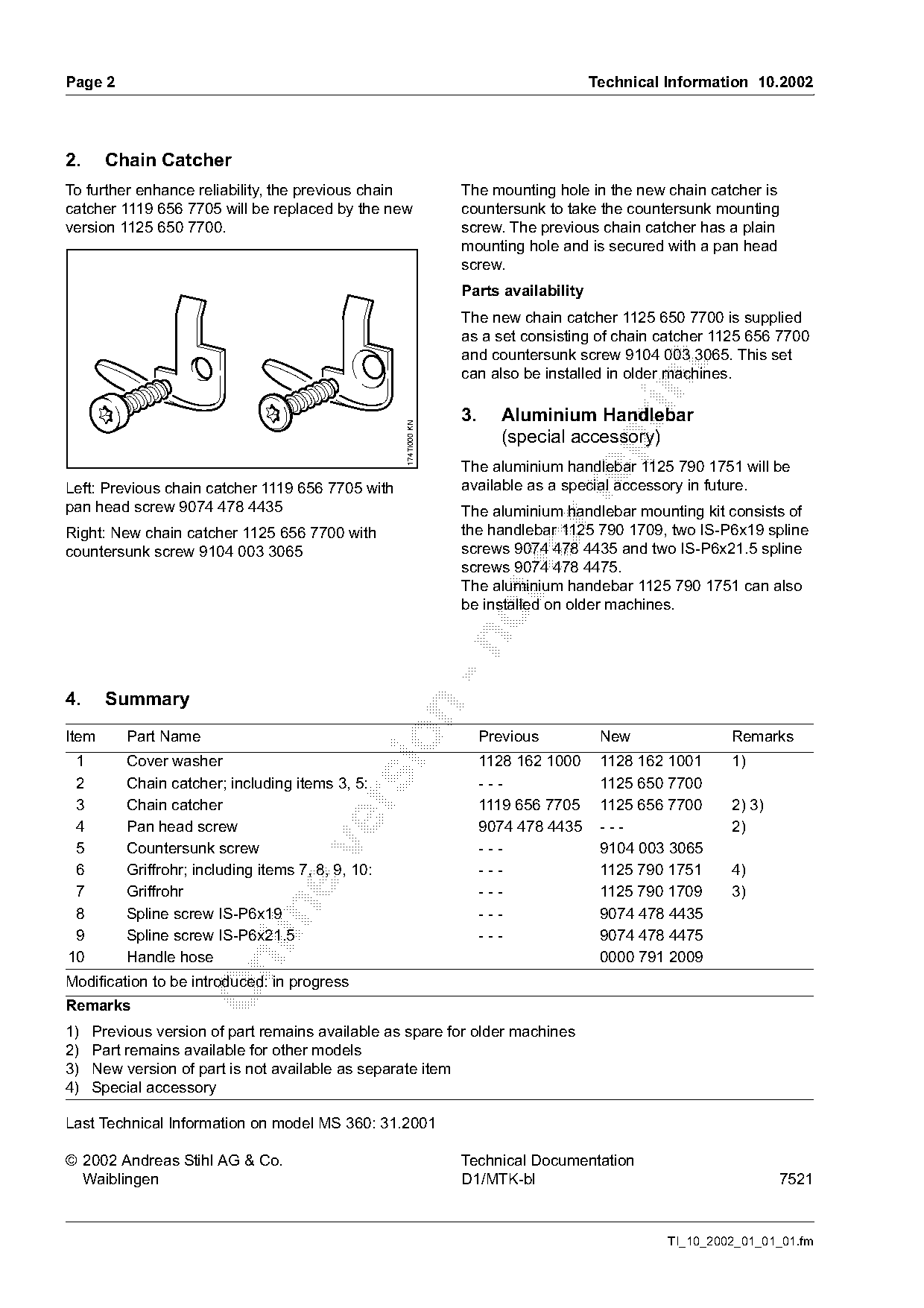

)m~ge 2 Technical Information 10.2002
2. Chain Catcher
To further enhance reliability, the previous chain The mounting hole in the new chain catcher is
catcher 1119 656 7705 will be replaced by the new countersunk to take the countersunk mounting
version 1125 650 7700. screw. The previous chain catcher has a plain
mounting hole and is secured with a pan head
screw.
Parts availability
The new chain catcher 1125 650 7700 is supplied
as a set consisting of chain catcher 1125 656 7700
and countersunk screw 9104 003 3065. This set
can also be installed in older machines.
174TI000 KN
3. Aluminium Handlebar
(special accessory)
The aluminium handlebar 1125 790 1751 will be
Left: Previous chain catcher 1119 656 7705 with available as a special accessory in future.
pan head screw 9074 478 4435 The aluminium handlebar mounting kit consists of
Right: New chain catcher 1125 656 7700 with the handlebar 1125 790 1709, two IS-P6x19 spline
countersunk screw 9104 003 3065 fo
screws 9074 478 4435 and two IS-P6x21.5 spline
screws 9074 478 4475.
The aluminium handebar 1125 790 1751 can also
be installed on older machines.
4. Summary
Item Part Name Previous New Remarks
1 Cover washer 1128 162 1000 1128 162 1001 1)
2 Chain catcher; including items 3, 5: --- 1125 650 7700
3 Chain catcher 1119 656 7705 1125 656 7700 2) 3)
4 Pan head screw 9074 478 4435 --- 2)
5 Countersunk screw --- 9104 003 3065
6 Griffrohr; including items 7, 8, 9, 10: --- 1125 790 1751 4)
7 Griffrohr --- 1125 790 1709 3)
8 Spline screw IS-P6x19 --- 9074 478 4435
9 Spline screw IS-P6x21.5 --- 9074 478 4475
10 Handle hose 0000 791 2009
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available as spare for older machines
2) Part remains available for other models
3) New version of part is not available as separate item
4) Special accessory
Last Technical Information on model MS 360: 31.2001
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7521
TI_10_2002_01_01_01.fm Page 2 of 2
