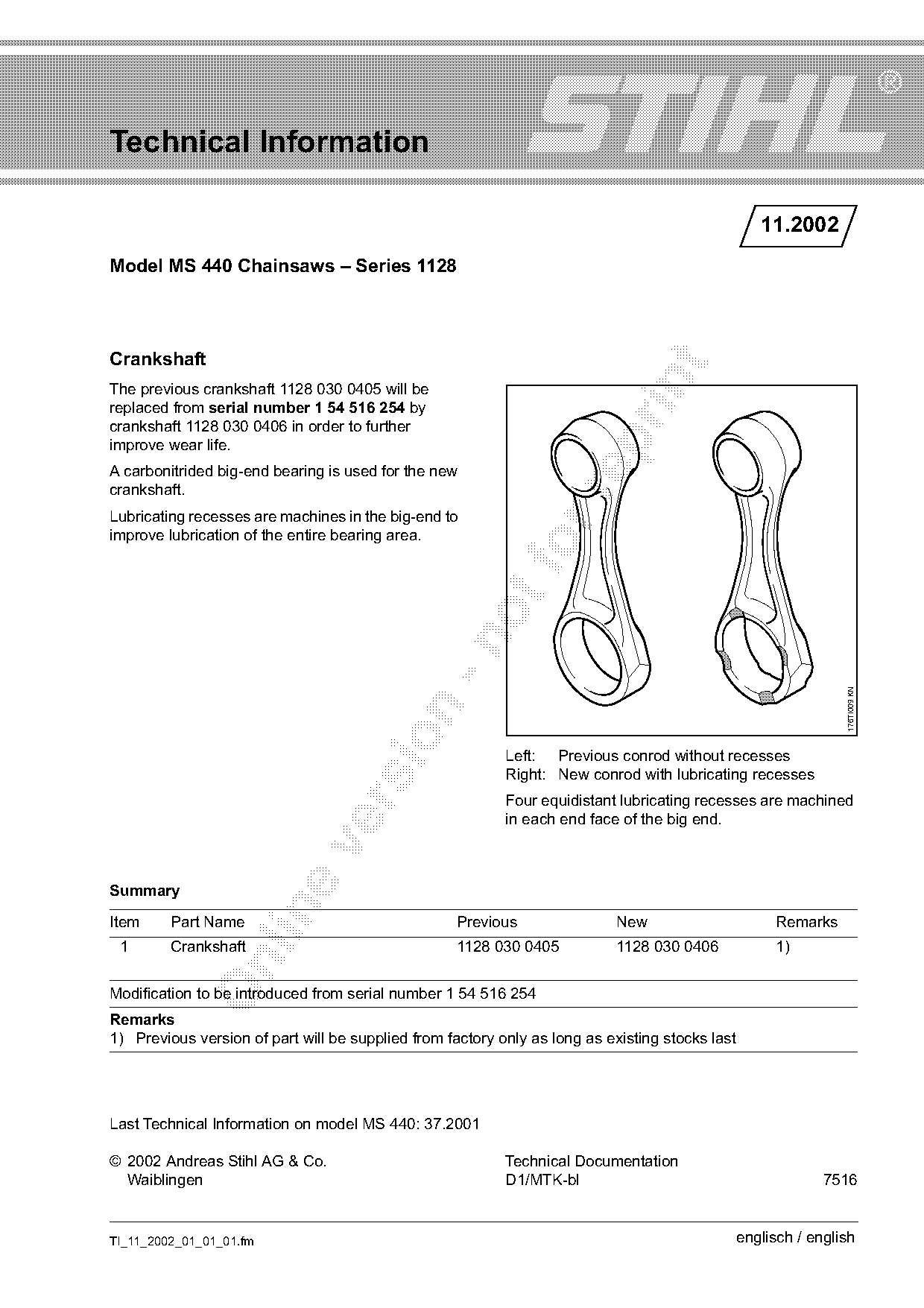

Technical Information
11.2002
Model MS 440 Chainsaws – Series 1128
Crankshaft
The previous crankshaft 1128 030 0405 will be
replaced from serial number 1 54 516 254 by
crankshaft 1128 030 0406 in order to further
improve wear life.
A carbonitrided big-end bearing is used for the new
crankshaft.
Lubricating recesses are machines in the big-end to
improve lubrication of the entire bearing area.
176TI009 KN
Left: Previous conrod without recesses
Right: New conrod with lubricating recesses
Four equidistant lubricating recesses are machined
in each end face of the big end.
Summary
Item Part Name Previous New Remarks
1 Crankshaft 1128 030 0405 1128 030 0406 1)
Modification to be introduced from serial number 1 54 516 254
Remarks
1) Previous version of part will be supplied from factory only as long as existing stocks last
Last Technical Information on model MS 440: 37.2001
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7516
