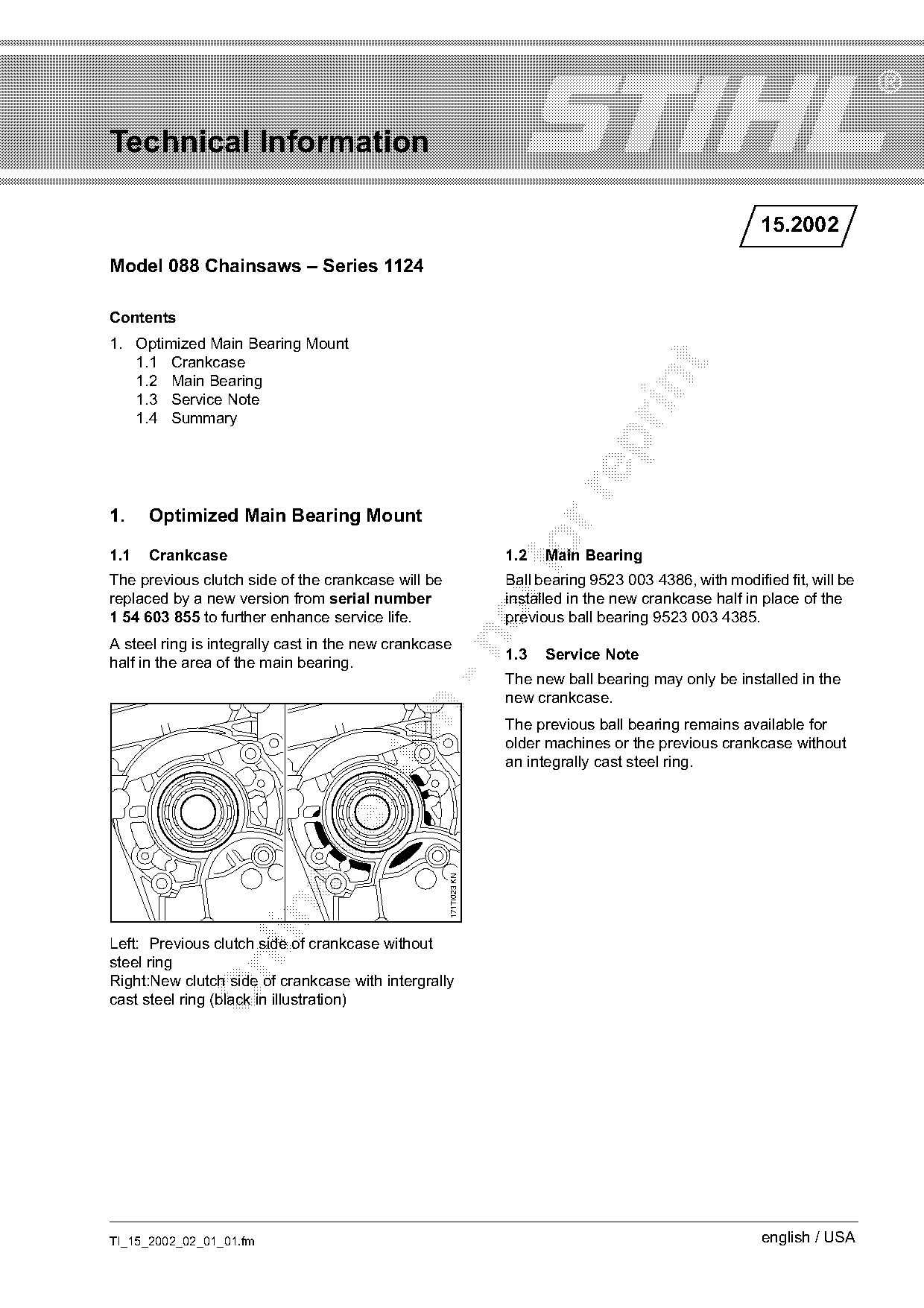

Technical Information
15.2002
Model 088 Chainsaws – Series 1124
Contents
1. Optimized Main Bearing Mount
1.1 Crankcase
1.2 Main Bearing
1.3 Service Note
1.4 Summary
1. Optimized Main Bearing Mount
1.1 Crankcase fo
1.2 Main Bearing
The previous clutch side of the crankcase will be Ball bearing 9523 003 4386, with modified fit, will be
replaced by a new version from serial number installed in the new crankcase half in place of the
1 54 603 855 to further enhance service life. previous ball bearing 9523 003 4385.
A steel ring is integrally cast in the new crankcase
1.3 Service Note
half in the area of the main bearing.
The new ball bearing may only be installed in the
new crankcase.
The previous ball bearing remains available for
older machines or the previous crankcase without
an integrally cast steel ring.
171TI023 KN
Left: Previous clutch side of crankcase without
steel ring
Right:New clutch side of crankcase with intergrally
cast steel ring (black in illustration)
