Technical Information · issue 18 of 2002
Fan Housing; Inner Blower Housing; Carburetor; Heat Reflecting Foil on Machines with Catalytic Converter; Summary
Model BG/SH 45, 55, 65, 85 Blowers and Shredder Vacs – Series 4229
IssueTI 18/2002
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4229 120 0603 | 4229 120 0606 | 2 New carburetor, BG 55 - 85, SH 55, 85 3 The previous carburetor 4229 120 0603 will be replaced by carburetor 4229 120 0606. |
| 4203 350 5801 | 0000 350 5800 | 294TI016 KN The previous tank vent 4203 350 5801 has been deleted and replaced by tank vent 0000 350 5800. |
Full text

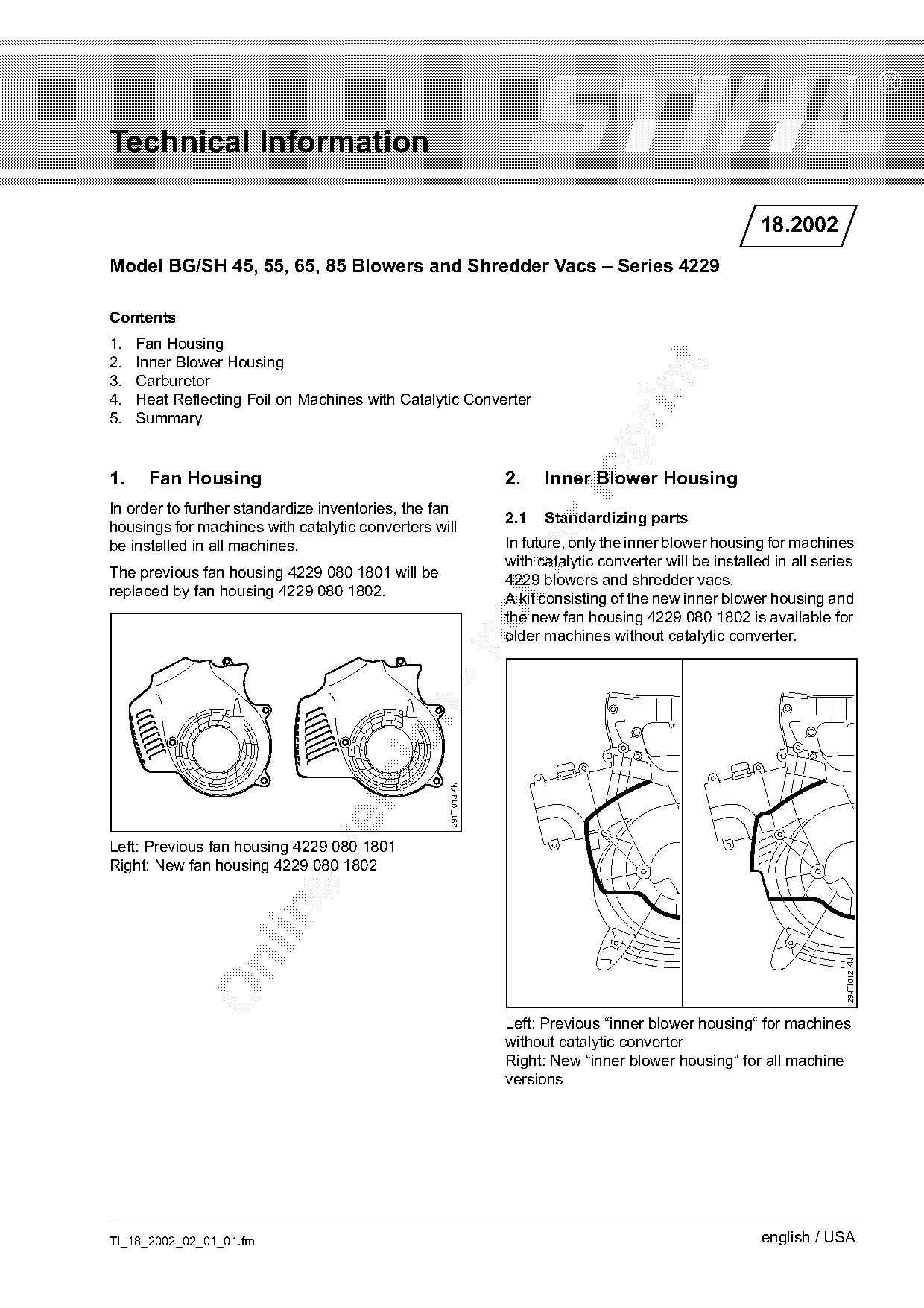

Page 1 of 4
Technical Information
18.2002
Model BG/SH 45, 55, 65, 85 Blowers and Shredder Vacs – Series 4229
Contents
1. Fan Housing
2. Inner Blower Housing
3. Carburetor
4. Heat Reflecting Foil on Machines with Catalytic Converter
5. Summary
1. Fan Housing 2. Inner Blower Housing
In order to further standardize inventories, the fan
2.1 Standardizing parts
housings for machines with catalytic converters will
be installed in all machines. In future, only the inner blower housing for machines
with catalytic converter will be installed in all series
The previous fan housing 4229 080 1801 will be
4229 blowers and shredder vacs.
replaced by fan housing 4229 080 1802.
A kit consisting of the new inner blower housing and
the new fan housing 4229 080 1802 is available for
older machines without catalytic converter.
294TI013 KN
Left: Previous fan housing 4229 080 1801
Right: New fan housing 4229 080 1802
294TI012 KN
Left: Previous “inner blower housing“ for machines
without catalytic converter
Right: New “inner blower housing“ for all machine
versions
TI_18_2002_02_01_01.fm english / USA

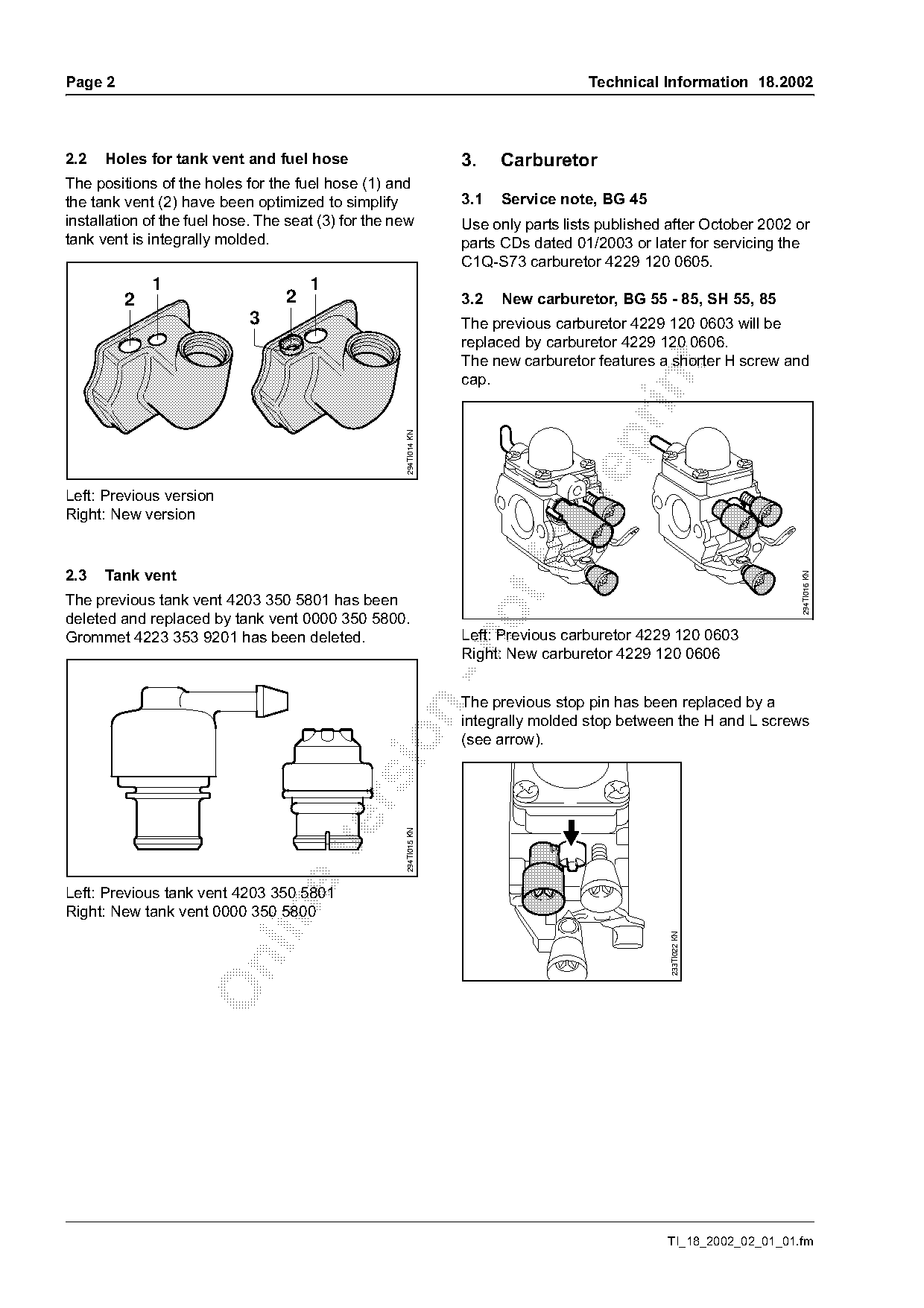

)m~ge 2 Technical Information 18.2002
2.2 Holes for tank vent and fuel hose 3. Carburetor
The positions of the holes for the fuel hose (1) and
the tank vent (2) have been optimized to simplify 3.1 Service note, BG 45
installation of the fuel hose. The seat (3) for the new Use only parts lists published after October 2002 or
tank vent is integrally molded. parts CDs dated 01/2003 or later for servicing the
C1Q-S73 carburetor 4229 120 0605.
1 1
2 2 3.2 New carburetor, BG 55 - 85, SH 55, 85
3 The previous carburetor 4229 120 0603 will be
replaced by carburetor 4229 120 0606.
The new carburetor features a shorter H screw and
cap.
294TI014 KN
Left: Previous version
Right: New version
2.3 Tank vent
294TI016 KN
The previous tank vent 4203 350 5801 has been
deleted and replaced by tank vent 0000 350 5800.
Grommet 4223 353 9201 has been deleted. Left: Previous carburetor 4229 120 0603
Right: New carburetor 4229 120 0606
The previous stop pin has been replaced by a
integrally molded stop between the H and L screws
(see arrow).
294TI015 KN
Left: Previous tank vent 4203 350 5801
Right: New tank vent 0000 350 5800
233TI022 KN
TI_18_2002_02_01_01.fm Page 2 of 4

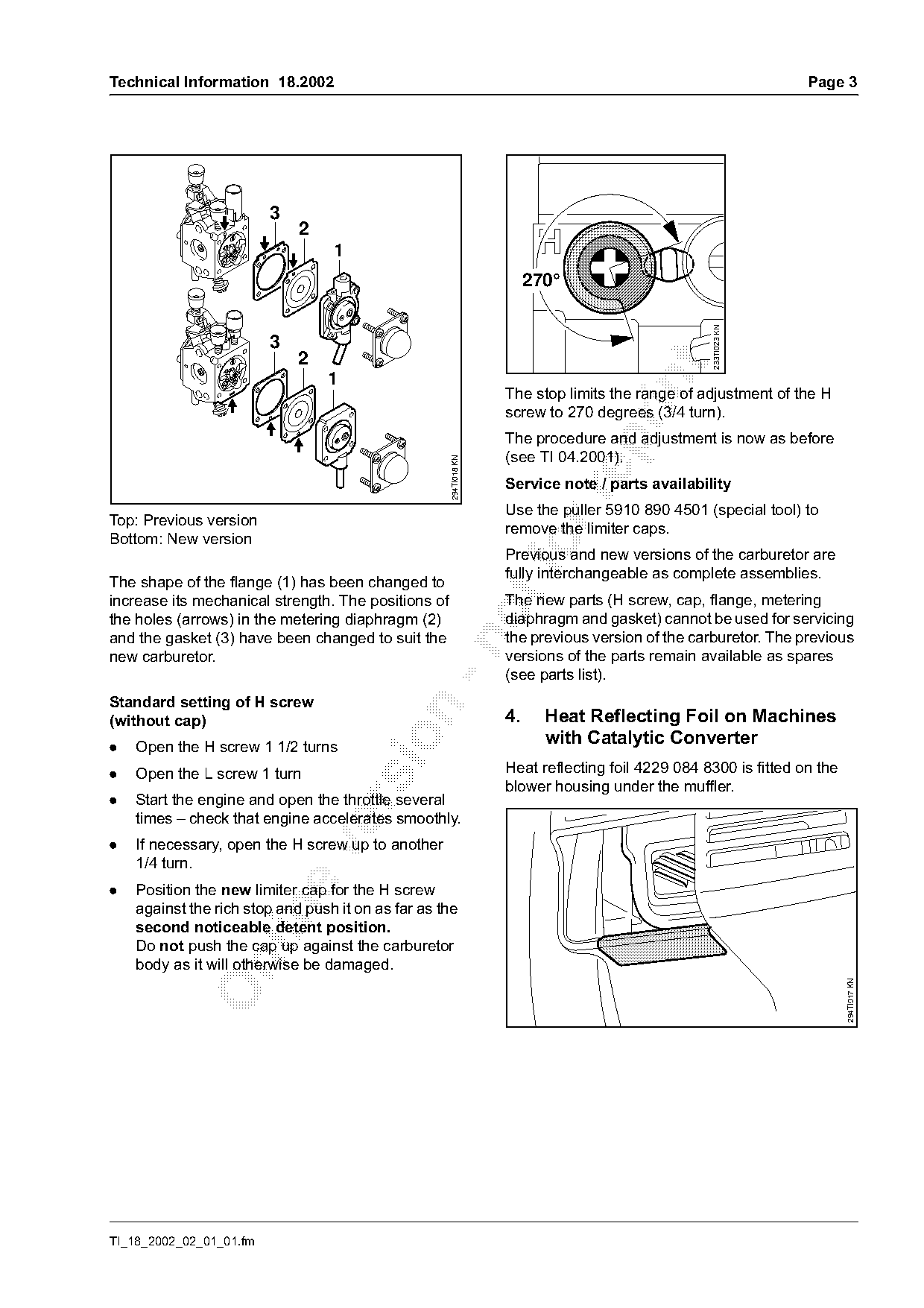

Technical Information 18.2002 Page 3
3
2
1
270°
233TI023 KN
3
2
The stop limits the range of adjustment of the H
screw to 270 degrees (3/4 turn).
The procedure and adjustment is now as before
294TI018 KN
(see TI 04.2001).
Service note / parts availability
Use the puller 5910 890 4501 (special tool) to
Top: Previous version
remove the limiter caps.
Bottom: New version
Previous and new versions of the carburetor are
fully interchangeable as complete assemblies.
The shape of the flange (1) has been changed to
increase its mechanical strength. The positions of The new parts (H screw, cap, flange, metering
the holes (arrows) in the metering diaphragm (2) diaphragm and gasket) cannot be used for servicing
and the gasket (3) have been changed to suit the the previous version of the carburetor. The previous
new carburetor. versions of the parts remain available as spares
(see parts list).
Standard setting of H screw
(without cap) 4. Heat Reflecting Foil on Machines
with Catalytic Converter
. Open the H screw 1 1/2 turns
. Open the L screw 1 turn Heat reflecting foil 4229 084 8300 is fitted on the
blower housing under the muffler.
. Start the engine and open the throttle several
times – check that engine accelerates smoothly.
. If necessary, open the H screw up to another
1/4 turn.
. Position the new limiter cap for the H screw
against the rich stop and push it on as far as the
second noticeable detent position.
Do not push the cap up against the carburetor
body as it will otherwise be damaged.
294TI017 KN
TI_18_2002_02_01_01.fm

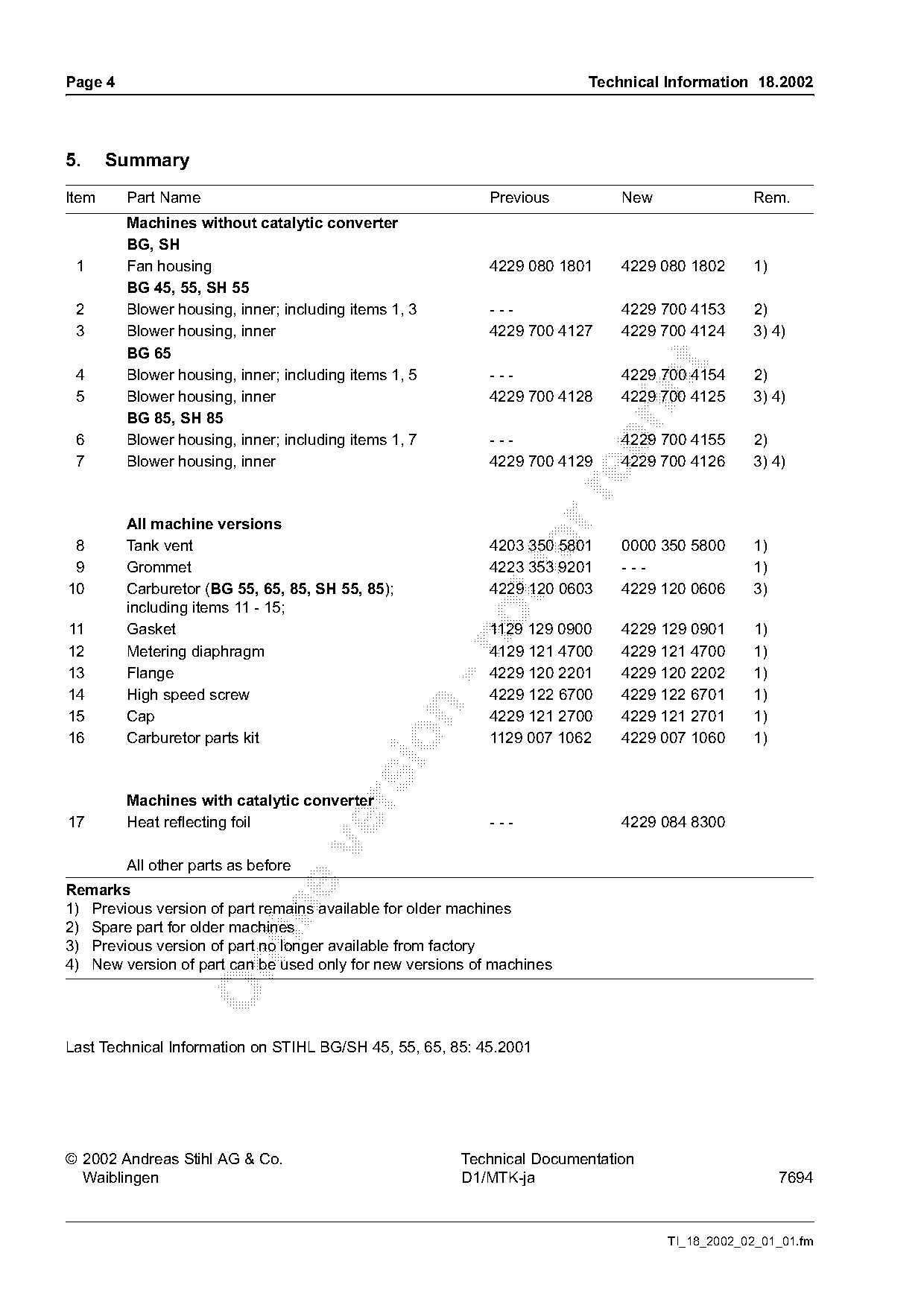

)m~ge 4 Technical Information 18.2002
5. Summary
Item Part Name Previous New Rem.
Machines without catalytic converter
BG, SH
1 Fan housing 4229 080 1801 4229 080 1802 1)
BG 45, 55, SH 55
2 Blower housing, inner; including items 1, 3 --- 4229 700 4153 2)
3 Blower housing, inner 4229 700 4127 4229 700 4124 3) 4)
BG 65
4 Blower housing, inner; including items 1, 5 --- 4229 700 4154 2)
5 Blower housing, inner 4229 700 4128 4229 700 4125 3) 4)
BG 85, SH 85
6 Blower housing, inner; including items 1, 7 --- 4229 700 4155 2)
7 Blower housing, inner 4229 700 4129 4229 700 4126 3) 4)
All machine versions
8
9
Tank vent
Grommet
4203 350 5801
4223 353 9201
0000 350 5800
---
1)
1)
10 Carburetor (BG 55, 65, 85, SH 55, 85); 4229 120 0603 4229 120 0606 3)
including items 11 - 15;
11 Gasket 1129 129 0900 4229 129 0901 1)
12 Metering diaphragm 4129 121 4700 4229 121 4700 1)
13 Flange 4229 120 2201 4229 120 2202 1)
14 High speed screw 4229 122 6700 4229 122 6701 1)
15 Cap 4229 121 2700 4229 121 2701 1)
16 Carburetor parts kit 1129 007 1062 4229 007 1060 1)
Machines with catalytic converter
17 Heat reflecting foil --- 4229 084 8300
All other parts as before
Remarks
1) Previous version of part remains available for older machines
2) Spare part for older machines
3) Previous version of part no longer available from factory
4) New version of part can be used only for new versions of machines
Last Technical Information on STIHL BG/SH 45, 55, 65, 85: 45.2001
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-ja 7694
TI_18_2002_02_01_01.fm Page 3 of 4
