Technical Information · issue 19 of 2002
Gear Housing; HS 85: Control Handle and Throttle Cable; Rewind Starter; Company Logo/Nameplate; Summary
Model HS 75, 80, 85 Hedge Trimmers – Series 4226
IssueTI 19/2002
Full text
Page 1 of 3

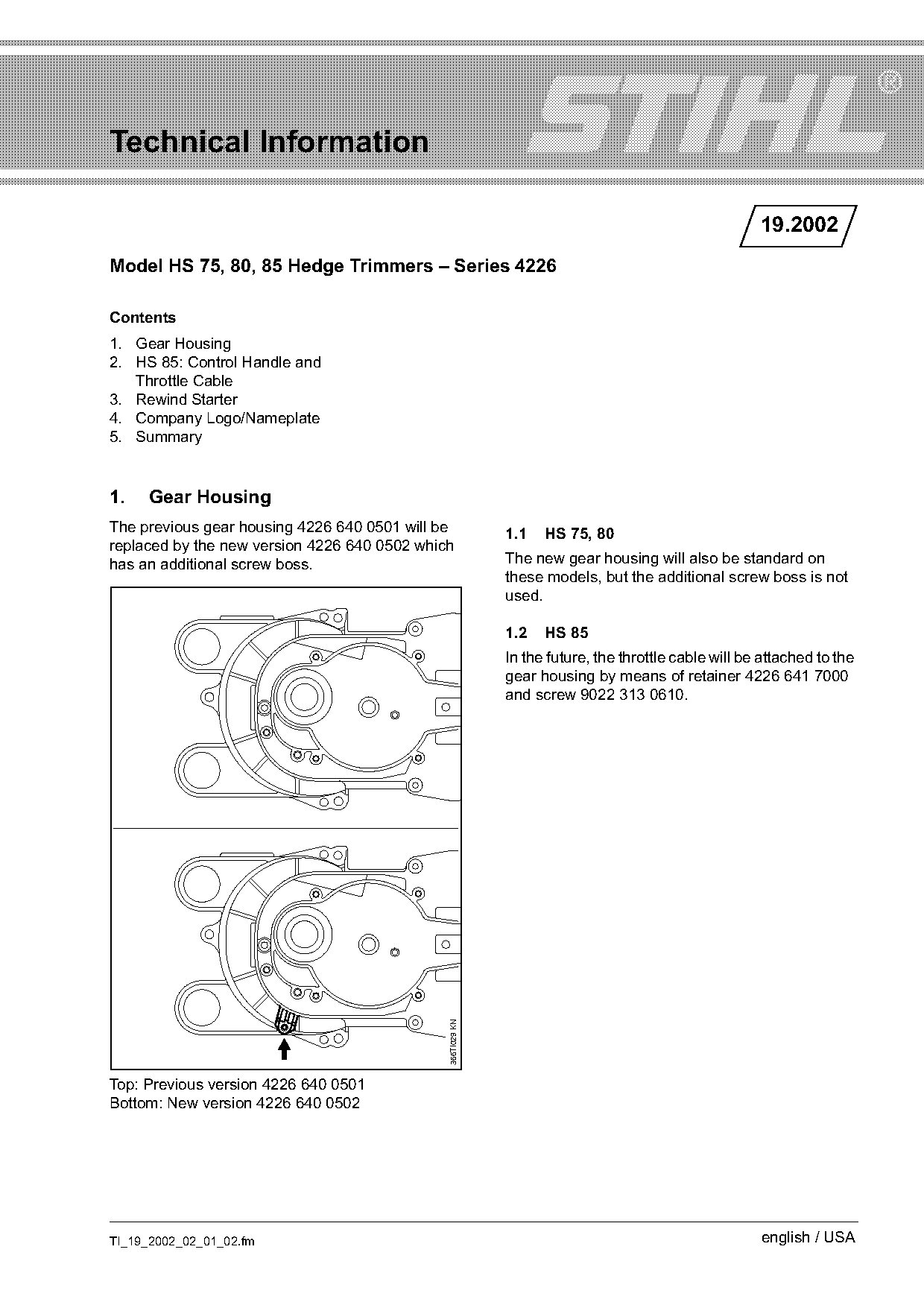

Technical Information
19.2002
Model HS 75, 80, 85 Hedge Trimmers – Series 4226
Contents
1. Gear Housing
2. HS 85: Control Handle and
Throttle Cable
3. Rewind Starter
4. Company Logo/Nameplate
5. Summary
1. Gear Housing
The previous gear housing 4226 640 0501 will be 1.1 HS 75, 80
replaced by the new version 4226 640 0502 which
has an additional screw boss. The new gear housing will also be standard on
these models, but the additional screw boss is not
used.
1.2 HS 85
In the future, the throttle cable will be attached to the
gear housing by means of retainer 4226 641 7000
and screw 9022 313 0610.
366TI029 KN
Top: Previous version 4226 640 0501
Bottom: New version 4226 640 0502
TI_19_2002_02_01_02.fm english / USA

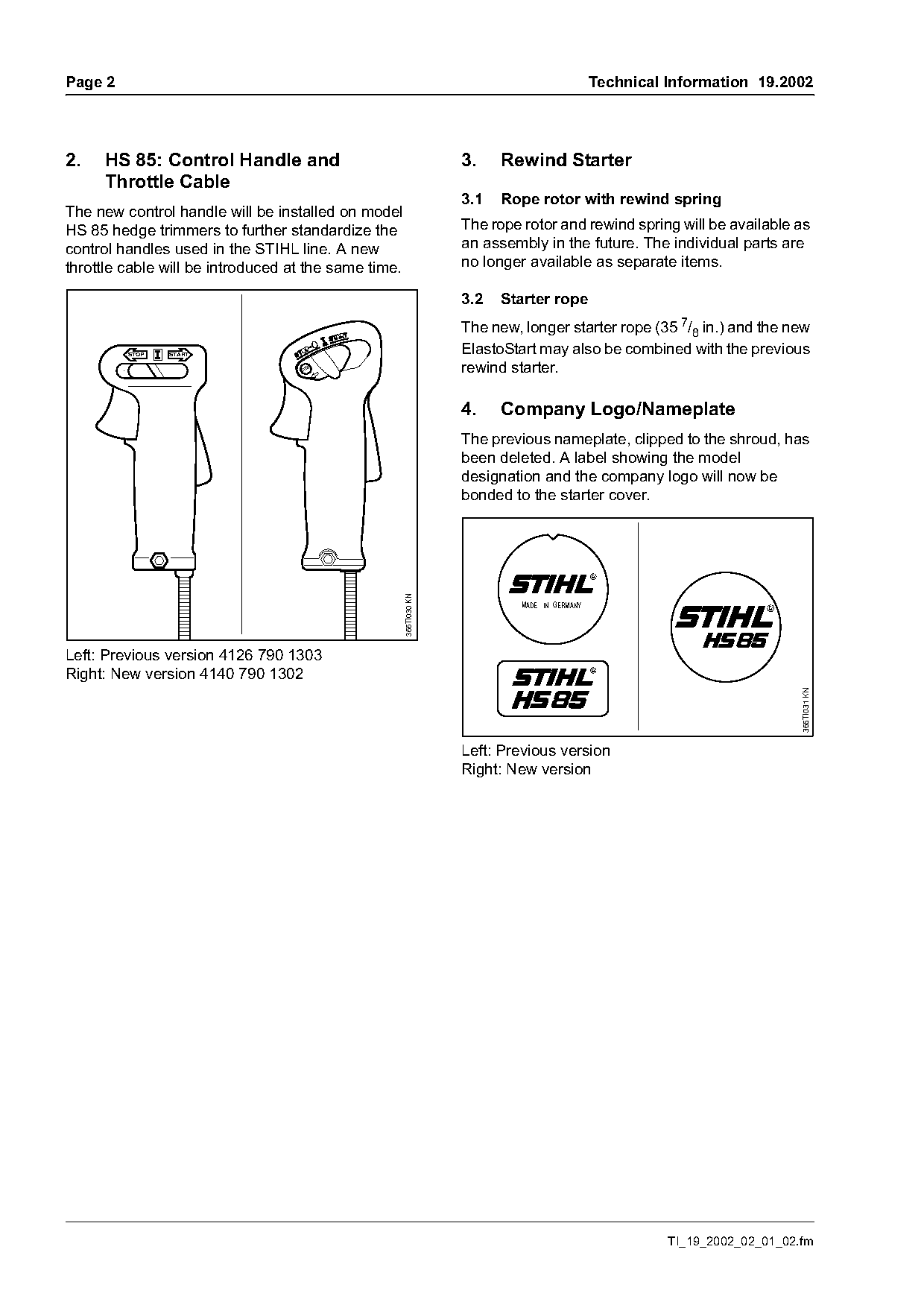

)m~ge 2 Technical Information 19.2002
2. HS 85: Control Handle and 3. Rewind Starter
Throttle Cable
3.1 Rope rotor with rewind spring
The new control handle will be installed on model
HS 85 hedge trimmers to further standardize the The rope rotor and rewind spring will be available as
control handles used in the STIHL line. A new an assembly in the future. The individual parts are
throttle cable will be introduced at the same time. no longer available as separate items.
3.2 Starter rope
The new, longer starter rope (35 7/8 in.) and the new
STOP START ElastoStart may also be combined with the previous
STO
rewind starter.
4. Company Logo/Nameplate
The previous nameplate, clipped to the shroud, has
been deleted. A label showing the model
designation and the company logo will now be
bonded to the starter cover.
366TI030 KN
MADE IN GERMANY
Left: Previous version 4126 790 1303
Right: New version 4140 790 1302
366TI031 KN
Left: Previous version
Right: New version
TI_19_2002_02_01_02.fm Page 2 of 3

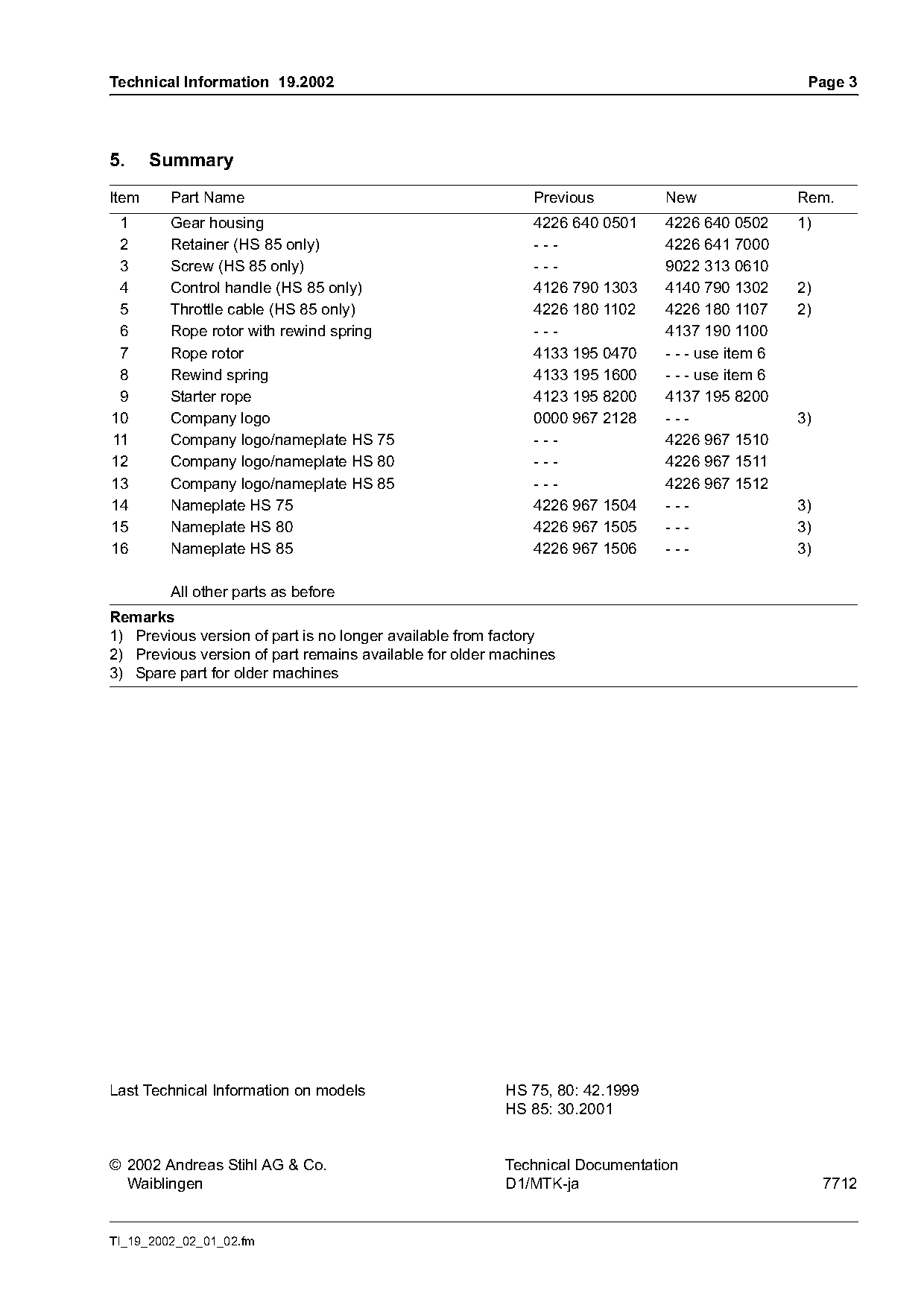

Technical Information 19.2002 Page 3
5. Summary
Item Part Name Previous New Rem.
1 Gear housing 4226 640 0501 4226 640 0502 1)
2 Retainer (HS 85 only) --- 4226 641 7000
3 Screw (HS 85 only) --- 9022 313 0610
4 Control handle (HS 85 only) 4126 790 1303 4140 790 1302 2)
5 Throttle cable (HS 85 only) 4226 180 1102 4226 180 1107 2)
6 Rope rotor with rewind spring --- 4137 190 1100
7 Rope rotor 4133 195 0470 - - - use item 6
8 Rewind spring 4133 195 1600 - - - use item 6
9 Starter rope 4123 195 8200 4137 195 8200
10 Company logo 0000 967 2128 --- 3)
11 Company logo/nameplate HS 75 --- 4226 967 1510
12 Company logo/nameplate HS 80 --- 4226 967 1511
13 Company logo/nameplate HS 85 --- 4226 967 1512
14 Nameplate HS 75 4226 967 1504 --- 3)
15 Nameplate HS 80 4226 967 1505 --- 3)
16 Nameplate HS 85 4226 967 1506 --- 3)
All other parts as before
Remarks
1) Previous version of part is no longer available from factory
2) Previous version of part remains available for older machines
3) Spare part for older machines
Last Technical Information on models HS 75, 80: 42.1999
HS 85: 30.2001
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-ja 7712
TI_19_2002_02_01_02.fm Page 3 of 3
