Technical Information · issue 20 of 2002
applies only for countries with machines produced
Model FS 160, 220, 280 Clearing Saws – Series 4119
IssueTI 20/2002
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4119 180 1100 | 4119 180 1101 | The previous throttle cable 4119 180 1100 will be replaced by throttle cable 4119 180 1101, which is 324TI004 KN equipped with modified connector sleeves and nipples. |
| 4119 790 1302 | 4140 790 1302 | The previous control handle 4119 790 1302 will be replaced by version 4140 790 1302. |
Full text

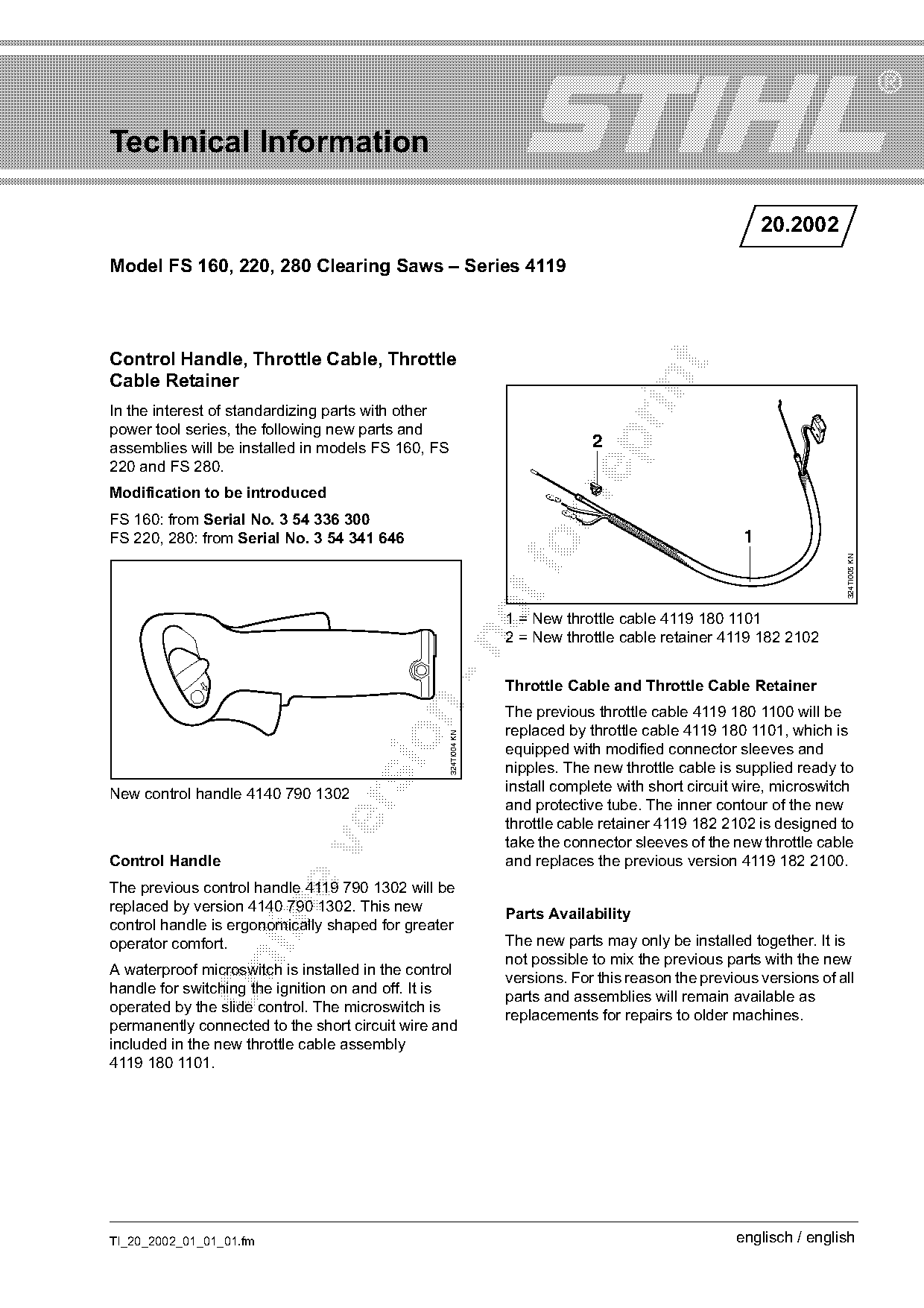

Page 1 of 2
Technical Information
20.2002
Model FS 160, 220, 280 Clearing Saws – Series 4119
Control Handle, Throttle Cable, Throttle
Cable Retainer
In the interest of standardizing parts with other
power tool series, the following new parts and
assemblies will be installed in models FS 160, FS 2
220 and FS 280.
Modification to be introduced
FS 160: from Serial No. 3 54 336 300
FS 220, 280: from Serial No. 3 54 341 646 1
324TI005 KN
1 = New throttle cable 4119 180 1101
2 = New throttle cable retainer 4119 182 2102
Throttle Cable and Throttle Cable Retainer
The previous throttle cable 4119 180 1100 will be
replaced by throttle cable 4119 180 1101, which is
324TI004 KN
equipped with modified connector sleeves and
nipples. The new throttle cable is supplied ready to
New control handle 4140 790 1302 install complete with short circuit wire, microswitch
and protective tube. The inner contour of the new
throttle cable retainer 4119 182 2102 is designed to
take the connector sleeves of the new throttle cable
Control Handle and replaces the previous version 4119 182 2100.
The previous control handle 4119 790 1302 will be
replaced by version 4140 790 1302. This new
Parts Availability
control handle is ergonomically shaped for greater
operator comfort. The new parts may only be installed together. It is
not possible to mix the previous parts with the new
A waterproof microswitch is installed in the control
versions. For this reason the previous versions of all
handle for switching the ignition on and off. It is
parts and assemblies will remain available as
operated by the slide control. The microswitch is
replacements for repairs to older machines.
permanently connected to the short circuit wire and
included in the new throttle cable assembly
4119 180 1101.
TI_20_2002_01_01_01.fm englisch / english

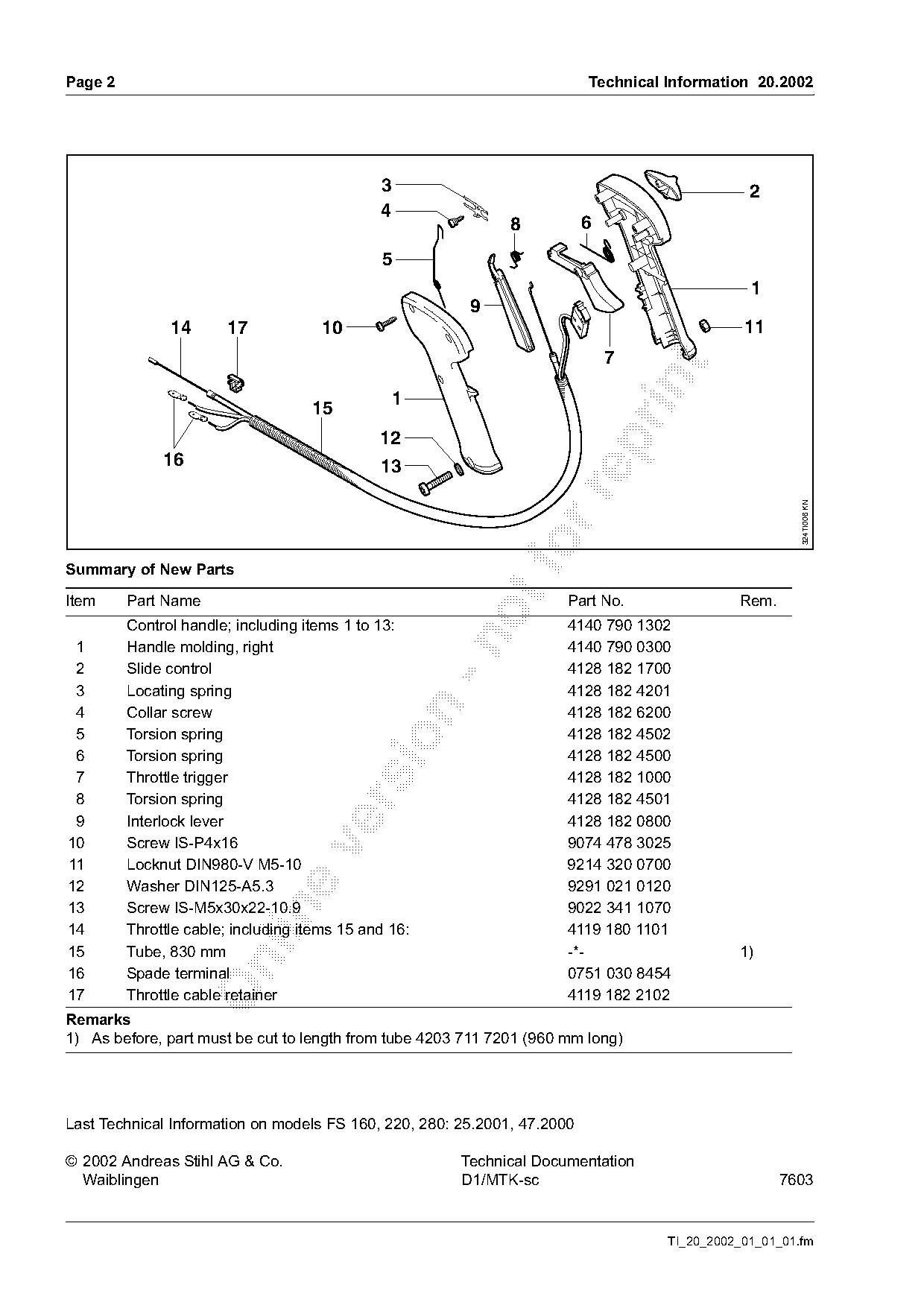

)m~ge 2 Technical Information 20.2002
3 2
4
8 6
5
1
9
14 17 10 11
7
15 1
16 13
324TI006 KN
Summary of New Parts
Item Part Name Part No. Rem.
Control handle; including items 1 to 13: 4140 790 1302
1 Handle molding, right 4140 790 0300
2 Slide control 4128 182 1700
3 Locating spring 4128 182 4201
4 Collar screw 4128 182 6200
5 Torsion spring 4128 182 4502
6 Torsion spring 4128 182 4500
7 Throttle trigger 4128 182 1000
8 Torsion spring 4128 182 4501
9 Interlock lever 4128 182 0800
10 Screw IS-P4x16 9074 478 3025
11 Locknut DIN980-V M5-10 9214 320 0700
12 Washer DIN125-A5.3 9291 021 0120
13 Screw IS-M5x30x22-10.9 9022 341 1070
14 Throttle cable; including items 15 and 16: 4119 180 1101
15 Tube, 830 mm -*- 1)
16 Spade terminal 0751 030 8454
17 Throttle cable retainer 4119 182 2102
Remarks
1) As before, part must be cut to length from tube 4203 711 7201 (960 mm long)
Last Technical Information on models FS 160, 220, 280: 25.2001, 47.2000
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-sc 7603
TI_20_2002_01_01_01.fm Page 2 of 2
