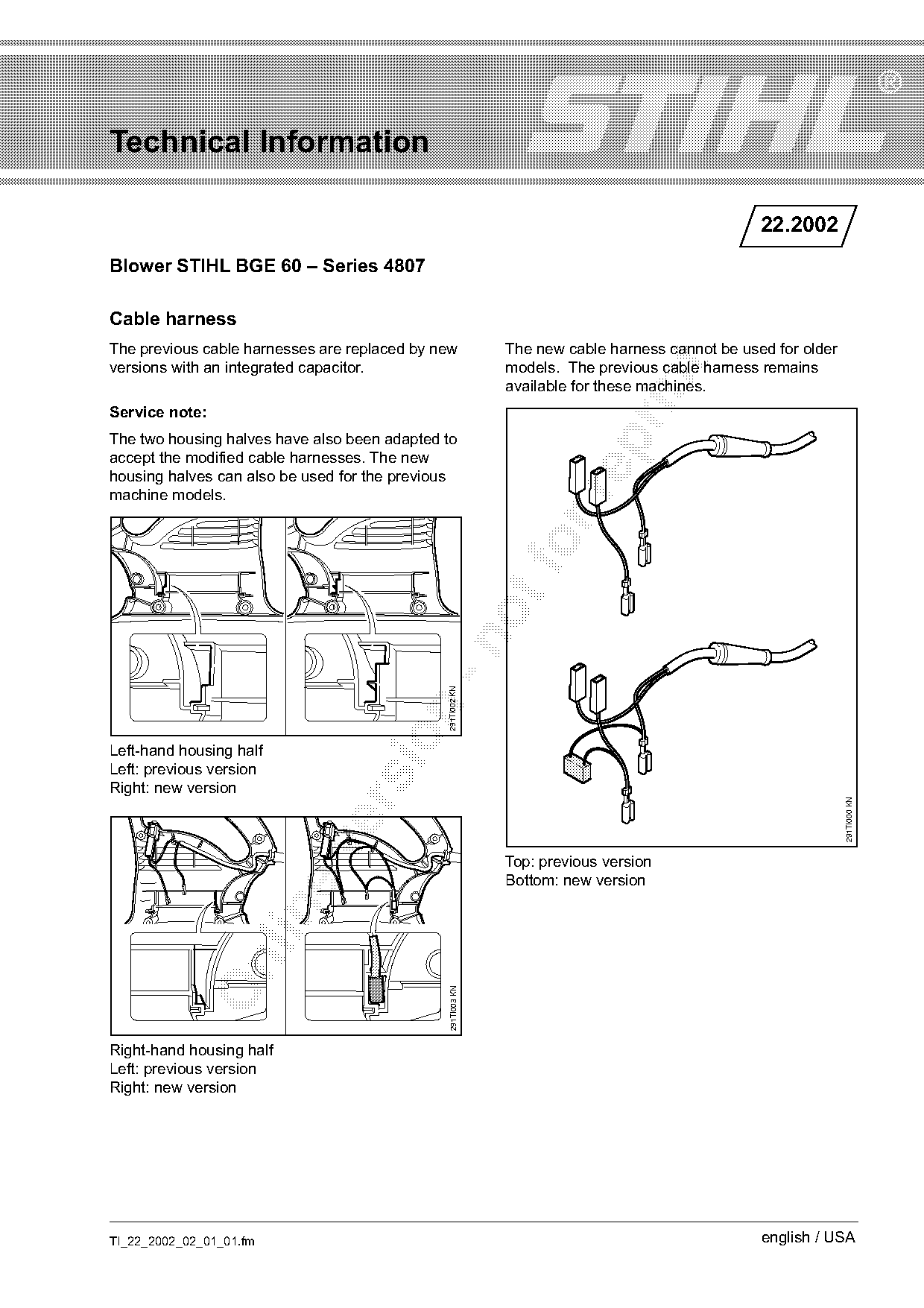

Technical Information
22.2002
Blower STIHL BGE 60 – Series 4807
Cable harness
The previous cable harnesses are replaced by new The new cable harness cannot be used for older
versions with an integrated capacitor. models. The previous cable harness remains
available for these machines.
Service note:
The two housing halves have also been adapted to
accept the modified cable harnesses. The new
housing halves can also be used for the previous
machine models.
291TI002 KN
Left-hand housing half
Left: previous version
Right: new version
291TI000 KN
Top: previous version
Bottom: new version
291TI003 KN
Right-hand housing half
Left: previous version
Right: new version
TI_22_2002_02_01_01.fm english / USA

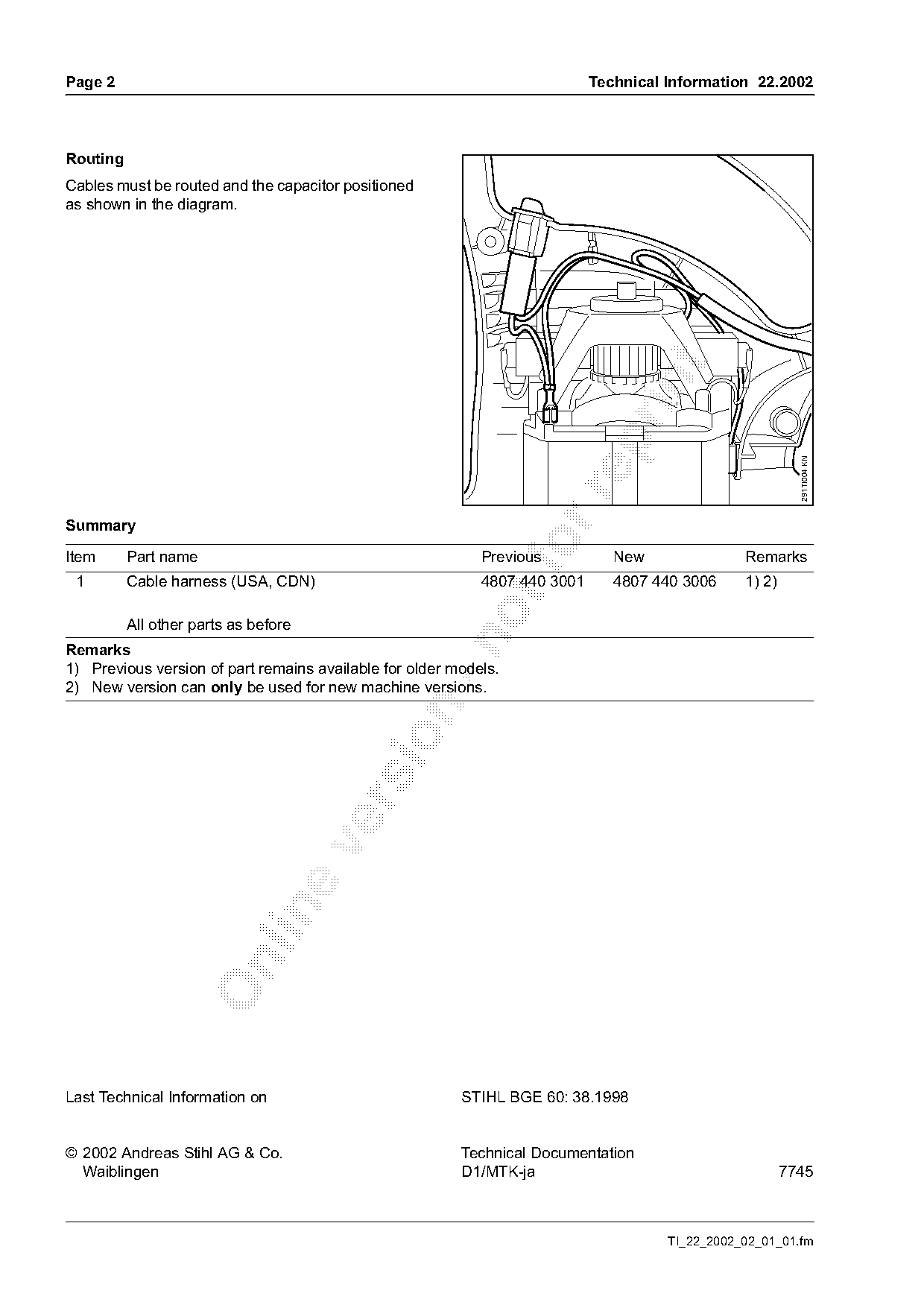

)m~ge 2 Technical Information 22.2002
Routing
Cables must be routed and the capacitor positioned
as shown in the diagram.
291TI004 KN
Summary
Item Part name fo
Previous New Remarks
1 Cable harness (USA, CDN) 4807 440 3001 4807 440 3006 1) 2)
All other parts as before
Remarks
1) Previous version of part remains available for older models.
2) New version can only be used for new machine versions.
Last Technical Information on STIHL BGE 60: 38.1998
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-ja 7745
