Technical Information · issue 32 of 2002
Japan and Canada only - Filter Base
Model MS 460 Arctic Chainsaws – Series 1128
IssueTI 32/2002
Engine family 1128
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1128 120 3406 | 1128 120 3404 | The previous filter base 1128 120 3406 will be replaced by the new filter base 1128 120 3404 on the MS 460 Arctic. |

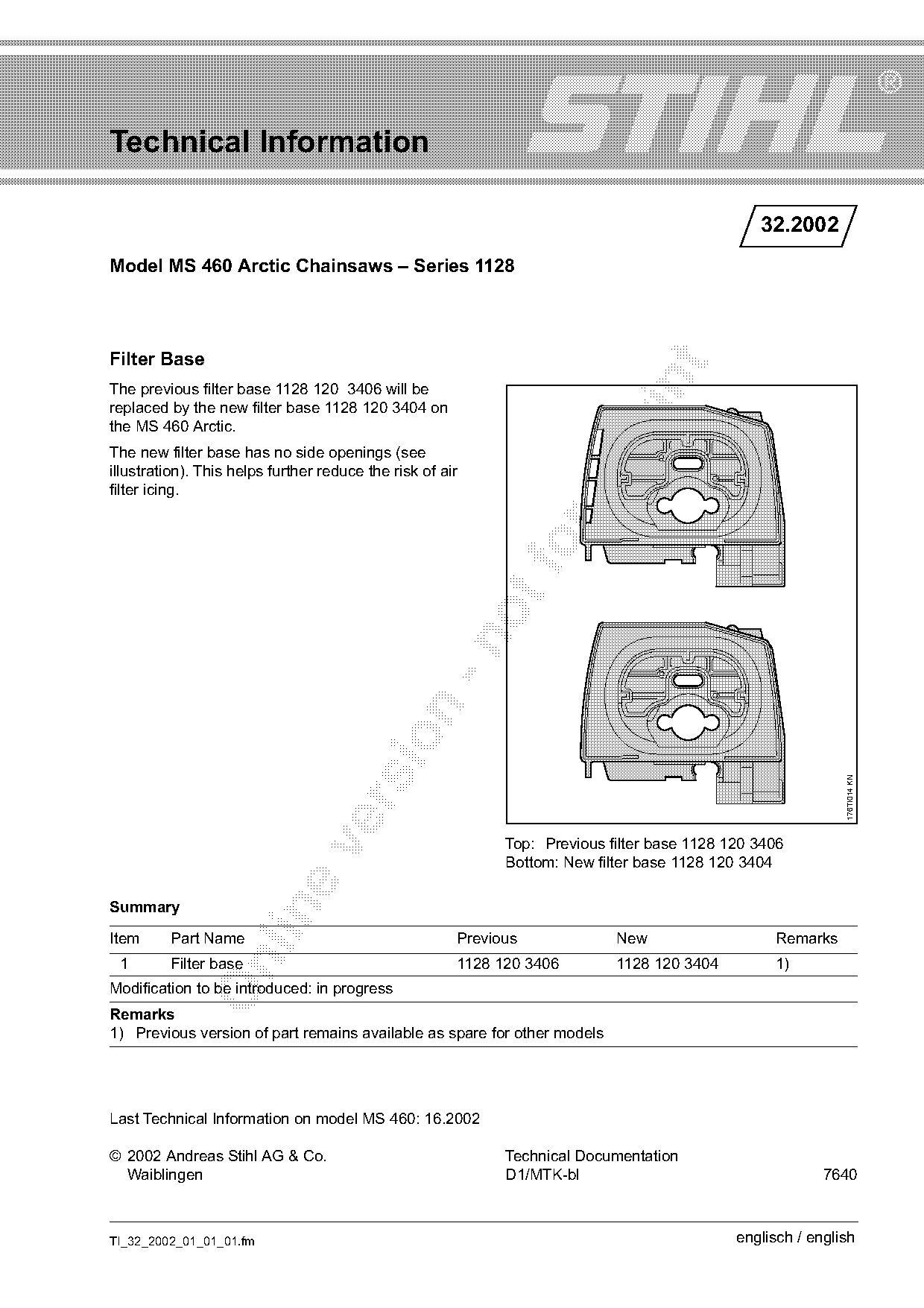

Full text
Page 1 of 1
Technical Information
32.2002
Model MS 460 Arctic Chainsaws – Series 1128
Filter Base
The previous filter base 1128 120 3406 will be
replaced by the new filter base 1128 120 3404 on
the MS 460 Arctic.
The new filter base has no side openings (see
illustration). This helps further reduce the risk of air
filter icing.
176TI014 KN
Top: Previous filter base 1128 120 3406
Bottom: New filter base 1128 120 3404
Summary
Item Part Name Previous New Remarks
1 Filter base 1128 120 3406 1128 120 3404 1)
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available as spare for other models
Last Technical Information on model MS 460: 16.2002
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7640
