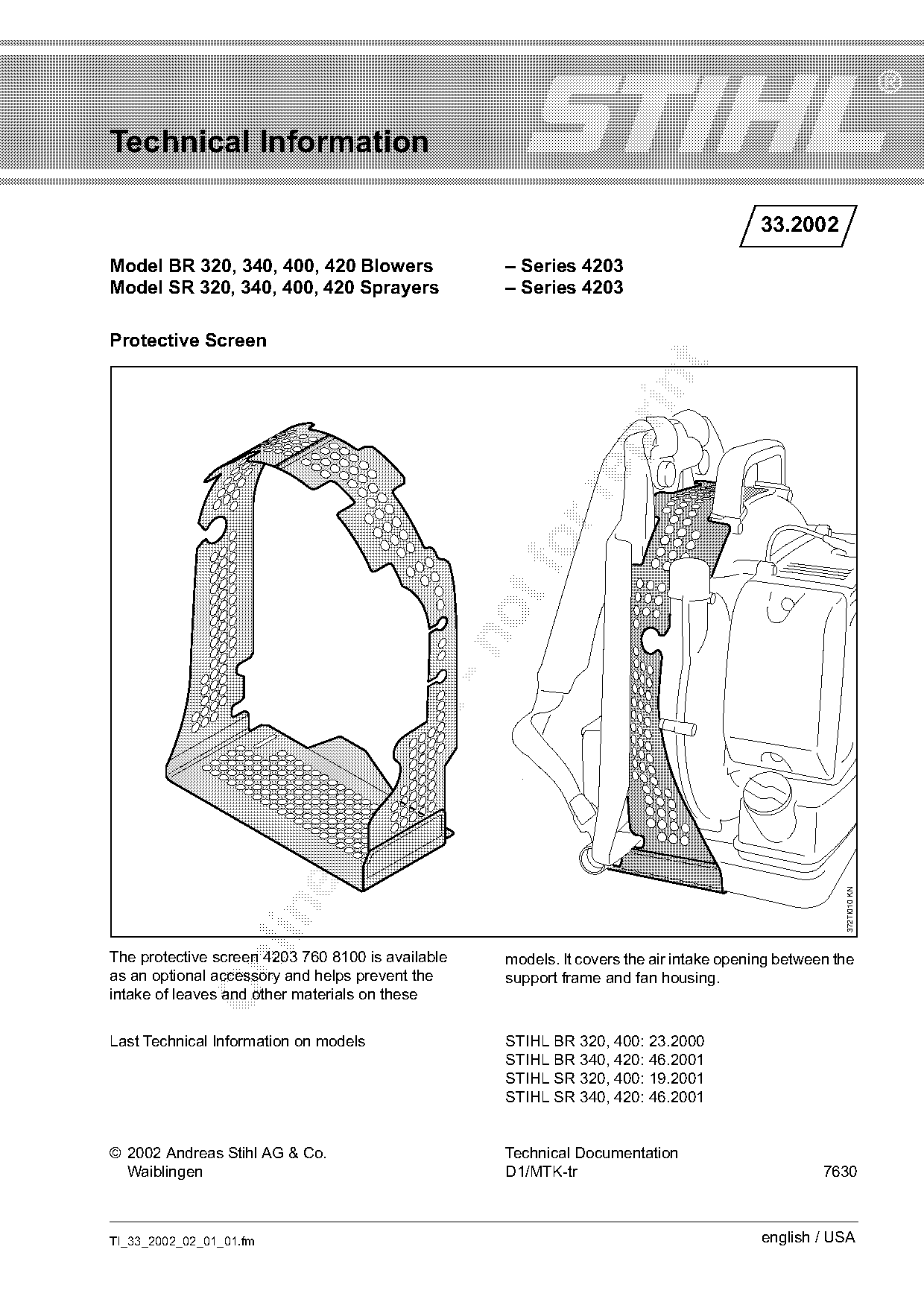

Technical Information

                                                                                         33.2002
Model BR 320, 340, 400, 420 Blowers                – Series 4203
Model SR 320, 340, 400, 420 Sprayers               – Series 4203

Protective Screen

                                                                                                     372TI010 KN

The protective screen 4203 760 8100 is available   models. It covers the air intake opening between the

as an optional accessory and helps prevent the     support frame and fan housing.
intake of leaves and other materials on these

Last Technical Information on models               STIHL BR 320, 400: 23.2000
                                                   STIHL BR 340, 420: 46.2001
                                                   STIHL SR 320, 400: 19.2001
                                                   STIHL SR 340, 420: 46.2001

© 2002 Andreas Stihl AG & Co.                      Technical Documentation
  Waiblingen                                       D1/MTK-tr                                      7630

TI_33_2002_02_01_01.fm                                                                   english / USA
