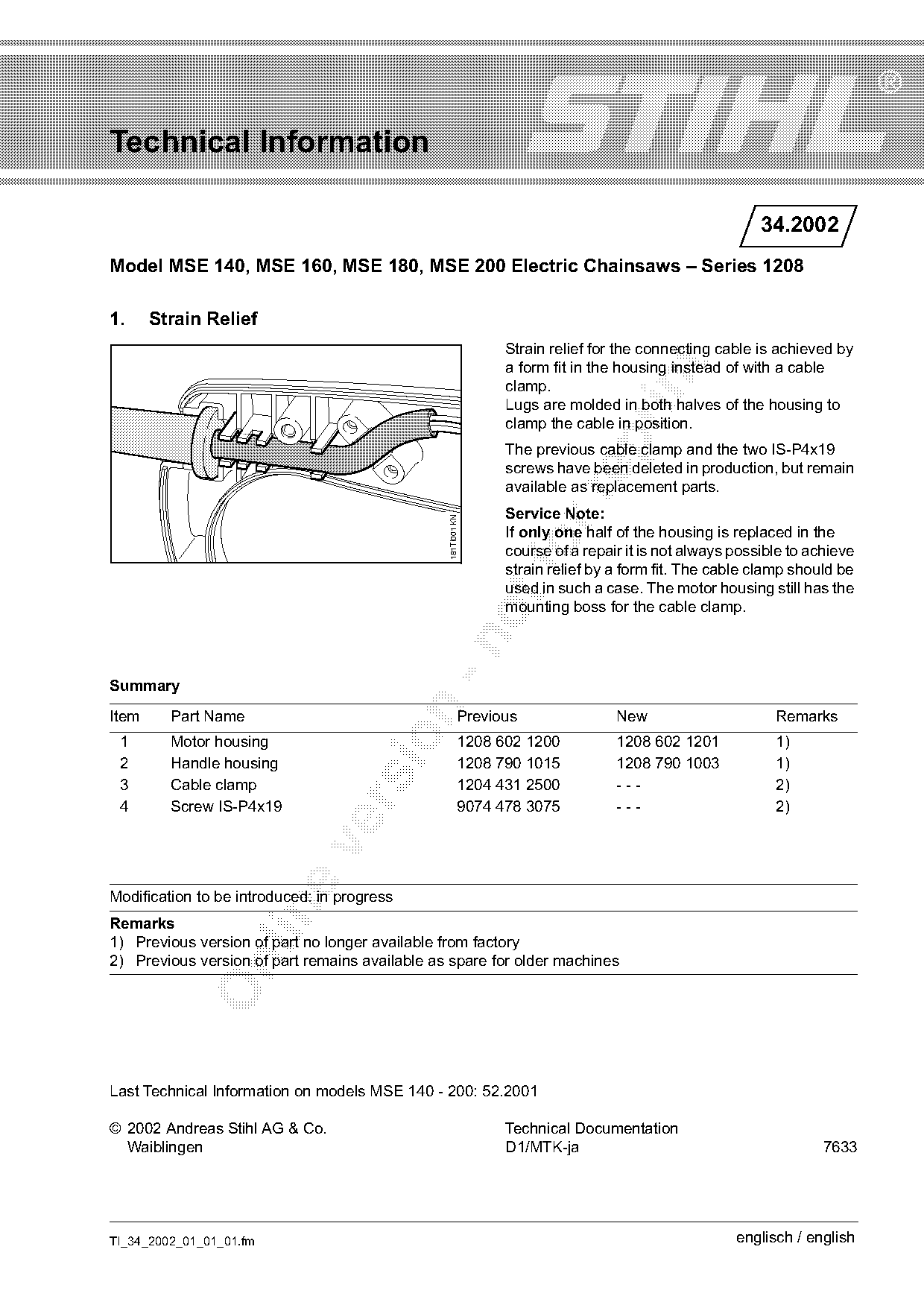

Technical Information
34.2002
Model MSE 140, MSE 160, MSE 180, MSE 200 Electric Chainsaws – Series 1208
1. Strain Relief
Strain relief for the connecting cable is achieved by
a form fit in the housing instead of with a cable
clamp.
Lugs are molded in both halves of the housing to
clamp the cable in position.
The previous cable clamp and the two IS-P4x19
screws have been deleted in production, but remain
available as replacement parts.
Service Note:
181TI001 KN
If only one half of the housing is replaced in the
course of a repair it is not always possible to achieve
strain relief by a form fit. The cable clamp should be
used in such a case. The motor housing still has the
mounting boss for the cable clamp.
Summary
Item Part Name Previous New Remarks
1 Motor housing 1208 602 1200 1208 602 1201 1)
2 Handle housing 1208 790 1015 1208 790 1003 1)
3 Cable clamp 1204 431 2500 --- 2)
4 Screw IS-P4x19 9074 478 3075 --- 2)
Modification to be introduced: in progress
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available as spare for older machines
Last Technical Information on models MSE 140 - 200: 52.2001
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-ja 7633
