Technical Information · issue 35 of 2002
New Design; Tank Vent; Fan Housing with “ElastoSta
Model MS 290, 310, 390 Chainsaws – Series 1127
IssueTI 35/2002
Engine family 1127
Full text
Page 1 of 4

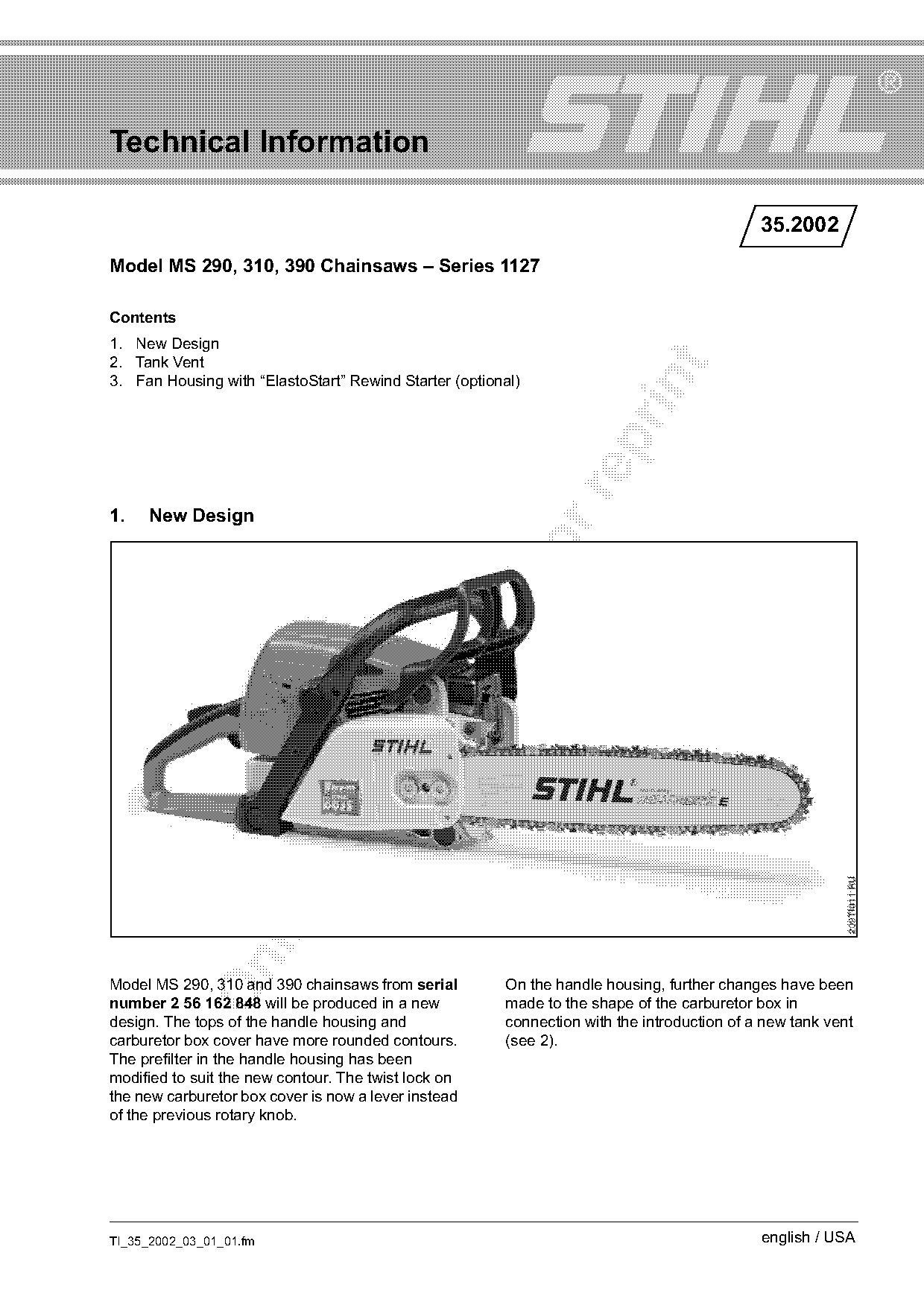

Technical Information
35.2002
Model MS 290, 310, 390 Chainsaws – Series 1127
Contents
1. New Design
2. Tank Vent
3. Fan Housing with “ElastoStart” Rewind Starter (optional)
1. New Design
Model MS 290, 310 and 390 chainsaws from serial On the handle housing, further changes have been
number 2 56 162 848 will be produced in a new made to the shape of the carburetor box in
design. The tops of the handle housing and connection with the introduction of a new tank vent
carburetor box cover have more rounded contours. (see 2).
The prefilter in the handle housing has been
modified to suit the new contour. The twist lock on
the new carburetor box cover is now a lever instead
of the previous rotary knob.
TI_35_2002_03_01_01.fm english / USA

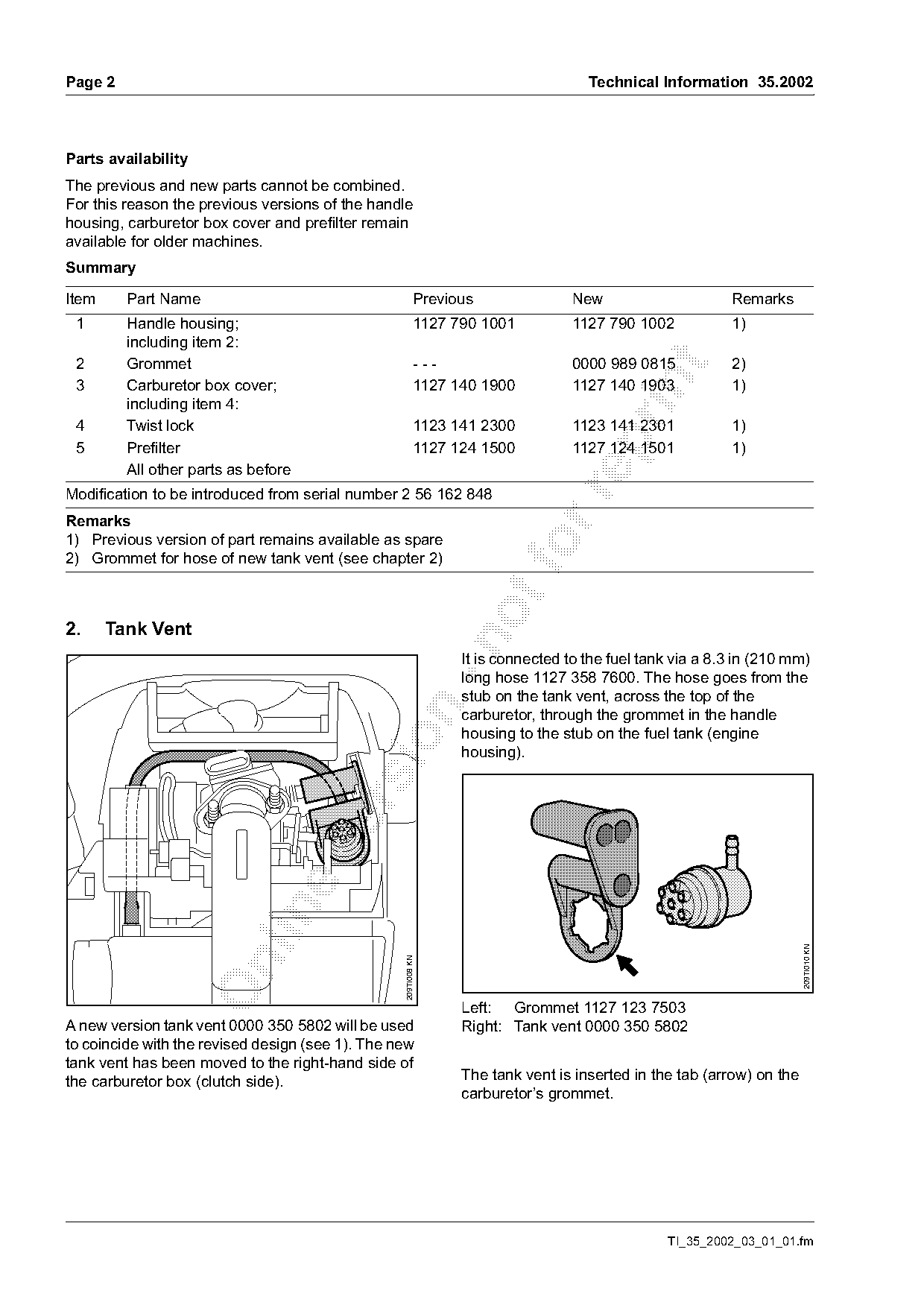

)m~ge 2 Technical Information 35.2002
Parts availability
The previous and new parts cannot be combined.
For this reason the previous versions of the handle
housing, carburetor box cover and prefilter remain
available for older machines.
Summary
Item Part Name Previous New Remarks
1 Handle housing; 1127 790 1001 1127 790 1002 1)
including item 2:
2 Grommet --- 0000 989 0815 2)
3 Carburetor box cover; 1127 140 1900 1127 140 1903 1)
including item 4:
4 Twist lock 1123 141 2300 1123 141 2301 1)
5 Prefilter 1127 124 1500 1127 124 1501 1)
All other parts as before
Modification to be introduced from serial number 2 56 162 848
Remarks
1) Previous version of part remains available as spare
2) Grommet for hose of new tank vent (see chapter 2)
2. Tank Vent
It is connected to the fuel tank via a 8.3 in (210 mm)
long hose 1127 358 7600. The hose goes from the
stub on the tank vent, across the top of the
carburetor, through the grommet in the handle
housing to the stub on the fuel tank (engine
housing).
209TI010 KN
209TI008 KN
Left: Grommet 1127 123 7503
A new version tank vent 0000 350 5802 will be used Right: Tank vent 0000 350 5802
to coincide with the revised design (see 1). The new
tank vent has been moved to the right-hand side of
the carburetor box (clutch side). The tank vent is inserted in the tab (arrow) on the
carburetor’s grommet.
TI_35_2002_03_01_01.fm Page 2 of 4

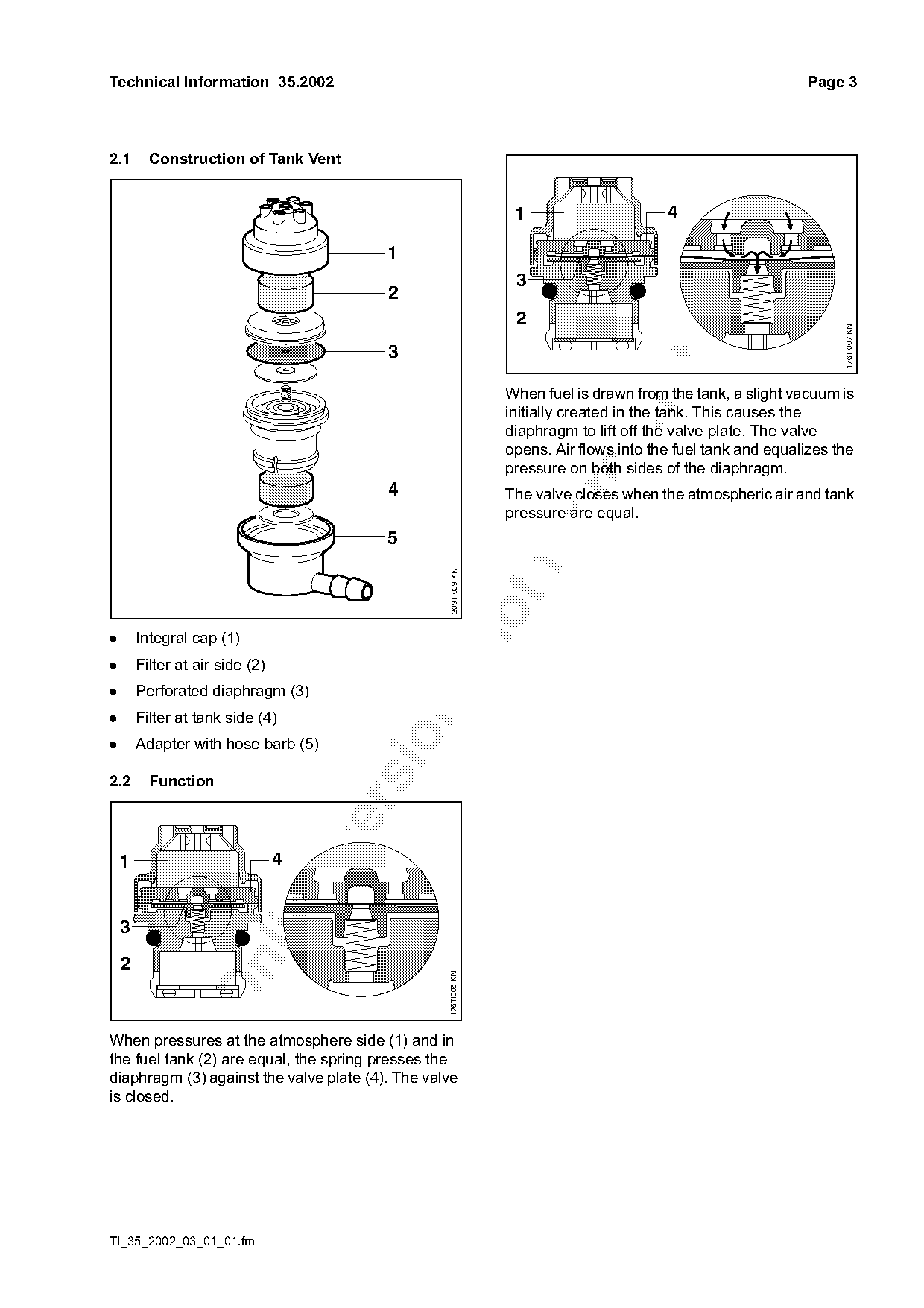

Technical Information 35.2002 Page 3
2.1 Construction of Tank Vent
1 4
1
3
2
2
176TI007 KN
3
When fuel is drawn from the tank, a slight vacuum is
initially created in the tank. This causes the
diaphragm to lift off the valve plate. The valve
opens. Air flows into the fuel tank and equalizes the
pressure on both sides of the diaphragm.
4 The valve closes when the atmospheric air and tank
pressure are equal.
5
209TI009 KN
. Integral cap (1)
. Filter at air side (2)
. Perforated diaphragm (3)
. Filter at tank side (4)
. Adapter with hose barb (5)
2.2 Function
1 4
2
176TI006 KN
When pressures at the atmosphere side (1) and in
the fuel tank (2) are equal, the spring presses the
diaphragm (3) against the valve plate (4). The valve
is closed.
TI_35_2002_03_01_01.fm

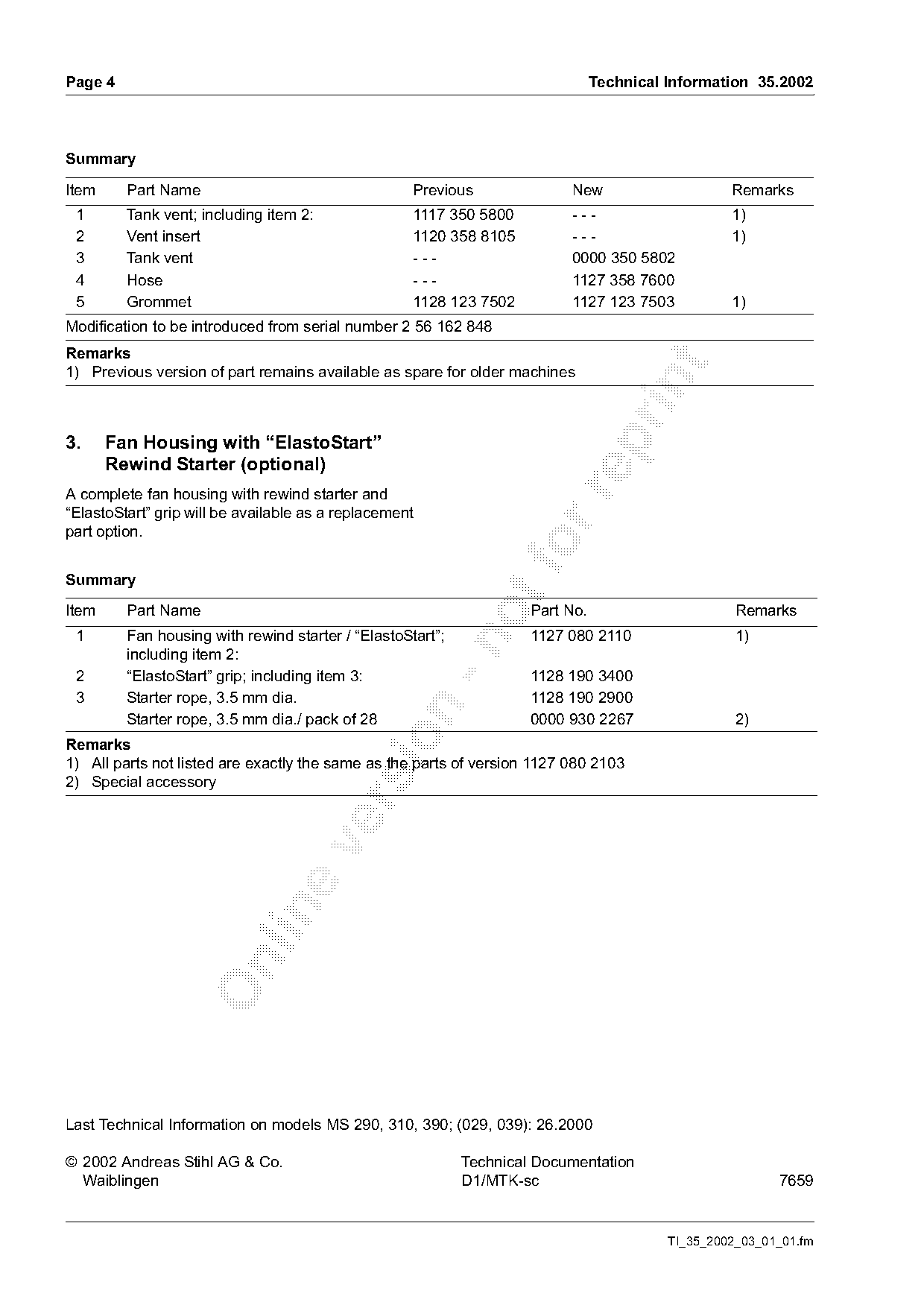

)m~ge 4 Technical Information 35.2002
Summary
Item Part Name Previous New Remarks
1 Tank vent; including item 2: 1117 350 5800 --- 1)
2 Vent insert 1120 358 8105 --- 1)
3 Tank vent --- 0000 350 5802
4 Hose --- 1127 358 7600
5 Grommet 1128 123 7502 1127 123 7503 1)
Modification to be introduced from serial number 2 56 162 848
Remarks
1) Previous version of part remains available as spare for older machines
3. Fan Housing with “ElastoStart”
Rewind Starter (optional)
A complete fan housing with rewind starter and
“ElastoStart” grip will be available as a replacement
part option.
Summary
Item Part Name Part No. Remarks
1 Fan housing with rewind starter / “ElastoStart”; 1127 080 2110 1)
including item 2:
2 “ElastoStart” grip; including item 3: 1128 190 3400
3 Starter rope, 3.5 mm dia. 1128 190 2900
Starter rope, 3.5 mm dia./ pack of 28 0000 930 2267 2)
Remarks
1) All parts not listed are exactly the same as the parts of version 1127 080 2103
2) Special accessory
Last Technical Information on models MS 290, 310, 390; (029, 039): 26.2000
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-sc 7659
TI_35_2002_03_01_01.fm Page 3 of 4
Page 4 of 4
