Fine Dust Filter
Model MS 460 and 046 Chainsaws – Series 1128
IssueTI 39/2002
Engine family 1128
Full text
Page 1 of 2
Technical Information
39.2002
Model MS 460 and 046 Chainsaws – Series 1128
Fine Dust Filter (special accessory)
A fine dust filter will be available in future as a
special accessory for model 046 and MS 460 3 4
chainsaws.
The fine dust filter 0000 120 1655 further improves
filtering efficiency in very dusty work areas.
Installation
1 2
134TI006 KN

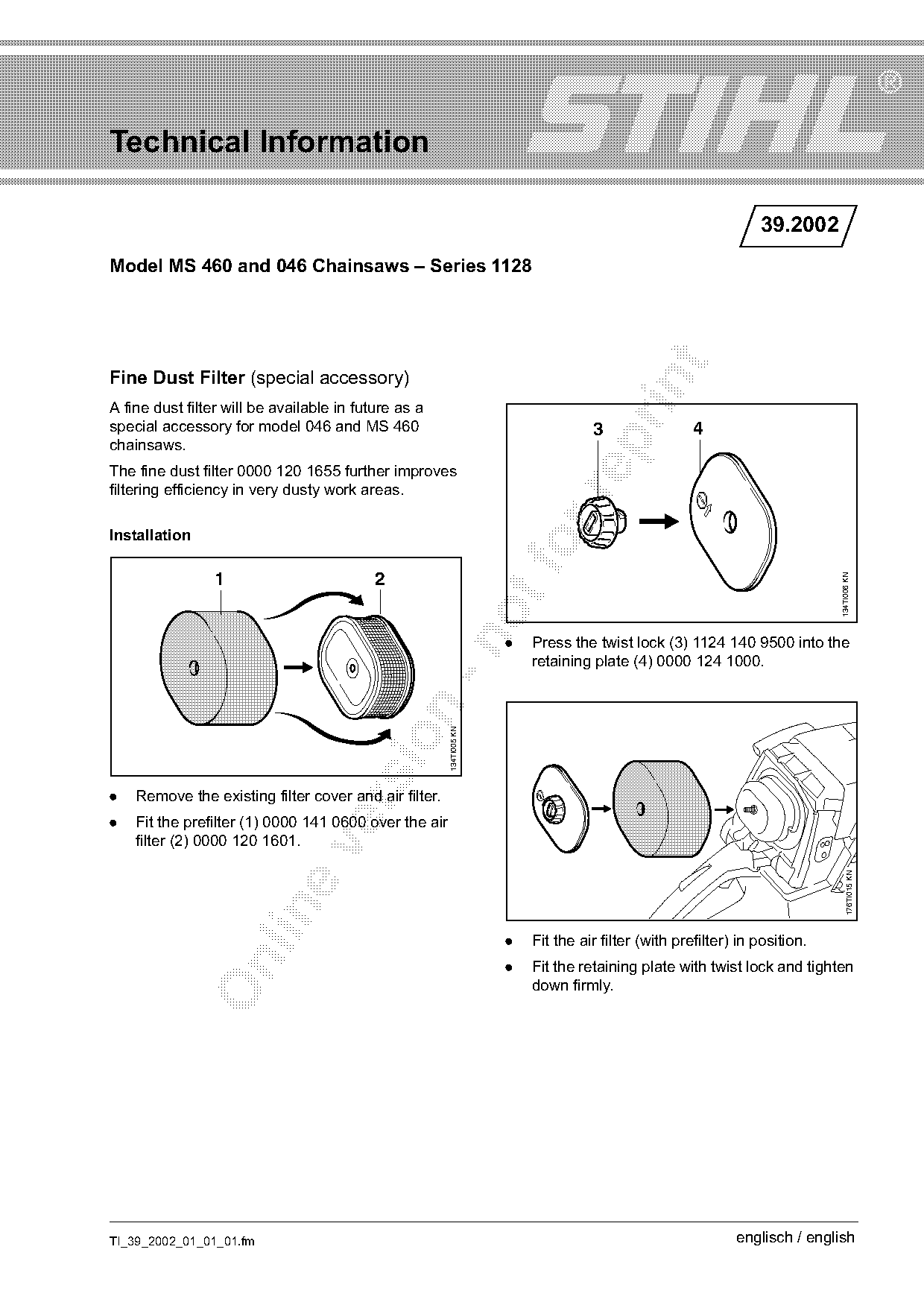

. Press the twist lock (3) 1124 140 9500 into the
retaining plate (4) 0000 124 1000.
n 134TI005 KN
. Remove the existing filter cover and air filter. S
TO
. Fit the prefilter (1) 0000 141 0600 over the air
filter (2) 0000 120 1601.
176TI015 KN
. Fit the air filter (with prefilter) in position.
. Fit the retaining plate with twist lock and tighten
down firmly.
TI_39_2002_01_01_01.fm englisch / english
)m~ge 2 Technical Information 39.2002
STOP
000 967 4955 A XX
176TI016 KN

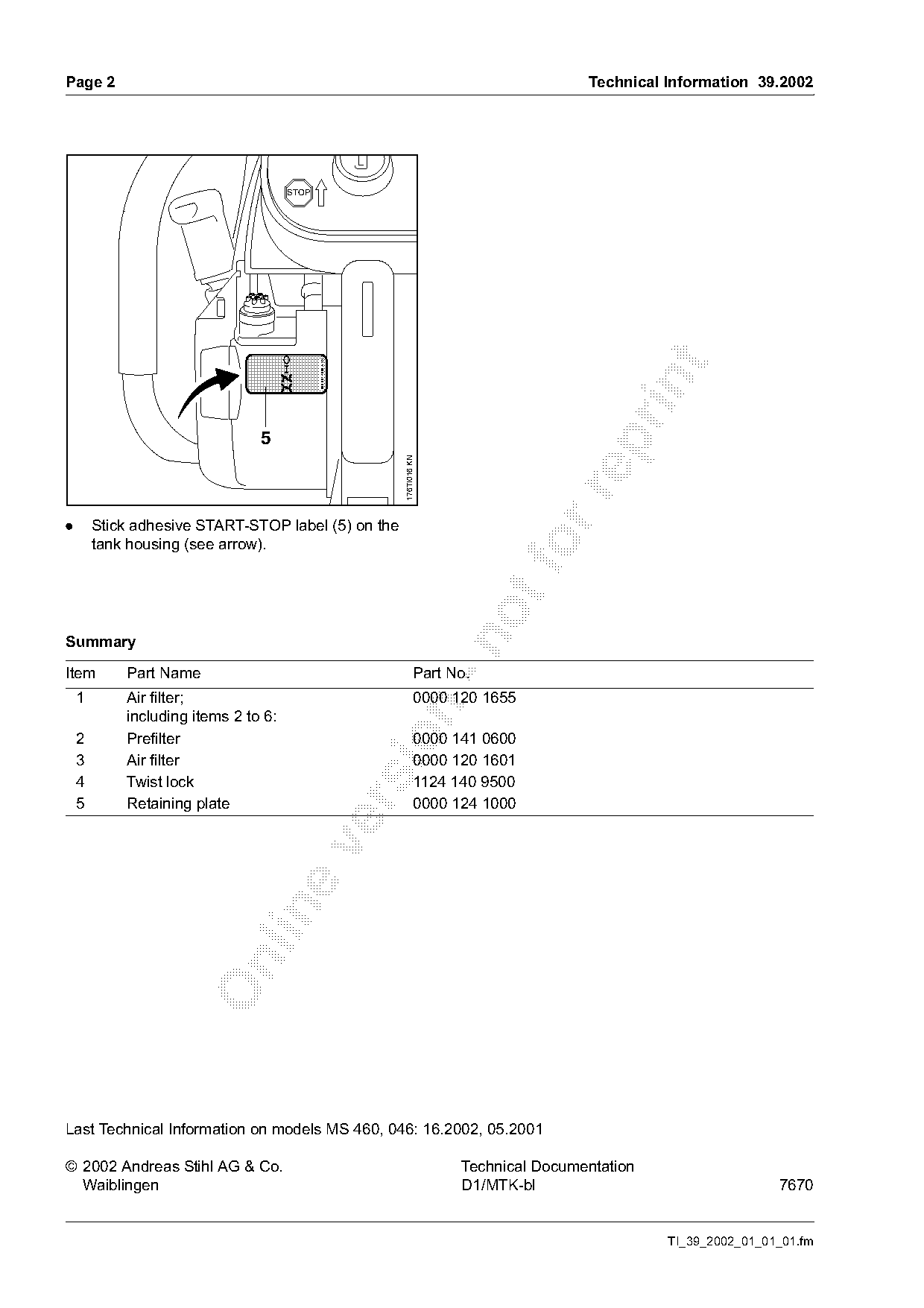

. Stick adhesive START-STOP label (5) on the
tank housing (see arrow). fo
Summary
Item Part Name Part No.
1 Air filter; 0000 120 1655
including items 2 to 6:
2 Prefilter 0000 141 0600
3 Air filter 0000 120 1601
4 Twist lock 1124 140 9500
5 Retaining plate 0000 124 1000
Last Technical Information on models MS 460, 046: 16.2002, 05.2001
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7670
