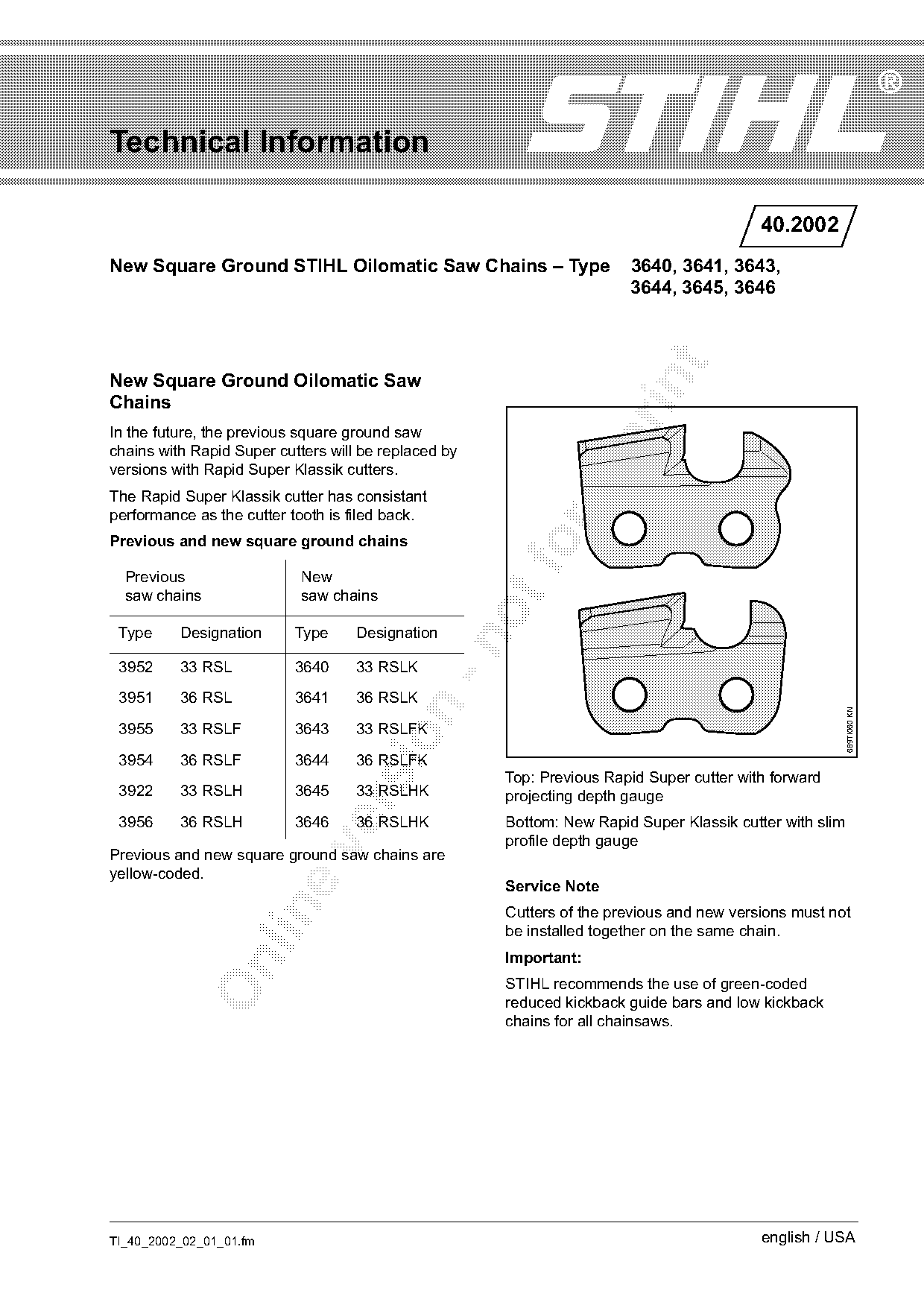

New Square Ground STIHL Oilomatic Saw Chains – Type 3640, 3641, 3643,
3644, 3645, 3646
New Square Ground Oilomatic Saw
Chains
In the future, the previous square ground saw
chains with Rapid Super cutters will be replaced by
versions with Rapid Super Klassik cutters.
The Rapid Super Klassik cutter has consistant
performance as the cutter tooth is filed back.
Previous and new square ground chains
Previous New
saw chains saw chains
Type Designation Type Designation
3952 33 RSL 3640 33 RSLK
3951 36 RSL 3641 36 RSLK
689TI060 KN
3955 33 RSLF 3643 33 RSLFK
3954 36 RSLF 3644 36 RSLFK
Top: Previous Rapid Super cutter with forward
3922 33 RSLH 3645 33 RSLHK projecting depth gauge
3956 36 RSLH 3646 36 RSLHK Bottom: New Rapid Super Klassik cutter with slim
profile depth gauge
Previous and new square ground saw chains are
yellow-coded.
Service Note
Cutters of the previous and new versions must not
be installed together on the same chain.
Important:
STIHL recommends the use of green-coded
reduced kickback guide bars and low kickback
chains for all chainsaws.
TI_40_2002_02_01_01.fm english / USA
)m~ge 2 Technical Information 40.2002
Summary

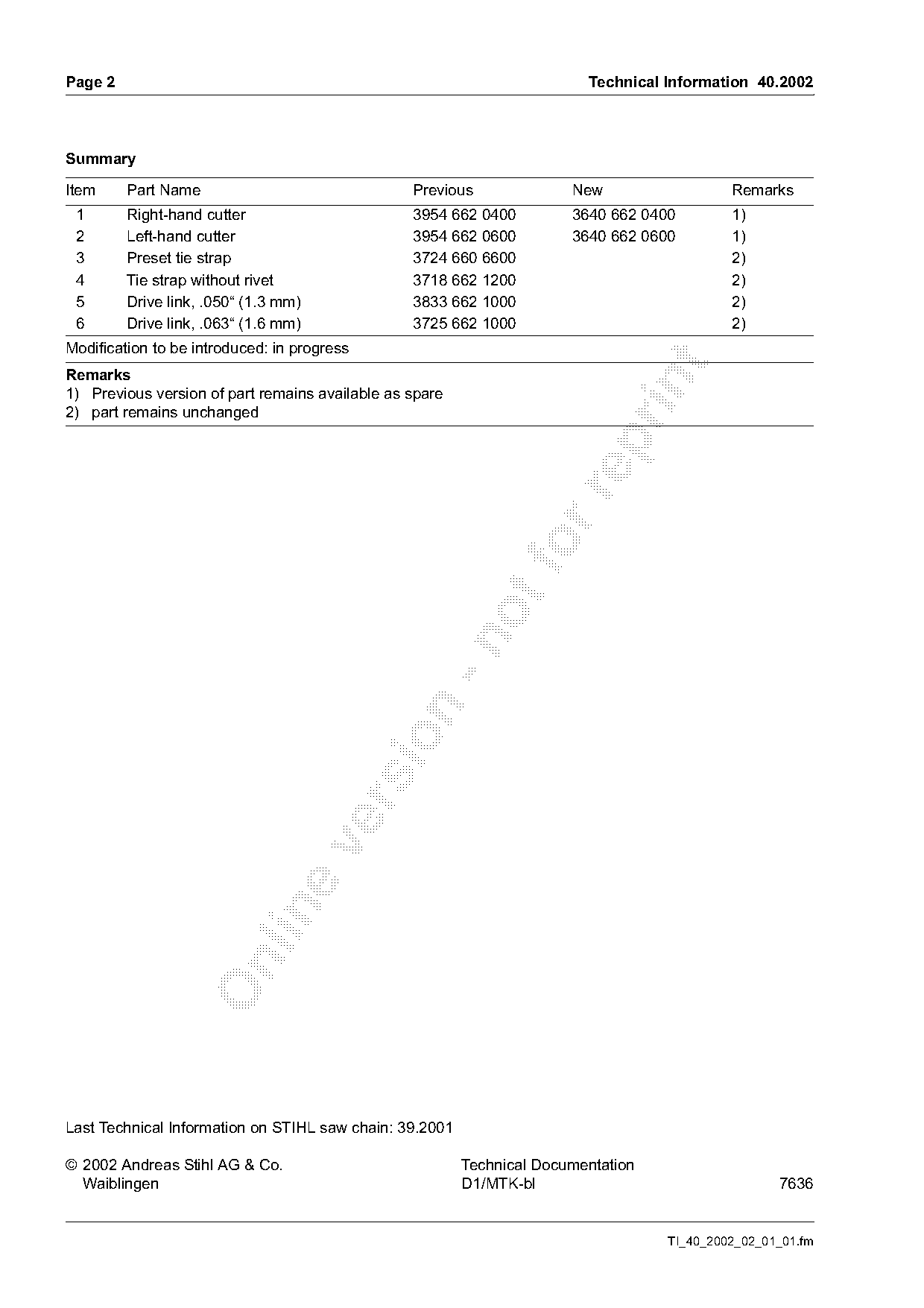

Item Part Name Previous New Remarks
1 Right-hand cutter 3954 662 0400 3640 662 0400 1)
2 Left-hand cutter 3954 662 0600 3640 662 0600 1)
3 Preset tie strap 3724 660 6600 2)
4 Tie strap without rivet 3718 662 1200 2)
5 Drive link, .050“ (1.3 mm) 3833 662 1000 2)
6 Drive link, .063“ (1.6 mm) 3725 662 1000 2)
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available as spare
2) part remains unchanged
Last Technical Information on STIHL saw chain: 39.2001
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7636
