Technical Information · issue 44 of 2002
Design Change (shroud and carburetor box cover)
Model MS 360, MS 360 C Chainsaws – Series 1125
IssueTI 44/2002
Engine family 1125
Part changes (3)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1125 080 1620 | 1125 080 1622 | Shroud The previous shroud 1125 080 1620 with cap 1122 084 7100 will be replaced by shroud 1125 080 1622 with cap 1125 084 7100. |
| 1125 140 1903 | 1125 140 1913 | Carburetor box cover Intake air preheating kit The previous carburetor box cover 1125 140 1903 The previous kit 1125 007 1012, with carburetor box will be replaced by the new version 1125 140 1913. |
| 1125 140 1907 | 1125 007 1024 | cover 1125 140 1907, will be replaced by kit 1125 007 1024 with carburetor box cover 1125 140 1912. |
Full text
Page 1 of 2

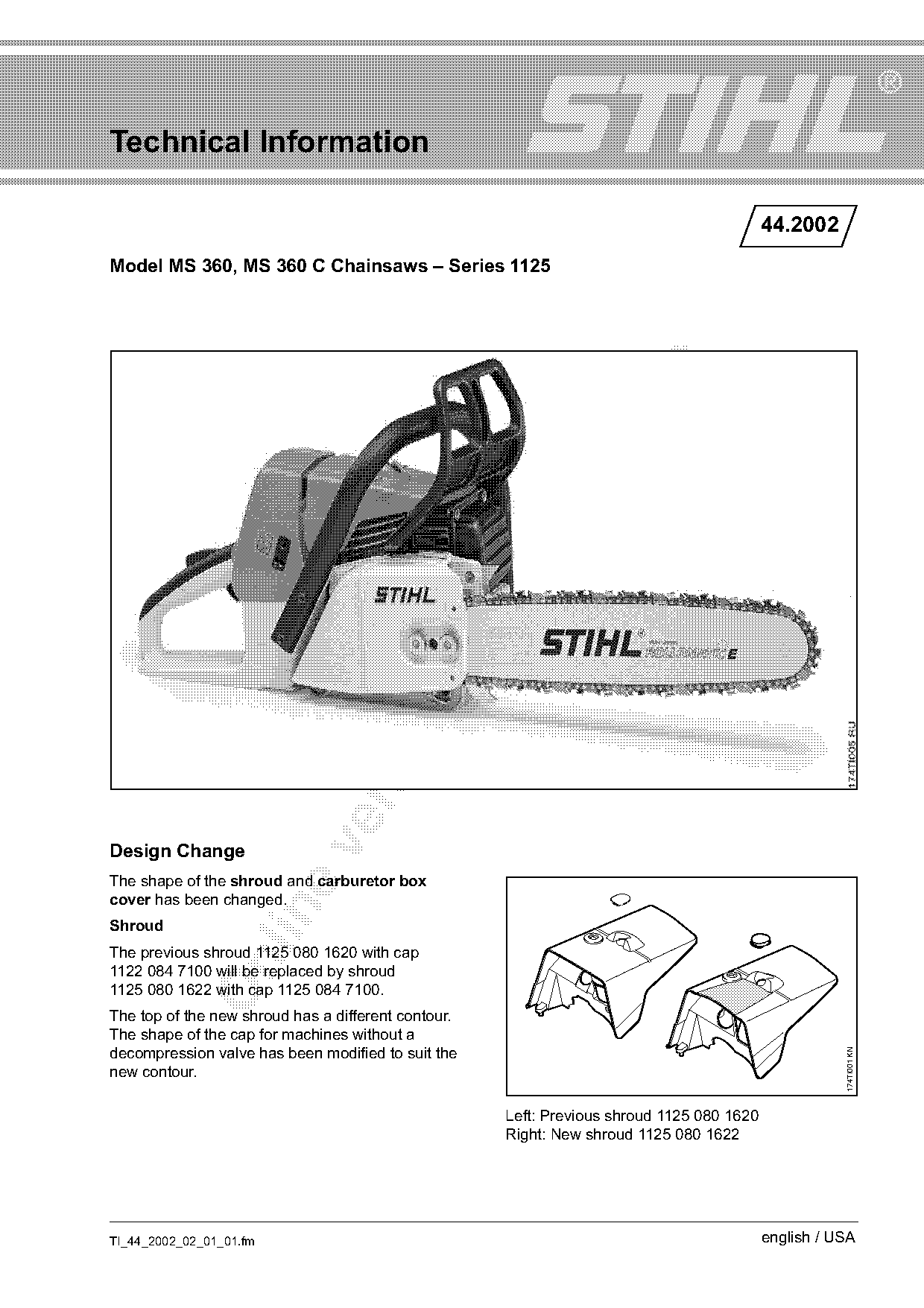

Technical Information
44.2002
Model MS 360, MS 360 C Chainsaws – Series 1125
Design Change
The shape of the shroud and carburetor box
cover has been changed.
Shroud
The previous shroud 1125 080 1620 with cap
1122 084 7100 will be replaced by shroud
1125 080 1622 with cap 1125 084 7100.
The top of the new shroud has a different contour.
The shape of the cap for machines without a
decompression valve has been modified to suit the
174TI001 KN
new contour.
Left: Previous shroud 1125 080 1620
Right: New shroud 1125 080 1622
TI_44_2002_02_01_01.fm english / USA
)m~ge 2 Technical Information 44.2002

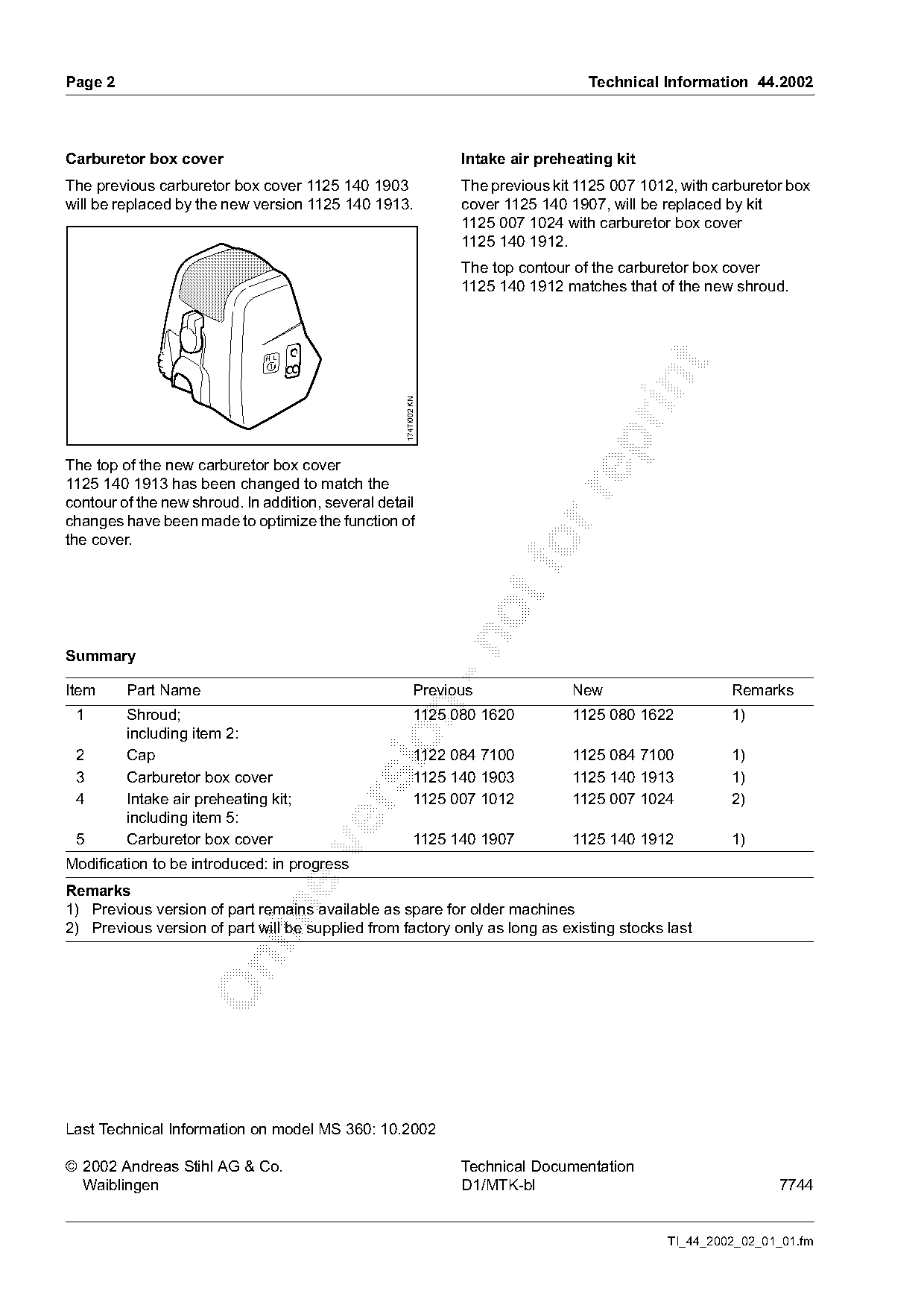

Carburetor box cover Intake air preheating kit
The previous carburetor box cover 1125 140 1903 The previous kit 1125 007 1012, with carburetor box
will be replaced by the new version 1125 140 1913. cover 1125 140 1907, will be replaced by kit
1125 007 1024 with carburetor box cover
1125 140 1912.
The top contour of the carburetor box cover
1125 140 1912 matches that of the new shroud.
174TI002 KN
The top of the new carburetor box cover
1125 140 1913 has been changed to match the
contour of the new shroud. In addition, several detail
changes have been made to optimize the function of
the cover.
Summary
Item Part Name Previous New Remarks
1 Shroud; 1125 080 1620 1125 080 1622 1)
including item 2:
2 Cap 1122 084 7100 1125 084 7100 1)
3 Carburetor box cover 1125 140 1903 1125 140 1913 1)
4 Intake air preheating kit; 1125 007 1012 1125 007 1024 2)
including item 5:
5 Carburetor box cover 1125 140 1907 1125 140 1912 1)
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available as spare for older machines
2) Previous version of part will be supplied from factory only as long as existing stocks last
Last Technical Information on model MS 360: 10.2002
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7744
TI_44_2002_02_01_01.fm Page 2 of 2
