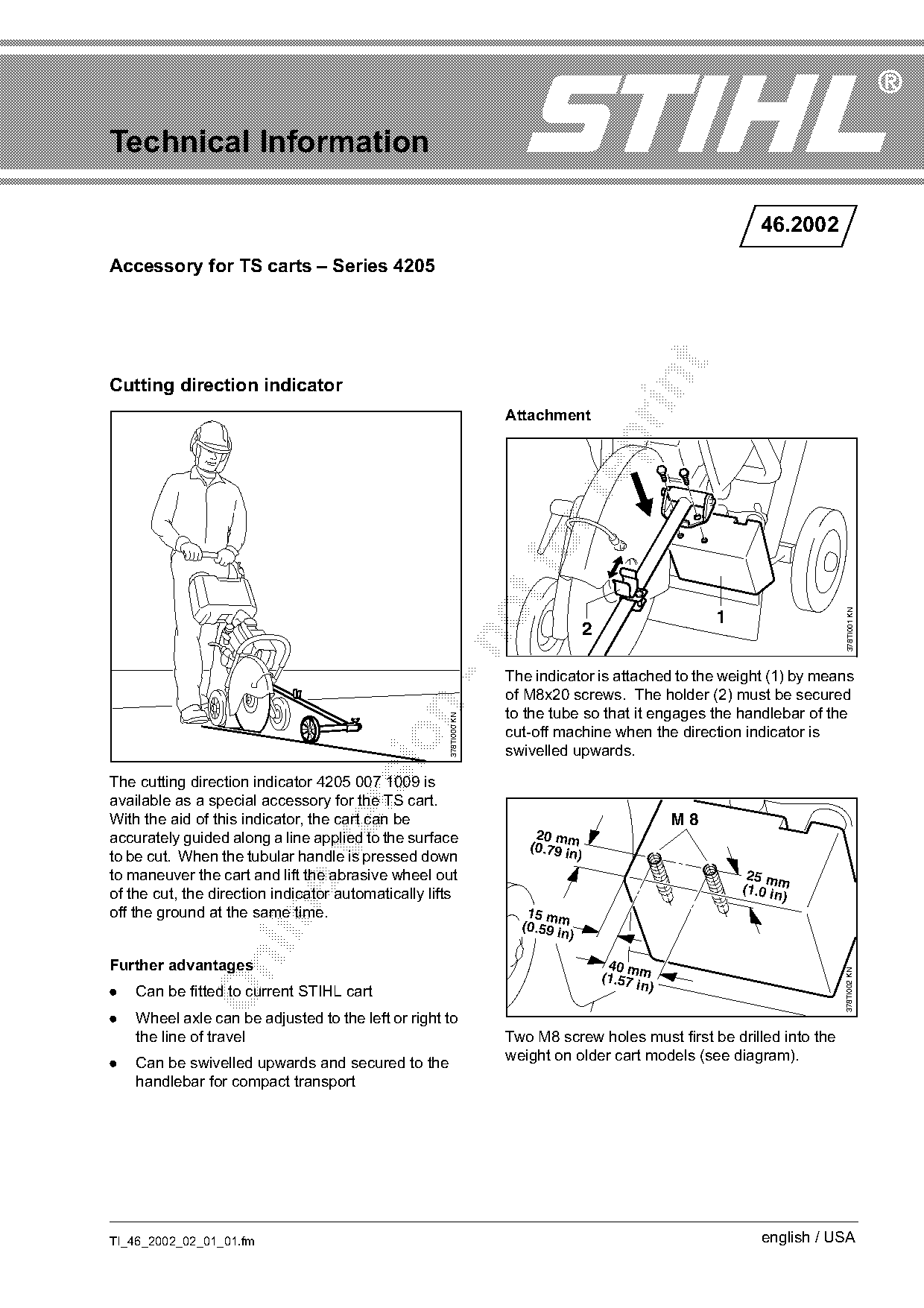

Technical Information
46.2002
Accessory for TS carts – Series 4205
Cutting direction indicator
Attachment
378TI001 KN
1
2
The indicator is attached to the weight (1) by means
of M8x20 screws. The holder (2) must be secured
to the tube so that it engages the handlebar of the
378TI000 KN
cut-off machine when the direction indicator is
swivelled upwards.
The cutting direction indicator 4205 007 1009 is
available as a special accessory for the TS cart.
With the aid of this indicator, the cart can be M8
accurately guided along a line applied to the surface 20 mm
(0.79 in
to be cut. When the tubular handle is pressed down )
to maneuver the cart and lift the abrasive wheel out 25 m
of the cut, the direction indicator automatically lifts (1.0 inm
)
off the ground at the same time. 15 mm
(0.59 in
)
Further advantages 40 m
(1.57 m
378TI002 KN
in)
. Can be fitted to current STIHL cart
. Wheel axle can be adjusted to the left or right to
the line of travel Two M8 screw holes must first be drilled into the
weight on older cart models (see diagram).
. Can be swivelled upwards and secured to the
handlebar for compact transport
TI_46_2002_02_01_01.fm english / USA

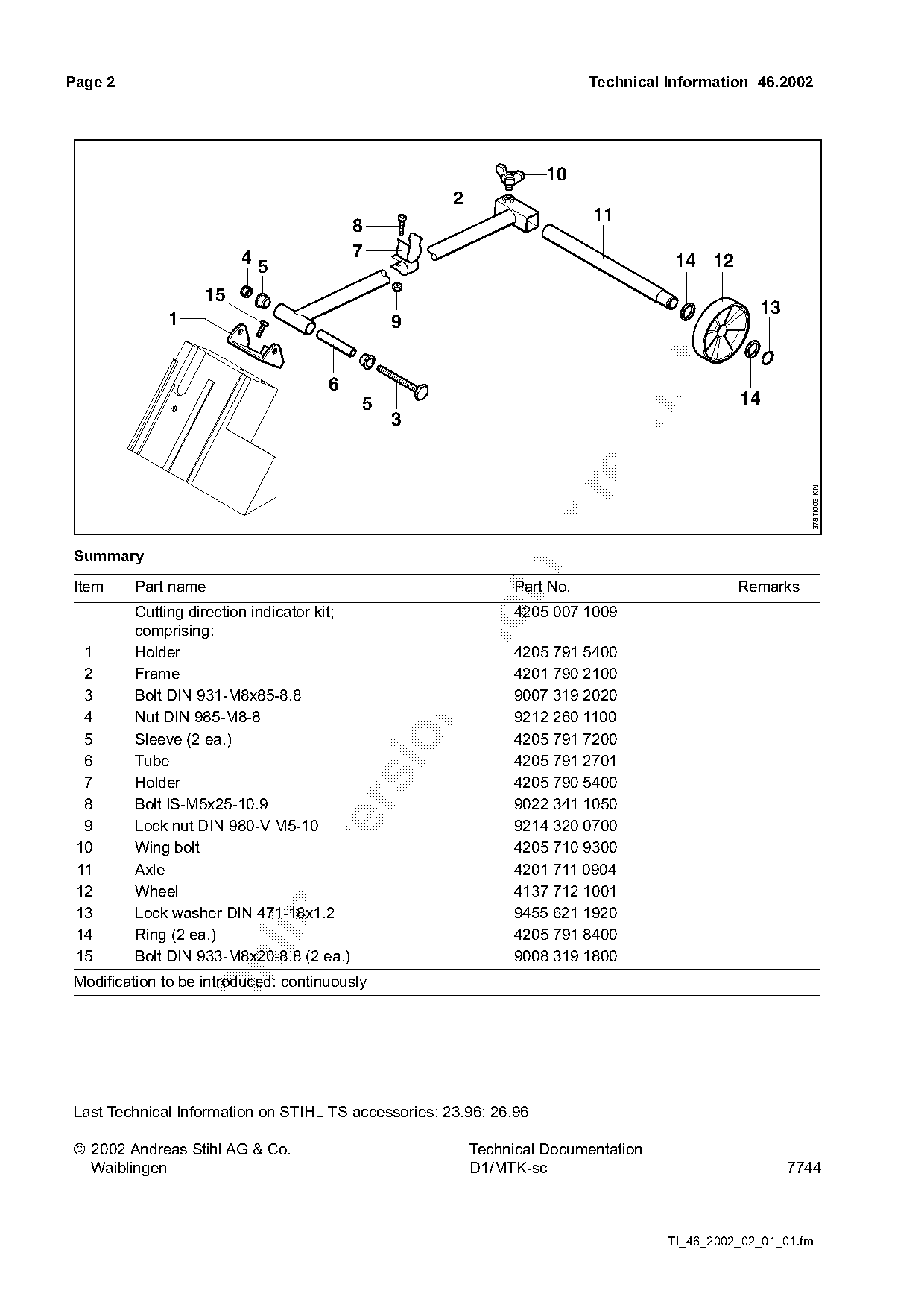

)m~ge 2 Technical Information 46.2002
10
2
11
8
45 7
14 12
15
13
1 9
6
5 14
3
378TI003 KN
Summary fo
Item Part name Part No. Remarks
Cutting direction indicator kit; 4205 007 1009
comprising:
1 Holder 4205 791 5400
2 Frame 4201 790 2100
3 Bolt DIN 931-M8x85-8.8 9007 319 2020
4 Nut DIN 985-M8-8 9212 260 1100
5 Sleeve (2 ea.) 4205 791 7200
6 Tube 4205 791 2701
7 Holder 4205 790 5400
8 Bolt IS-M5x25-10.9 9022 341 1050
9 Lock nut DIN 980-V M5-10 9214 320 0700
10 Wing bolt
4205 710 9300
11 Axle 4201 711 0904
12 Wheel 4137 712 1001
13 Lock washer DIN 471-18x1.2 9455 621 1920
14 Ring (2 ea.) 4205 791 8400
15 Bolt DIN 933-M8x20-8.8 (2 ea.) 9008 319 1800
Modification to be introduced: continuously
Last Technical Information on STIHL TS accessories: 23.96; 26.96
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-sc 7744
TI_46_2002_02_01_01.fm Page 2 of 2
