Technical Information · issue 49 of 2002
Tank Vent
Model 020 T, MS 200 T Chainsaws – Series 1129
IssueTI 49/2002
Engine family 1129
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1129 353 2000 | 1129 350 5850 | Vent filter 1129 353 2000 will be replaced by tank Installation vent 1129 350 5850. |
| 1129 350 0851 | 1129 350 0853 | 162TI009 KN The previous tank housing 1129 350 0851 with vent filter 1129 353 2000 will be replaced by tank housing 1129 350 0853 with tank vent Use a suitable tool to pry out the existing filter (1). |
Full text

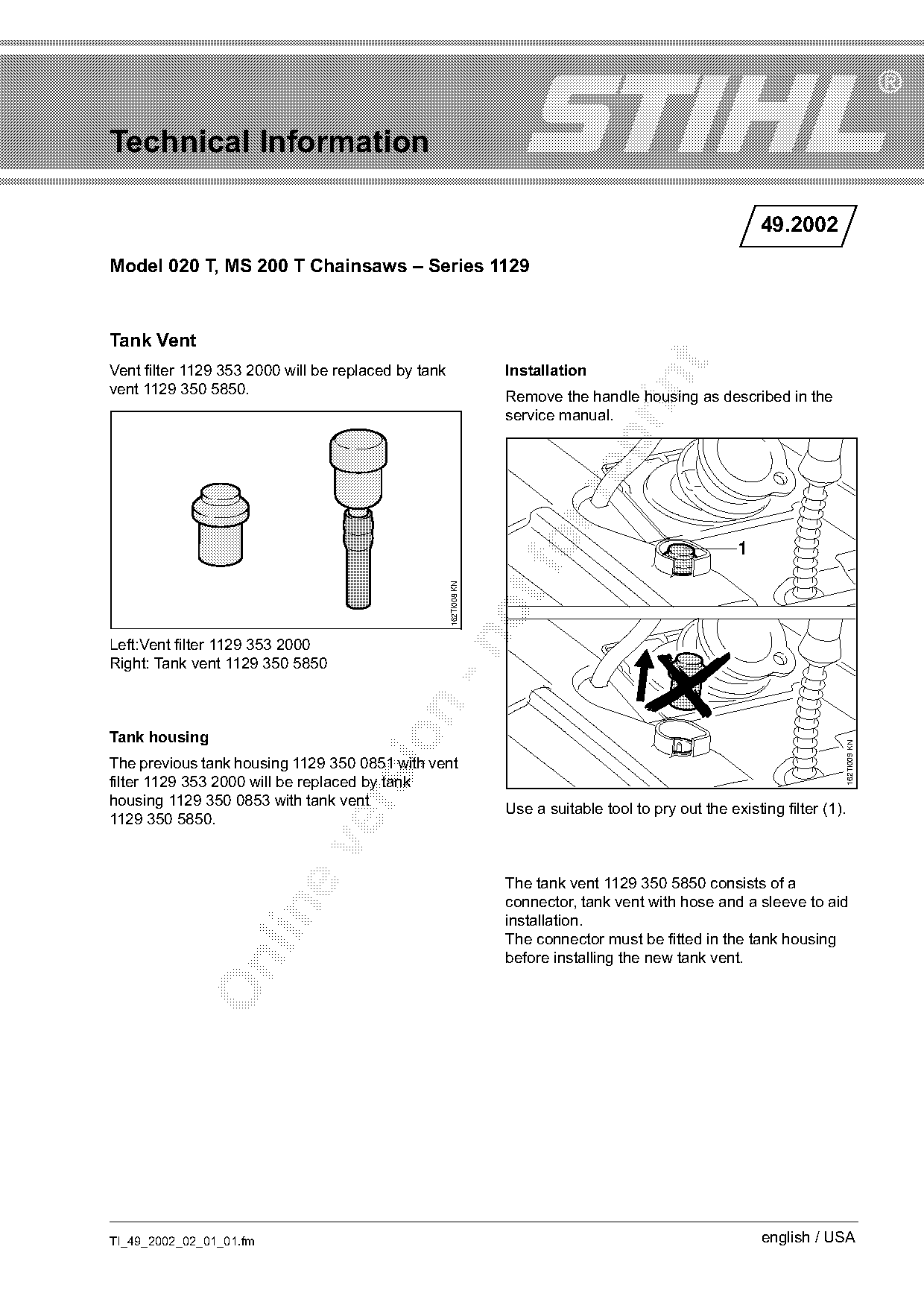

Page 1 of 2
Technical Information
49.2002
Model 020 T, MS 200 T Chainsaws – Series 1129
Tank Vent
Vent filter 1129 353 2000 will be replaced by tank Installation
vent 1129 350 5850.
Remove the handle housing as described in the
service manual.
fo 1
162TI008 KN
Left:Vent filter 1129 353 2000
Right: Tank vent 1129 350 5850
Tank housing
162TI009 KN
The previous tank housing 1129 350 0851 with vent
filter 1129 353 2000 will be replaced by tank
housing 1129 350 0853 with tank vent
Use a suitable tool to pry out the existing filter (1).
1129 350 5850.
The tank vent 1129 350 5850 consists of a
connector, tank vent with hose and a sleeve to aid
installation.
The connector must be fitted in the tank housing
before installing the new tank vent.
TI_49_2002_02_01_01.fm english / USA

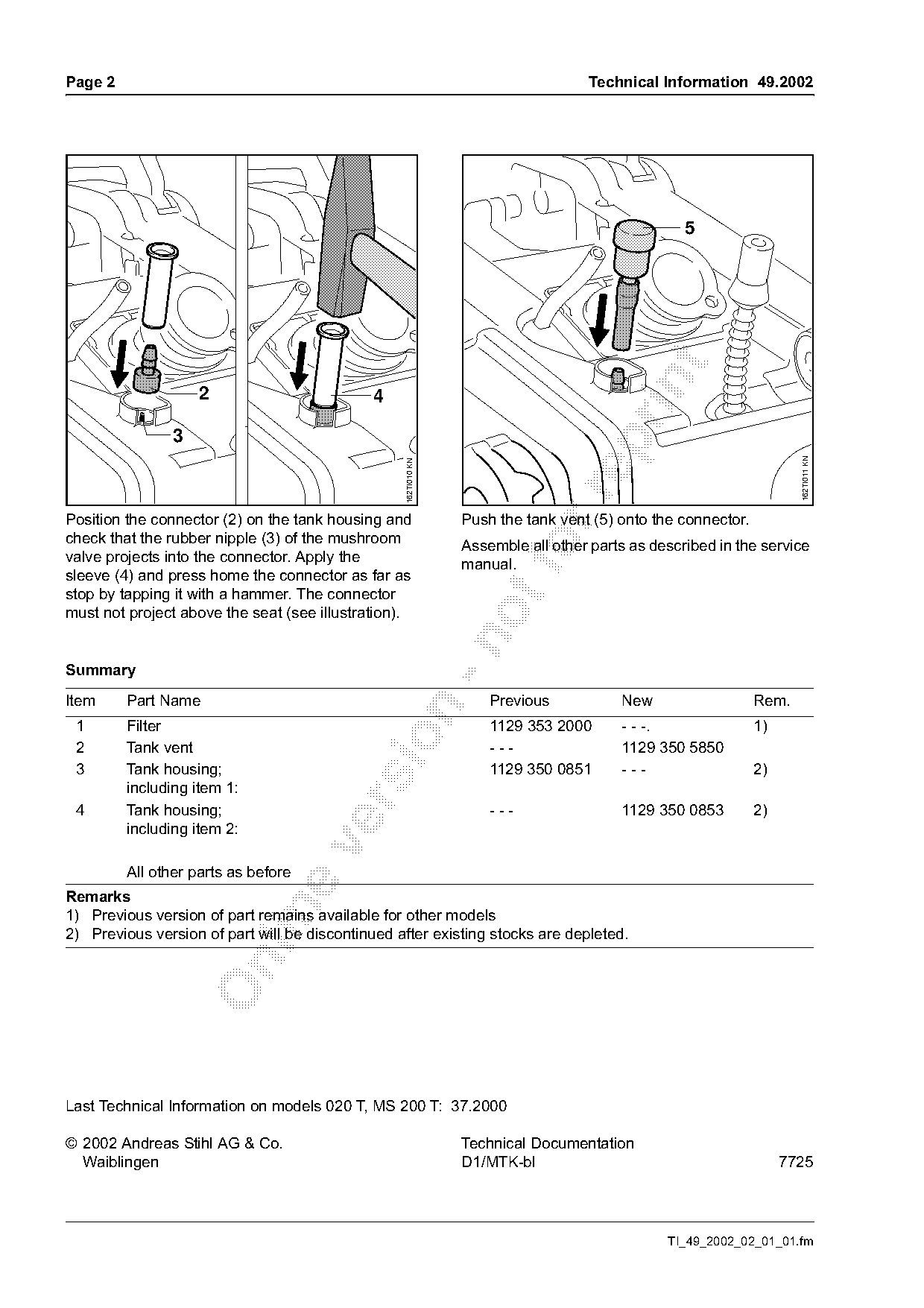

)m~ge 2 Technical Information 49.2002
2 4
162TI011 KN
162TI010 KN
Position the connector (2) on the tank housing and Push the tank vent (5) onto the connector.
check that the rubber nipple (3) of the mushroom
valve projects into the connector. Apply the
sleeve (4) and press home the connector as far as
manual.
Assemble all other parts as described in the service
stop by tapping it with a hammer. The connector
must not project above the seat (see illustration).
Summary
Item Part Name Previous New Rem.
1 Filter 1129 353 2000 - - -. 1)
2 Tank vent --- 1129 350 5850
3 Tank housing; 1129 350 0851 --- 2)
including item 1:
4 Tank housing; --- 1129 350 0853 2)
including item 2:
All other parts as before
Remarks
1) Previous version of part remains available for other models
2) Previous version of part will be discontinued after existing stocks are depleted.
Last Technical Information on models 020 T, MS 200 T: 37.2000
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7725
TI_49_2002_02_01_01.fm Page 2 of 2
