Technical Information · issue 53 of 2002
New Sales Designation for STIHL 066; Clutch Drum Bearing; Muffler Mounting (Australia and New Zealand only); Summary
Model 066 Chainsaws – Series 1122
IssueTI 53/2002
Engine family 1122
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1122 967 1505 | 1122 967 1506 | STIHL 066 Nameplate Model 066 chainsaws will be renamed The previous nameplate 1122 967 1505 will be STIHL MS 660 in accordance with the new naming replaced by nameplate 1122 967 1506. |
| 9512 933 2380 | 9512 933 2382 | Clutch Drum Bearing The previous needle cage 9512 933 2380 (12 mm wide) will be replaced by needle cage 9512 933 2382 (13 mm wide) to further increase service life. |
Full text

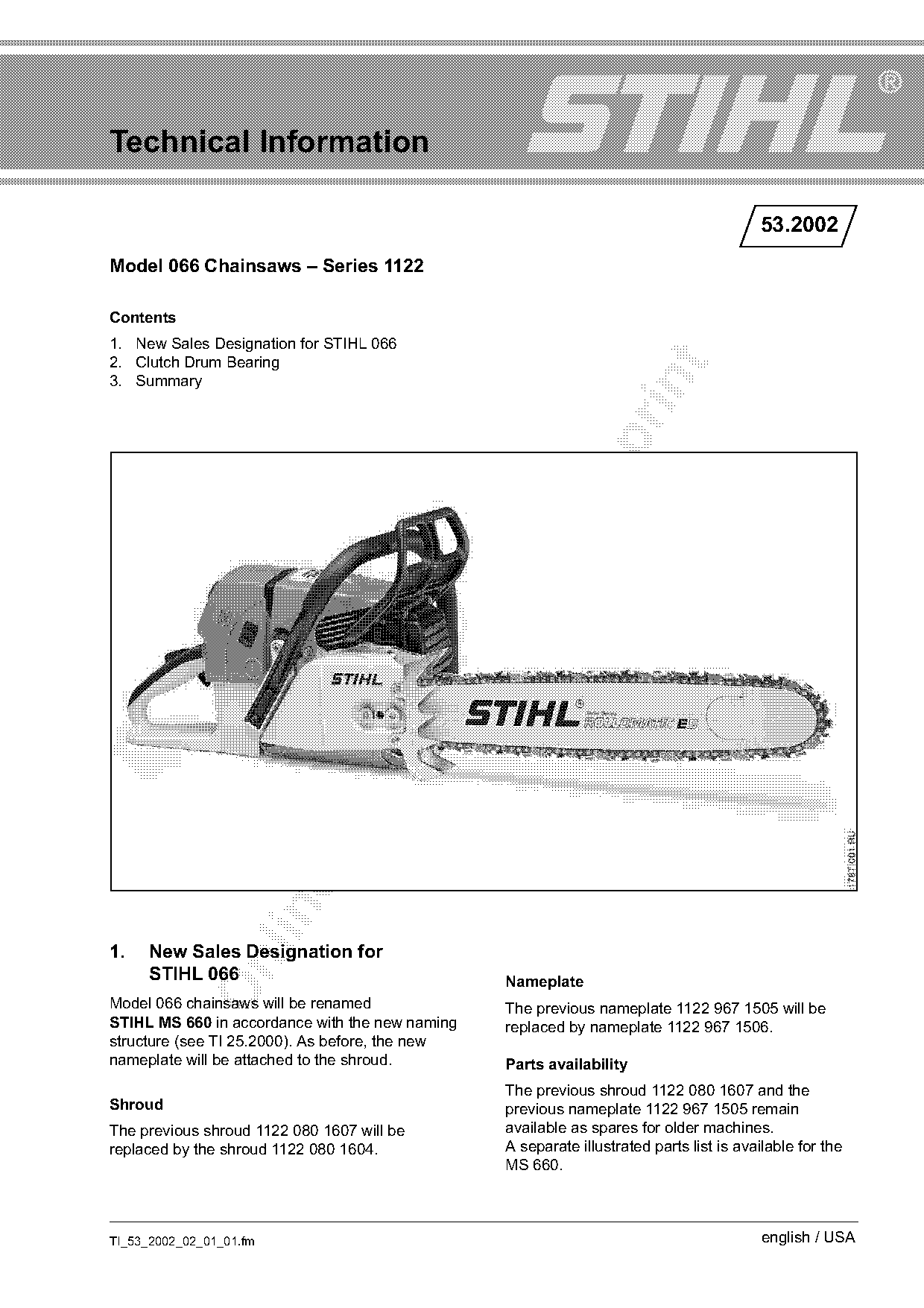

Page 1 of 2
Technical Information
53.2002
Model 066 Chainsaws – Series 1122
Contents
1. New Sales Designation for STIHL 066
2. Clutch Drum Bearing
3. Summary
1. New Sales Designation for
STIHL 066 Nameplate
Model 066 chainsaws will be renamed The previous nameplate 1122 967 1505 will be
STIHL MS 660 in accordance with the new naming replaced by nameplate 1122 967 1506.
structure (see TI 25.2000). As before, the new
nameplate will be attached to the shroud. Parts availability
The previous shroud 1122 080 1607 and the
Shroud previous nameplate 1122 967 1505 remain
The previous shroud 1122 080 1607 will be available as spares for older machines.
replaced by the shroud 1122 080 1604. A separate illustrated parts list is available for the
MS 660.
TI_53_2002_02_01_01.fm english / USA

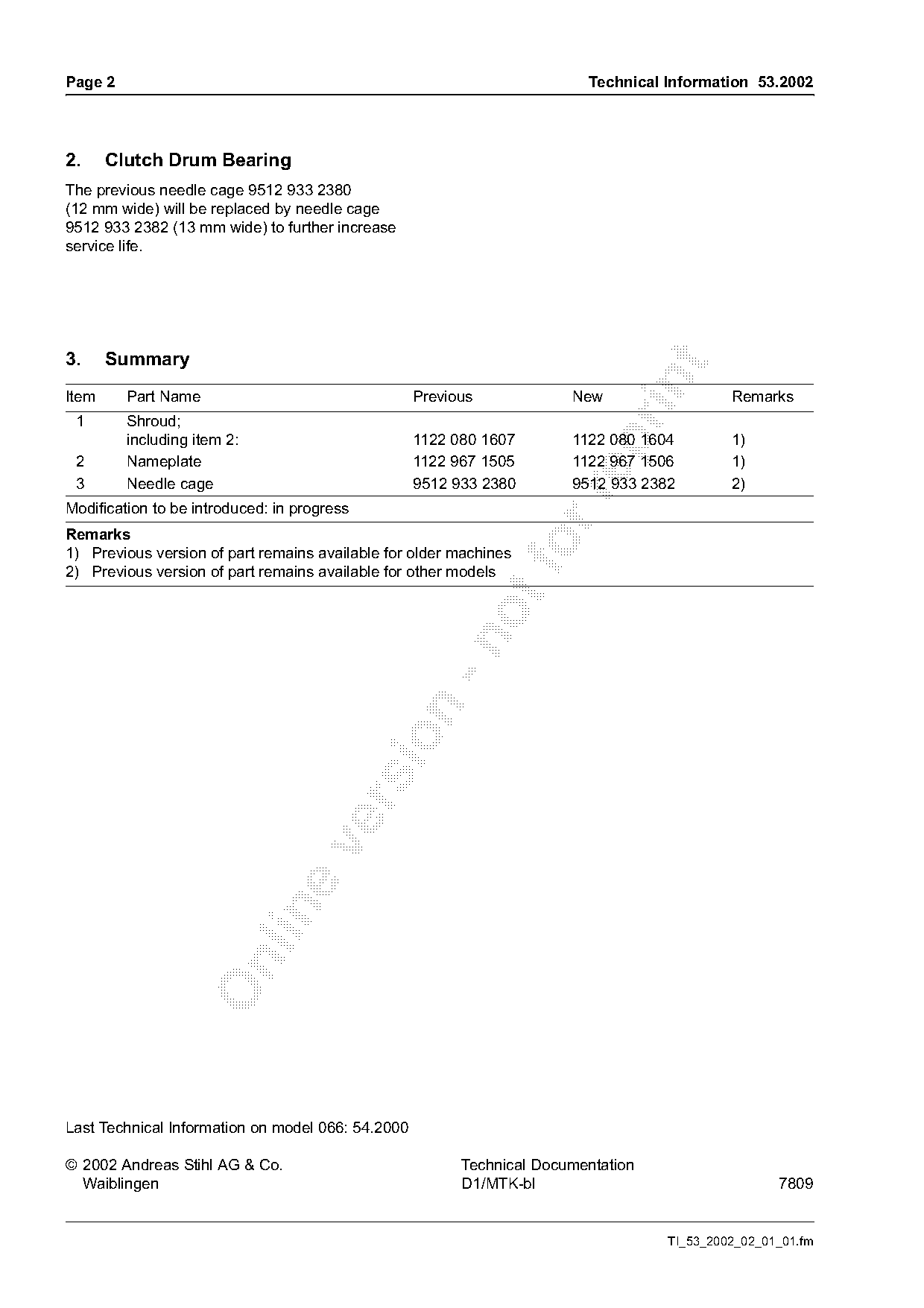

)m~ge 2 Technical Information 53.2002
2. Clutch Drum Bearing
The previous needle cage 9512 933 2380
(12 mm wide) will be replaced by needle cage
9512 933 2382 (13 mm wide) to further increase
service life.
3. Summary
Item Part Name Previous New Remarks
1 Shroud;
including item 2: 1122 080 1607 1122 080 1604 1)
2 Nameplate 1122 967 1505 1122 967 1506 1)
3 Needle cage 9512 933 2380 9512 933 2382 2)
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available for older machines
2) Previous version of part remains available for other models
Last Technical Information on model 066: 54.2000
© 2002 Andreas Stihl AG & Co. Technical Documentation
Waiblingen D1/MTK-bl 7809
TI_53_2002_02_01_01.fm Page 2 of 2
