Technical Information · issue 1 of 2003
New Sales Designation for STIHL 064; Clutch Drum B
Model 064 Chainsaws – Series 1122
IssueTI 1/2003
Engine family 1122
Part changes (3)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1122 080 1603 | 1122 080 1608 | Shroud The previous shroud 1122 080 1603 will be replaced by the shroud 1122 080 1608. |
| 9512 933 2380 | 1122 967 1503 | Clutch Drum Bearing Nameplate The previous needle cage 9512 933 2380 (12 mm wide) will be replaced by needle cage The previous nameplate 1122 967 1503 will be 9512 933 2382 (13 mm wide) to further increase replaced by nameplate 1122 967 1507. |
| 9512 933 2382 | 1122 967 1507 | (12 mm wide) will be replaced by needle cage The previous nameplate 1122 967 1503 will be 9512 933 2382 (13 mm wide) to further increase replaced by nameplate 1122 967 1507. |
Full text
Page 1 of 2

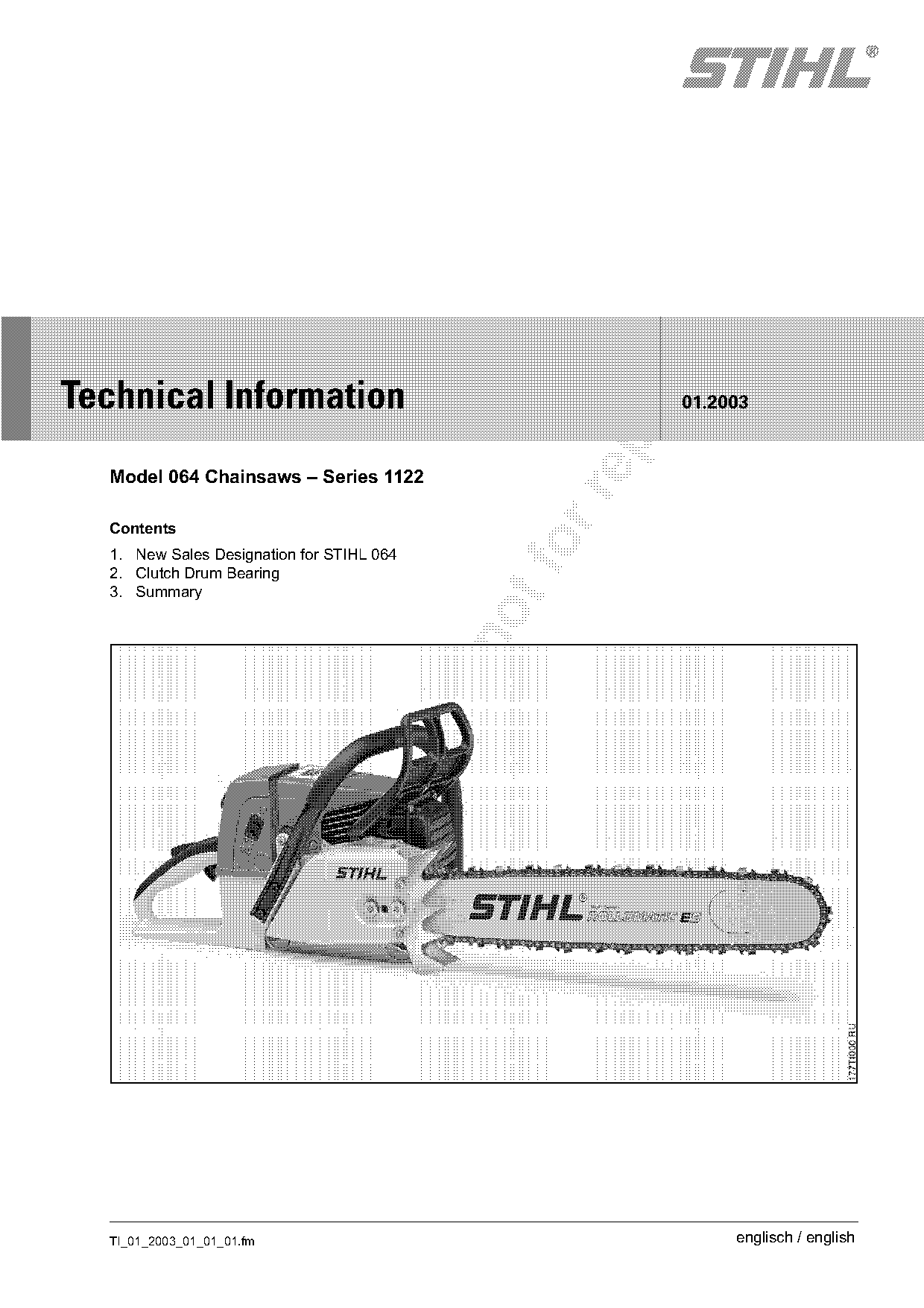

Technical Information
01.2003
Model 064 Chainsaws – Series 1122
Contents
1. New Sales Designation for STIHL 064
2. Clutch Drum Bearing
3. Summary
TI_01_2003_01_01_01.fm englisch / english

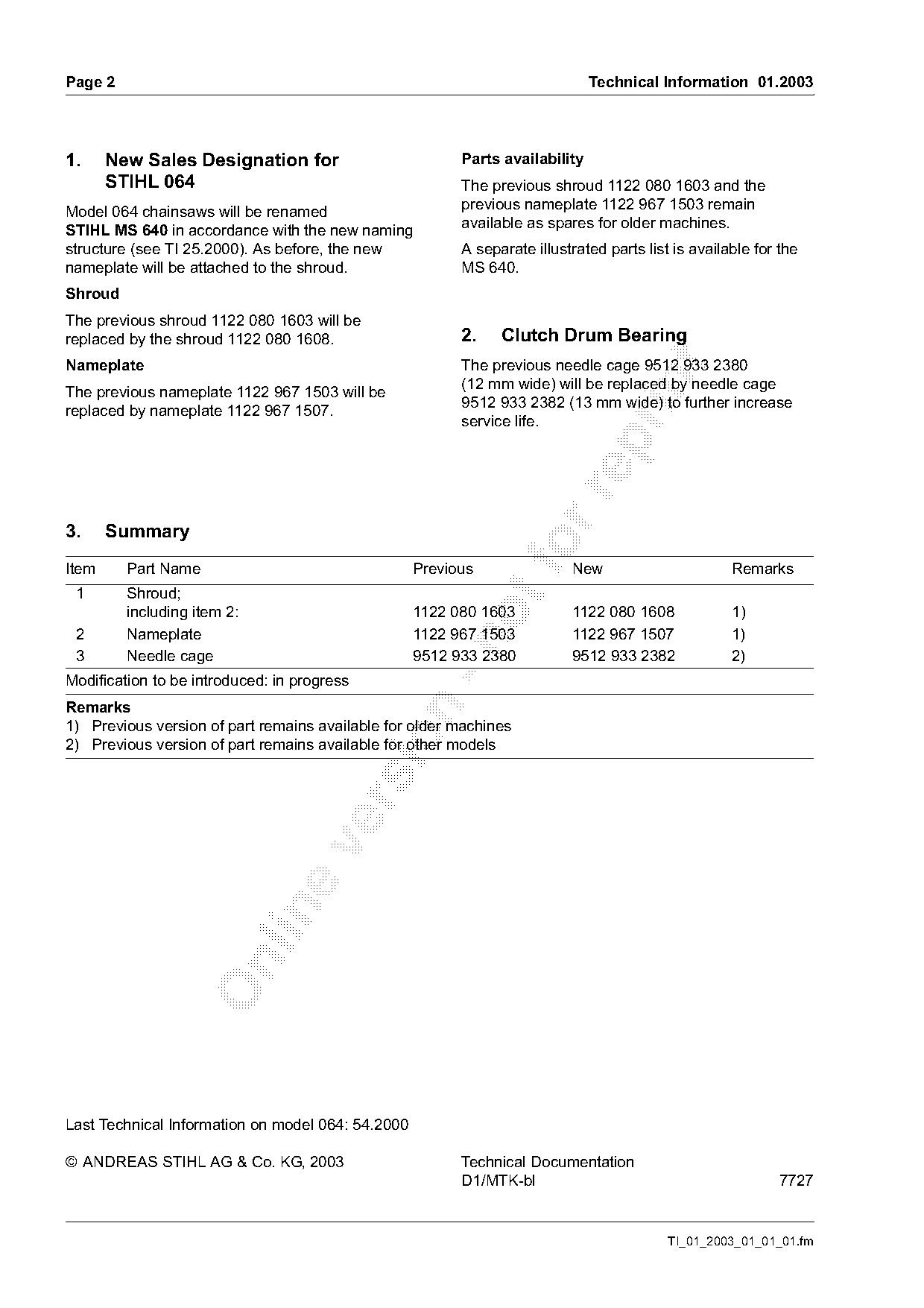

)m~ge 2 Technical Information 01.2003
1. New Sales Designation for Parts availability
STIHL 064 The previous shroud 1122 080 1603 and the
Model 064 chainsaws will be renamed previous nameplate 1122 967 1503 remain
STIHL MS 640 in accordance with the new naming available as spares for older machines.
structure (see TI 25.2000). As before, the new A separate illustrated parts list is available for the
nameplate will be attached to the shroud. MS 640.
Shroud
The previous shroud 1122 080 1603 will be
replaced by the shroud 1122 080 1608. 2. Clutch Drum Bearing
Nameplate The previous needle cage 9512 933 2380
(12 mm wide) will be replaced by needle cage
The previous nameplate 1122 967 1503 will be
9512 933 2382 (13 mm wide) to further increase
replaced by nameplate 1122 967 1507.
service life.
3. Summary
Item Part Name Previous
fo New Remarks
1 Shroud;
including item 2: 1122 080 1603 1122 080 1608 1)
2 Nameplate 1122 967 1503 1122 967 1507 1)
3 Needle cage 9512 933 2380 9512 933 2382 2)
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available for older machines
2) Previous version of part remains available for other models
Last Technical Information on model 064: 54.2000
© ANDREAS STIHL AG & Co. KG, 2003 Technical Documentation
D1/MTK-bl 7727
TI_01_2003_01_01_01.fm Page 2 of 2
