Technical Information · issue 6 of 2003
New back padding; New hip belt; Back plate; Supply of spare parts; Summary
IssueTI 6/2003
Part changes (2)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4203 790 8000 | 4203 790 8001 | New back padding The two-part back padding 4203 790 8000 and 4203 790 8005 is replaced by the one-piece padding 4203 790 8001. |
| 4203 710 9100 | 4203 710 9102 | Left: Previous version of part Right: New version of part Hip belt 4203 710 9100 is replaced by hip belt Left: Previous version of part 4203 710 9102. |
Full text

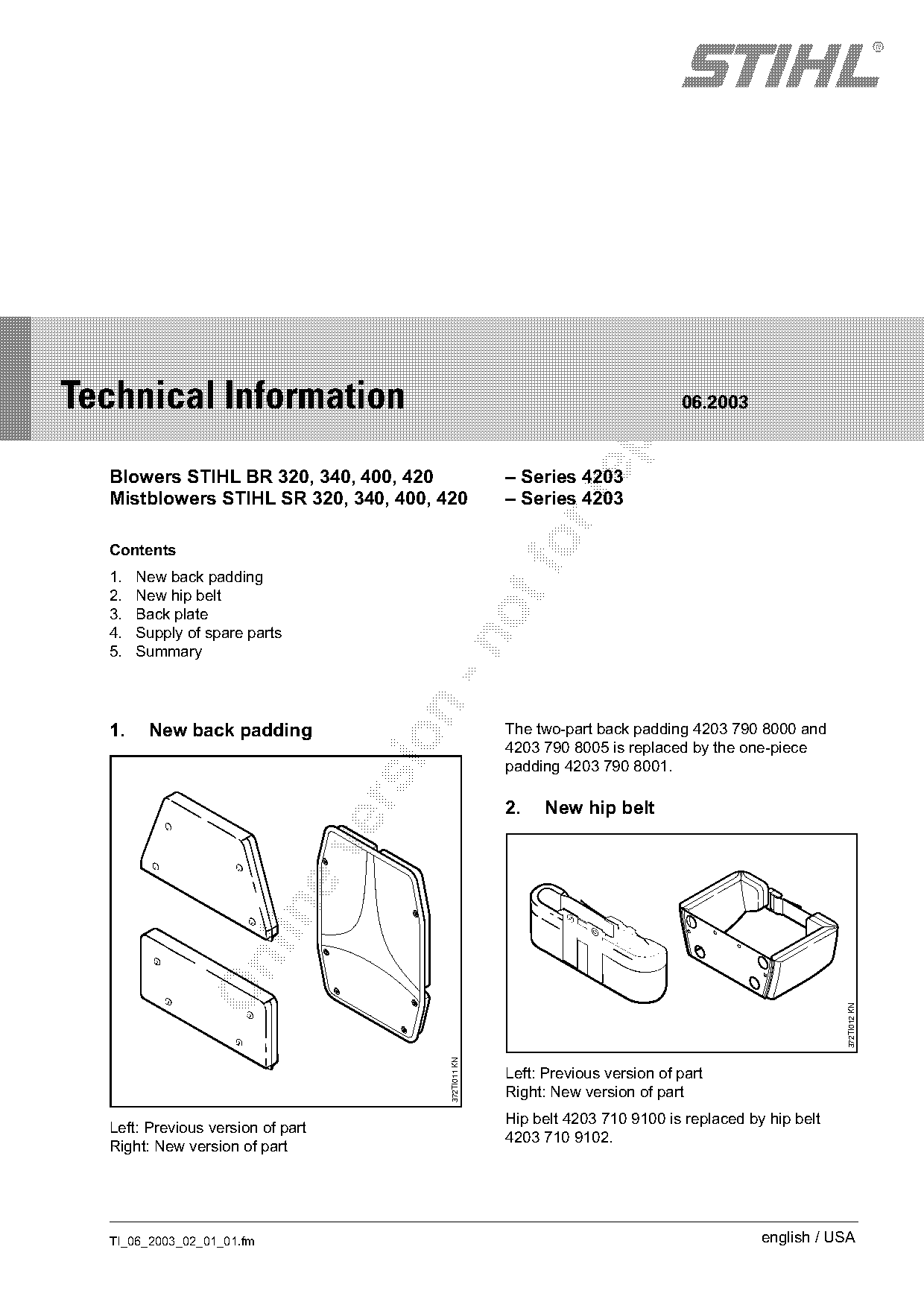

Page 1 of 3
STIH)
Technical Information
06.2003
Blowers STIHL BR 320, 340, 400, 420 – Series 4203
Mistblowers STIHL SR 320, 340, 400, 420 – Series 4203
Contents
1. New back padding
2. New hip belt
3. Back plate
4. Supply of spare parts
5. Summary
1. New back padding The two-part back padding 4203 790 8000 and
4203 790 8005 is replaced by the one-piece
padding 4203 790 8001.
2. New hip belt
372TI012 KN
372TI011 KN
Left: Previous version of part
Right: New version of part
Hip belt 4203 710 9100 is replaced by hip belt
Left: Previous version of part
4203 710 9102.
Right: New version of part
TI_06_2003_02_01_01.fm english / USA

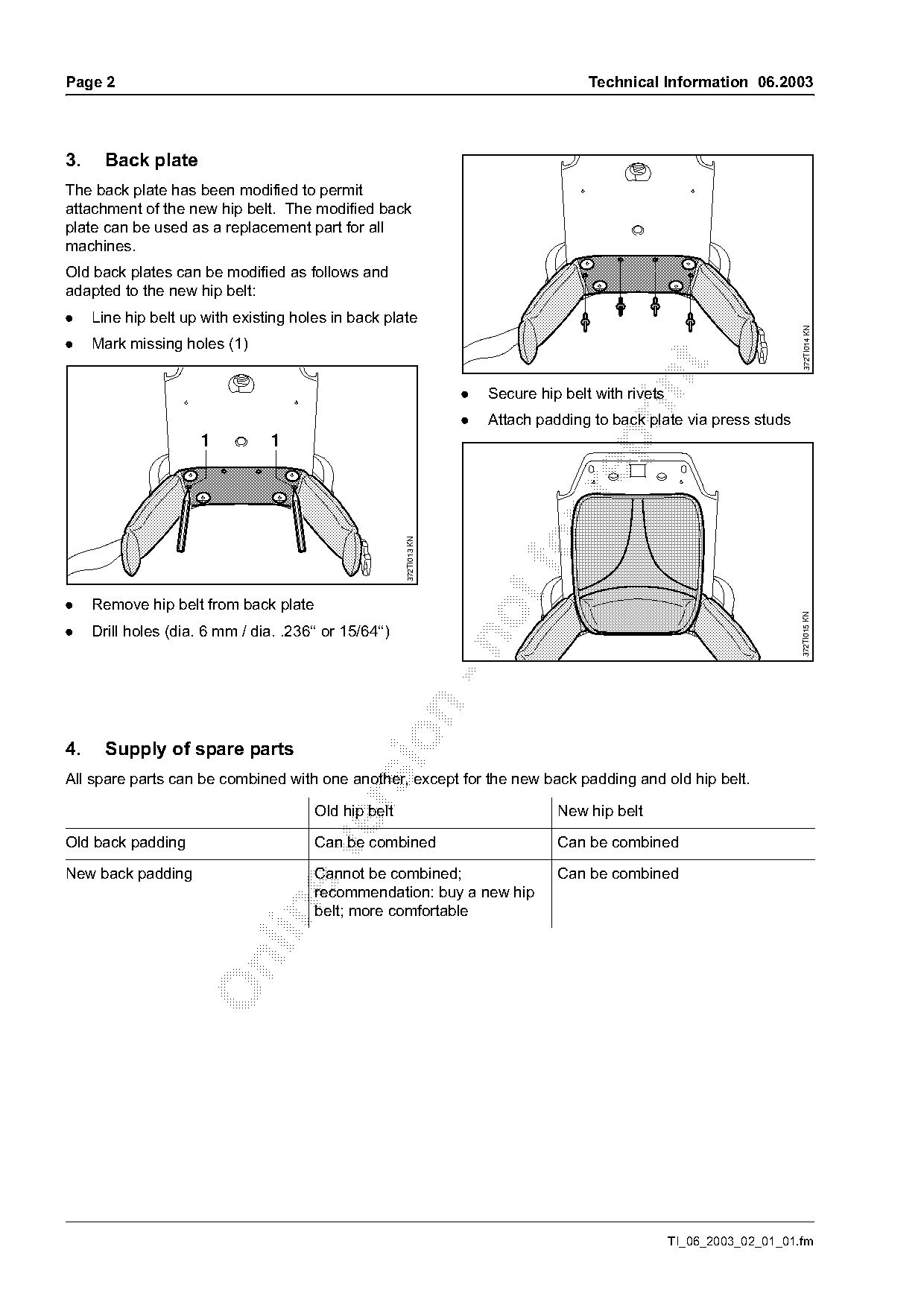

)m~ge 2 Technical Information 06.2003
3. Back plate
The back plate has been modified to permit
attachment of the new hip belt. The modified back
plate can be used as a replacement part for all
machines.
Old back plates can be modified as follows and
adapted to the new hip belt:
. Line hip belt up with existing holes in back plate
372TI014 KN
. Mark missing holes (1)
. Secure hip belt with rivets
. Attach padding to back plate via press studs
1 1
372TI013 KN
. Remove hip belt from back plate
372TI015 KN
. Drill holes (dia. 6 mm / dia. .236‘‘ or 15/64‘‘)
4. Supply of spare parts
All spare parts can be combined with one another, except for the new back padding and old hip belt.
Old hip belt New hip belt
Old back padding Can be combined Can be combined
New back padding Cannot be combined; Can be combined
recommendation: buy a new hip
belt; more comfortable
TI_06_2003_02_01_01.fm Page 2 of 3

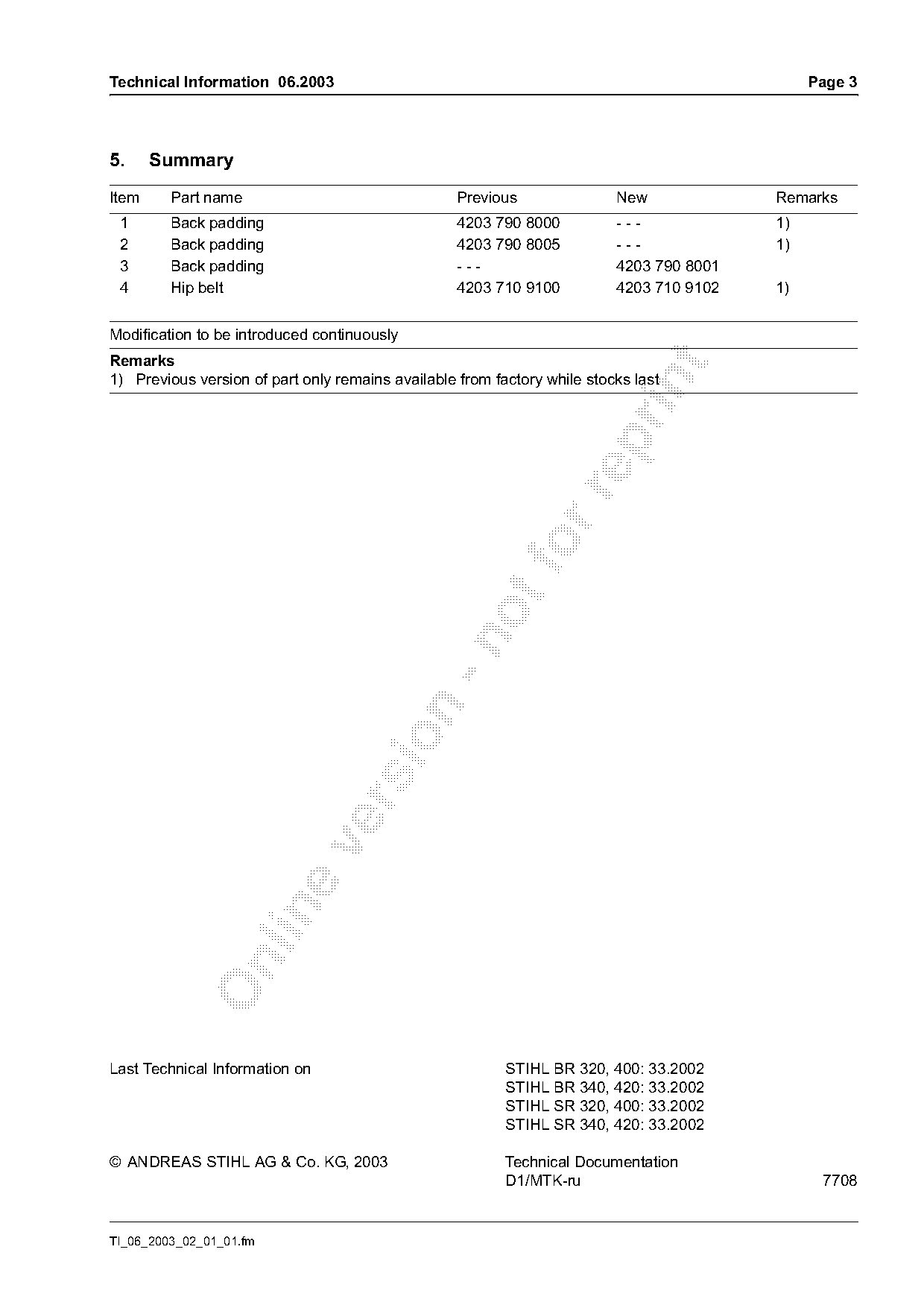

Technical Information 06.2003 Page 3
5. Summary
Item Part name Previous New Remarks
1 Back padding 4203 790 8000 --- 1)
2 Back padding 4203 790 8005 --- 1)
3 Back padding --- 4203 790 8001
4 Hip belt 4203 710 9100 4203 710 9102 1)
Modification to be introduced continuously
Remarks
1) Previous version of part only remains available from factory while stocks last
Last Technical Information on STIHL BR 320, 400: 33.2002
STIHL BR 340, 420: 33.2002
STIHL SR 320, 400: 33.2002
STIHL SR 340, 420: 33.2002
© ANDREAS STIHL AG & Co. KG, 2003 Technical Documentation
D1/MTK-ru 7708
TI_06_2003_02_01_01.fm Page 3 of 3
