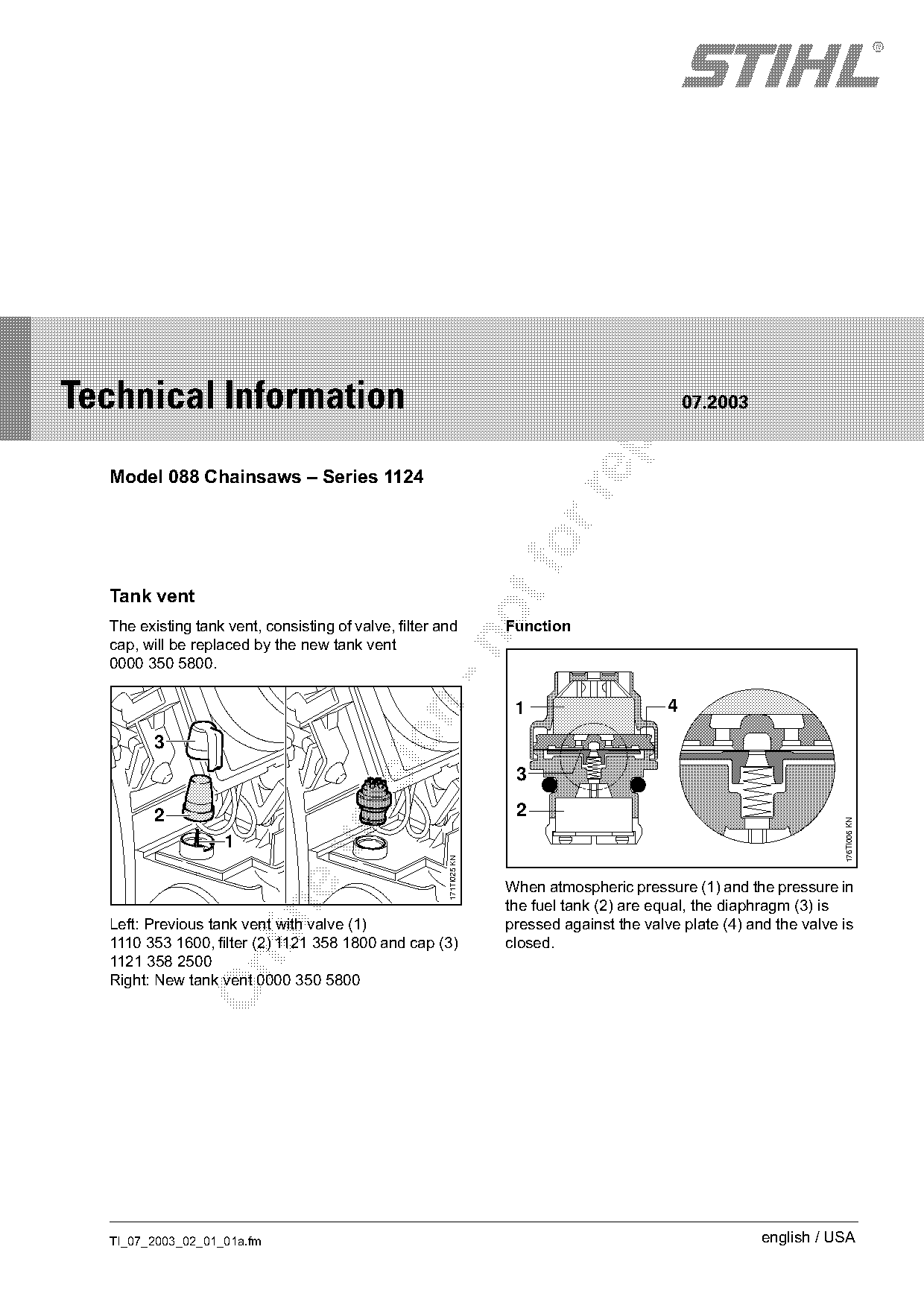

Technical Information · issue 7 of 2003
Tank vent
Model 088 Chainsaws – Series 1124
IssueTI 7/2003
Engine family 1124
Full text
Page 1 of 2
STIH)
Technical Information
07.2003
Model 088 Chainsaws – Series 1124
Tank vent
The existing tank vent, consisting of valve, filter and Function
cap, will be replaced by the new tank vent
0000 350 5800.
1 4
3
3
2 2
176TI006 KN
1
171TI025 KN
When atmospheric pressure (1) and the pressure in
the fuel tank (2) are equal, the diaphragm (3) is
Left: Previous tank vent with valve (1) pressed against the valve plate (4) and the valve is
1110 353 1600, filter (2) 1121 358 1800 and cap (3) closed.
1121 358 2500
Right: New tank vent 0000 350 5800
TI_07_2003_02_01_01a.fm english / USA

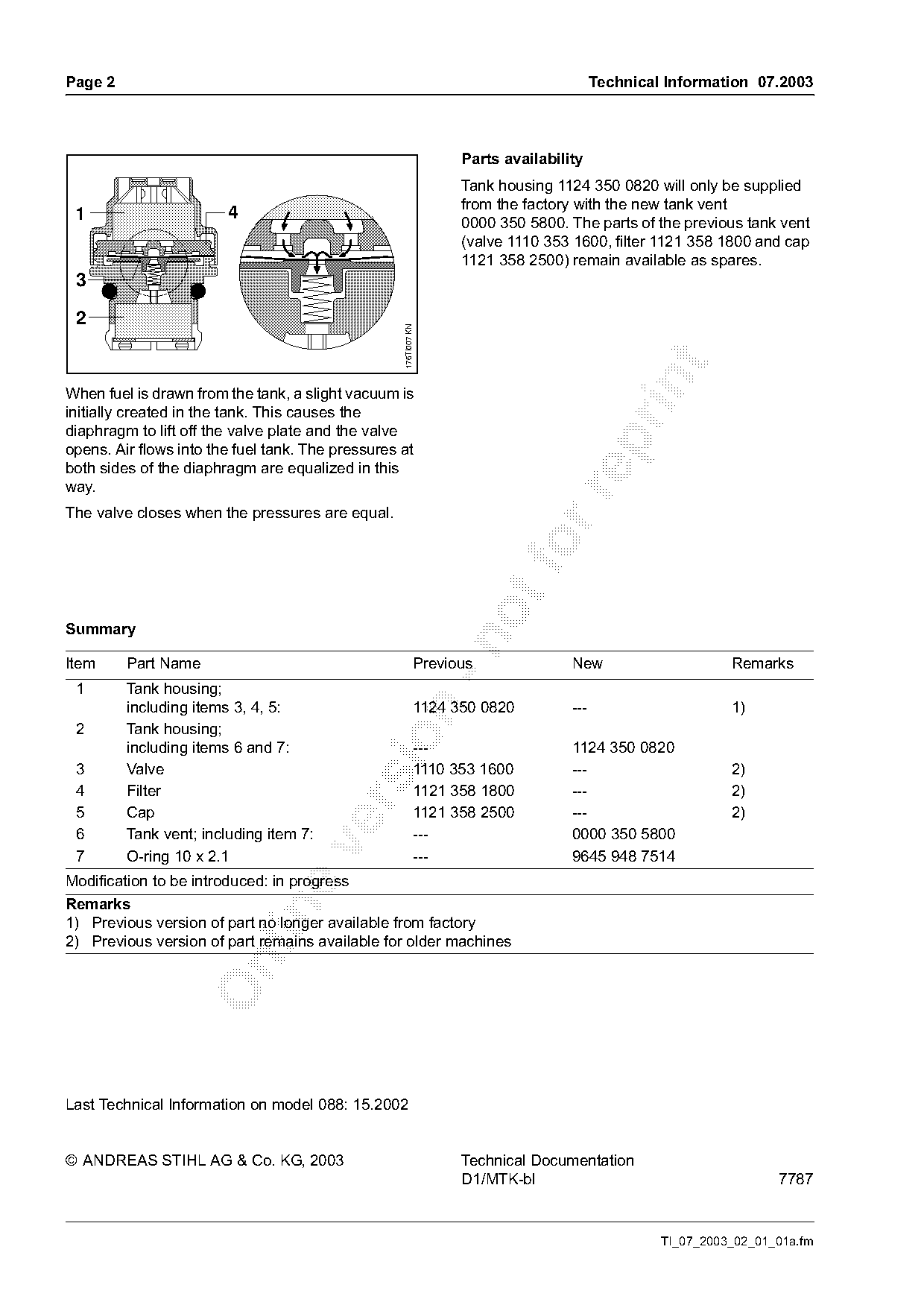

)m~ge 2 Technical Information 07.2003
Parts availability
Tank housing 1124 350 0820 will only be supplied
from the factory with the new tank vent
1 4
0000 350 5800. The parts of the previous tank vent
(valve 1110 353 1600, filter 1121 358 1800 and cap
1121 358 2500) remain available as spares.
3
176TI007 KN
When fuel is drawn from the tank, a slight vacuum is
initially created in the tank. This causes the
diaphragm to lift off the valve plate and the valve
opens. Air flows into the fuel tank. The pressures at
both sides of the diaphragm are equalized in this
way.
The valve closes when the pressures are equal.
Summary
Item Part Name Previous New Remarks
1 Tank housing;
including items 3, 4, 5: 1124 350 0820 --- 1)
2 Tank housing;
including items 6 and 7: --- 1124 350 0820
3 Valve 1110 353 1600 --- 2)
4 Filter 1121 358 1800 --- 2)
5 Cap 1121 358 2500 --- 2)
6 Tank vent; including item 7: --- 0000 350 5800
7 O-ring 10 x 2.1 --- 9645 948 7514
Modification to be introduced: in progress
Remarks
1) Previous version of part no longer available from factory
2) Previous version of part remains available for older machines
Last Technical Information on model 088: 15.2002
© ANDREAS STIHL AG & Co. KG, 2003 Technical Documentation
D1/MTK-bl 7787
TI_07_2003_02_01_01a.fm Page 2 of 2
