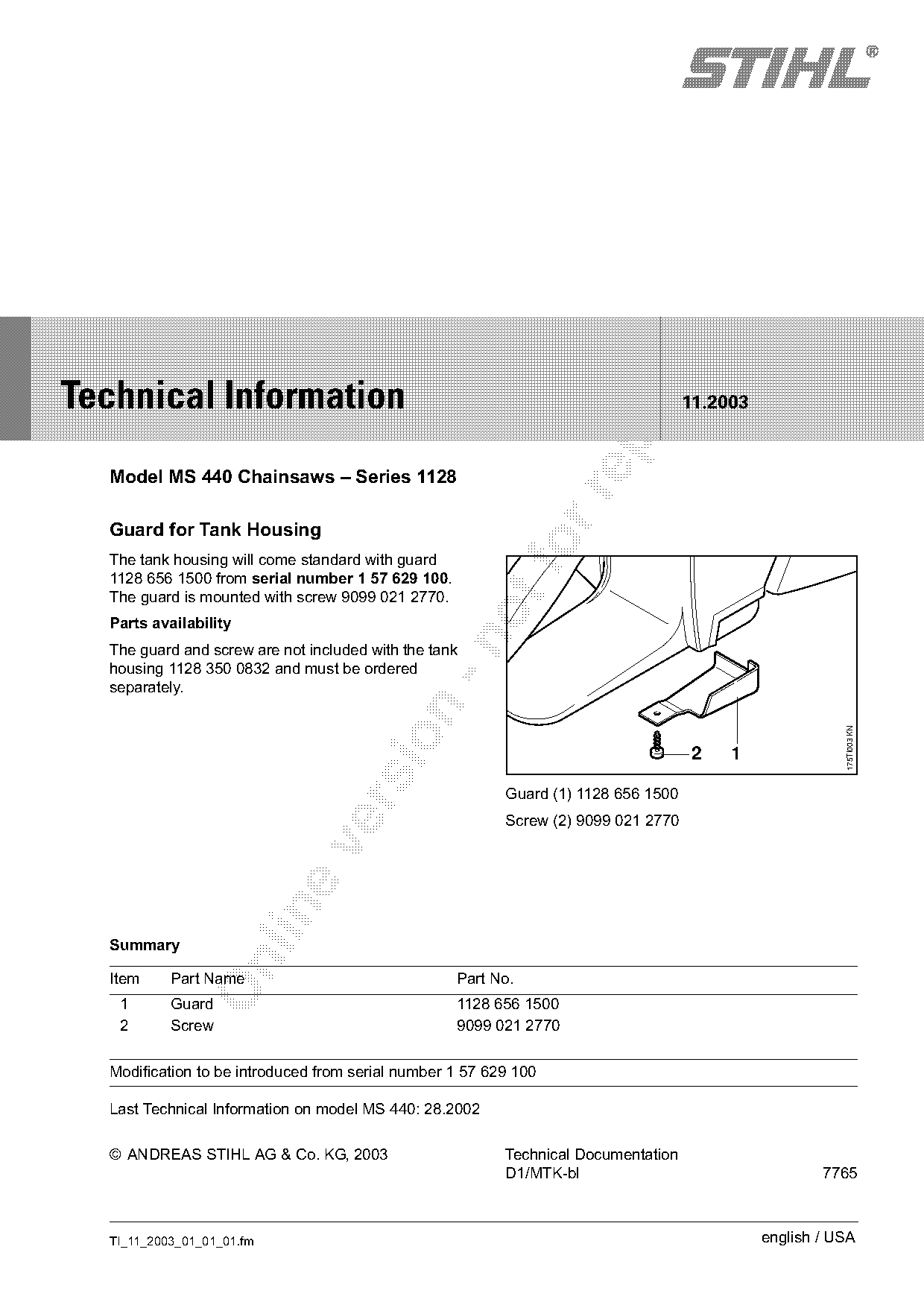

Technical Information

                                                                                    11.2003

  Model MS 440 Chainsaws – Series 1128

  Guard for Tank Housing
  The tank housing will come standard with guard
  1128 656 1500 from serial number 1 57 629 100.
  The guard is mounted with screw 9099 021 2770.

  Parts availability

  The guard and screw are not included with the tank
  housing 1128 350 0832 and must be ordered
  separately.

                                                                                                         175TI003 KN

                                                                                     2   1

                                                          Guard (1) 1128 656 1500

                                                          Screw (2) 9099 021 2770

  Summary

  Item     Part Name                               Part No.
   1       Guard                                   1128 656 1500
   2       Screw                                   9099 021 2770

  Modification to be introduced from serial number 1 57 629 100

  Last Technical Information on model MS 440: 28.2002

  © ANDREAS STIHL AG & Co. KG, 2003                       Technical Documentation
                                                          D1/MTK-bl                                   7765

  TI_11_2003_01_01_01.fm                                                                      english / USA
