Technical Information · issue 12 of 2003
Gearhead
Model FS 160, 220, 280 Clearing Saws – Series 4119
IssueTI 12/2003
Full text
Page 1 of 2
STIH)

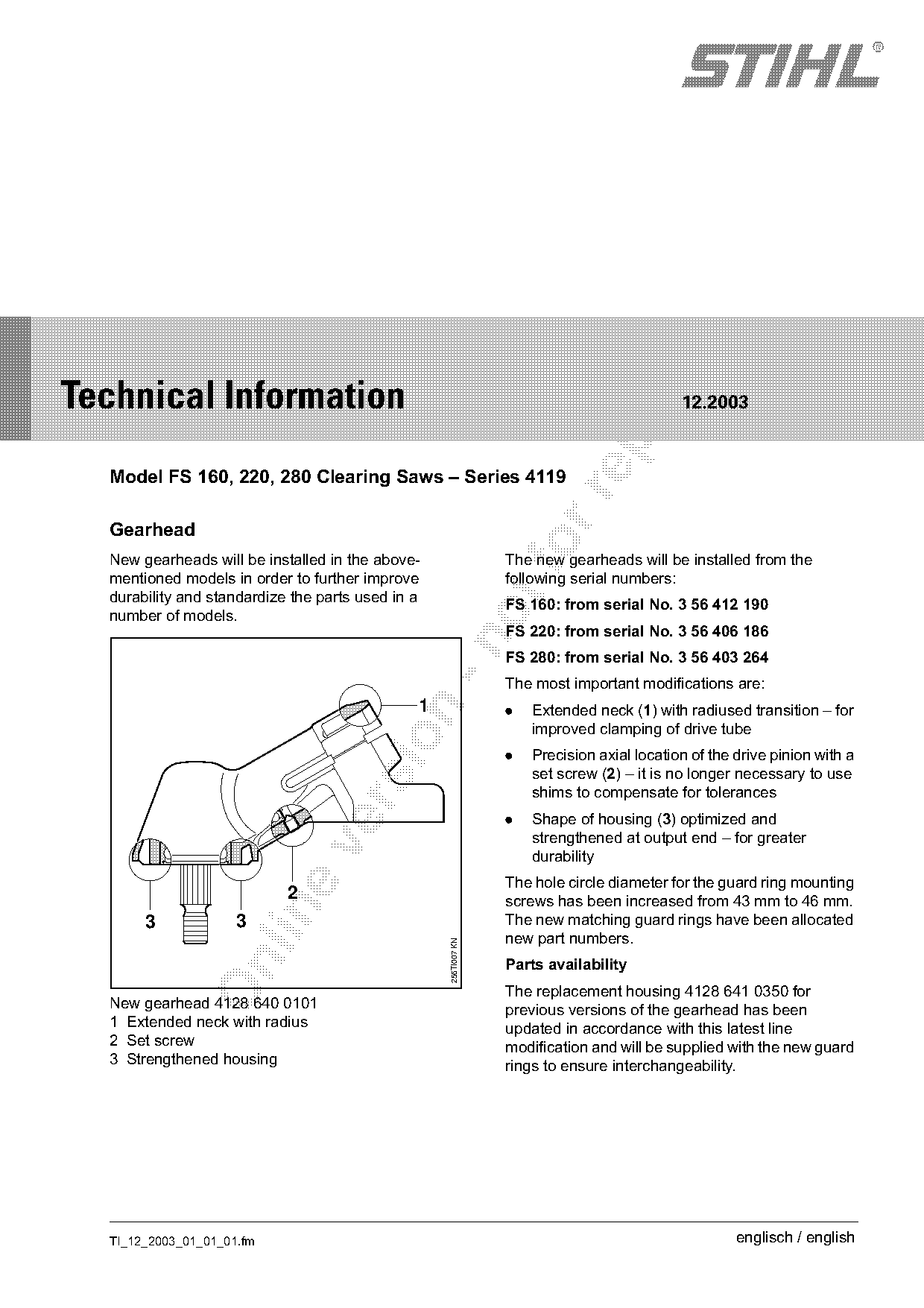

Technical Information
12.2003
Model FS 160, 220, 280 Clearing Saws – Series 4119
Gearhead
New gearheads will be installed in the above-
mentioned models in order to further improve
The new gearheads will be installed from the
following serial numbers:
durability and standardize the parts used in a
FS 160: from serial No. 3 56 412 190
number of models.
FS 220: from serial No. 3 56 406 186
FS 280: from serial No. 3 56 403 264
The most important modifications are:
1 . Extended neck (1) with radiused transition – for
improved clamping of drive tube
. Precision axial location of the drive pinion with a
set screw (2) – it is no longer necessary to use
shims to compensate for tolerances
. Shape of housing (3) optimized and
strengthened at output end – for greater
durability
The hole circle diameter for the guard ring mounting
2 screws has been increased from 43 mm to 46 mm.
3 3 The new matching guard rings have been allocated
new part numbers.
256TI007 KN
Parts availability
The replacement housing 4128 641 0350 for
New gearhead 4128 640 0101 previous versions of the gearhead has been
1 Extended neck with radius updated in accordance with this latest line
2 Set screw modification and will be supplied with the new guard
3 Strengthened housing rings to ensure interchangeability.
TI_12_2003_01_01_01.fm englisch / english

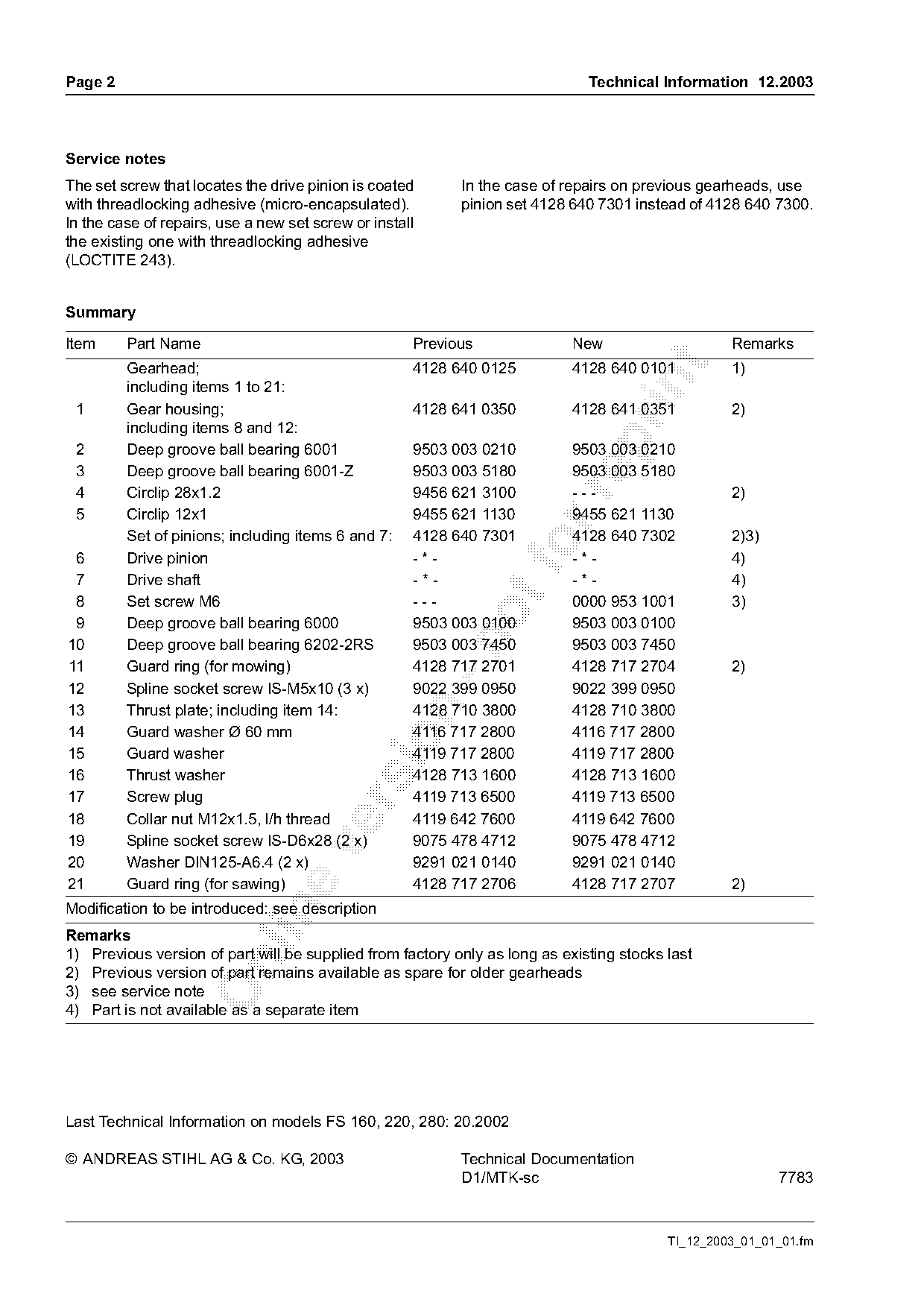

)m~ge 2 Technical Information 12.2003
Service notes
The set screw that locates the drive pinion is coated In the case of repairs on previous gearheads, use
with threadlocking adhesive (micro-encapsulated). pinion set 4128 640 7301 instead of 4128 640 7300.
In the case of repairs, use a new set screw or install
the existing one with threadlocking adhesive
(LOCTITE 243).
Summary
Item Part Name Previous New Remarks
Gearhead; 4128 640 0125 4128 640 0101 1)
including items 1 to 21:
1 Gear housing; 4128 641 0350 4128 641 0351 2)
including items 8 and 12:
2 Deep groove ball bearing 6001 9503 003 0210 9503 003 0210
3 Deep groove ball bearing 6001-Z 9503 003 5180 9503 003 5180
4 Circlip 28x1.2 9456 621 3100 --- 2)
5 Circlip 12x1 9455 621 1130 9455 621 1130
Set of pinions; including items 6 and 7: 4128 640 7301 4128 640 7302 2)3)
6 Drive pinion -*-
fo -*- 4)
7 Drive shaft -*- -*- 4)
8 Set screw M6 --- 0000 953 1001 3)
9 Deep groove ball bearing 6000 9503 003 0100 9503 003 0100
10 Deep groove ball bearing 6202-2RS 9503 003 7450 9503 003 7450
11 Guard ring (for mowing) 4128 717 2701 4128 717 2704 2)
12 Spline socket screw IS-M5x10 (3 x) 9022 399 0950 9022 399 0950
13 Thrust plate; including item 14: 4128 710 3800 4128 710 3800
14 Guard washer Ø 60 mm 4116 717 2800 4116 717 2800
15 Guard washer 4119 717 2800 4119 717 2800
16 Thrust washer 4128 713 1600 4128 713 1600
17 Screw plug 4119 713 6500 4119 713 6500
18 Collar nut M12x1.5, l/h thread 4119 642 7600 4119 642 7600
19 Spline socket screw IS-D6x28 (2 x) 9075 478 4712 9075 478 4712
20 Washer DIN125-A6.4 (2 x) 9291 021 0140 9291 021 0140
21 Guard ring (for sawing) 4128 717 2706 4128 717 2707 2)
Modification to be introduced: see description
Remarks
1) Previous version of part will be supplied from factory only as long as existing stocks last
2) Previous version of part remains available as spare for older gearheads
3) see service note
4) Part is not available as a separate item
Last Technical Information on models FS 160, 220, 280: 20.2002
© ANDREAS STIHL AG & Co. KG, 2003 Technical Documentation
D1/MTK-sc 7783
TI_12_2003_01_01_01.fm Page 2 of 2
