Technical Information · issue 13 of 2003
Square nylon line; STIHL TrimCut mowing heads; STI
Accessory changes & notes
Source-reviewed accessory relationships. These notes do not establish fitment to unnamed saw models. Availability statements belong to the bulletin’s date.
Service note · Accessory
Square mowing line: code size is not width or diagonal
SuperCut and old unmodified AutoCut spools remain round-line only.
- The square symbol identifies square nylon line. Equal round/square designations denote equal sectional area, NOT equal width: printed rounded code-to-width pairs are 0.095 in → 0.083 in and 0.105 in → 0.095 in. The 0.095 square designation is neither width nor diagonal; retain the printed rounded values without inventing a tolerance.
- An edge leads the square line in the airflow drawing. The bulletin attributes greater drag, slightly lower working speed and engine noise to this orientation. It claims up to 10% better cut result and service life depending on vegetation, head, machine and conditions; these are conditional source claims, not reproduced performance. Cutting sound is described as subjectively more aggressive, with sound pressure comparable to round quiet line.
- Square-line permission covers modified TrimCut 30-2/40-2/50-2 and modified AutoCut 25-2/30-2/40-2/40-4 only with the respective spools and head-specific quantities. SuperCut automatic advance is exclusively for ROUND line. Older AutoCut heads with UNMODIFIED spools also require ROUND line. A shared head order number cannot identify the spool generation.
- This is historical source guidance, not current stock information or universal machine fitment. No physical interchange test was performed.
Source: TI 13/2003, p. 1 · TI 13/2003, p. 2 — 1–1.3.2 including cross-section and airflow diagrams.
No additional parts-table entry added.
Conditional replacement · Accessory

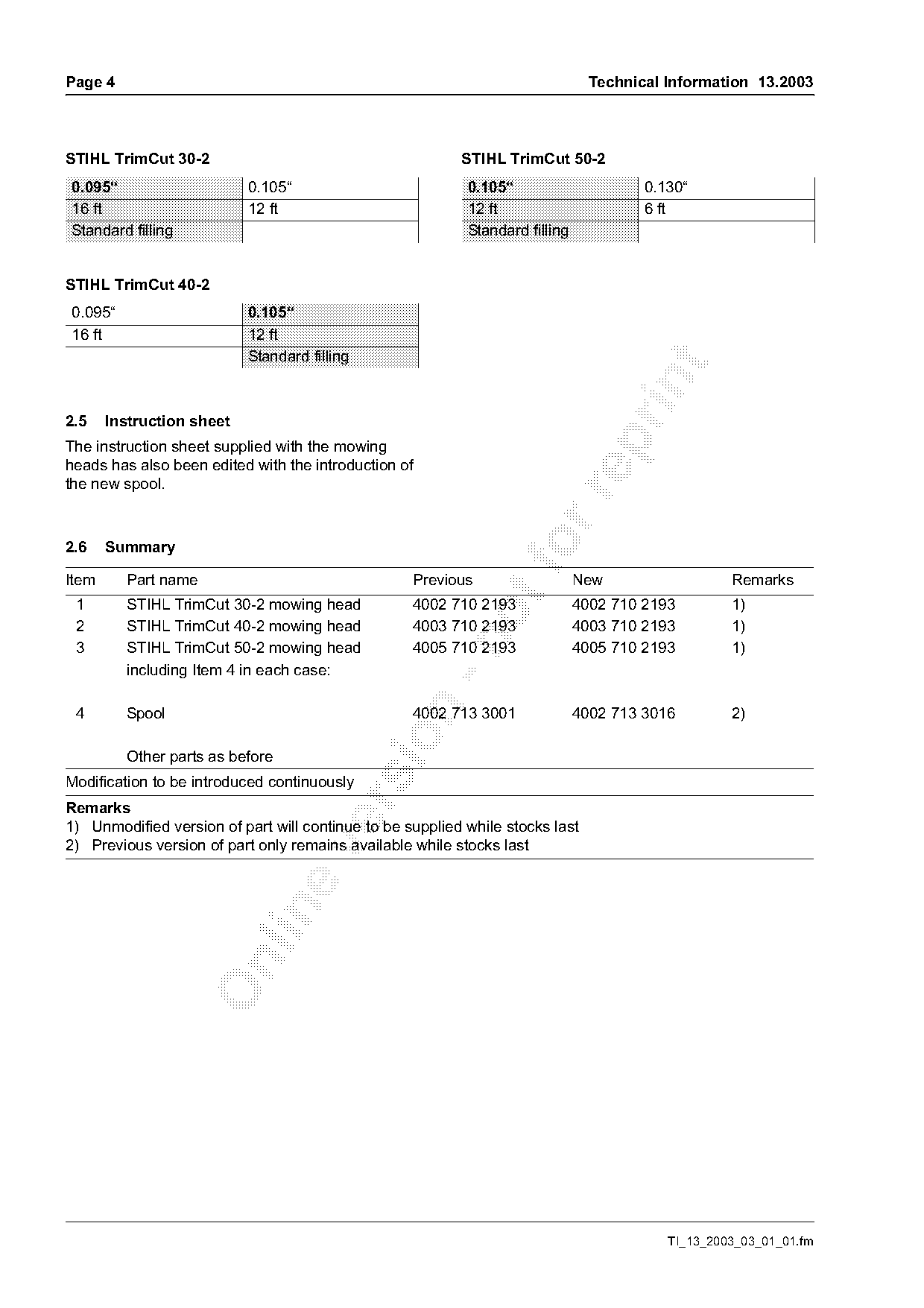

TrimCut 30-2, 40-2 and 50-2: modified spool 4002 713 3016
Head numbers stay unchanged; line capacity and standard fill differ by head.
- All three heads replace spool 4002 713 3001 with 4002 713 3016, identified by specially shaped threading openings (diagram 681 TI 041). Older heads gain the stated round/square-line capability by fitting the new spool. The general 0.095–0.130 in range does NOT override each head table.
- TrimCut 30-2: 0.095 in / 16 ft (standard), or 0.105 in / 12 ft. TrimCut 40-2: 0.095 in / 16 ft, or 0.105 in / 12 ft (standard). TrimCut 50-2: 0.105 in / 12 ft (standard), or 0.130 in / 6 ft. These are printed recommended filling quantities, not exposed cutting-line lengths.
- Head numbers remain 4002 710 2193 (30-2), 4003 710 2193 (40-2), and 4005 710 2193 (50-2); each includes the spool. Other parts remain unchanged. Modified versions are introduced continuously without a numeric cutoff; old heads and old spools remain supplied only while stocks last. The enclosed instruction sheet is revised.
- Larger line sizes require more machine power for reasonable performance. No specific brushcutter model/head/deflector combination is approved by this bulletin.
- This is historical source guidance, not current stock information or universal machine fitment. No physical interchange test was performed.
Source: TI 13/2003, p. 2 · TI 13/2003, p. 3 · TI 13/2003, p. 4 — 1.3;2–2.6 complete table and remarks.
Part numbers (5)
- 4002 713 3001 — Old TrimCut spoolStocks only · TrimCut 30-2/40-2/50-2
- 4002 713 3016 — Modified TrimCut spoolReplacement for old heads · TrimCut 30-2/40-2/50-2
- 4002 710 2193 — TrimCut 30-2 headUnchanged order number · TrimCut 30-2
- 4003 710 2193 — TrimCut 40-2 headUnchanged order number · TrimCut 40-2
- 4005 710 2193 — TrimCut 50-2 headUnchanged order number · TrimCut 50-2
Conditional replacement · Accessory

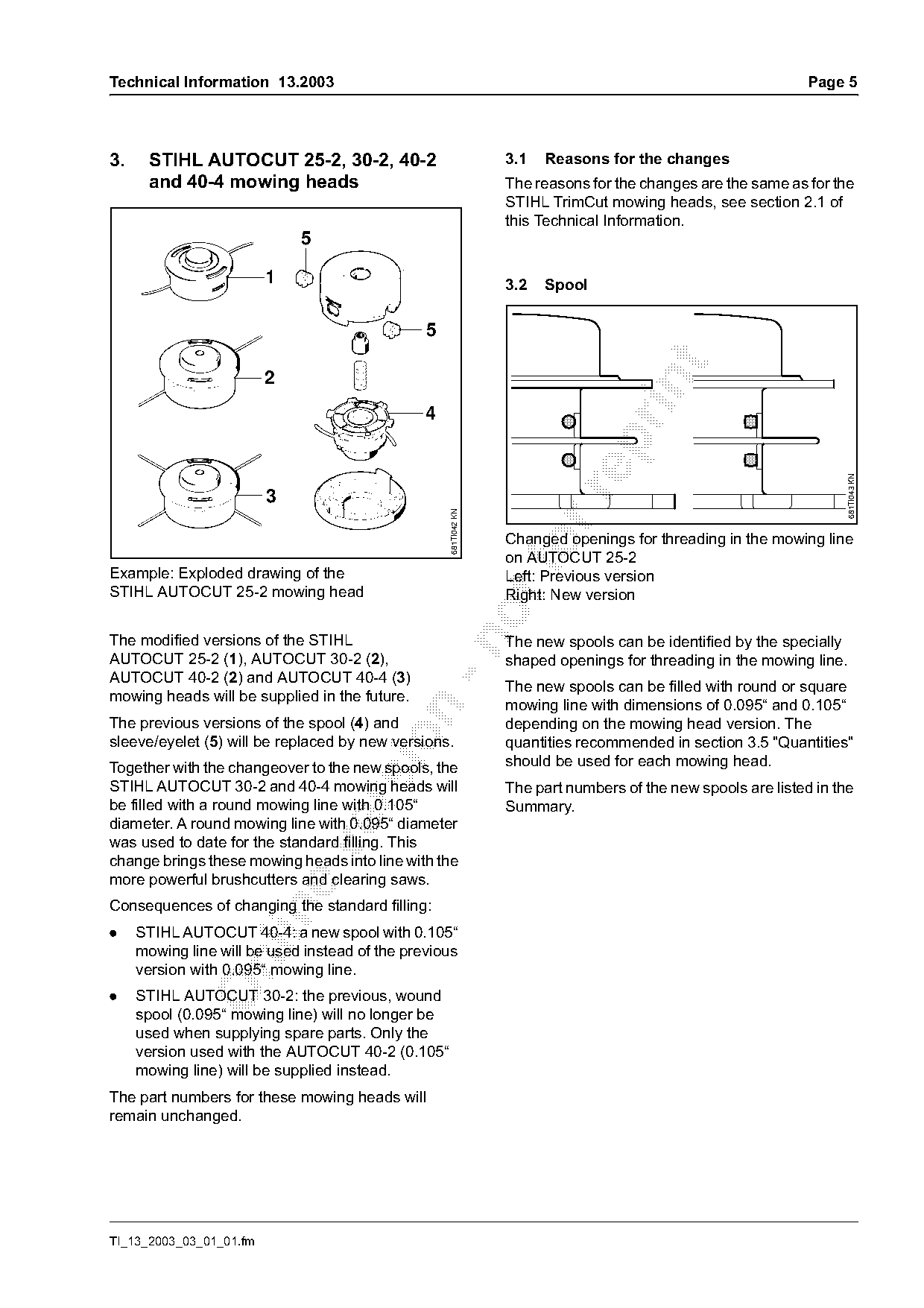

AutoCut 25-2: new bare spool, unchanged filled-spool number
The 0.095 in standard fill is 32 ft; the 0.105 in option is 22 ft.
- AutoCut 25-2 head 4002 710 2191 retains its number and includes filled spool (item 2) and two eyelets (item 9). Filled spool 4002 710 4313 also retains its number, while bare spool 4002 713 3008 becomes 4002 713 3017. The new filled assembly includes that new bare spool; the same order number can describe different generations.
- Recommended round/square-line quantities: 0.095 in / 32 ft is STANDARD; 0.105 in / 22 ft is the other listed fill. The explosion diagram is an example of AutoCut 25-2, not a universal spool shape or assembly roster.
- New AutoCut spools have specially shaped threading openings. Section 3.4 permits the modified capability in older heads when the old spool is replaced; section 3.3 also documents the changed eyelets. Do not infer that the old spool accepts square line or that the text proves old-eyelet compatibility. Head numbers alone do not distinguish generations.
- Changes are introduced continuously, with no numeric serial cutoff. Unmodified heads and previous components remain available only while stocks last; other parts remain unchanged. The supplied instruction sheet is revised. Larger line demands more machine power; no machine-specific mounting permission is supplied.
- This is historical source guidance, not current stock information or universal machine fitment. No physical interchange test was performed.
Source: TI 13/2003, p. 2 · TI 13/2003, p. 5 · TI 13/2003, p. 6 · TI 13/2003, p. 7 — 1.3;3–3.7 AutoCut25-2 rows and common remarks.
Part numbers (4)
- 4002 710 2191 — Complete headUnchanged number · AutoCut 25-2
- 4002 710 4313 — Filled spoolUnchanged number; changed bare spool · AutoCut 25-2
- 4002 713 3008 — Previous bare spoolStocks only · AutoCut 25-2
- 4002 713 3017 — Modified bare spoolNew · AutoCut 25-2
Conditional replacement · Accessory
AutoCut 30-2 and 40-2: shared new spool, different fill tables
The 40-2 table lists 0.120 in despite the narrower range in section 3.2.
- AutoCut 30-2 head 4002 710 2187 and AutoCut 40-2 head 4003 710 2189 retain their numbers. Each includes its filled spool and TWO eyelets. Both use bare spool 4003 713 3011 instead of 4003 713 3005.
- AutoCut 30-2 filled spool 4002 710 4311 (previous 0.095 in) becomes 4003 710 4303 (0.105 in), the same filled-spool number already used by AutoCut 40-2. On 40-2 that filled-spool number remains unchanged. No 25-2 or 40-4 complete-spool interchange is implied.
- AutoCut 30-2 recommendations: 0.095 in / 50 ft or 0.105 in / 40 ft (new STANDARD). AutoCut 40-2 recommendations: 0.105 in / 40 ft (STANDARD) or 0.120 in / 30 ft. Printed table values are retained as head-specific filling quantities.
- SOURCE DISCREPANCY: section 3.2 says the new spools take round or square line of 0.095 and 0.105 in depending on head, but the page 6 AutoCut 40-2 table explicitly adds 0.120 in. Both are visible in the scans. Do not silently change 0.120 to 0.105 or turn this into unqualified 0.120-inch square-line approval; the conflict remains unresolved.
- New AutoCut spools have specially shaped threading openings. Section 3.4 permits the modified capability in older heads when the old spool is replaced; section 3.3 also documents the changed eyelets. Do not infer that the old spool accepts square line or that the text proves old-eyelet compatibility. Head numbers alone do not distinguish generations.
- Changes are introduced continuously, with no numeric serial cutoff. Unmodified heads and previous components remain available only while stocks last; other parts remain unchanged. The supplied instruction sheet is revised. Larger line demands more machine power; no machine-specific mounting permission is supplied.
- This is historical source guidance, not current stock information or universal machine fitment. No physical interchange test was performed.
Source: TI 13/2003, p. 2 · TI 13/2003, p. 5 · TI 13/2003, p. 6 · TI 13/2003, p. 7 — 1.3;3–3.7 AutoCut30-2/40-2 rows and common remarks.
Part numbers (6)
- 4002 710 2187 — AutoCut 30-2 headUnchanged number · AutoCut 30-2
- 4003 710 2189 — AutoCut 40-2 headUnchanged number · AutoCut 40-2
- 4002 710 4311 — Previous filled spoolStocks only · AutoCut 30-2
- 4003 710 4303 — Filled spool with 0.105 in round lineNew 30-2; unchanged 40-2 number · AutoCut 30-2/40-2
- 4003 713 3005 — Previous bare spoolStocks only · AutoCut 30-2/40-2
- 4003 713 3011 — Modified bare spoolNew · AutoCut 30-2/40-2
Conditional replacement · Accessory
AutoCut 40-4: new spool and thicker standard line
The head keeps its number and uses four eyelets, not two.
- AutoCut 40-4 head 4005 710 2102 keeps its number; it includes filled spool (item 11) and FOUR eyelets (item 13). Filled spool 4003 710 4302 becomes 4003 710 4305; included bare spool 4003 713 3010 becomes 4003 713 3012.
- Standard fill changes from 0.095 to 0.105 in ROUND line with the new spool. Recommended new round/square quantities are 0.095 in /36 ft or 0.105 in /28 ft (STANDARD). These are fill quantities, not four separate lengths or permission to use another head’s spool.
- New AutoCut spools have specially shaped threading openings. Section 3.4 permits the modified capability in older heads when the old spool is replaced; section 3.3 also documents the changed eyelets. Do not infer that the old spool accepts square line or that the text proves old-eyelet compatibility. Head numbers alone do not distinguish generations.
- Changes are introduced continuously, with no numeric serial cutoff. Unmodified heads and previous components remain available only while stocks last; other parts remain unchanged. The supplied instruction sheet is revised. Larger line demands more machine power; no machine-specific mounting permission is supplied.
- This is historical source guidance, not current stock information or universal machine fitment. No physical interchange test was performed.
Source: TI 13/2003, p. 2 · TI 13/2003, p. 5 · TI 13/2003, p. 6 · TI 13/2003, p. 7 — 1.3;3–3.7 AutoCut40-4 rows and common remarks.
Part numbers (5)
- 4005 710 2102 — Complete headUnchanged number · AutoCut 40-4
- 4003 710 4302 — Previous filled spoolStocks only · AutoCut 40-4
- 4003 710 4305 — New filled spool0.105 in standard round line · AutoCut 40-4
- 4003 713 3010 — Previous bare spoolStocks only · AutoCut 40-4
- 4003 713 3012 — Modified bare spoolNew · AutoCut 40-4
Conditional replacement · Accessory

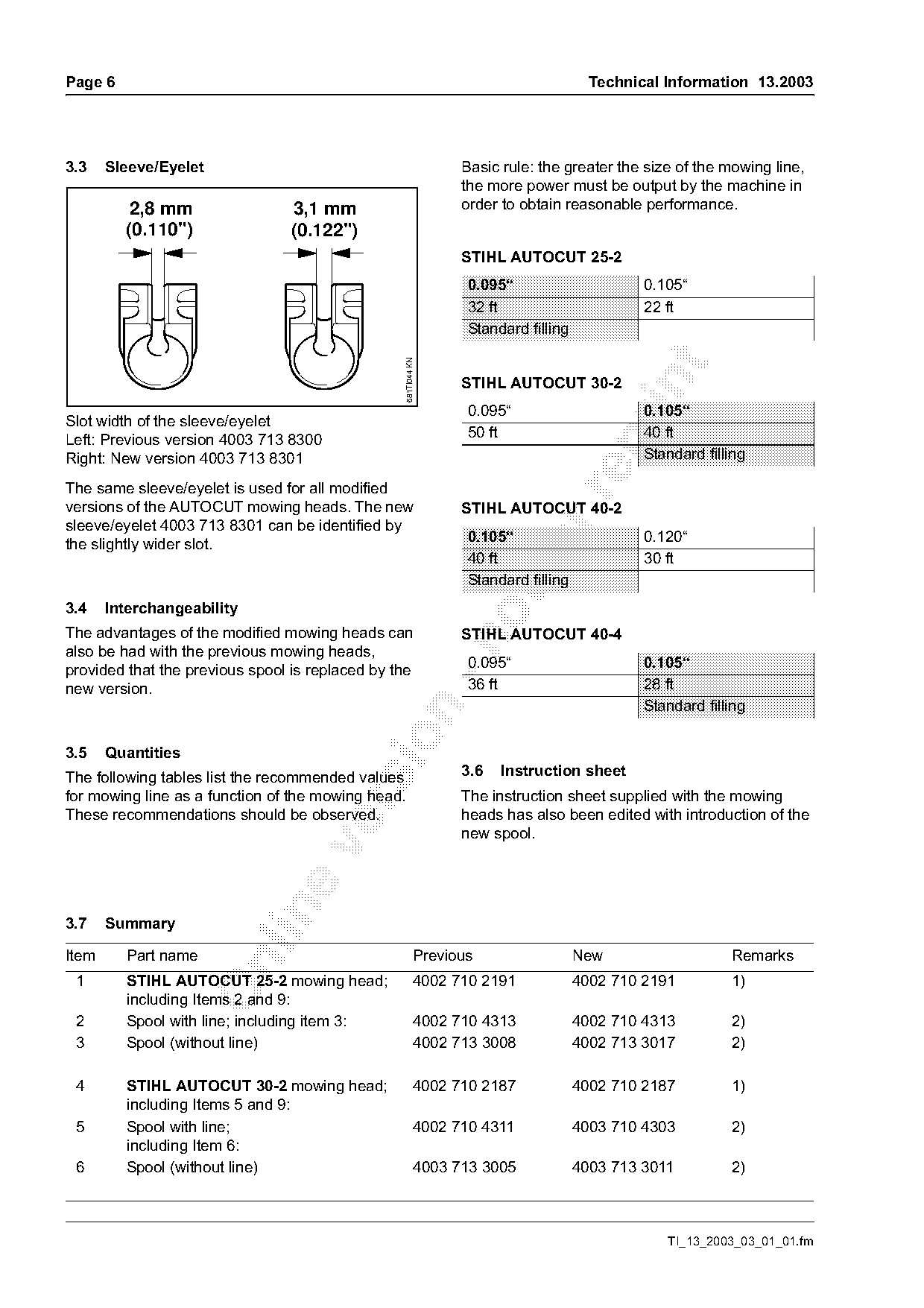

AutoCut eyelet: slot widens from 2.8 to 3.1 mm
25-2, 30-2 and 40-2 use two; 40-4 uses four.
- Sleeve/eyelet 4003 713 8300 becomes 4003 713 8301 on the modified AutoCut 25-2/30-2/40-2/40-4 heads. Diagram 681 TI 044 shows slot width increasing from 2.8 mm (0.110 in) to 3.1 mm (0.122 in), not line diameter or whole-eyelet width.
- The same new eyelet is used throughout these four head versions: TWO on 25-2/30-2/40-2 and FOUR on 40-4. Previous version is stocks-only. The wider slot accompanies the new spool; section 3.4 explicitly names spool replacement for older heads but does not settle old-eyelet compatibility. Do not substitute a four-eyelet count for all heads or claim this part fits SuperCut.
- This is historical source guidance, not current stock information or universal machine fitment. No physical interchange test was performed.
Source: TI 13/2003, p. 5 · TI 13/2003, p. 6 · TI 13/2003, p. 7 — 3 introduction;3.3–3.4;3.7 items9/13.
Part numbers (2)
- 4003 713 8300 — Previous AutoCut sleeve/eyeletStocks only; 2.8 mm slot · AutoCut 25-2/30-2/40-2/40-4
- 4003 713 8301 — New AutoCut sleeve/eyelet3.1 mm slot · AutoCut 25-2/30-2/40-2:2; AutoCut 40-4:4
Service note · Accessory

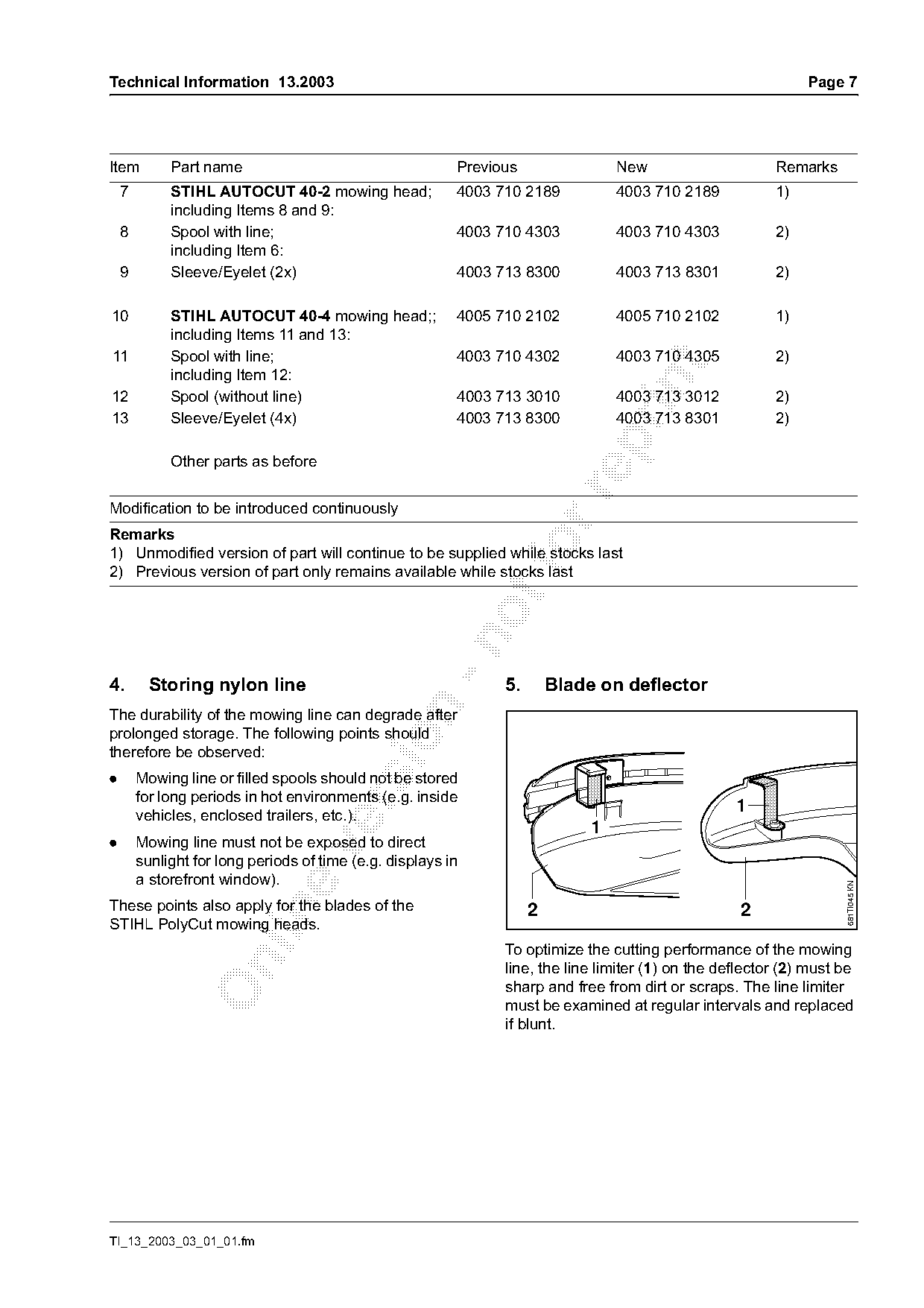

Nylon line and PolyCut blades: avoid prolonged heat and sun
Filled spools also lose durability during unsuitable storage.
- Avoid long storage of loose mowing line or filled spools in hot environments, including vehicles and enclosed trailers. Avoid prolonged direct sunlight, including storefront displays. The same restrictions apply to PolyCut mowing-head blades.
- The bulletin warns that durability can deteriorate with prolonged storage; it supplies no exact shelf life, humidity target, soaking treatment or temperature limit. None is inferred.
- This is historical source guidance, not current stock information or universal machine fitment. No physical interchange test was performed.
Source: TI 13/2003, p. 7 — 4 Storing nylon line.
No additional parts-table entry added.
Service note · Accessory
Deflector line limiter: inspect, clean and replace if blunt
The cutting edge must be sharp and free of dirt or scraps.
- Line limiter (1) on deflector (2) must be sharp and free from dirt or scraps for proper mowing-line cutting performance. Examine it at regular intervals and REPLACE if blunt. Both illustrated deflector arrangements retain this distinction.
- No replacement order number, inspection interval or sharpening procedure is given. The brush-knife sharpening template on the following page is not specified for the line limiter.
- This is historical source guidance, not current stock information or universal machine fitment. No physical interchange test was performed.
Source: TI 13/2003, p. 7 — 5 Blade on deflector with diagram681TI045.
No additional parts-table entry added.
Service note · Service tool

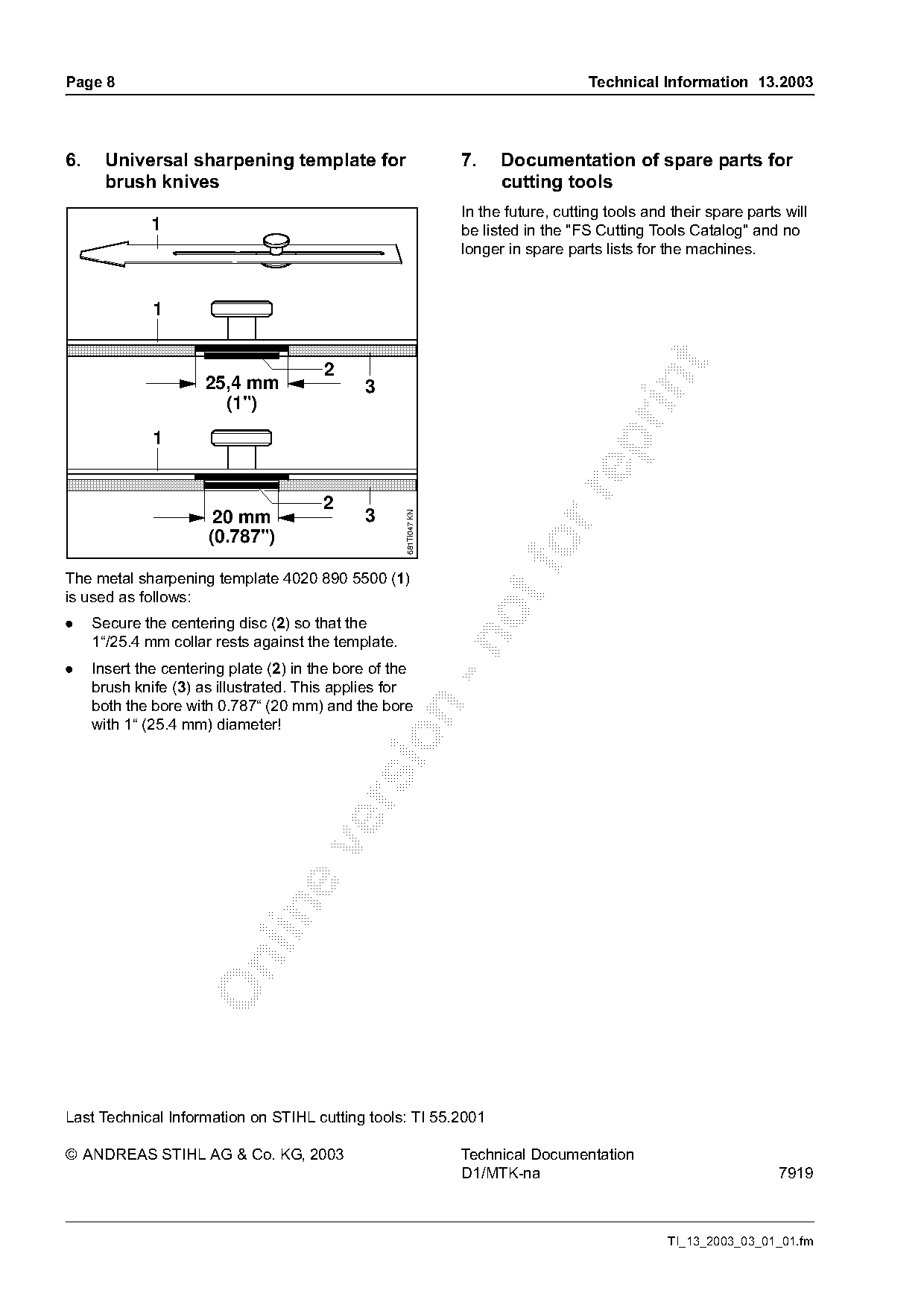

Brush-knife template: 25.4 mm collar faces the template for both bores
Use the same centering-disc orientation for 20 mm and 25.4 mm knife bores.
- Metal template 4020 890 5500 is item 1; centering disc/plate is item 2; brush knife is item 3. Secure the disc with its 1 in /25.4 mm collar against the TEMPLATE. Insert it into the knife bore as shown.
- That orientation applies to BOTH 20 mm (0.787 in) and 25.4 mm (1 in) knife bores. The two cross-sections show the different seating depth; do not reverse the disc merely because the knife bore changes. No sharpening angle, separate centering-disc part number or universal machine fitment is established here.
- This is historical source guidance, not current stock information or universal machine fitment. No physical interchange test was performed.
Source: TI 13/2003, p. 8 — 6 Universal sharpening template; complete sectional diagram681TI047.
Part numbers (1)
- 4020 890 5500 — Metal brush-knife sharpening templateService tool; specified centering orientation · Brush knives with 20 mm or 25.4 mm bore; per diagram
Service note · Accessory
Cutting-tool spares move to the FS Cutting Tools Catalog
The bulletin redirects future parts documentation away from machine lists.
- TI 13/2003 states that cutting tools and their spares will in future be listed in the FS Cutting Tools Catalog, no longer in the individual machine spare-parts lists. This is a documentation-location change, not evidence that a missing machine-list item was discontinued or fits all machines.
- The footer names TI 55/2001 as the preceding cutting-tools bulletin, not a dependency for the reviewed changes. This note does not claim that the separate catalog or full sharpening instruction sheet has been imported.
- This is historical source guidance, not current stock information or universal machine fitment. No physical interchange test was performed.
Source: TI 13/2003, p. 8 — 7 Documentation of spare parts; previous-issue footer.
No additional parts-table entry added.
Full text
Page 1 of 8
Text of page 1 — search, copy, screen readers

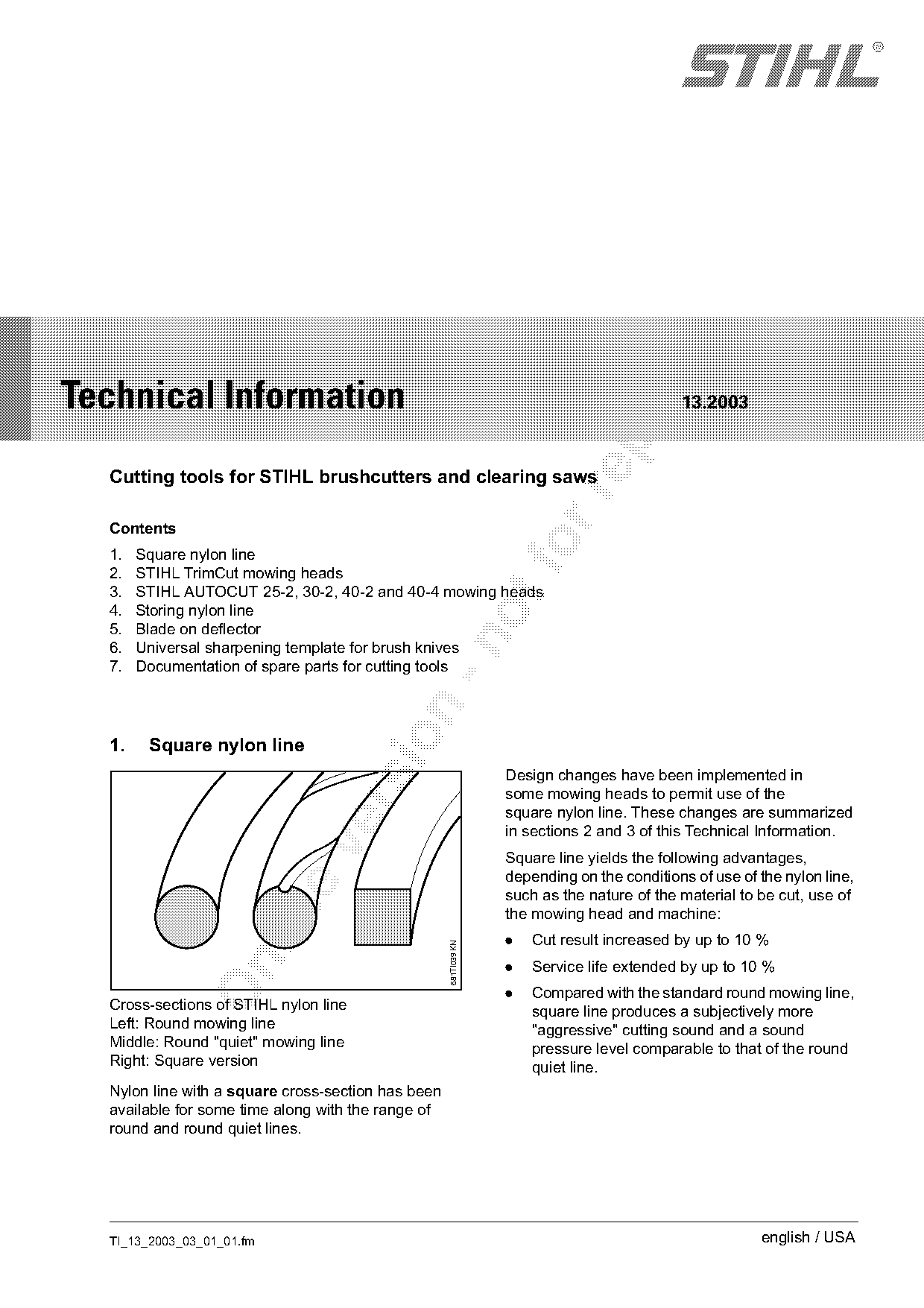

STIH)
Technical Information
13.2003
Cutting tools for STIHL brushcutters and clearing saws
Contents
1.
2.
Square nylon line
STIHL TrimCut mowing heads
3. STIHL AUTOCUT 25-2, 30-2, 40-2 and 40-4 mowing heads
4. Storing nylon line
5. Blade on deflector
6. Universal sharpening template for brush knives
7. Documentation of spare parts for cutting tools
1. Square nylon line
Design changes have been implemented in
some mowing heads to permit use of the
square nylon line. These changes are summarized
in sections 2 and 3 of this Technical Information.
Square line yields the following advantages,
depending on the conditions of use of the nylon line,
such as the nature of the material to be cut, use of
the mowing head and machine:
. Cut result increased by up to 10 %
681TI039 KN
. Service life extended by up to 10 %
. Compared with the standard round mowing line,
Cross-sections of STIHL nylon line square line produces a subjectively more
Left: Round mowing line "aggressive" cutting sound and a sound
Middle: Round "quiet" mowing line pressure level comparable to that of the round
Right: Square version quiet line.
Nylon line with a square cross-section has been
available for some time along with the range of
round and round quiet lines.
TI_13_2003_03_01_01.fm english / USA Page 2 of 8
Text of page 2 — search, copy, screen readers

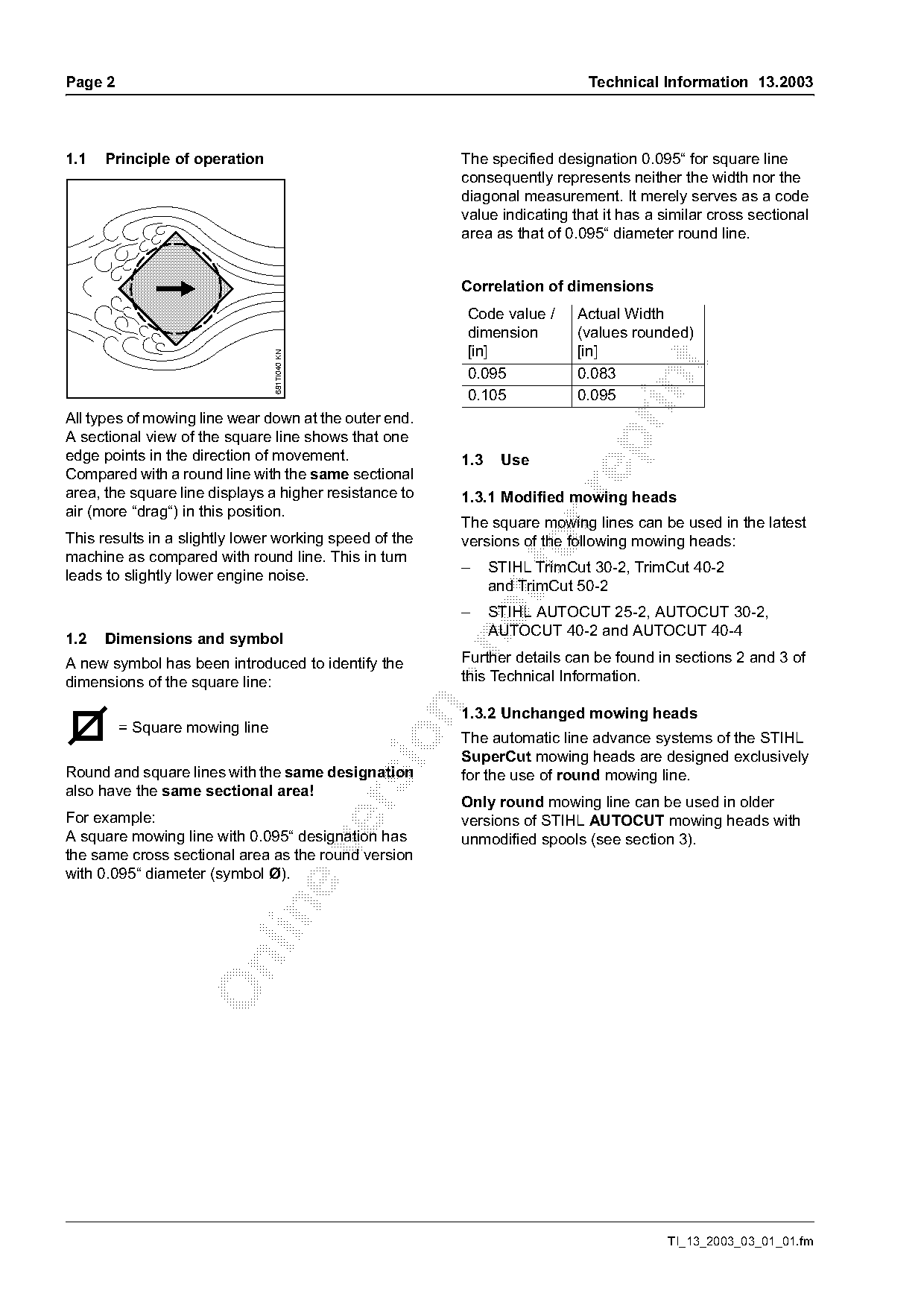

Page 2 Technical Information 13.2003
1.1 Principle of operation The specified designation 0.095“ for square line
consequently represents neither the width nor the
diagonal measurement. It merely serves as a code
value indicating that it has a similar cross sectional
area as that of 0.095“ diameter round line.
Correlation of dimensions
Code value / Actual Width
dimension (values rounded)
[in] [in]
681TI040 KN
0.095 0.083
0.105 0.095
All types of mowing line wear down at the outer end.
A sectional view of the square line shows that one
edge points in the direction of movement. 1.3 Use
Compared with a round line with the same sectional
area, the square line displays a higher resistance to
1.3.1 Modified mowing heads
air (more “drag“) in this position.
The square mowing lines can be used in the latest
This results in a slightly lower working speed of the versions of the following mowing heads:
machine as compared with round line. This in turn
leads to slightly lower engine noise.
–
STIHL TrimCut 30-2, TrimCut 40-2
and TrimCut 50-2
– STIHL AUTOCUT 25-2, AUTOCUT 30-2,
AUTOCUT 40-2 and AUTOCUT 40-4
1.2 Dimensions and symbol
A new symbol has been introduced to identify the Further details can be found in sections 2 and 3 of
dimensions of the square line: this Technical Information.
1.3.2 Unchanged mowing heads
= Square mowing line
The automatic line advance systems of the STIHL
SuperCut mowing heads are designed exclusively
Round and square lines with the same designation for the use of round mowing line.
also have the same sectional area!
Only round mowing line can be used in older
For example: versions of STIHL AUTOCUT mowing heads with
A square mowing line with 0.095“ designation has unmodified spools (see section 3).
the same cross sectional area as the round version
with 0.095“ diameter (symbol Ø).
TI_13_2003_03_01_01.fm Page 3 of 8
Text of page 3 — search, copy, screen readers
Technical Information 13.2003 Page 3

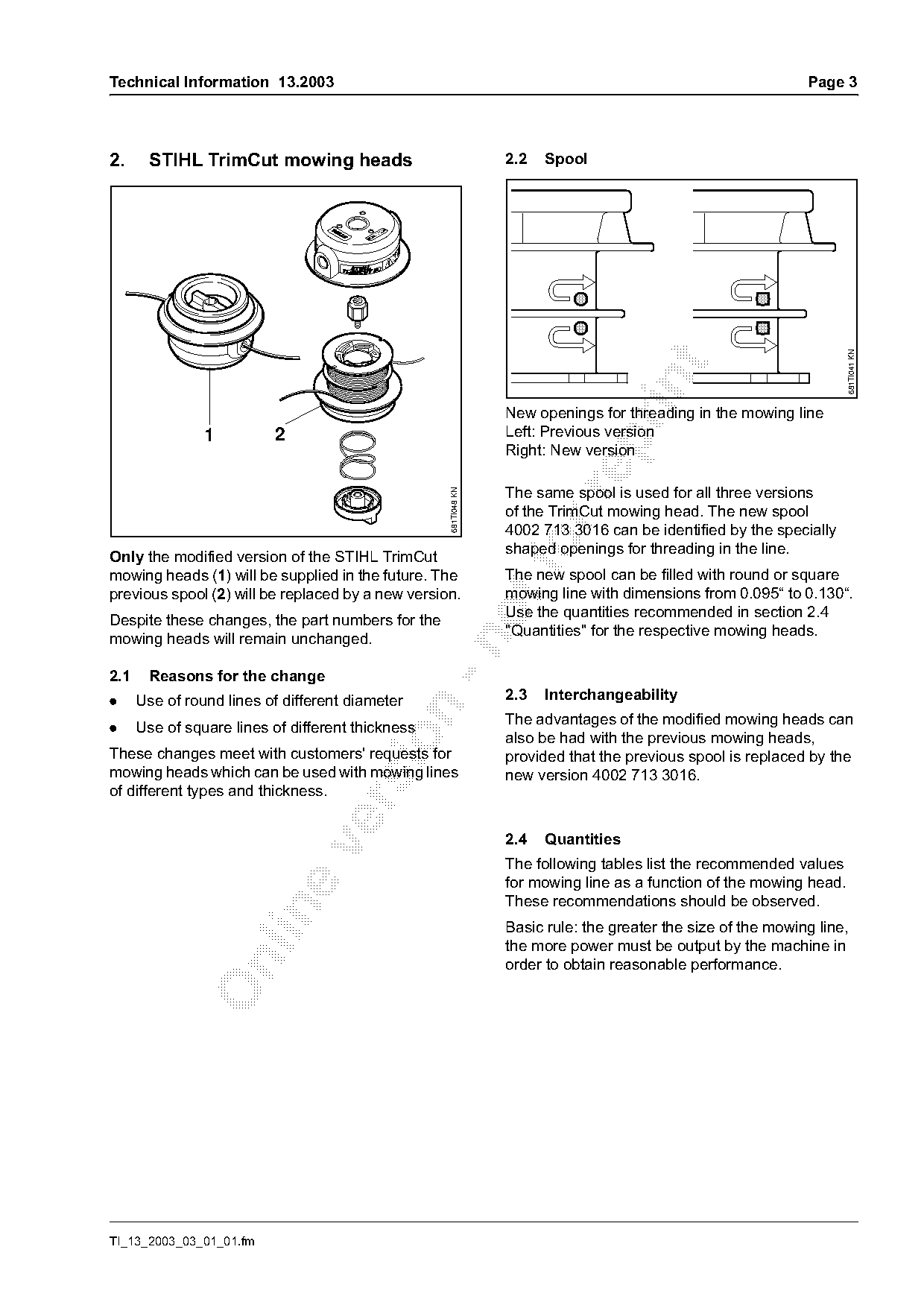

2. STIHL TrimCut mowing heads 2.2 Spool
681TI041 KN
New openings for threading in the mowing line
1 2 Left: Previous version
Right: New version
The same spool is used for all three versions
681TI048 KN
of the TrimCut mowing head. The new spool
4002 713 3016 can be identified by the specially
Only the modified version of the STIHL TrimCut
mowing heads (1) will be supplied in the future. The
shaped openings for threading in the line.
The new spool can be filled with round or square
previous spool (2) will be replaced by a new version. mowing line with dimensions from 0.095“ to 0.130“.
Use the quantities recommended in section 2.4
Despite these changes, the part numbers for the
"Quantities" for the respective mowing heads.
mowing heads will remain unchanged.
2.1 Reasons for the change
. Use of round lines of different diameter 2.3 Interchangeability
The advantages of the modified mowing heads can
. Use of square lines of different thickness
also be had with the previous mowing heads,
These changes meet with customers' requests for provided that the previous spool is replaced by the
mowing heads which can be used with mowing lines new version 4002 713 3016.
of different types and thickness.
2.4 Quantities
The following tables list the recommended values
for mowing line as a function of the mowing head.
These recommendations should be observed.
Basic rule: the greater the size of the mowing line,
the more power must be output by the machine in
order to obtain reasonable performance.
TI_13_2003_03_01_01.fm Page 4 of 8
Text of page 4 — search, copy, screen readers
Page 4 Technical Information 13.2003
STIHL TrimCut 30-2 STIHL TrimCut 50-2
0.095“ 0.105“ 0.105“ 0.130“
16 ft 12 ft 12 ft 6 ft
Standard filling Standard filling
STIHL TrimCut 40-2
0.095“ 0.105“
16 ft 12 ft
Standard filling
2.5 Instruction sheet
The instruction sheet supplied with the mowing
heads has also been edited with the introduction of
the new spool.
2.6 Summary fo
Item Part name Previous New Remarks
1 STIHL TrimCut 30-2 mowing head 4002 710 2193 4002 710 2193 1)
2 STIHL TrimCut 40-2 mowing head 4003 710 2193 4003 710 2193 1)
3 STIHL TrimCut 50-2 mowing head 4005 710 2193 4005 710 2193 1)
including Item 4 in each case:
4 Spool 4002 713 3001 4002 713 3016 2)
Other parts as before
Modification to be introduced continuously
Remarks
1) Unmodified version of part will continue to be supplied while stocks last
2) Previous version of part only remains available while stocks last
TI_13_2003_03_01_01.fm Page 5 of 8
Text of page 5 — search, copy, screen readers
Technical Information 13.2003 Page 5
3. STIHL AUTOCUT 25-2, 30-2, 40-2 3.1 Reasons for the changes
and 40-4 mowing heads The reasons for the changes are the same as for the
STIHL TrimCut mowing heads, see section 2.1 of
this Technical Information.
5
1 3.2 Spool
681TI043 KN
3
681TI042 KN
Changed openings for threading in the mowing line
Example: Exploded drawing of the
on AUTOCUT 25-2
Left: Previous version
STIHL AUTOCUT 25-2 mowing head Right: New version
The modified versions of the STIHL The new spools can be identified by the specially
AUTOCUT 25-2 (1), AUTOCUT 30-2 (2), shaped openings for threading in the mowing line.
AUTOCUT 40-2 (2) and AUTOCUT 40-4 (3)
The new spools can be filled with round or square
mowing heads will be supplied in the future.
mowing line with dimensions of 0.095“ and 0.105“
The previous versions of the spool (4) and depending on the mowing head version. The
sleeve/eyelet (5) will be replaced by new versions. quantities recommended in section 3.5 "Quantities"
Together with the changeover to the new spools, the should be used for each mowing head.
STIHL AUTOCUT 30-2 and 40-4 mowing heads will The part numbers of the new spools are listed in the
be filled with a round mowing line with 0.105“ Summary.
diameter. A round mowing line with 0.095“ diameter
was used to date for the standard filling. This
change brings these mowing heads into line with the
more powerful brushcutters and clearing saws.
Consequences of changing the standard filling:
. STIHL AUTOCUT 40-4: a new spool with 0.105“
mowing line will be used instead of the previous
version with 0.095“ mowing line.
. STIHL AUTOCUT 30-2: the previous, wound
spool (0.095“ mowing line) will no longer be
used when supplying spare parts. Only the
version used with the AUTOCUT 40-2 (0.105“
mowing line) will be supplied instead.
The part numbers for these mowing heads will
remain unchanged.
TI_13_2003_03_01_01.fm Page 6 of 8
Text of page 6 — search, copy, screen readers
Page 6 Technical Information 13.2003
3.3 Sleeve/Eyelet Basic rule: the greater the size of the mowing line,
the more power must be output by the machine in
2,8 mm 3,1 mm order to obtain reasonable performance.
(0.110") (0.122")
STIHL AUTOCUT 25-2
0.095“ 0.105“
32 ft 22 ft
Standard filling
681TI044 KN
STIHL AUTOCUT 30-2
0.095“ 0.105“
Slot width of the sleeve/eyelet
Left: Previous version 4003 713 8300 50 ft 40 ft
Right: New version 4003 713 8301 Standard filling
The same sleeve/eyelet is used for all modified
versions of the AUTOCUT mowing heads. The new STIHL AUTOCUT 40-2
sleeve/eyelet 4003 713 8301 can be identified by
0.105“ 0.120“
the slightly wider slot.
40 ft
fo 30 ft
Standard filling
3.4 Interchangeability
The advantages of the modified mowing heads can STIHL AUTOCUT 40-4
also be had with the previous mowing heads,
0.095“ 0.105“
provided that the previous spool is replaced by the
new version. 36 ft 28 ft
Standard filling
3.5 Quantities
The following tables list the recommended values 3.6 Instruction sheet
for mowing line as a function of the mowing head. The instruction sheet supplied with the mowing
These recommendations should be observed. heads has also been edited with introduction of the
new spool.
3.7 Summary
Item Part name Previous New Remarks
1 STIHL AUTOCUT 25-2 mowing head; 4002 710 2191 4002 710 2191 1)
including Items 2 and 9:
2 Spool with line; including item 3: 4002 710 4313 4002 710 4313 2)
3 Spool (without line) 4002 713 3008 4002 713 3017 2)
4 STIHL AUTOCUT 30-2 mowing head; 4002 710 2187 4002 710 2187 1)
including Items 5 and 9:
5 Spool with line; 4002 710 4311 4003 710 4303 2)
including Item 6:
6 Spool (without line) 4003 713 3005 4003 713 3011 2)
TI_13_2003_03_01_01.fm Page 7 of 8
Text of page 7 — search, copy, screen readers
Technical Information 13.2003 Page 7
Item Part name Previous New Remarks
7 STIHL AUTOCUT 40-2 mowing head; 4003 710 2189 4003 710 2189 1)
including Items 8 and 9:
8 Spool with line; 4003 710 4303 4003 710 4303 2)
including Item 6:
9 Sleeve/Eyelet (2x) 4003 713 8300 4003 713 8301 2)
10 STIHL AUTOCUT 40-4 mowing head;; 4005 710 2102 4005 710 2102 1)
including Items 11 and 13:
11 Spool with line; 4003 710 4302 4003 710 4305 2)
including Item 12:
12 Spool (without line) 4003 713 3010 4003 713 3012 2)
13 Sleeve/Eyelet (4x) 4003 713 8300 4003 713 8301 2)
Other parts as before
Modification to be introduced continuously
Remarks
1) Unmodified version of part will continue to be supplied while stocks last
2) Previous version of part only remains available while stocks last
4. Storing nylon line 5. Blade on deflector
The durability of the mowing line can degrade after
prolonged storage. The following points should
therefore be observed:
. Mowing line or filled spools should not be stored
for long periods in hot environments (e.g. inside
1
vehicles, enclosed trailers, etc.).
1
. Mowing line must not be exposed to direct
sunlight for long periods of time (e.g. displays in
a storefront window).
681TI045 KN
These points also apply for the blades of the
2 2
STIHL PolyCut mowing heads.
To optimize the cutting performance of the mowing
line, the line limiter (1) on the deflector (2) must be
sharp and free from dirt or scraps. The line limiter
must be examined at regular intervals and replaced
if blunt.
TI_13_2003_03_01_01.fm Page 8 of 8
Text of page 8 — search, copy, screen readers
Page 8 Technical Information 13.2003
6. Universal sharpening template for 7. Documentation of spare parts for
brush knives cutting tools
In the future, cutting tools and their spare parts will
1 be listed in the "FS Cutting Tools Catalog" and no
longer in spare parts lists for the machines.
25,4 mm 3
(1")
1
2
3
681TI047 KN
20 mm
(0.787")
The metal sharpening template 4020 890 5500 (1)
is used as follows:
. Secure the centering disc (2) so that the
1“/25.4 mm collar rests against the template.
. Insert the centering plate (2) in the bore of the
brush knife (3) as illustrated. This applies for
both the bore with 0.787“ (20 mm) and the bore
with 1“ (25.4 mm) diameter!
Last Technical Information on STIHL cutting tools: TI 55.2001
© ANDREAS STIHL AG & Co. KG, 2003 Technical Documentation
D1/MTK-na 7919
TI_13_2003_03_01_01.fm Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
