STIH)
Technical Information
21.2003
Brushcutters STIHL FS 45 C, FS 46 C, FS 55 C – Series 4140
CombiEngine STIHL KM 55 C – Series 4140
Hedge trimmers STIHL HL 45 C – Series 4232
Contents
1. Muffler with catalytic converter
2. Shroud
3. Ignition module
4. Service notes
5. Summary

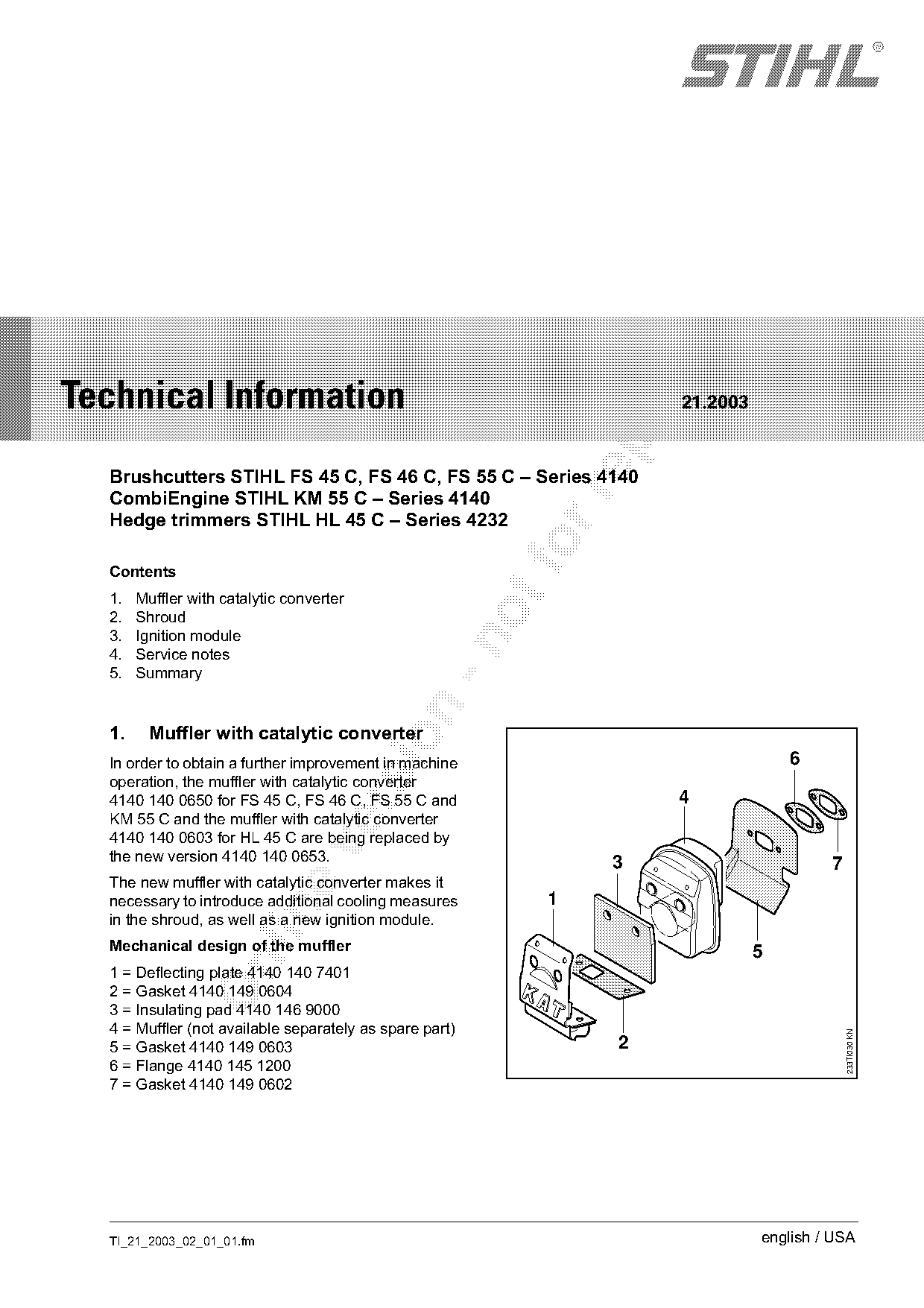

1. Muffler with catalytic converter
In order to obtain a further improvement in machine 6
operation, the muffler with catalytic converter
4140 140 0650 for FS 45 C, FS 46 C, FS 55 C and 4
KM 55 C and the muffler with catalytic converter
4140 140 0603 for HL 45 C are being replaced by
the new version 4140 140 0653. 3 7
The new muffler with catalytic converter makes it
necessary to introduce additional cooling measures 1
in the shroud, as well as a new ignition module.
Mechanical design of the muffler 5
1 = Deflecting plate 4140 140 7401
2 = Gasket 4140 149 0604
3 = Insulating pad 4140 146 9000
4 = Muffler (not available separately as spare part)
233TI030 KN
5 = Gasket 4140 149 0603 2
6 = Flange 4140 145 1200
7 = Gasket 4140 149 0602
TI_21_2003_02_01_01.fm english / USA
)m~ge 2 Technical Information 21.2003

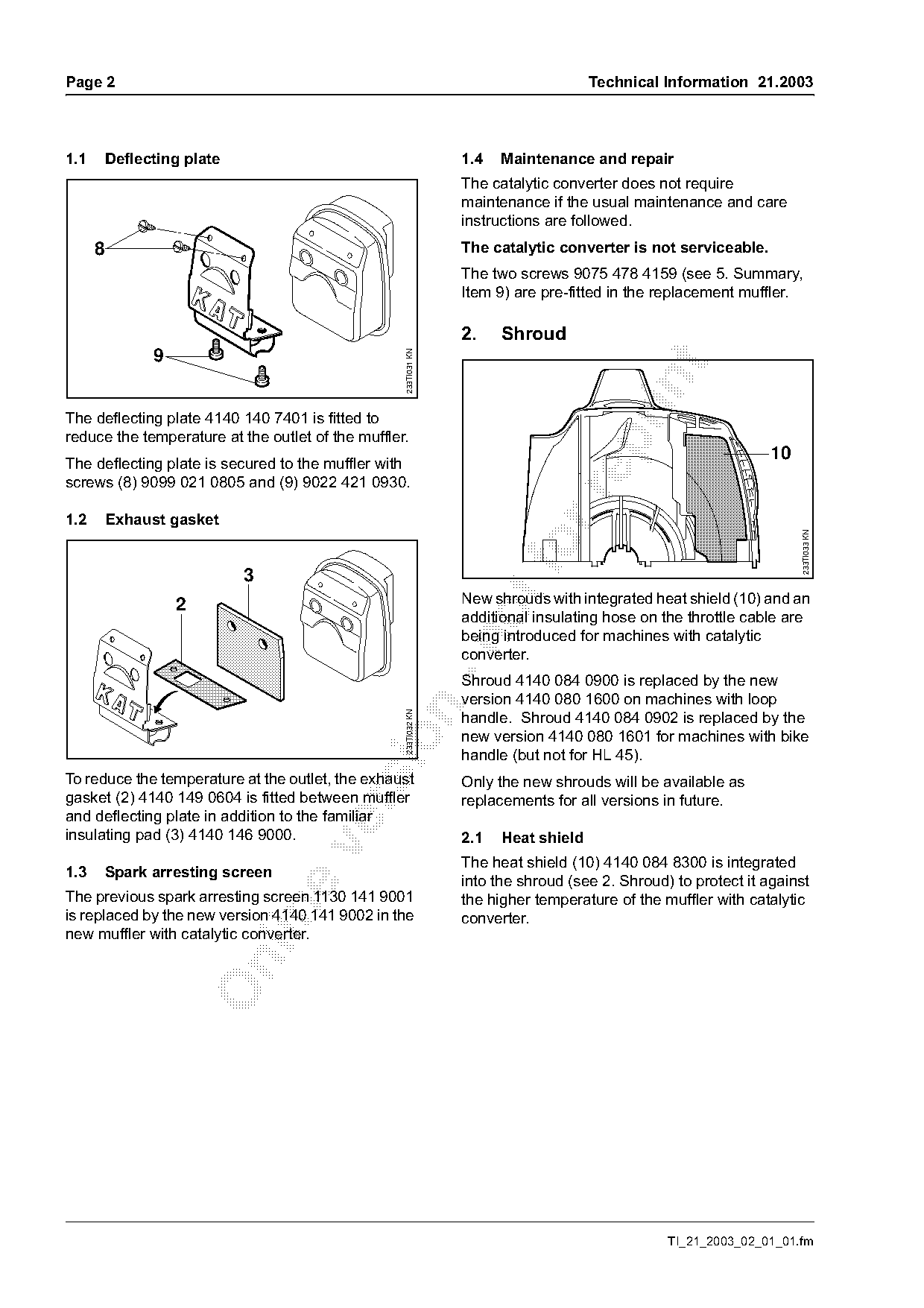

1.1 Deflecting plate 1.4 Maintenance and repair
The catalytic converter does not require
maintenance if the usual maintenance and care
instructions are followed.
8 The catalytic converter is not serviceable.
The two screws 9075 478 4159 (see 5. Summary,
Item 9) are pre-fitted in the replacement muffler.
2. Shroud
9
233TI031 KN
The deflecting plate 4140 140 7401 is fitted to
reduce the temperature at the outlet of the muffler.
10
The deflecting plate is secured to the muffler with
screws (8) 9099 021 0805 and (9) 9022 421 0930.
1.2 Exhaust gasket
233TI033 KN
3
New shrouds with integrated heat shield (10) and an
2
additional insulating hose on the throttle cable are
being introduced for machines with catalytic
converter.
Shroud 4140 084 0900 is replaced by the new
version 4140 080 1600 on machines with loop
233TI032 KN
handle. Shroud 4140 084 0902 is replaced by the
new version 4140 080 1601 for machines with bike
handle (but not for HL 45).
To reduce the temperature at the outlet, the exhaust Only the new shrouds will be available as
gasket (2) 4140 149 0604 is fitted between muffler replacements for all versions in future.
and deflecting plate in addition to the familiar
insulating pad (3) 4140 146 9000. 2.1 Heat shield
The heat shield (10) 4140 084 8300 is integrated
1.3 Spark arresting screen
into the shroud (see 2. Shroud) to protect it against
The previous spark arresting screen 1130 141 9001 the higher temperature of the muffler with catalytic
is replaced by the new version 4140 141 9002 in the converter.
new muffler with catalytic converter.
TI_21_2003_02_01_01.fm Page 2 of 4
Technical Information 21.2003 Page 3
2.2 Insulating hose 3. Ignition module
Ignition module 4140 400 1303 is replaced by the
new version 4140 400 1305 in the new machines
with catalytic converter. In the new ignition module,
the speed is limited by adjusting the ignition timing.
This protects the catalytic converter against thermal
overloads.
The previous ignition module 4140 400 1303
13 remains in use for all other machines.
11
12
233TI034 KN

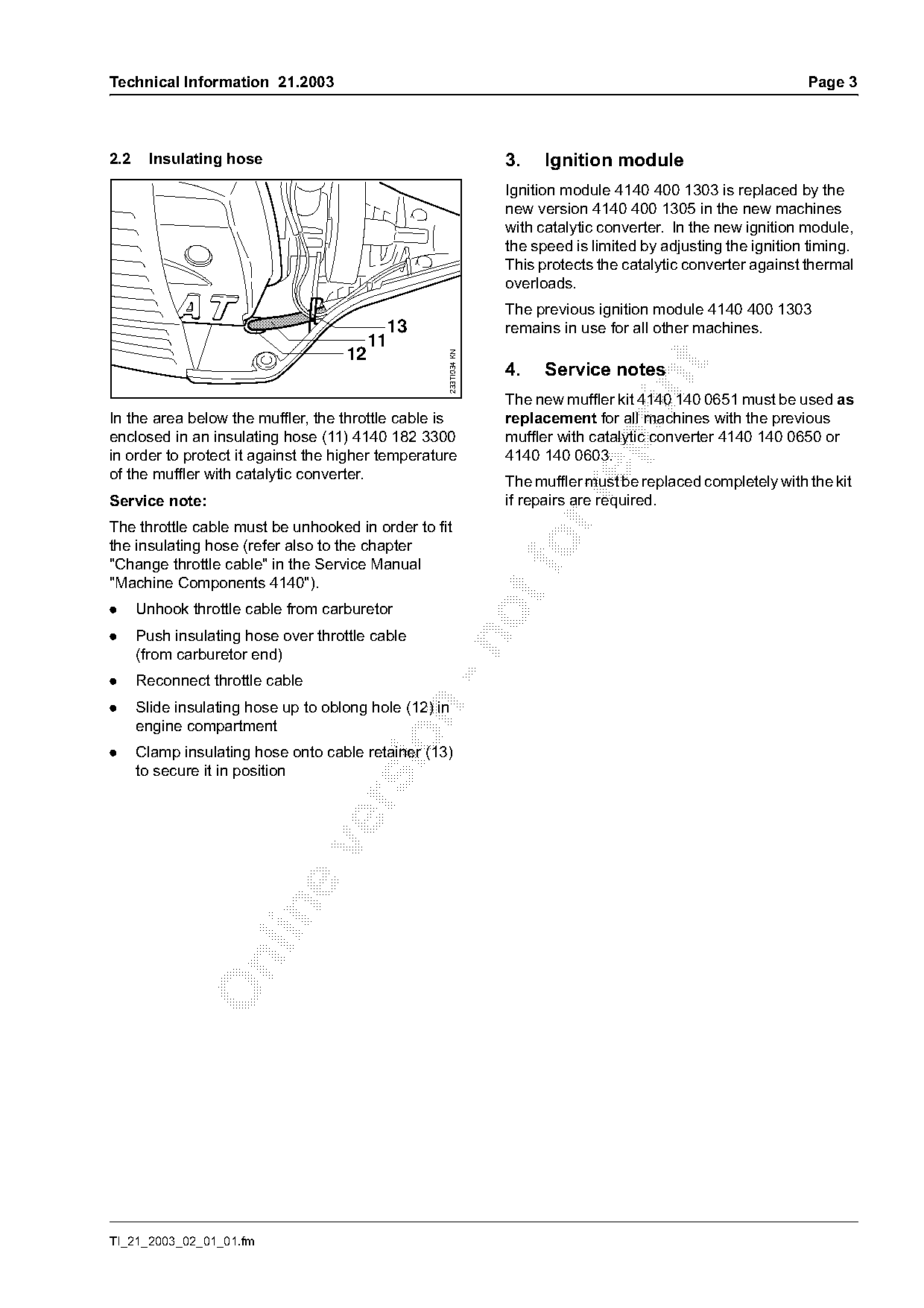

4. Service notes
The new muffler kit 4140 140 0651 must be used as
In the area below the muffler, the throttle cable is replacement for all machines with the previous
enclosed in an insulating hose (11) 4140 182 3300 muffler with catalytic converter 4140 140 0650 or
in order to protect it against the higher temperature 4140 140 0603.
of the muffler with catalytic converter. The muffler must be replaced completely with the kit
Service note: if repairs are required.
The throttle cable must be unhooked in order to fit
the insulating hose (refer also to the chapter
"Change throttle cable" in the Service Manual
"Machine Components 4140").
. Unhook throttle cable from carburetor
. Push insulating hose over throttle cable
(from carburetor end)
. Reconnect throttle cable
. Slide insulating hose up to oblong hole (12) in
engine compartment
. Clamp insulating hose onto cable retainer (13)
to secure it in position
TI_21_2003_02_01_01.fm
)m~ge 4 Technical Information 21.2003

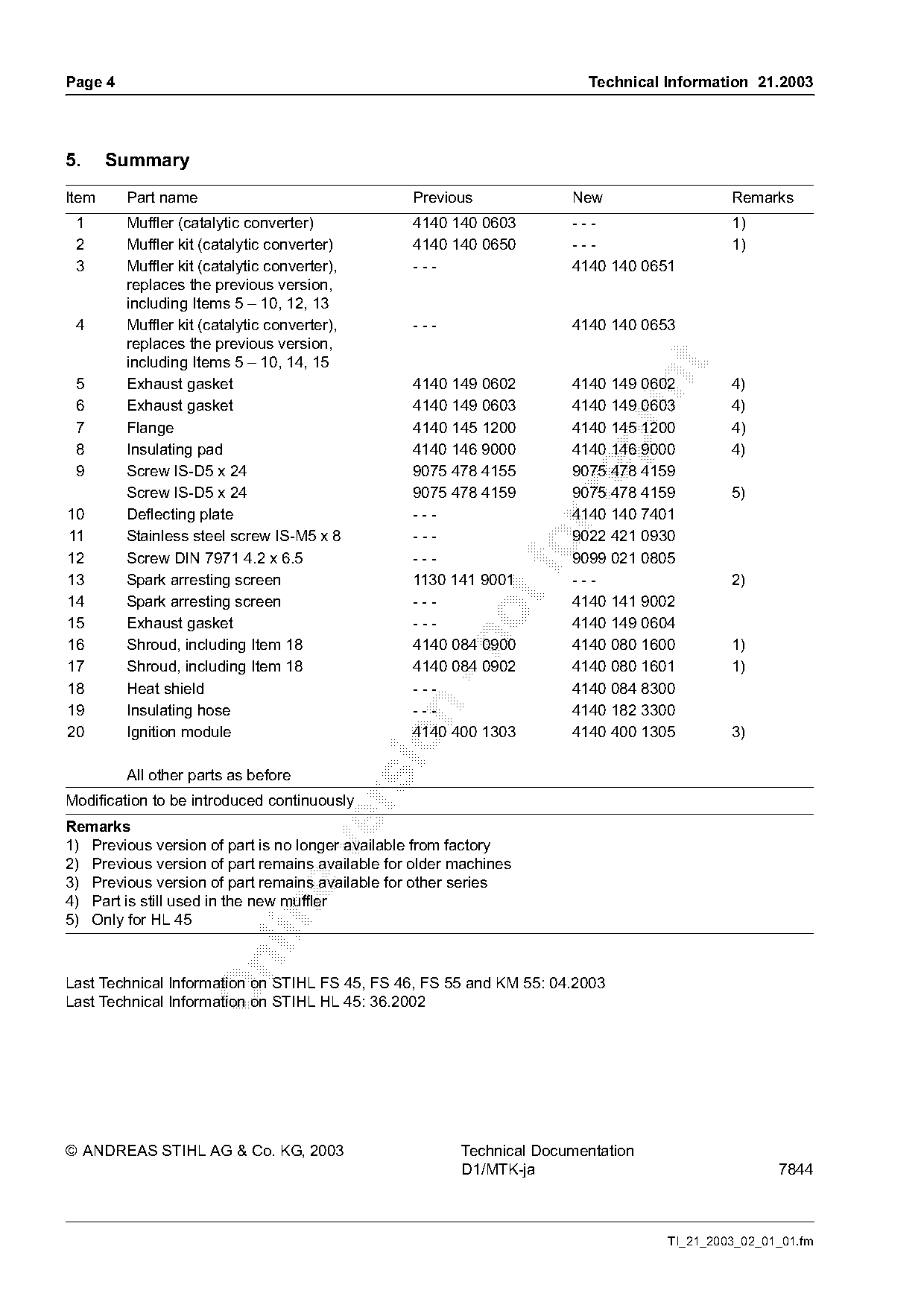

5. Summary
Item Part name Previous New Remarks
1 Muffler (catalytic converter) 4140 140 0603 --- 1)
2 Muffler kit (catalytic converter) 4140 140 0650 --- 1)
3 Muffler kit (catalytic converter), --- 4140 140 0651
replaces the previous version,
including Items 5 – 10, 12, 13
4 Muffler kit (catalytic converter), --- 4140 140 0653
replaces the previous version,
including Items 5 – 10, 14, 15
5 Exhaust gasket 4140 149 0602 4140 149 0602 4)
6 Exhaust gasket 4140 149 0603 4140 149 0603 4)
7 Flange 4140 145 1200 4140 145 1200 4)
8 Insulating pad 4140 146 9000 4140 146 9000 4)
9 Screw IS-D5 x 24 9075 478 4155 9075 478 4159
Screw IS-D5 x 24 9075 478 4159 9075 478 4159 5)
10 Deflecting plate --- 4140 140 7401
11 Stainless steel screw IS-M5 x 8 --- 9022 421 0930
12 Screw DIN 7971 4.2 x 6.5 ---
fo 9099 021 0805
13 Spark arresting screen 1130 141 9001 --- 2)
14 Spark arresting screen --- 4140 141 9002
15 Exhaust gasket --- 4140 149 0604
16 Shroud, including Item 18 4140 084 0900 4140 080 1600 1)
17 Shroud, including Item 18 4140 084 0902 4140 080 1601 1)
18 Heat shield --- 4140 084 8300
19 Insulating hose --- 4140 182 3300
20 Ignition module 4140 400 1303 4140 400 1305 3)
All other parts as before
Modification to be introduced continuously
Remarks
1) Previous version of part is no longer available from factory
2) Previous version of part remains available for older machines
3) Previous version of part remains available for other series
4) Part is still used in the new muffler
5) Only for HL 45
Last Technical Information on STIHL FS 45, FS 46, FS 55 and KM 55: 04.2003
Last Technical Information on STIHL HL 45: 36.2002
© ANDREAS STIHL AG & Co. KG, 2003 Technical Documentation
D1/MTK-ja 7844
TI_21_2003_02_01_01.fm Page 3 of 4
