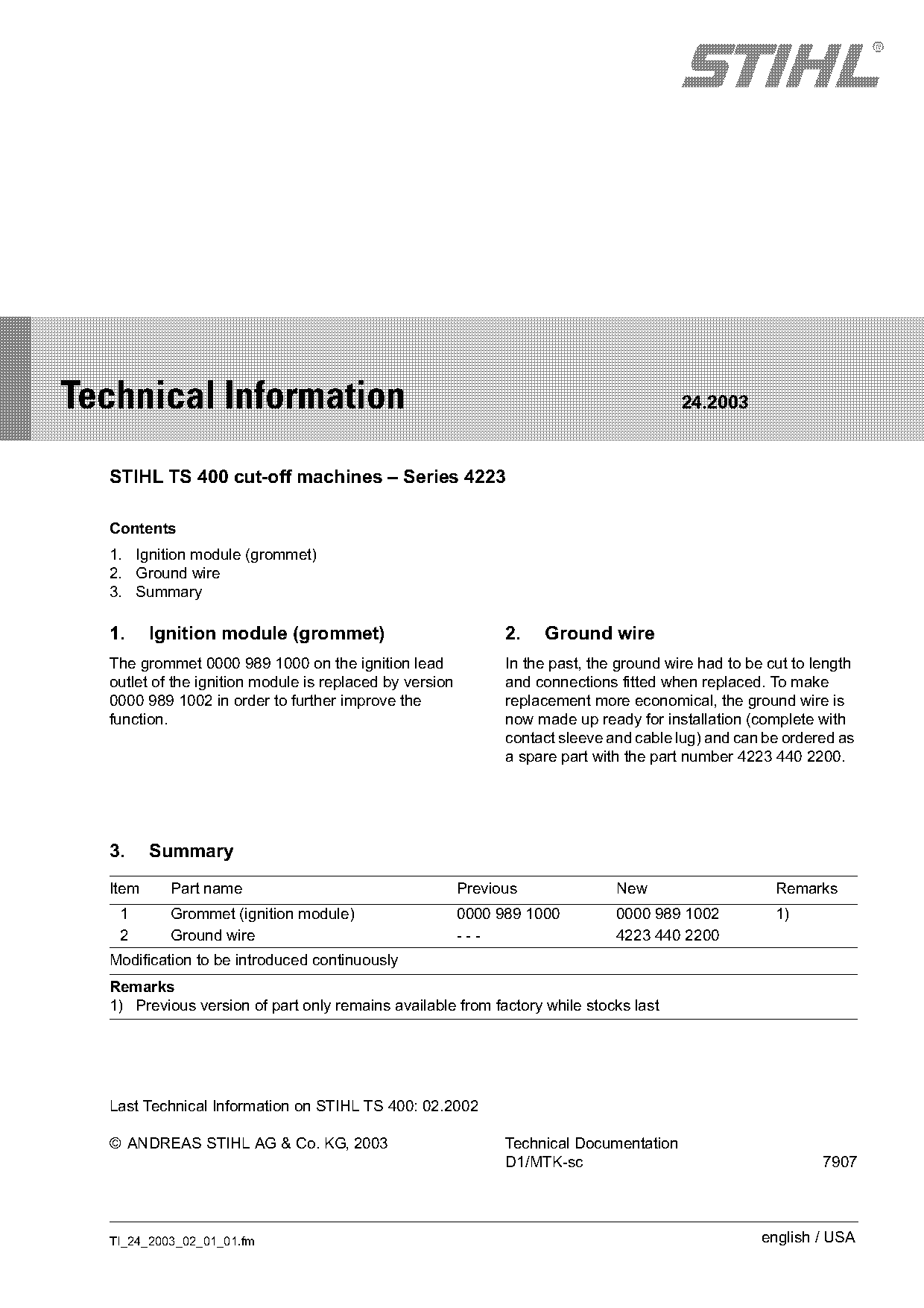

Technical Information 24.2003
STIHL TS 400 cut-off machines – Series 4223
Contents
1. Ignition module (grommet)
2. Ground wire
3. Summary
1. Ignition module (grommet) 2. Ground wire
The grommet 0000 989 1000 on the ignition lead In the past, the ground wire had to be cut to length
outlet of the ignition module is replaced by version and connections fitted when replaced. To make
0000 989 1002 in order to further improve the replacement more economical, the ground wire is
function. now made up ready for installation (complete with
contact sleeve and cable lug) and can be ordered as
a spare part with the part number 4223 440 2200.
3. Summary
Item Part name Previous New Remarks
1 Grommet (ignition module) 0000 989 1000 0000 989 1002 1)
2 Ground wire --- 4223 440 2200
Modification to be introduced continuously
Remarks
1) Previous version of part only remains available from factory while stocks last
Last Technical Information on STIHL TS 400: 02.2002
