STIH)

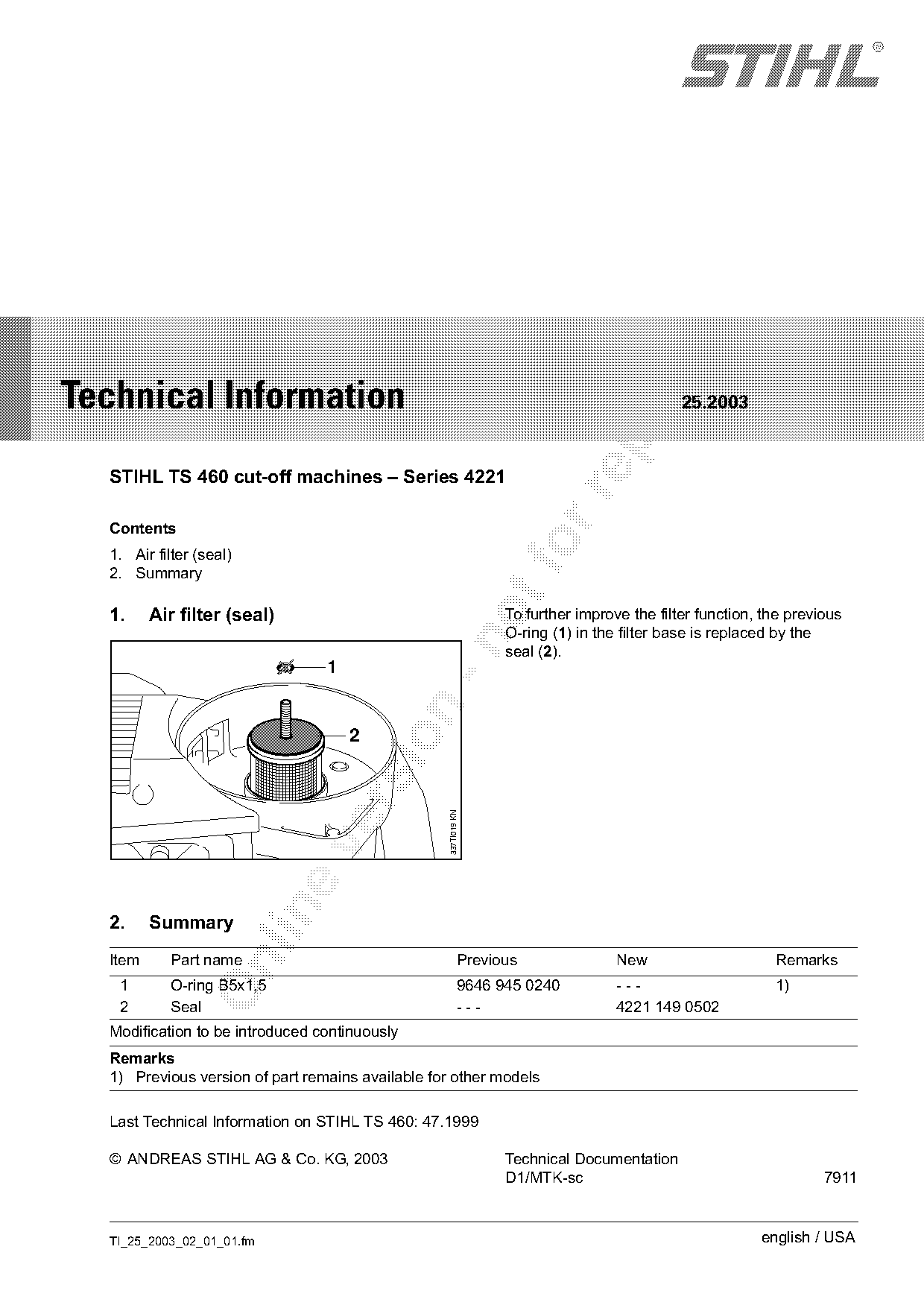

Technical Information
25.2003
STIHL TS 460 cut-off machines – Series 4221
Contents
1. Air filter (seal)
2. Summary
1. Air filter (seal) To further improve the filter function, the previous
O-ring (1) in the filter base is replaced by the
seal (2).
1
2
337TI019 KN
2. Summary
Item Part name Previous New Remarks
1 O-ring B5x1,5 9646 945 0240 --- 1)
2 Seal --- 4221 149 0502
Modification to be introduced continuously
Remarks
1) Previous version of part remains available for other models
Last Technical Information on STIHL TS 460: 47.1999
© ANDREAS STIHL AG & Co. KG, 2003 Technical Documentation
D1/MTK-sc 7911
TI_25_2003_02_01_01.fm english / USA Extracted from the manufacturer's 2012 service catalogue. Most of these PDFs embed fonts with a shifted character map, so the text above was recovered rather than copied — read it as a faithful but imperfect transcription, and treat the page image above each block as the authority where the two disagree — the figures exist only there, because they are vector drawings that text extraction cannot keep.
