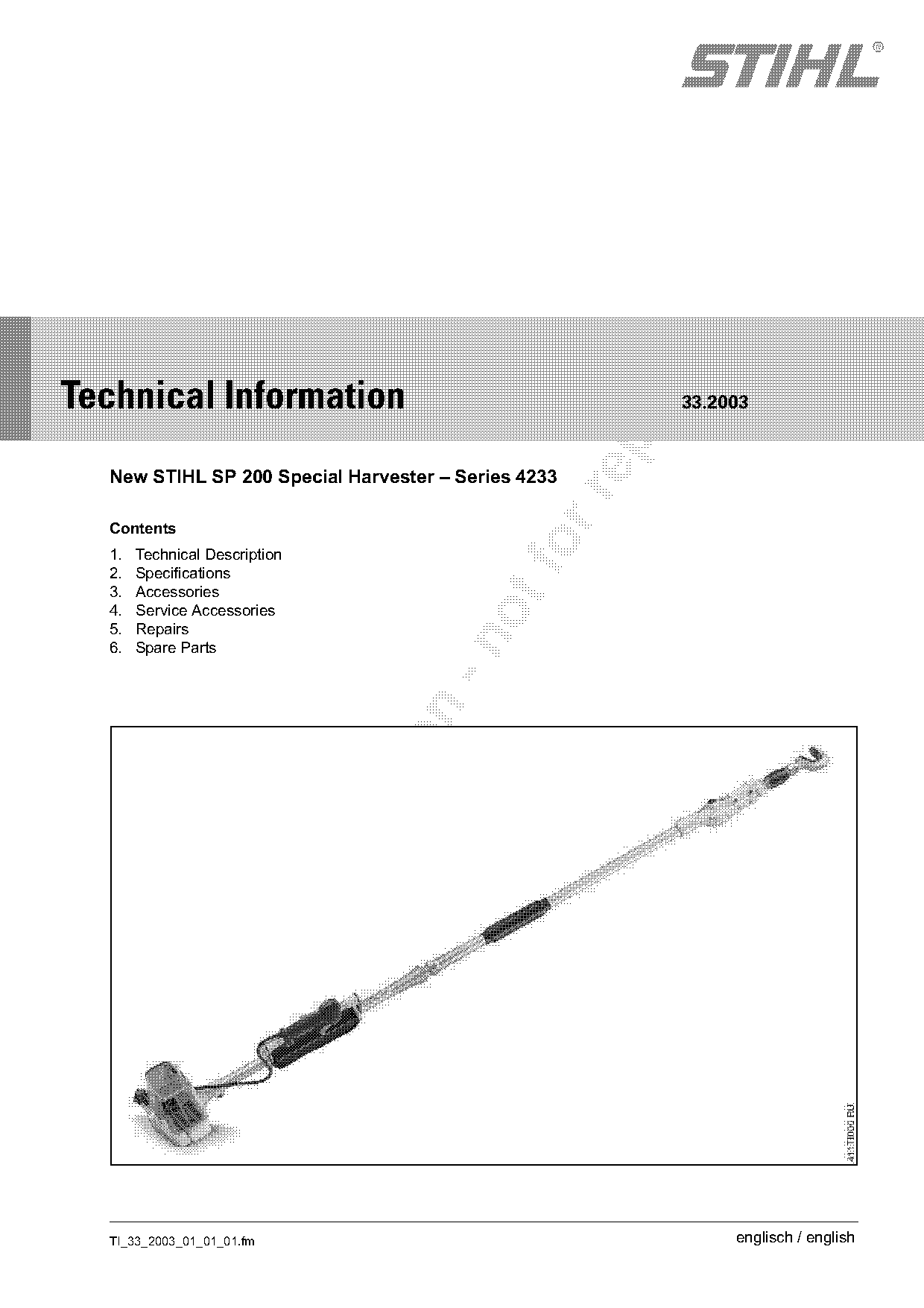

New STIHL SP 200 Special Harvester – Series 4233
Contents
1.
2.
Technical Description
Specifications
3. Accessories
4. Service Accessories
5. Repairs
6. Spare Parts
TI_33_2003_01_01_01.fm englisch / english
)m~ge 2 Technical Information 33.2003
The new STIHL SP 200 special harvester is the The new STIHL SP 200 has been designed
most recent addition to the line of special harvester primarily for private occasional users, small
and is designed for medium-duty applications. It farmers and part-time farmers.
uses the same powerhead as the STIHL FS 200
clearing saw.
The ergonomically designed control handle and
the relatively low weight help reduce operator effort
The complete attachment and the connecting and ensure ease of handling. The front end of the
hardware for the powerhead are new drive tube rotates to enable the hook to be turned
developments. The gearbox for the reciprocating through a wide range to the most suitable operating
motion of the hook is mounted to the end of the drive position.
tube so that the gearbox needs to move less mass.
This layout enables a good harvesting performance The drive tube splits into two parts for easier
to be achieved with a medium-powered engine and transportation.
a relatively low machine weight.
Refer to the documentation for the STIHL FS 200
The applications are the same as those of the
clearing saw for additional information and a
SP 400.
technical description of the powerhead (see
Apart from harvesting olives, the SP 200 is also also TI 42.97).
suitable for harvesting almonds, pistachio nuts and
other tree fruits such as cherries, plums, apples and
pears. fo

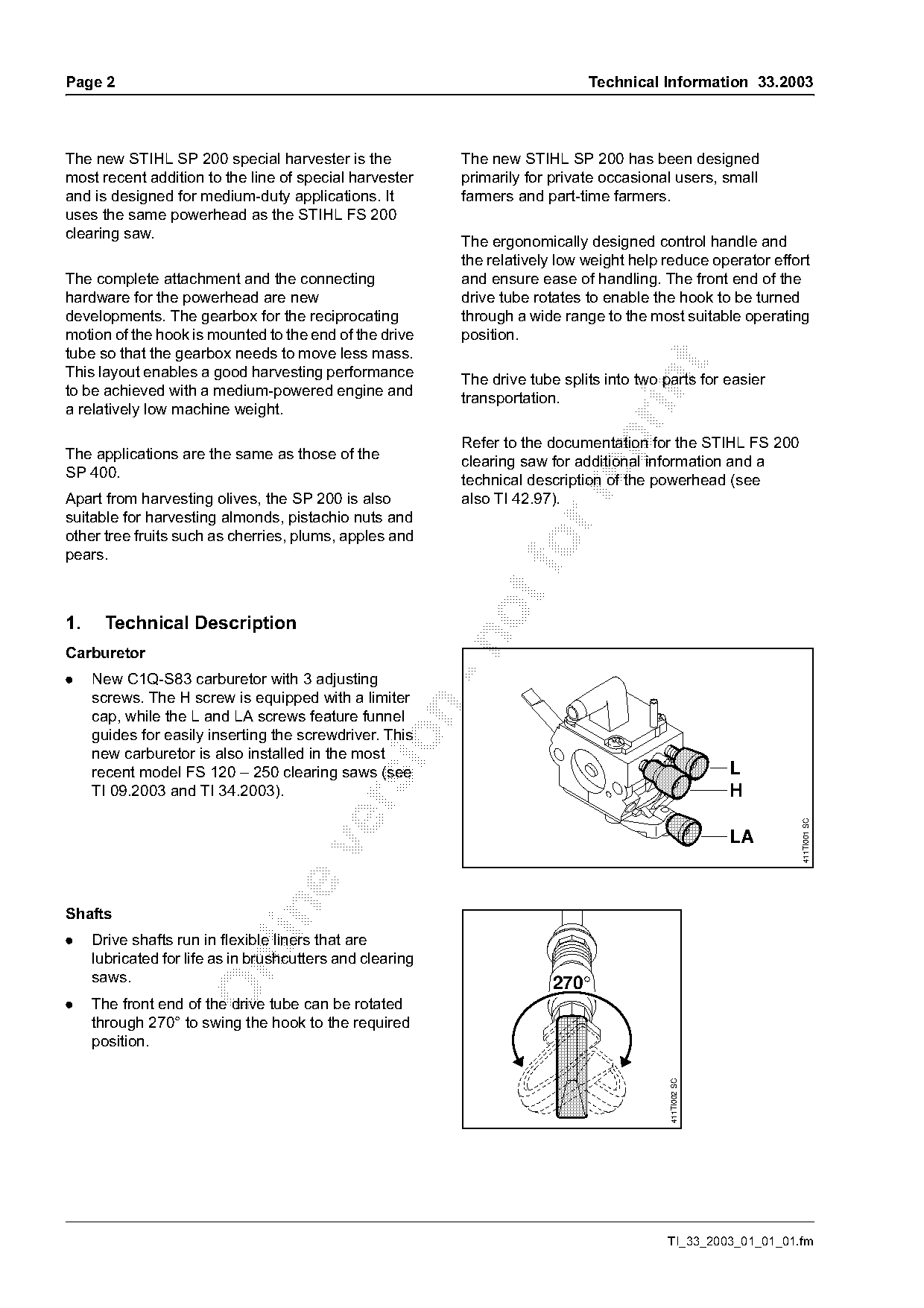

1. Technical Description
Carburetor
. New C1Q-S83 carburetor with 3 adjusting
screws. The H screw is equipped with a limiter
cap, while the L and LA screws feature funnel
guides for easily inserting the screwdriver. This
new carburetor is also installed in the most
recent model FS 120 – 250 clearing saws (see L
TI 09.2003 and TI 34.2003). H
411TI001 SC
Shafts
. Drive shafts run in flexible liners that are
lubricated for life as in brushcutters and clearing
saws. 270°
. The front end of the drive tube can be rotated
through 270° to swing the hook to the required
position.
411TI002 SC
TI_33_2003_01_01_01.fm Page 2 of 7
Technical Information 33.2003 Page 3

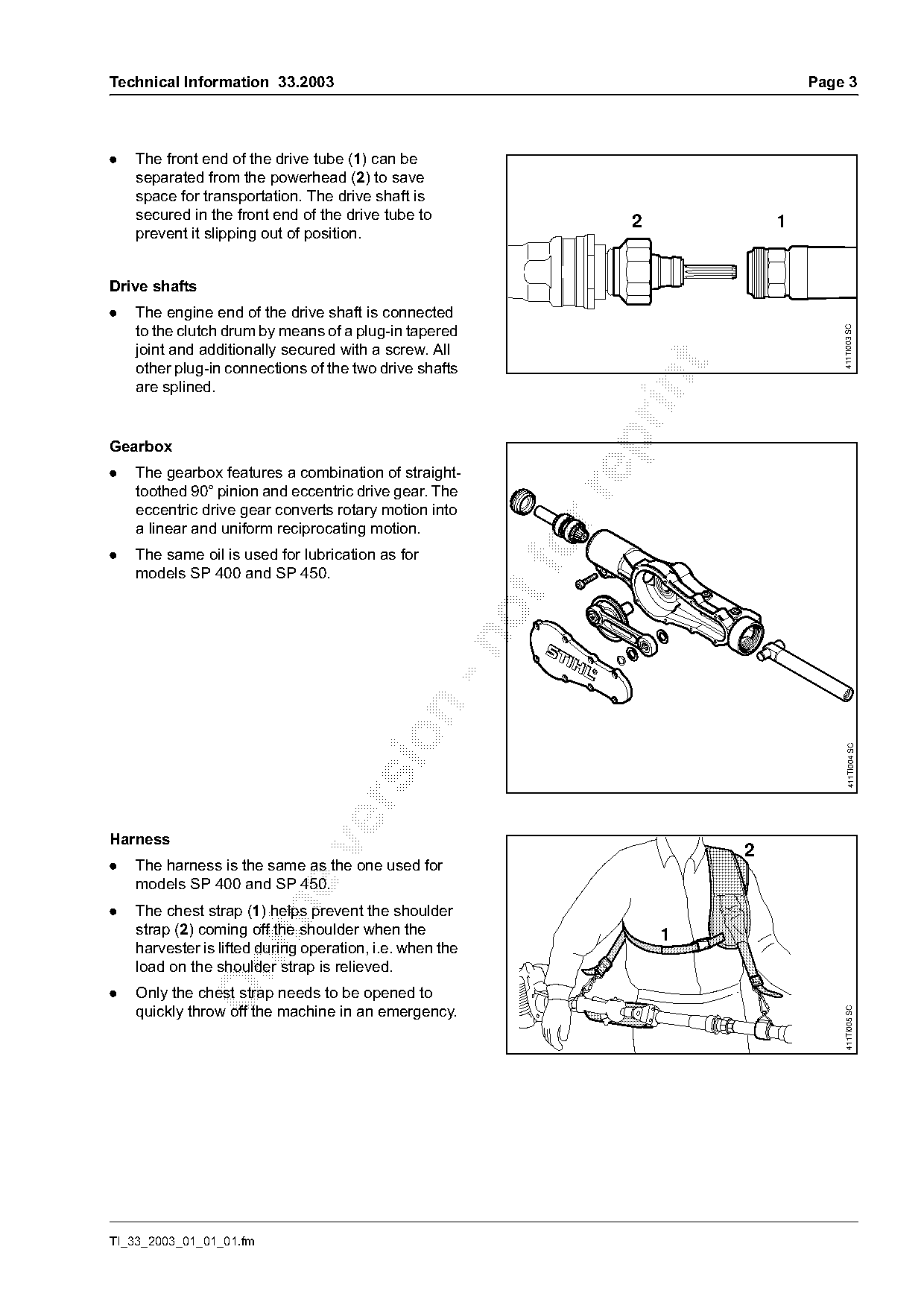

. The front end of the drive tube (1) can be
separated from the powerhead (2) to save
space for transportation. The drive shaft is
secured in the front end of the drive tube to 2 1
prevent it slipping out of position.
Drive shafts
. The engine end of the drive shaft is connected
to the clutch drum by means of a plug-in tapered
411TI003 SC
joint and additionally secured with a screw. All
other plug-in connections of the two drive shafts
are splined.
Gearbox
. The gearbox features a combination of straight-
toothed 90° pinion and eccentric drive gear. The
eccentric drive gear converts rotary motion into
a linear and uniform reciprocating motion.
. The same oil is used for lubrication as for
models SP 400 and SP 450.
411TI004 SC
Harness
2
. The harness is the same as the one used for
models SP 400 and SP 450.
. The chest strap (1) helps prevent the shoulder
strap (2) coming off the shoulder when the 1
harvester is lifted during operation, i.e. when the
load on the shoulder strap is relieved.
. Only the chest strap needs to be opened to
quickly throw off the machine in an emergency.
411TI005 SC
TI_33_2003_01_01_01.fm
)m~ge 4 Technical Information 33.2003

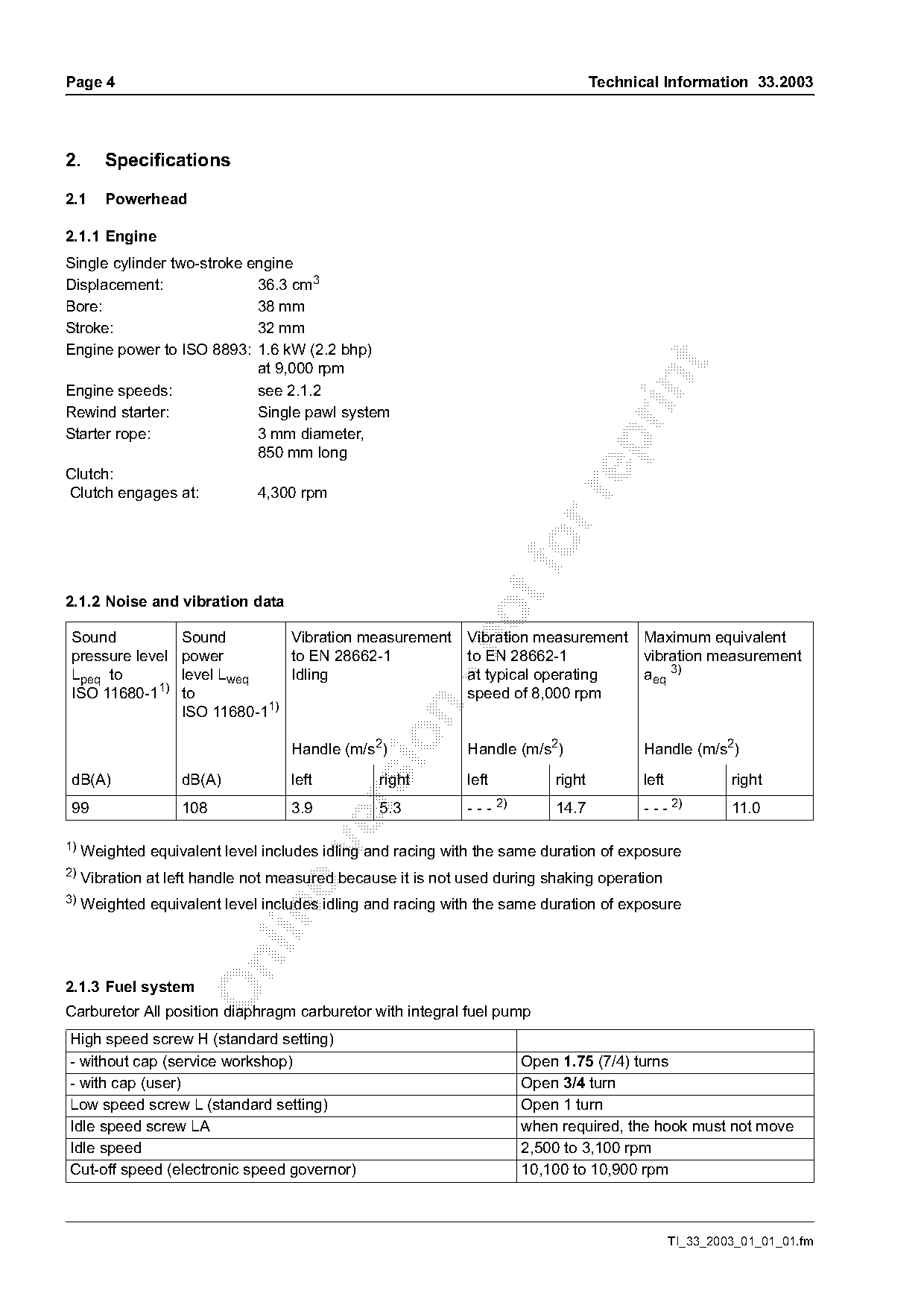

2. Specifications
2.1 Powerhead
2.1.1 Engine
Single cylinder two-stroke engine
Displacement: 36.3 cm3
Bore: 38 mm
Stroke: 32 mm
Engine power to ISO 8893: 1.6 kW (2.2 bhp)
at 9,000 rpm
Engine speeds: see 2.1.2
Rewind starter: Single pawl system
Starter rope: 3 mm diameter,
850 mm long
Clutch:
Clutch engages at: 4,300 rpm
2.1.2 Noise and vibration data
Sound Sound Vibration measurement Vibration measurement Maximum equivalent
pressure level power to EN 28662-1 to EN 28662-1 vibration measurement
Lpeq to level Lweq Idling at typical operating aeq 3)
ISO 11680-11) to speed of 8,000 rpm
ISO 11680-11)
Handle (m/s2) Handle (m/s2) Handle (m/s2)
dB(A) dB(A) left right left right left right
99 108 3.9 5.3 - - - 2) 14.7 - - - 2) 11.0
1)
Weighted equivalent level includes idling and racing with the same duration of exposure
2) Vibration at left handle not measured because it is not used during shaking operation
3) Weighted equivalent level includes idling and racing with the same duration of exposure
2.1.3 Fuel system
Carburetor All position diaphragm carburetor with integral fuel pump
High speed screw H (standard setting)
- without cap (service workshop) Open 1.75 (7/4) turns
- with cap (user) Open 3/4 turn
Low speed screw L (standard setting) Open 1 turn
Idle speed screw LA when required, the hook must not move
Idle speed 2,500 to 3,100 rpm
Cut-off speed (electronic speed governor) 10,100 to 10,900 rpm
TI_33_2003_01_01_01.fm Page 3 of 7
Technical Information 33.2003 Page 5

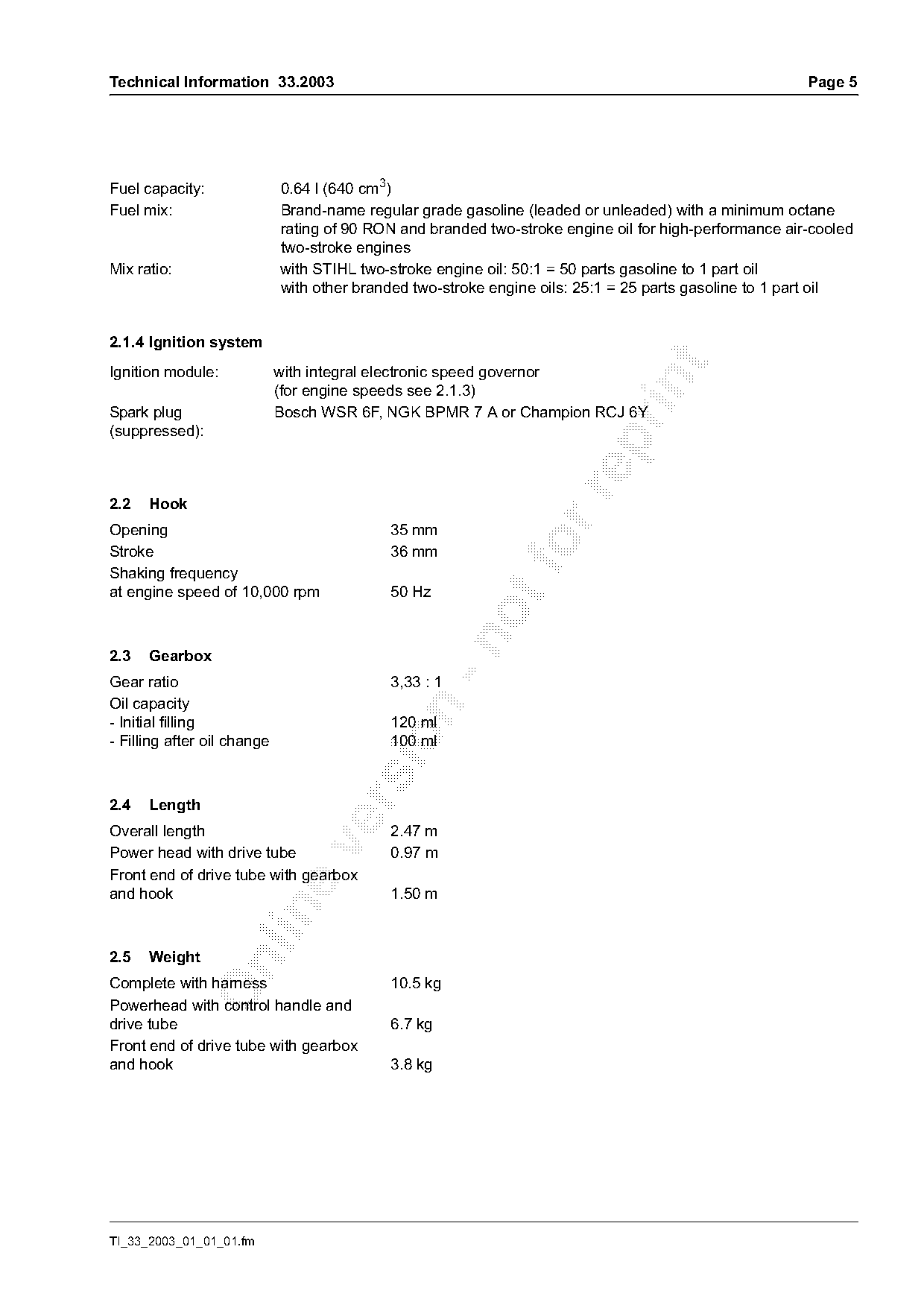

Fuel capacity: 0.64 l (640 cm3)
Fuel mix: Brand-name regular grade gasoline (leaded or unleaded) with a minimum octane
rating of 90 RON and branded two-stroke engine oil for high-performance air-cooled
two-stroke engines
Mix ratio: with STIHL two-stroke engine oil: 50:1 = 50 parts gasoline to 1 part oil
with other branded two-stroke engine oils: 25:1 = 25 parts gasoline to 1 part oil
2.1.4 Ignition system
Ignition module: with integral electronic speed governor
(for engine speeds see 2.1.3)
Spark plug Bosch WSR 6F, NGK BPMR 7 A or Champion RCJ 6Y
(suppressed):
2.2 Hook
Opening 35 mm
Stroke
Shaking frequency
36 mm fo
at engine speed of 10,000 rpm 50 Hz
2.3 Gearbox
Gear ratio 3,33 : 1
Oil capacity
- Initial filling 120 ml
- Filling after oil change 100 ml
2.4 Length
Overall length 2.47 m
Power head with drive tube 0.97 m
Front end of drive tube with gearbox
and hook 1.50 m
2.5 Weight
Complete with harness 10.5 kg
Powerhead with control handle and
drive tube 6.7 kg
Front end of drive tube with gearbox
and hook 3.8 kg
TI_33_2003_01_01_01.fm
)m~ge 6 Technical Information 33.2003

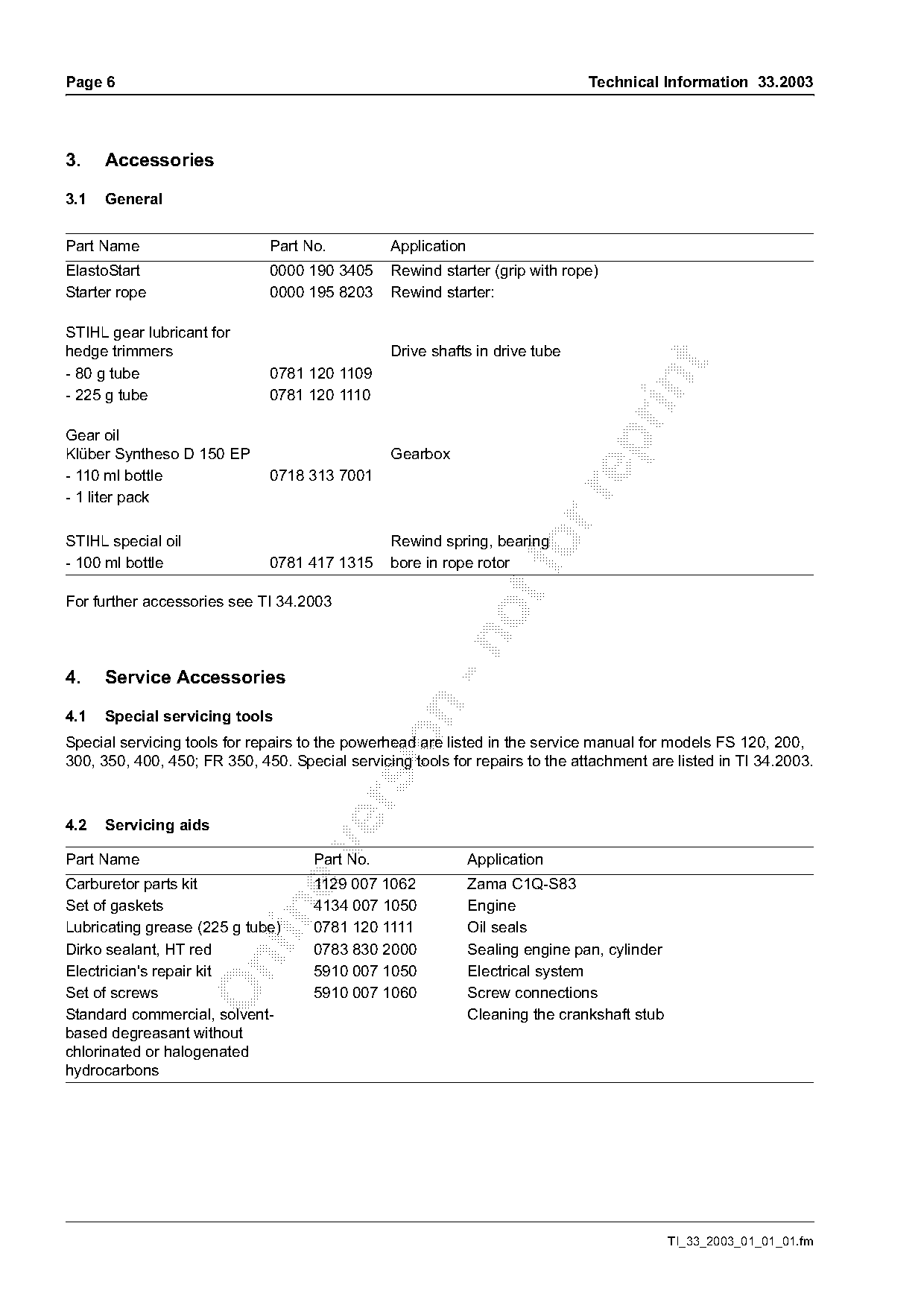

3. Accessories
3.1 General
Part Name Part No. Application
ElastoStart 0000 190 3405 Rewind starter (grip with rope)
Starter rope 0000 195 8203 Rewind starter:
STIHL gear lubricant for
hedge trimmers Drive shafts in drive tube
- 80 g tube 0781 120 1109
- 225 g tube 0781 120 1110
Gear oil
Klüber Syntheso D 150 EP Gearbox
- 110 ml bottle 0718 313 7001
- 1 liter pack
STIHL special oil Rewind spring, bearing
- 100 ml bottle 0781 417 1315 bore in rope rotor
For further accessories see TI 34.2003
4. Service Accessories
4.1 Special servicing tools
Special servicing tools for repairs to the powerhead are listed in the service manual for models FS 120, 200,
300, 350, 400, 450; FR 350, 450. Special servicing tools for repairs to the attachment are listed in TI 34.2003.
4.2 Servicing aids
Part Name Part No. Application
Carburetor parts kit 1129 007 1062 Zama C1Q-S83
Set of gaskets 4134 007 1050 Engine
Lubricating grease (225 g tube) 0781 120 1111 Oil seals
Dirko sealant, HT red 0783 830 2000 Sealing engine pan, cylinder
Electrician's repair kit 5910 007 1050 Electrical system
Set of screws 5910 007 1060 Screw connections
Standard commercial, solvent- Cleaning the crankshaft stub
based degreasant without
chlorinated or halogenated
hydrocarbons
TI_33_2003_01_01_01.fm Page 4 of 7
Technical Information 33.2003 Page 7

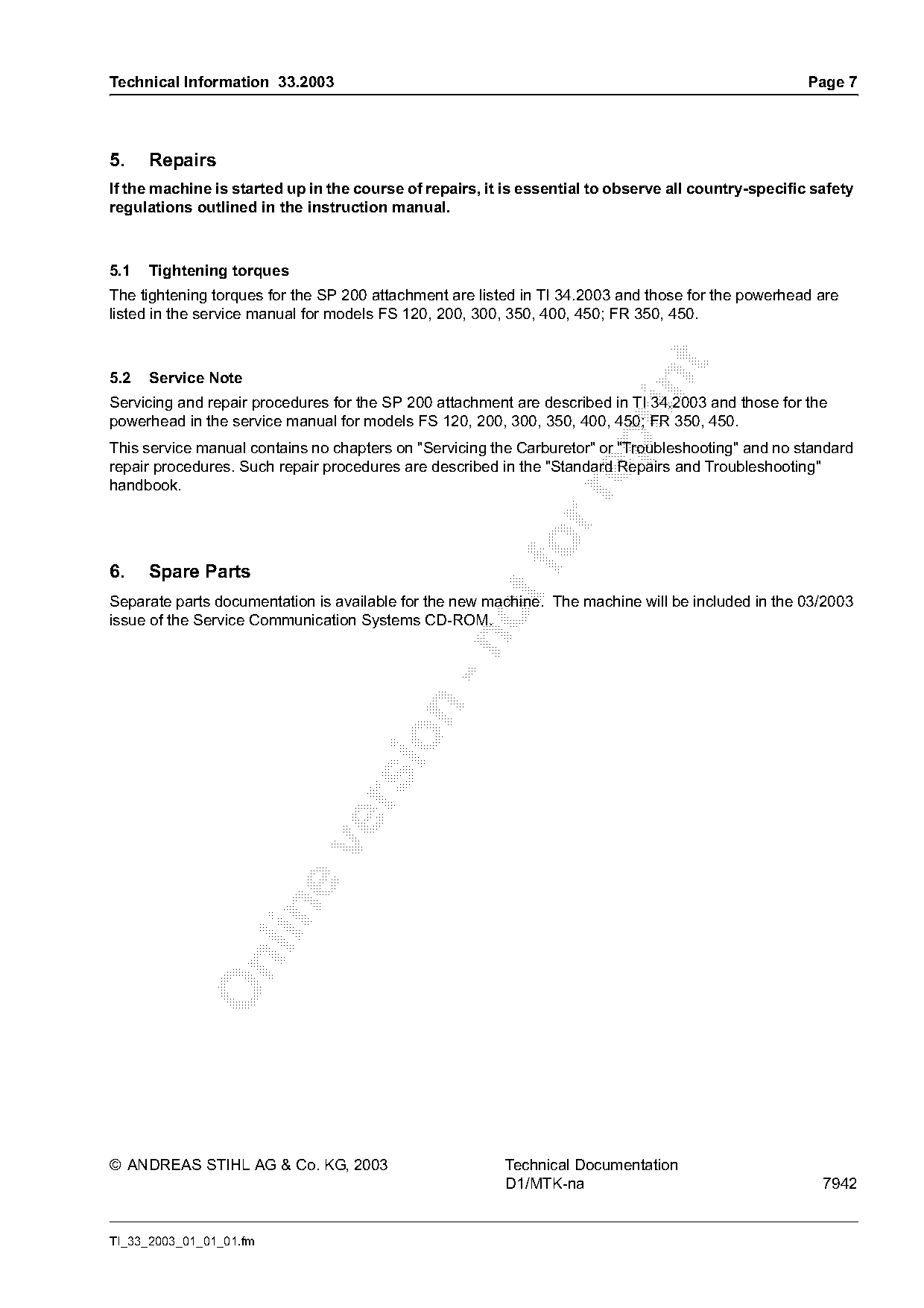

5. Repairs
If the machine is started up in the course of repairs, it is essential to observe all country-specific safety
regulations outlined in the instruction manual.
5.1 Tightening torques
The tightening torques for the SP 200 attachment are listed in TI 34.2003 and those for the powerhead are
listed in the service manual for models FS 120, 200, 300, 350, 400, 450; FR 350, 450.
5.2 Service Note
Servicing and repair procedures for the SP 200 attachment are described in TI 34.2003 and those for the
powerhead in the service manual for models FS 120, 200, 300, 350, 400, 450; FR 350, 450.
This service manual contains no chapters on "Servicing the Carburetor" or "Troubleshooting" and no standard
repair procedures. Such repair procedures are described in the "Standard Repairs and Troubleshooting"
handbook.
6. Spare Parts
Separate parts documentation is available for the new machine. The machine will be included in the 03/2003
issue of the Service Communication Systems CD-ROM.
© ANDREAS STIHL AG & Co. KG, 2003 Technical Documentation
D1/MTK-na 7942
TI_33_2003_01_01_01.fm Page 5 of 7
Page 6 of 7
Page 7 of 7
