Technical Information · issue 38 of 2003

Rapid Super C Saw Chain; Service Note; Saw Chain T

IssueTI 38/2003

Full text

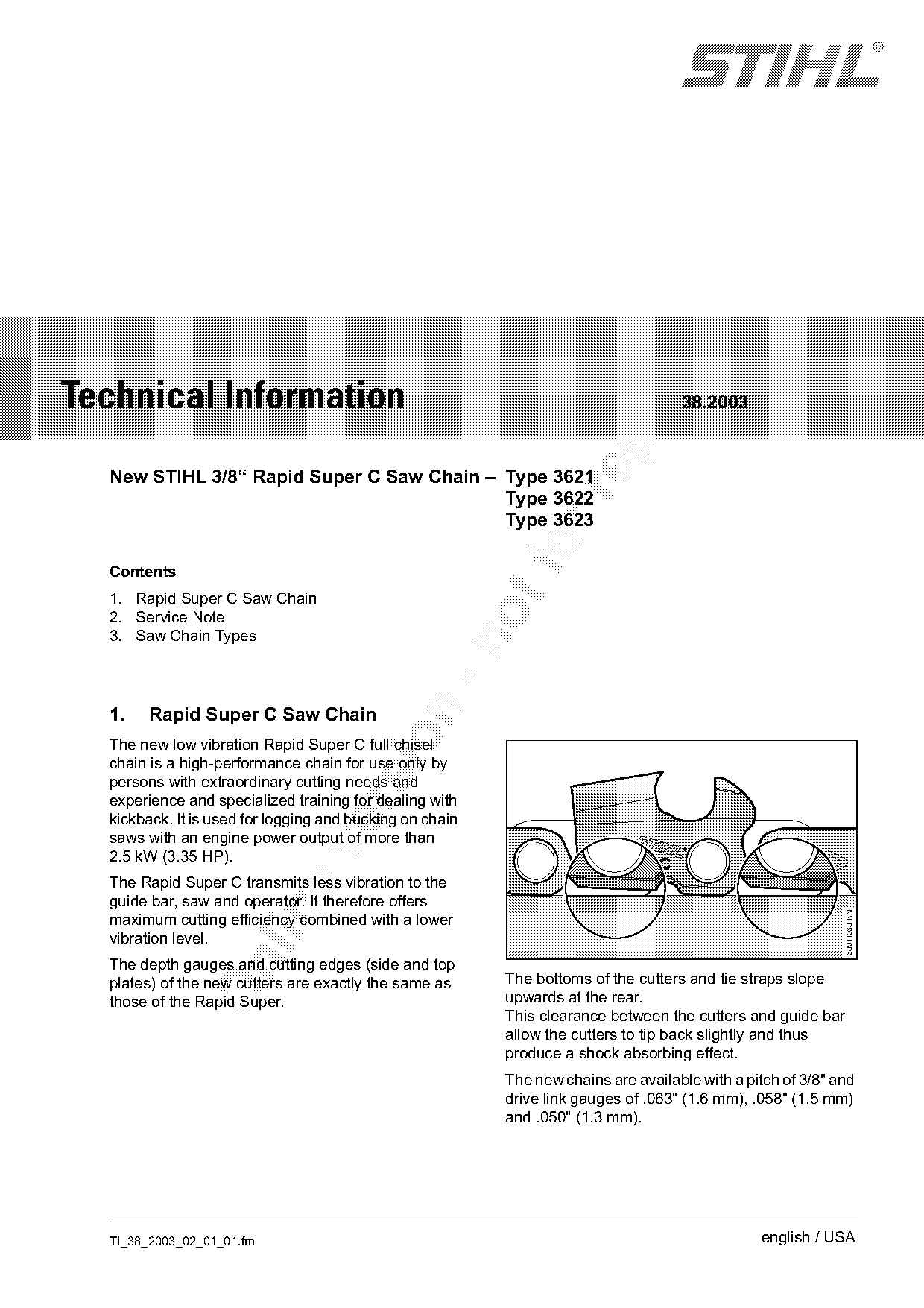

Page 1 of 3

STIH)

Technical Information

38.2003

New STIHL 3/8“ Rapid Super C Saw Chain – Type 3621

Type 3622
Type 3623

Contents
1. Rapid Super C Saw Chain
2. Service Note
3. Saw Chain Types

1. Rapid Super C Saw Chain

The new low vibration Rapid Super C full chisel
chain is a high-performance chain for use only by
persons with extraordinary cutting needs and
experience and specialized training for dealing with

kickback. It is used for logging and bucking on chain
saws with an engine power output of more than

2.5 kW (3.35 HP).
The Rapid Super C transmits less vibration to the
guide bar, saw and operator. It therefore offers

689TI063 KN

maximum cutting efficiency combined with a lower
vibration level.

The depth gauges and cutting edges (side and top
plates) of the new cutters are exactly the same as The bottoms of the cutters and tie straps slope
those of the Rapid Super. upwards at the rear.
This clearance between the cutters and guide bar
allow the cutters to tip back slightly and thus
produce a shock absorbing effect.
The new chains are available with a pitch of 3/8" and
drive link gauges of .063" (1.6 mm), .058" (1.5 mm)
and .050" (1.3 mm).

TI_38_2003_02_01_01.fm english / USA

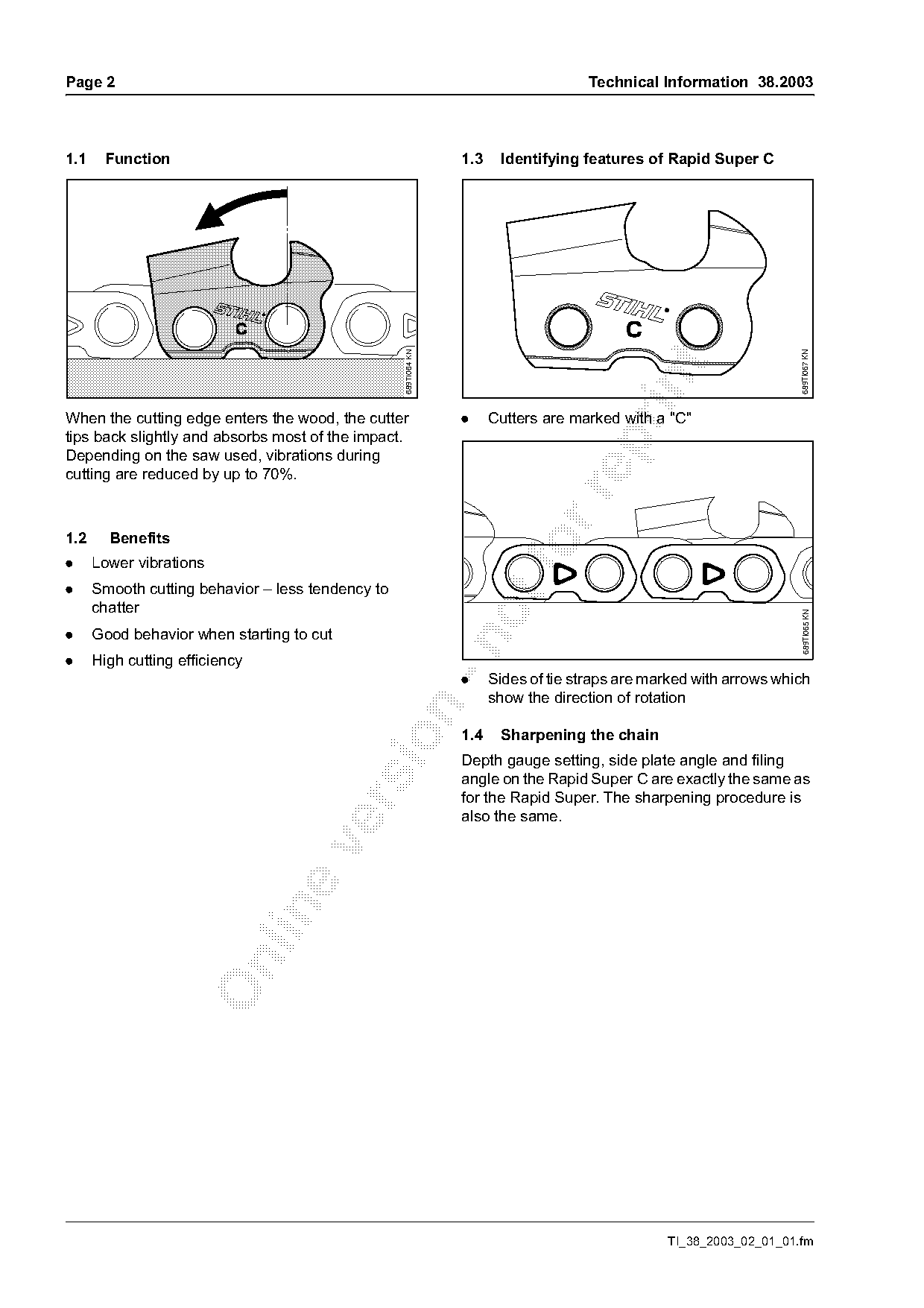

)m~ge 2 Technical Information 38.2003

1.1 Function 1.3 Identifying features of Rapid Super C

689TI067 KN
689TI064 KN

When the cutting edge enters the wood, the cutter . Cutters are marked with a "C"
tips back slightly and absorbs most of the impact.

Depending on the saw used, vibrations during
cutting are reduced by up to 70%.

1.2 Benefits
. Lower vibrations
. Smooth cutting behavior – less tendency to
chatter

689TI065 KN
. Good behavior when starting to cut

. High cutting efficiency
. Sides of tie straps are marked with arrows which
show the direction of rotation

1.4 Sharpening the chain

Depth gauge setting, side plate angle and filing
angle on the Rapid Super C are exactly the same as
for the Rapid Super. The sharpening procedure is

also the same.

TI_38_2003_02_01_01.fm

Page 2 of 3

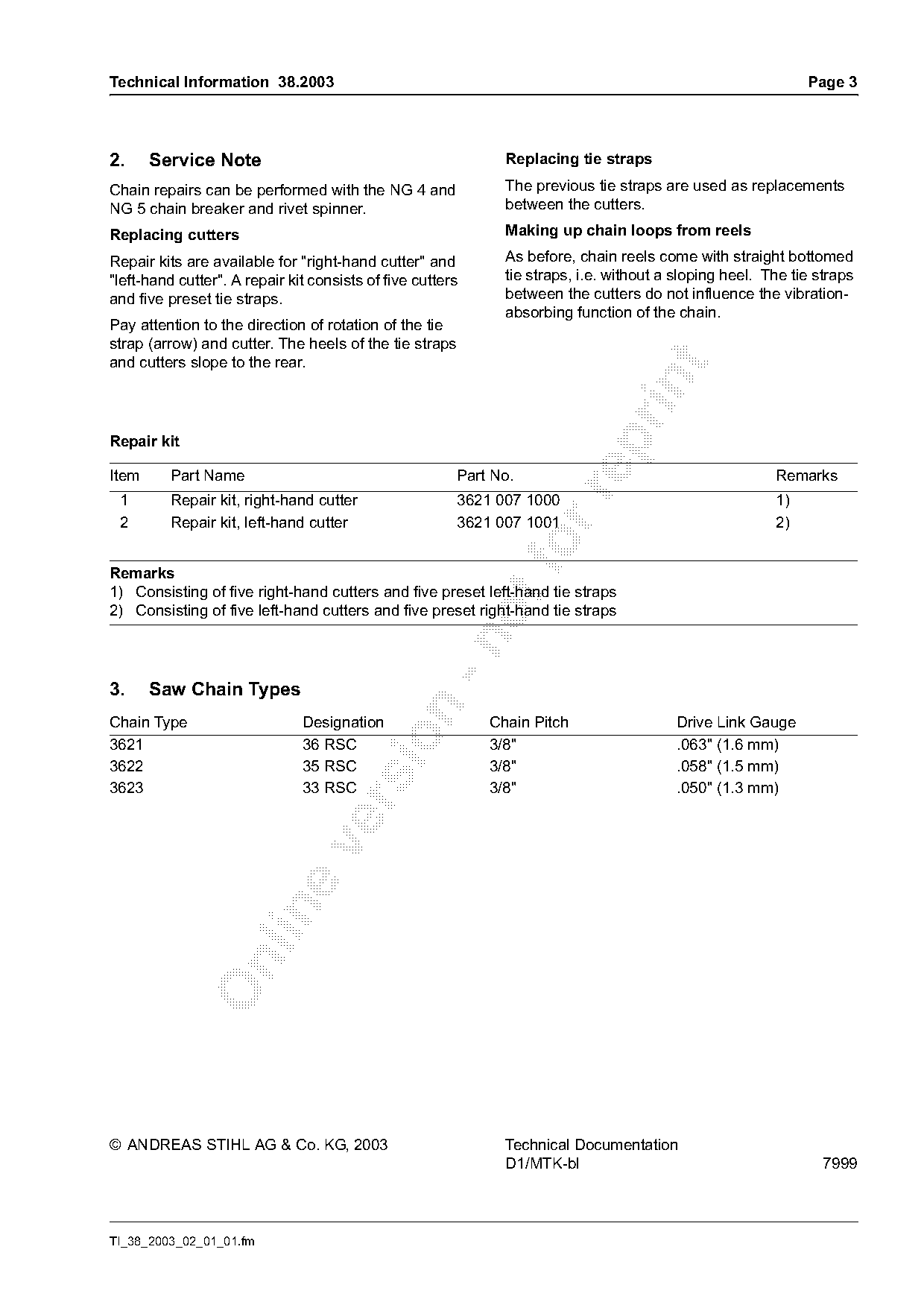

Technical Information 38.2003 Page 3

2. Service Note Replacing tie straps

Chain repairs can be performed with the NG 4 and The previous tie straps are used as replacements
NG 5 chain breaker and rivet spinner. between the cutters.

Replacing cutters Making up chain loops from reels

Repair kits are available for "right-hand cutter" and As before, chain reels come with straight bottomed
"left-hand cutter". A repair kit consists of five cutters tie straps, i.e. without a sloping heel. The tie straps
and five preset tie straps. between the cutters do not influence the vibration-
absorbing function of the chain.
Pay attention to the direction of rotation of the tie
strap (arrow) and cutter. The heels of the tie straps
and cutters slope to the rear.

Repair kit

Item Part Name Part No. Remarks

1 Repair kit, right-hand cutter 3621 007 1000 1)
2 Repair kit, left-hand cutter 3621 007 1001 2)

Remarks
1) Consisting of five right-hand cutters and five preset left-hand tie straps
2) Consisting of five left-hand cutters and five preset right-hand tie straps

3. Saw Chain Types

Chain Type Designation Chain Pitch Drive Link Gauge

3621 36 RSC 3/8" .063" (1.6 mm)
3622 35 RSC 3/8" .058" (1.5 mm)
3623 33 RSC 3/8" .050" (1.3 mm)

TI_38_2003_02_01_01.fm

Page 3 of 3
