Picco Micro 1 saw chain in place of Picco Micro
Model MS 190 T, 019 T Chainsaws – Series 1132
Full text
Page 1 of 2
STIH)
Technical Information
44.2003
Model MS 190 T, 019 T Chainsaws – Series 1132
Model MS 200 T, 020 T Chainsaws – Series 1129
Picco Micro 1 saw chain in place of
Picco Micro Replacement saw chains
In future, the MS 200 T will be shipped with the Only the Picco Micro 1 will be available as a
improved low kickback Picco Micro 1 chain instead replacement for the MS 200 T and 020 T in future.
of the Picco Micro. This change has been made to
meet the new statutory requirements for top handle Picco Micro Mini and Picco Micro 1 chains will be
saws. available as replacements for models MS 190 T and
The MS 190 T will continue to be supplied with the 019 T.
low kickback Picco Micro Mini as initial equipment. The Picco Micro chain used up to now on top handle
saws is no longer permitted in Europe because it
does not comply with future European regulations,
but it remains available for other models.
689TI068 KN

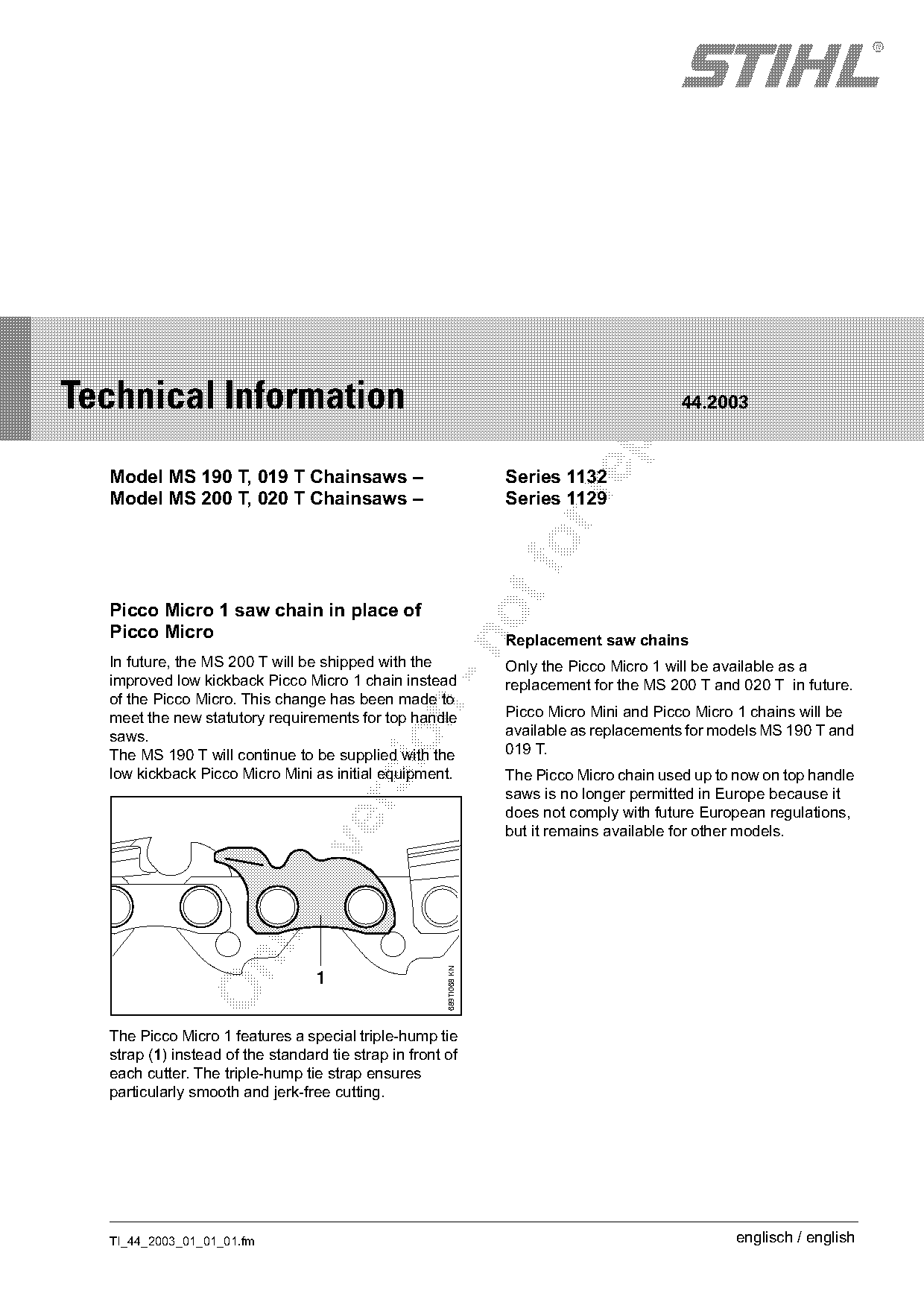

The Picco Micro 1 features a special triple-hump tie
strap (1) instead of the standard tie strap in front of
each cutter. The triple-hump tie strap ensures
particularly smooth and jerk-free cutting.
TI_44_2003_01_01_01.fm englisch / english
)m~ge 2 Technical Information 44.2003

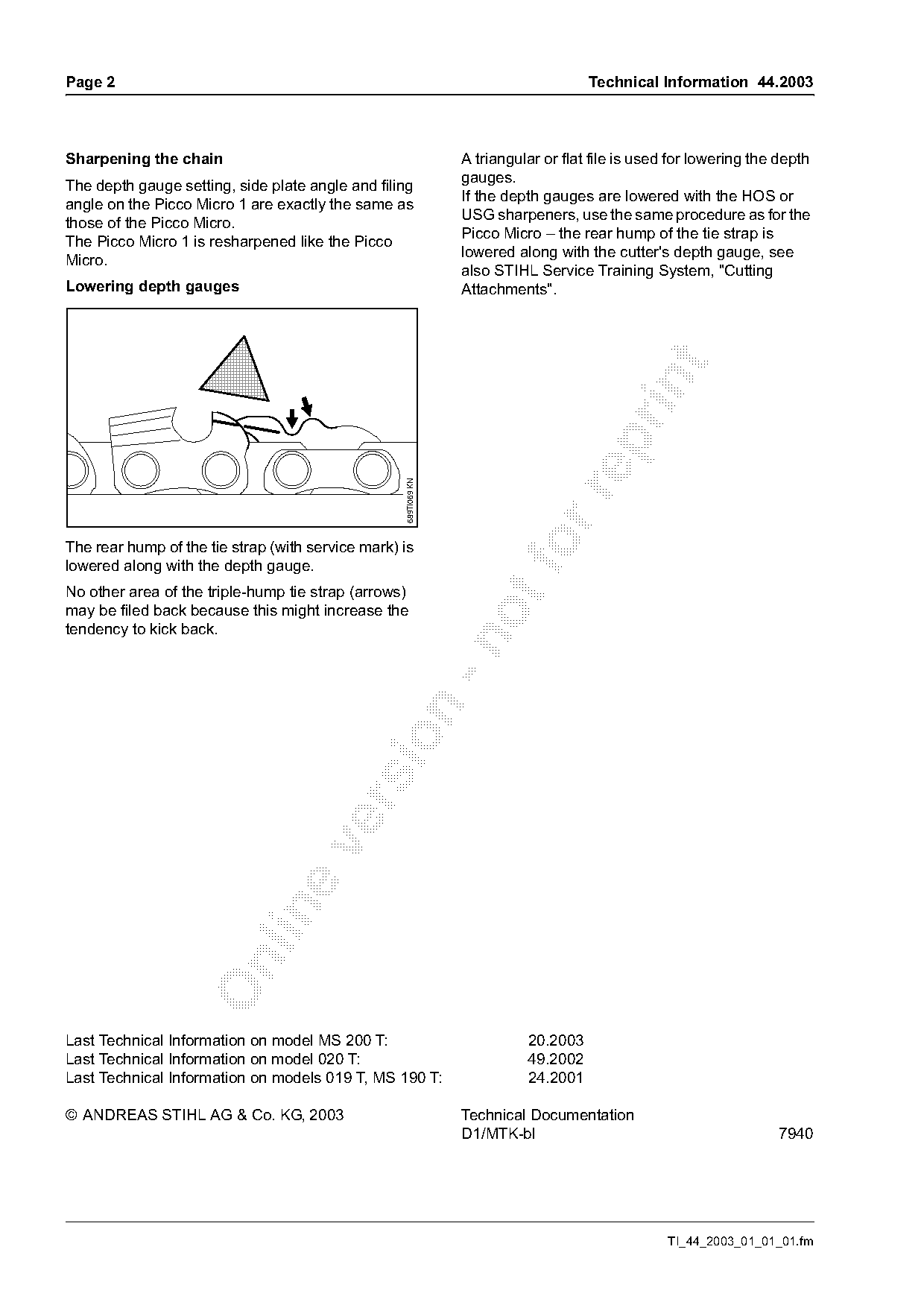

Sharpening the chain A triangular or flat file is used for lowering the depth
gauges.
The depth gauge setting, side plate angle and filing
If the depth gauges are lowered with the HOS or
angle on the Picco Micro 1 are exactly the same as
USG sharpeners, use the same procedure as for the
those of the Picco Micro.
Picco Micro – the rear hump of the tie strap is
The Picco Micro 1 is resharpened like the Picco
lowered along with the cutter's depth gauge, see
Micro.
also STIHL Service Training System, "Cutting
Lowering depth gauges Attachments".
689TI069 KN
The rear hump of the tie strap (with service mark) is
lowered along with the depth gauge.
No other area of the triple-hump tie strap (arrows)
may be filed back because this might increase the
tendency to kick back.
Last Technical Information on model MS 200 T: 20.2003
Last Technical Information on model 020 T: 49.2002
Last Technical Information on models 019 T, MS 190 T: 24.2001
