Technical Information · issue 47 of 2003
New STIHL Rollomatic E 50 cm guide bar
IssueTI 47/2003
Full text
Page 1 of 2
STIH)
Technical Information
47.2003

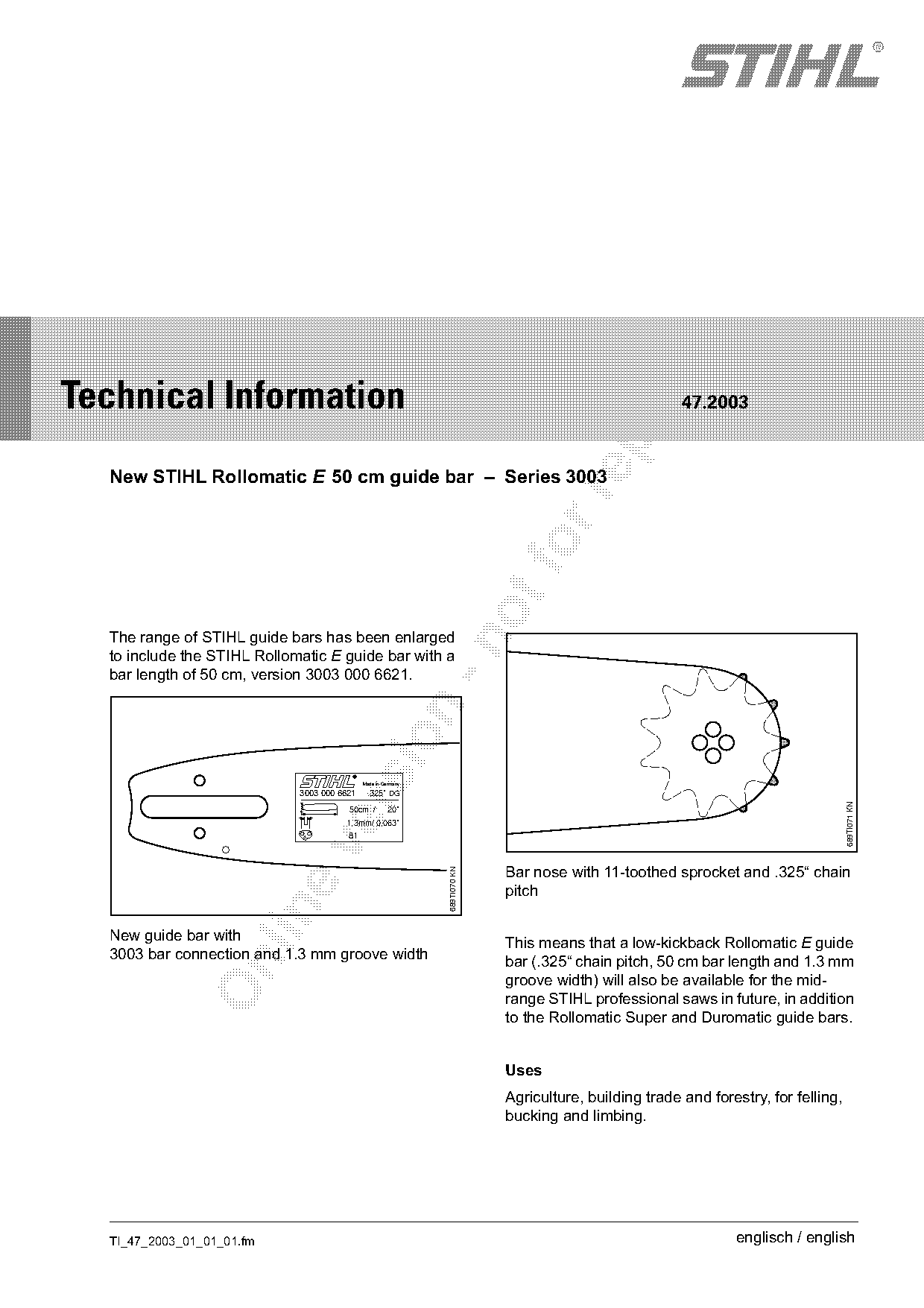

New STIHL Rollomatic E 50 cm guide bar – Series 3003
The range of STIHL guide bars has been enlarged
to include the STIHL Rollomatic E guide bar with a
bar length of 50 cm, version 3003 000 6621.
Made in Germany
3003 000 6621 .325" DG
689TI071 KN
50cm / 20"
1,3mm/ 0,063"
81
Bar nose with 11-toothed sprocket and .325“ chain
689TI070 KN
pitch
New guide bar with This means that a low-kickback Rollomatic E guide
3003 bar connection and 1.3 mm groove width bar (.325“ chain pitch, 50 cm bar length and 1.3 mm
groove width) will also be available for the mid-
range STIHL professional saws in future, in addition
to the Rollomatic Super and Duromatic guide bars.
Uses
Agriculture, building trade and forestry, for felling,
bucking and limbing.
TI_47_2003_01_01_01.fm englisch / english
)m~ge 2 Technical Information 47.2003
Summary

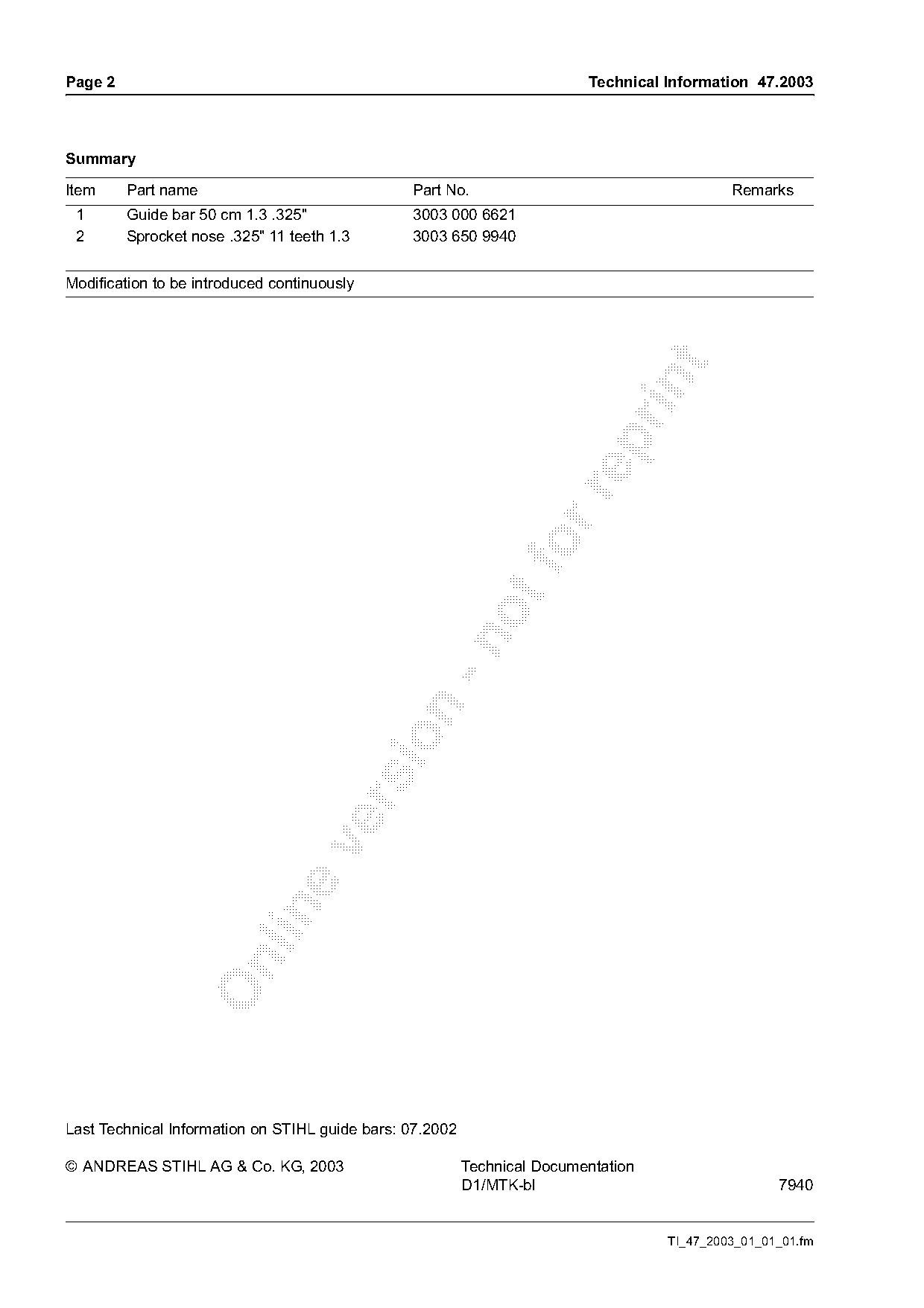

Item Part name Part No. Remarks
1 Guide bar 50 cm 1.3 .325" 3003 000 6621
2 Sprocket nose .325" 11 teeth 1.3 3003 650 9940
Modification to be introduced continuously
Last Technical Information on STIHL guide bars: 07.2002
© ANDREAS STIHL AG & Co. KG, 2003 Technical Documentation
D1/MTK-bl 7940
TI_47_2003_01_01_01.fm Page 2 of 2
