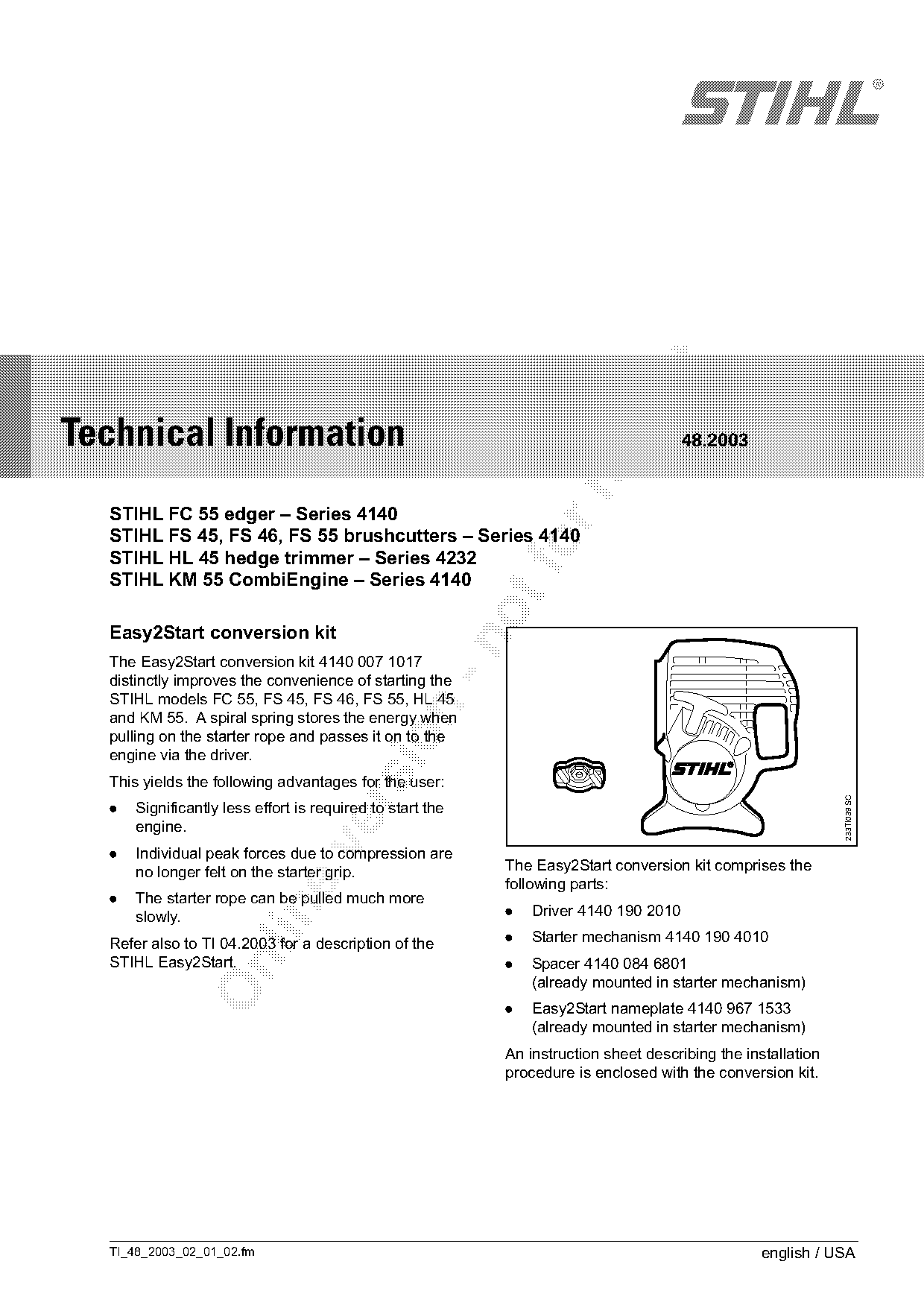

Technical Information · issue 48 of 2003
ErgoStart conversion kit
IssueTI 48/2003
Full text
Page 1 of 2
STIH)
Technical Information 48.2003
STIHL FC 55 edger – Series 4140
STIHL FS 45, FS 46, FS 55 brushcutters – Series 4140
STIHL HL 45 hedge trimmer – Series 4232 fo
STIHL KM 55 CombiEngine – Series 4140
Easy2Start conversion kit
The Easy2Start conversion kit 4140 007 1017
distinctly improves the convenience of starting the
STIHL models FC 55, FS 45, FS 46, FS 55, HL 45
and KM 55. A spiral spring stores the energy when
pulling on the starter rope and passes it on to the
engine via the driver.
This yields the following advantages for the user:
233TI039 SC
. Significantly less effort is required to start the
engine.
. Individual peak forces due to compression are
no longer felt on the starter grip. The Easy2Start conversion kit comprises the
following parts:
. The starter rope can be pulled much more
. Driver 4140 190 2010
slowly.
Refer also to TI 04.2003 for a description of the . Starter mechanism 4140 190 4010
STIHL Easy2Start. . Spacer 4140 084 6801
(already mounted in starter mechanism)
. Easy2Start nameplate 4140 967 1533
(already mounted in starter mechanism)
An instruction sheet describing the installation
procedure is enclosed with the conversion kit.
TI_48_2003_02_01_02.fm english / USA
)m~ge 2 Technical Information 48.2003

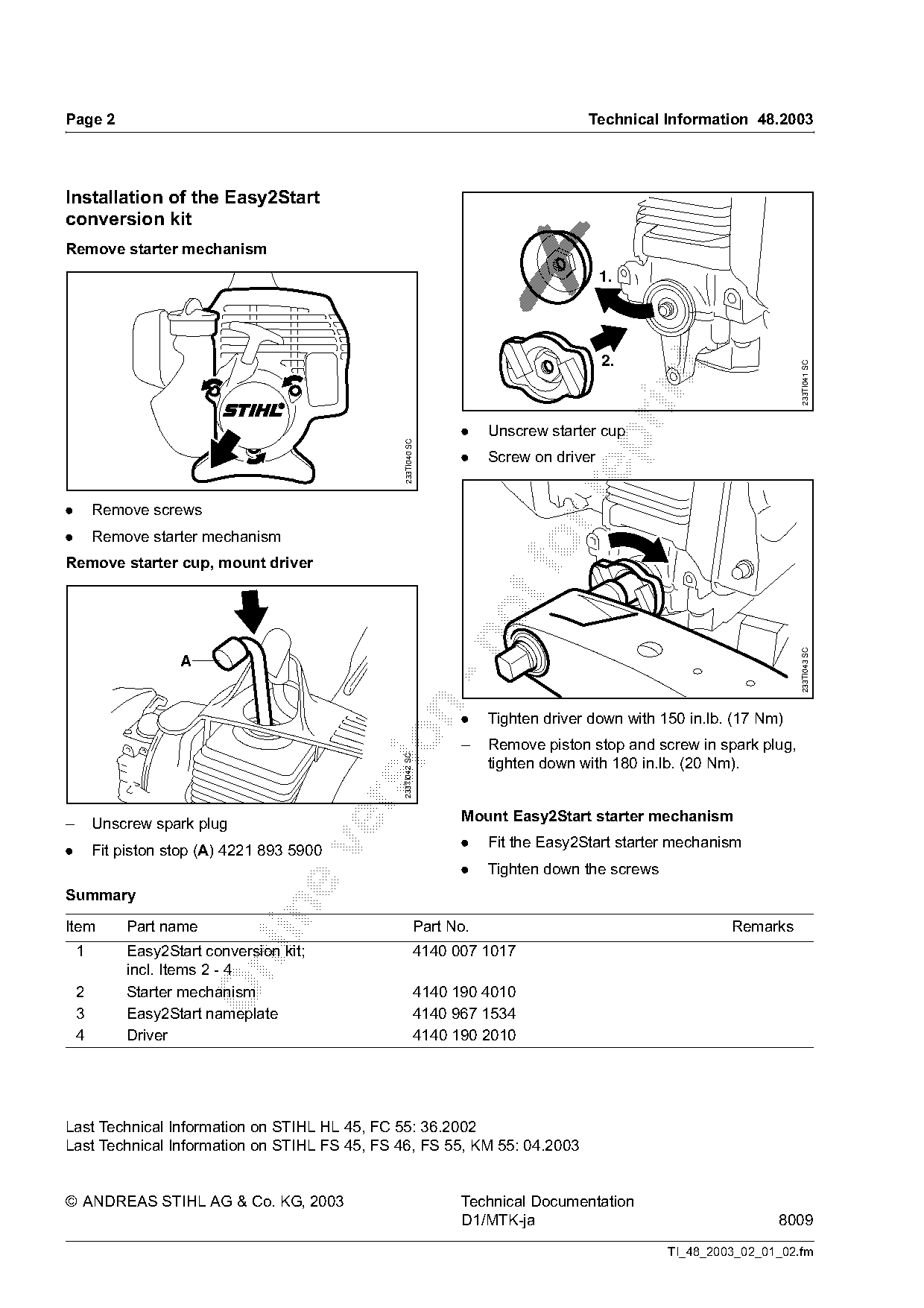

Installation of the Easy2Start
conversion kit
Remove starter mechanism
1.
2.
233TI041 SC
. Unscrew starter cup
233TI040 SC
. Screw on driver
. Remove screws
. Remove starter mechanism
Remove starter cup, mount driver
233TI043 SC
A
. Tighten driver down with 150 in.lb. (17 Nm)
– Remove piston stop and screw in spark plug,
233TI042 SC
tighten down with 180 in.lb. (20 Nm).
Mount Easy2Start starter mechanism
– Unscrew spark plug
. Fit the Easy2Start starter mechanism
. Fit piston stop (A) 4221 893 5900
. Tighten down the screws
Summary
Item Part name Part No. Remarks
1 Easy2Start conversion kit; 4140 007 1017
incl. Items 2 - 4
2 Starter mechanism 4140 190 4010
3 Easy2Start nameplate 4140 967 1534
4 Driver 4140 190 2010
Last Technical Information on STIHL HL 45, FC 55: 36.2002
Last Technical Information on STIHL FS 45, FS 46, FS 55, KM 55: 04.2003
© ANDREAS STIHL AG & Co. KG, 2003 Technical Documentation
D1/MTK-ja 8009
TI_48_2003_02_01_02.fm Page 2 of 2
