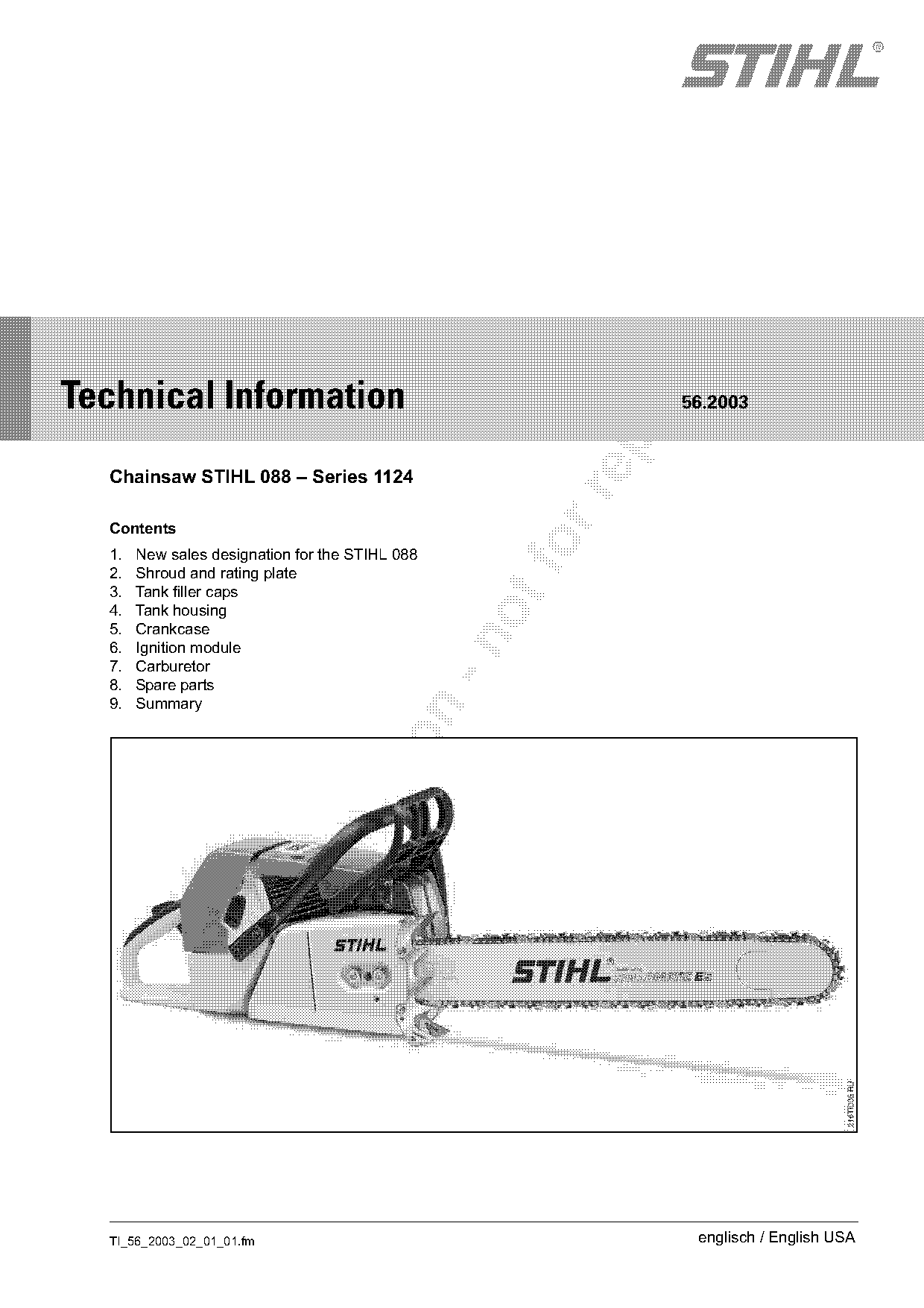

Chainsaw STIHL 088 – Series 1124
Contents
1.
2.
New sales designation for the STIHL 088
Shroud and rating plate
3. Tank filler caps
4. Tank housing
5. Crankcase
6. Ignition module
7. Carburetor
8. Spare parts
9. Summary
TI_56_2003_02_01_01.fm englisch / English USA
)m~ge 2 Technical Information 56.2003

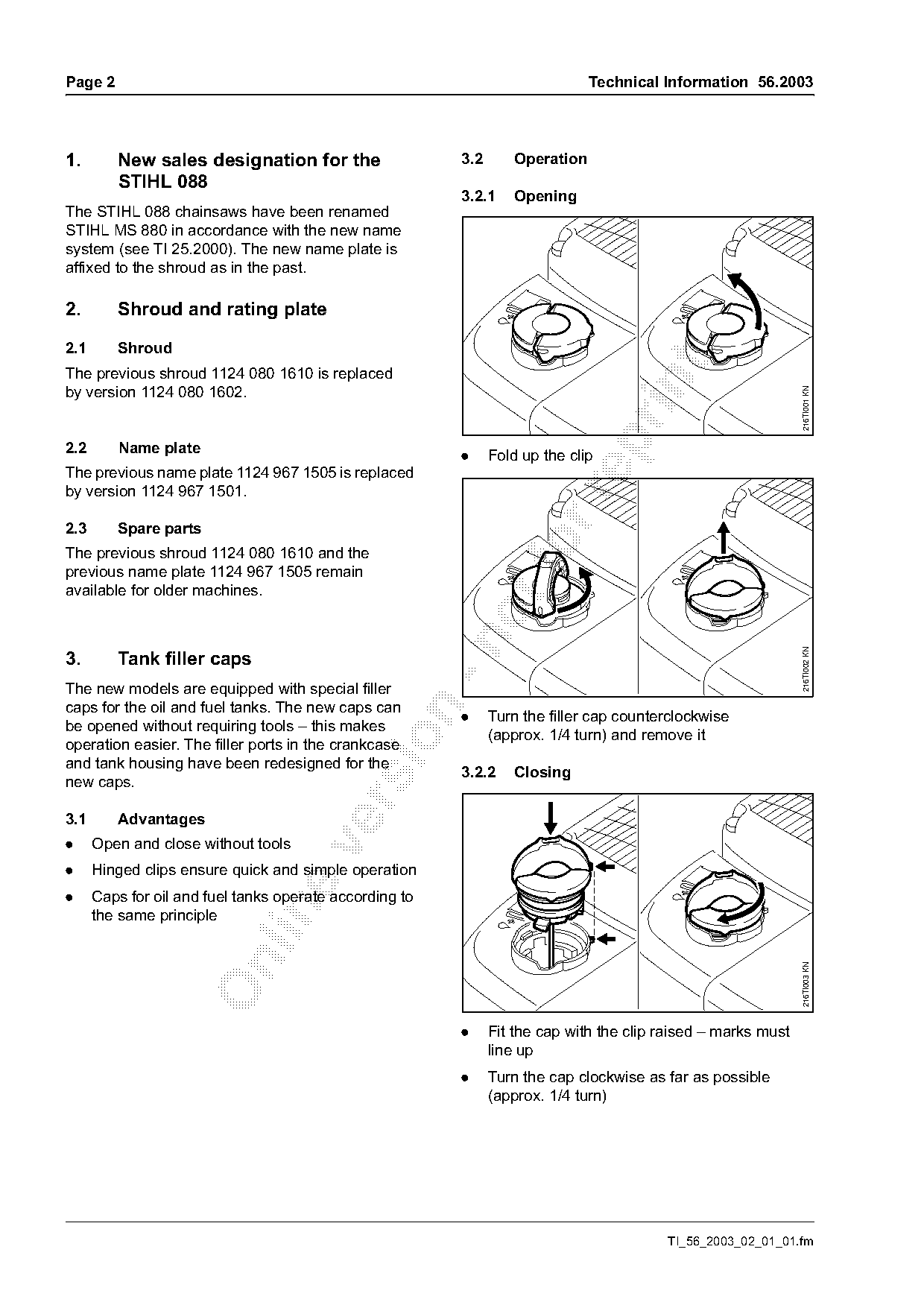

1. New sales designation for the 3.2 Operation
STIHL 088
3.2.1 Opening
The STIHL 088 chainsaws have been renamed
STIHL MS 880 in accordance with the new name
system (see TI 25.2000). The new name plate is
affixed to the shroud as in the past.
2. Shroud and rating plate
2.1 Shroud
The previous shroud 1124 080 1610 is replaced
by version 1124 080 1602.
216TI001 KN
2.2 Name plate
. Fold up the clip
The previous name plate 1124 967 1505 is replaced
by version 1124 967 1501.
2.3 Spare parts
The previous shroud 1124 080 1610 and the
previous name plate 1124 967 1505 remain
available for older machines.
216TI002 KN
3. Tank filler caps
The new models are equipped with special filler
caps for the oil and fuel tanks. The new caps can
. Turn the filler cap counterclockwise
be opened without requiring tools – this makes
(approx. 1/4 turn) and remove it
operation easier. The filler ports in the crankcase
and tank housing have been redesigned for the
3.2.2 Closing
new caps.
3.1 Advantages
. Open and close without tools
. Hinged clips ensure quick and simple operation
. Caps for oil and fuel tanks operate according to
the same principle
216TI003 KN
. Fit the cap with the clip raised – marks must
line up
. Turn the cap clockwise as far as possible
(approx. 1/4 turn)
TI_56_2003_02_01_01.fm Page 2 of 6
Technical Information 56.2003 Page 3

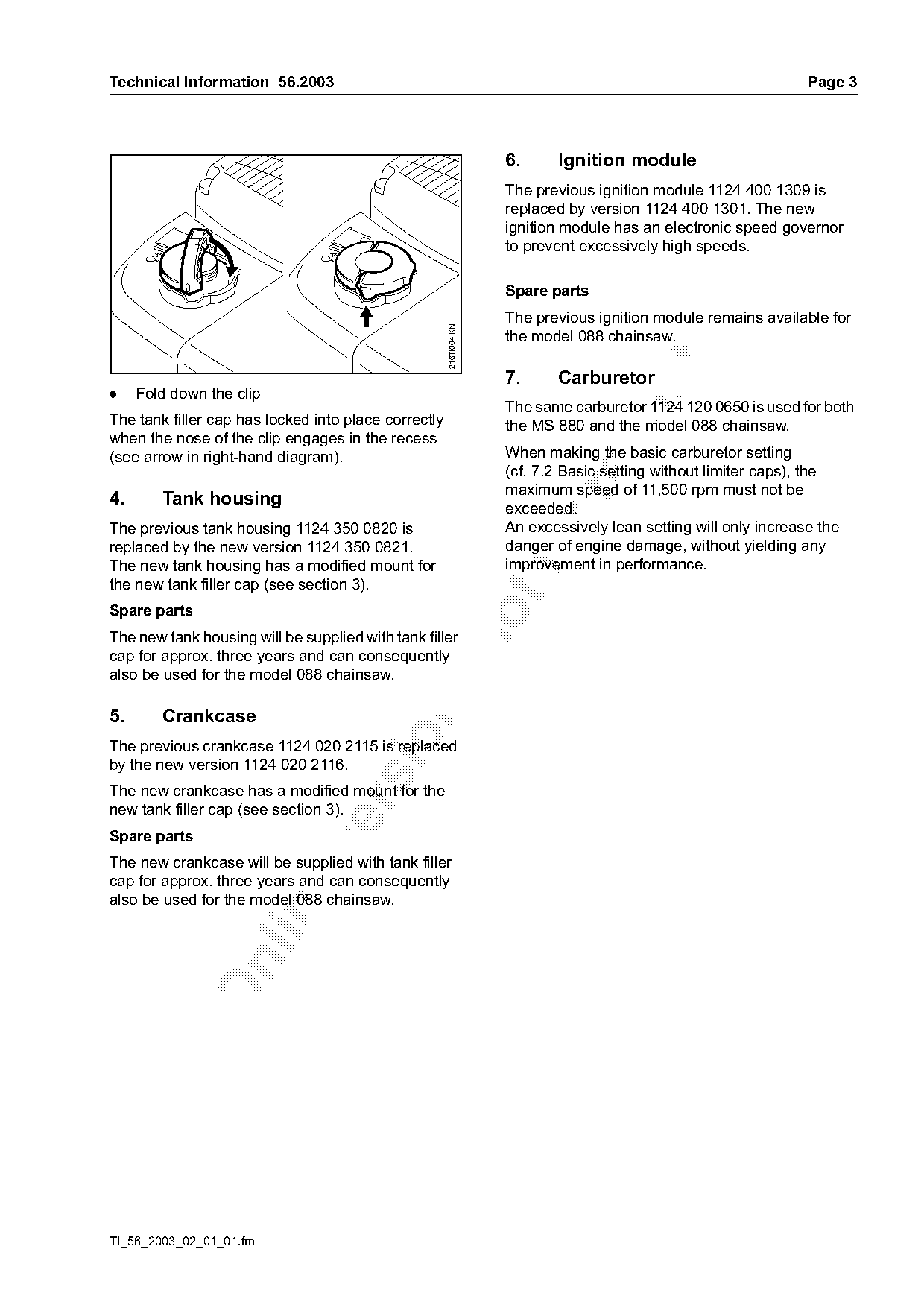

6. Ignition module
The previous ignition module 1124 400 1309 is
replaced by version 1124 400 1301. The new
ignition module has an electronic speed governor
to prevent excessively high speeds.
Spare parts
The previous ignition module remains available for
216TI004 KN
the model 088 chainsaw.
7. Carburetor
. Fold down the clip
The same carburetor 1124 120 0650 is used for both
The tank filler cap has locked into place correctly the MS 880 and the model 088 chainsaw.
when the nose of the clip engages in the recess
(see arrow in right-hand diagram). When making the basic carburetor setting
(cf. 7.2 Basic setting without limiter caps), the
maximum speed of 11,500 rpm must not be
4. Tank housing exceeded.
The previous tank housing 1124 350 0820 is An excessively lean setting will only increase the
replaced by the new version 1124 350 0821.
The new tank housing has a modified mount for
danger of engine damage, without yielding any
improvement in performance.
the new tank filler cap (see section 3).
Spare parts
The new tank housing will be supplied with tank filler
cap for approx. three years and can consequently
also be used for the model 088 chainsaw.
5. Crankcase
The previous crankcase 1124 020 2115 is replaced
by the new version 1124 020 2116.
The new crankcase has a modified mount for the
new tank filler cap (see section 3).
Spare parts
The new crankcase will be supplied with tank filler
cap for approx. three years and can consequently
also be used for the model 088 chainsaw.
TI_56_2003_02_01_01.fm
)m~ge 4 Technical Information 56.2003

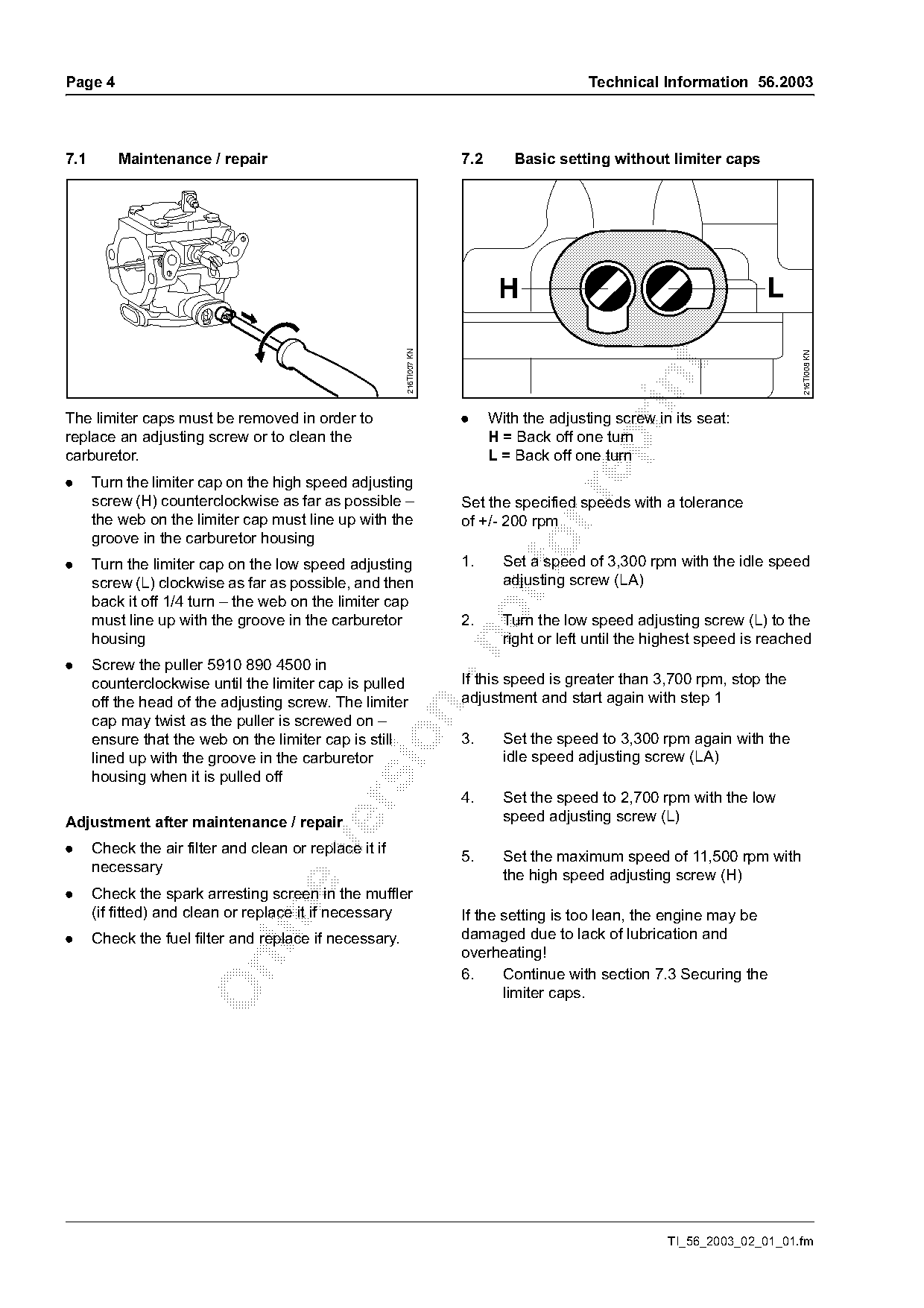

7.1 Maintenance / repair 7.2 Basic setting without limiter caps
H L
216TI007 KN
216TI008 KN
The limiter caps must be removed in order to . With the adjusting screw in its seat:
replace an adjusting screw or to clean the H = Back off one turn
carburetor. L = Back off one turn
. Turn the limiter cap on the high speed adjusting
screw (H) counterclockwise as far as possible – Set the specified speeds with a tolerance
the web on the limiter cap must line up with the of +/- 200 rpm
groove in the carburetor housing
. Turn the limiter cap on the low speed adjusting 1.
Set a speed of 3,300 rpm with the idle speed
screw (L) clockwise as far as possible, and then adjusting screw (LA)
back it off 1/4 turn – the web on the limiter cap
must line up with the groove in the carburetor 2. Turn the low speed adjusting screw (L) to the
housing right or left until the highest speed is reached
. Screw the puller 5910 890 4500 in
counterclockwise until the limiter cap is pulled If this speed is greater than 3,700 rpm, stop the
off the head of the adjusting screw. The limiter adjustment and start again with step 1
cap may twist as the puller is screwed on –
3. Set the speed to 3,300 rpm again with the
ensure that the web on the limiter cap is still
lined up with the groove in the carburetor idle speed adjusting screw (LA)
housing when it is pulled off
4. Set the speed to 2,700 rpm with the low
Adjustment after maintenance / repair speed adjusting screw (L)
. Check the air filter and clean or replace it if 5. Set the maximum speed of 11,500 rpm with
necessary the high speed adjusting screw (H)
. Check the spark arresting screen in the muffler
(if fitted) and clean or replace it if necessary If the setting is too lean, the engine may be
. Check the fuel filter and replace if necessary. damaged due to lack of lubrication and
overheating!
6. Continue with section 7.3 Securing the
limiter caps.
TI_56_2003_02_01_01.fm Page 3 of 6
Technical Information 56.2003 Page 5

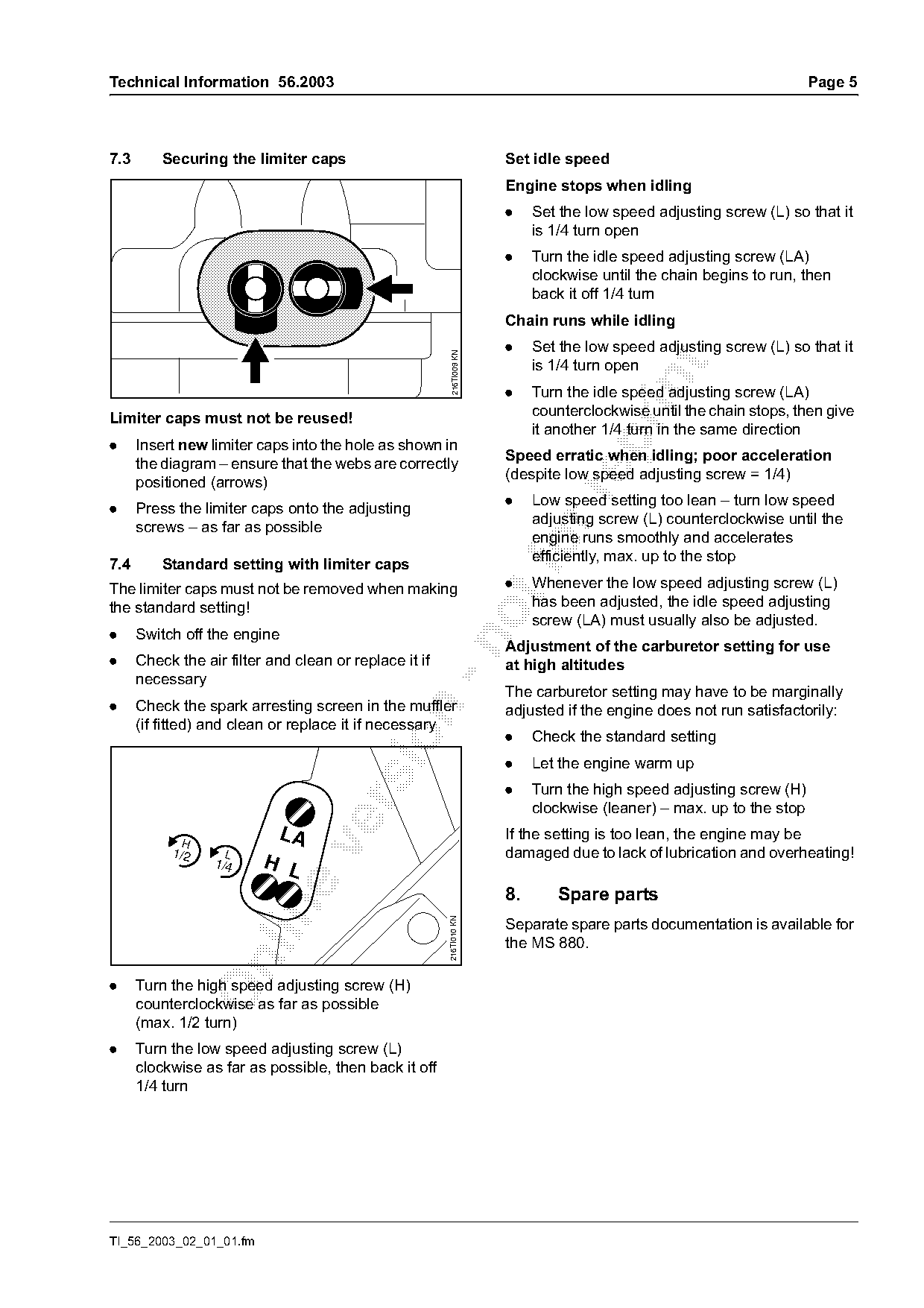

7.3 Securing the limiter caps Set idle speed
Engine stops when idling
. Set the low speed adjusting screw (L) so that it
is 1/4 turn open
. Turn the idle speed adjusting screw (LA)
clockwise until the chain begins to run, then
back it off 1/4 turn
Chain runs while idling
. Set the low speed adjusting screw (L) so that it
216TI009 KN
is 1/4 turn open
. Turn the idle speed adjusting screw (LA)
counterclockwise until the chain stops, then give
Limiter caps must not be reused!
it another 1/4 turn in the same direction
. Insert new limiter caps into the hole as shown in
Speed erratic when idling; poor acceleration
the diagram – ensure that the webs are correctly
(despite low speed adjusting screw = 1/4)
positioned (arrows)
. Low speed setting too lean – turn low speed
. Press the limiter caps onto the adjusting
adjusting screw (L) counterclockwise until the
screws – as far as possible
engine runs smoothly and accelerates
7.4 Standard setting with limiter caps
efficiently, max. up to the stop
The limiter caps must not be removed when making . Whenever the low speed adjusting screw (L)
the standard setting! has been adjusted, the idle speed adjusting
screw (LA) must usually also be adjusted.
. Switch off the engine
Adjustment of the carburetor setting for use
. Check the air filter and clean or replace it if at high altitudes
necessary
The carburetor setting may have to be marginally
. Check the spark arresting screen in the muffler adjusted if the engine does not run satisfactorily:
(if fitted) and clean or replace it if necessary
. Check the standard setting
. Let the engine warm up
. Turn the high speed adjusting screw (H)
clockwise (leaner) – max. up to the stop
H
LA If the setting is too lean, the engine may be
1/2 L damaged due to lack of lubrication and overheating!
1/4 H L
8. Spare parts
Separate spare parts documentation is available for
216TI010 KN
the MS 880.
. Turn the high speed adjusting screw (H)
counterclockwise as far as possible
(max. 1/2 turn)
. Turn the low speed adjusting screw (L)
clockwise as far as possible, then back it off
1/4 turn
TI_56_2003_02_01_01.fm
)m~ge 6 Technical Information 56.2003
9. Summary

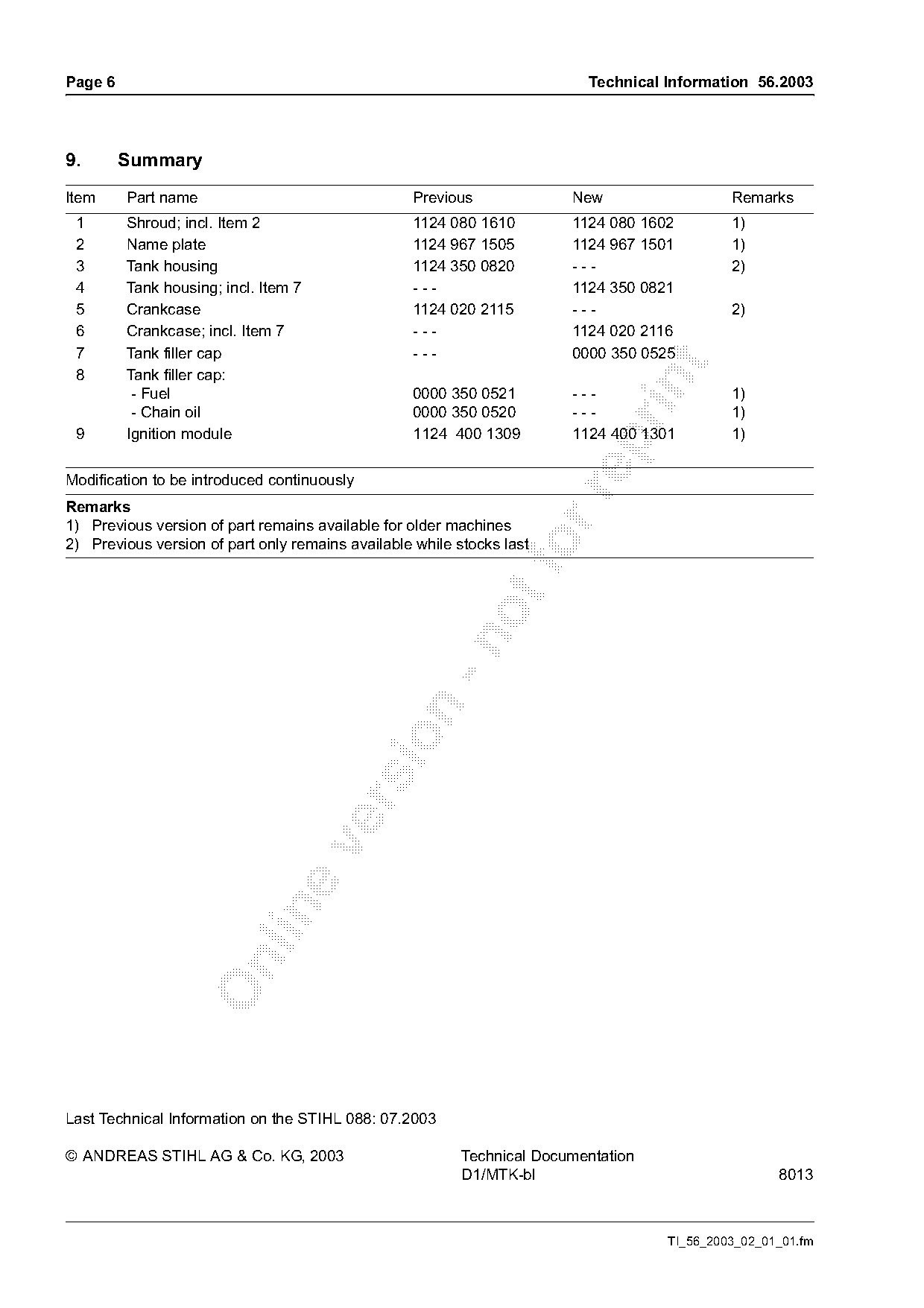

Item Part name Previous New Remarks
1 Shroud; incl. Item 2 1124 080 1610 1124 080 1602 1)
2 Name plate 1124 967 1505 1124 967 1501 1)
3 Tank housing 1124 350 0820 --- 2)
4 Tank housing; incl. Item 7 --- 1124 350 0821
5 Crankcase 1124 020 2115 --- 2)
6 Crankcase; incl. Item 7 --- 1124 020 2116
7 Tank filler cap --- 0000 350 0525
8 Tank filler cap:
- Fuel 0000 350 0521 --- 1)
- Chain oil 0000 350 0520 --- 1)
9 Ignition module 1124 400 1309 1124 400 1301 1)
Modification to be introduced continuously
Remarks
1) Previous version of part remains available for older machines
2) Previous version of part only remains available while stocks last
Last Technical Information on the STIHL 088: 07.2003
© ANDREAS STIHL AG & Co. KG, 2003 Technical Documentation
D1/MTK-bl 8013
TI_56_2003_02_01_01.fm Page 4 of 6
Page 5 of 6
