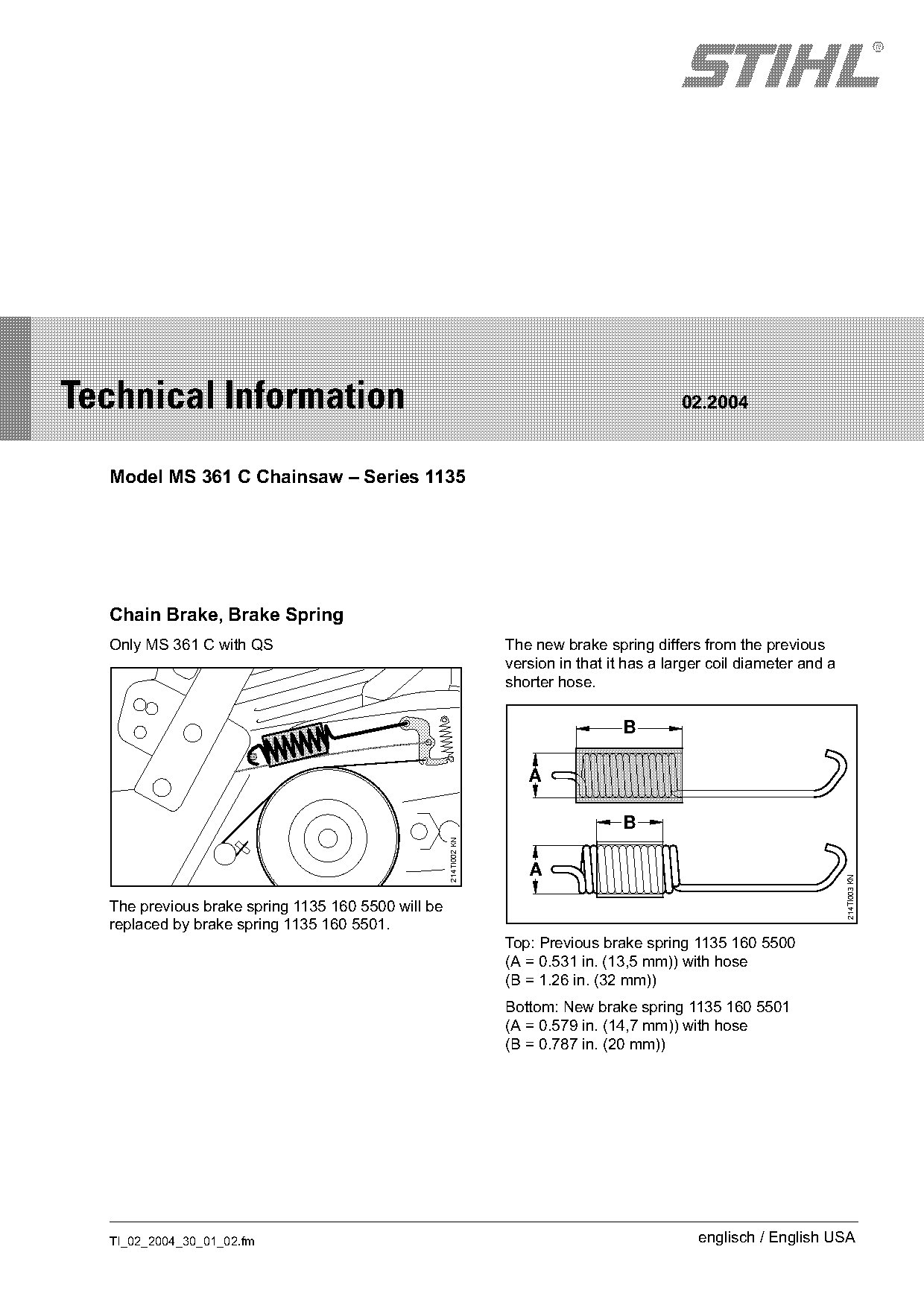

Technical Information                                                                        02.2004

  Model MS 361 C Chainsaw – Series 1135

  Chain Brake, Brake Spring
  Only MS 361 C with QS                                           The new brake spring differs from the previous
                                                                  version in that it has a larger coil diameter and a
                                                                  shorter hose.



                                                                                    B
                                                    214TI002 KN

                                                                     A
                                                                                                                        214TI003 KN

  The previous brake spring 1135 160 5500 will be
  replaced by brake spring 1135 160 5501.
                                                                  Top: Previous brake spring 1135 160 5500
                                                                  (A = 0.531 in. (13,5 mm)) with hose
                                                                  (B = 1.26 in. (32 mm))
                                                                  Bottom: New brake spring 1135 160 5501
                                                                  (A = 0.579 in. (14,7 mm)) with hose
                                                                  (B = 0.787 in. (20 mm))

  TI_02_2004_30_01_02.fm                                                                       englisch / English USA

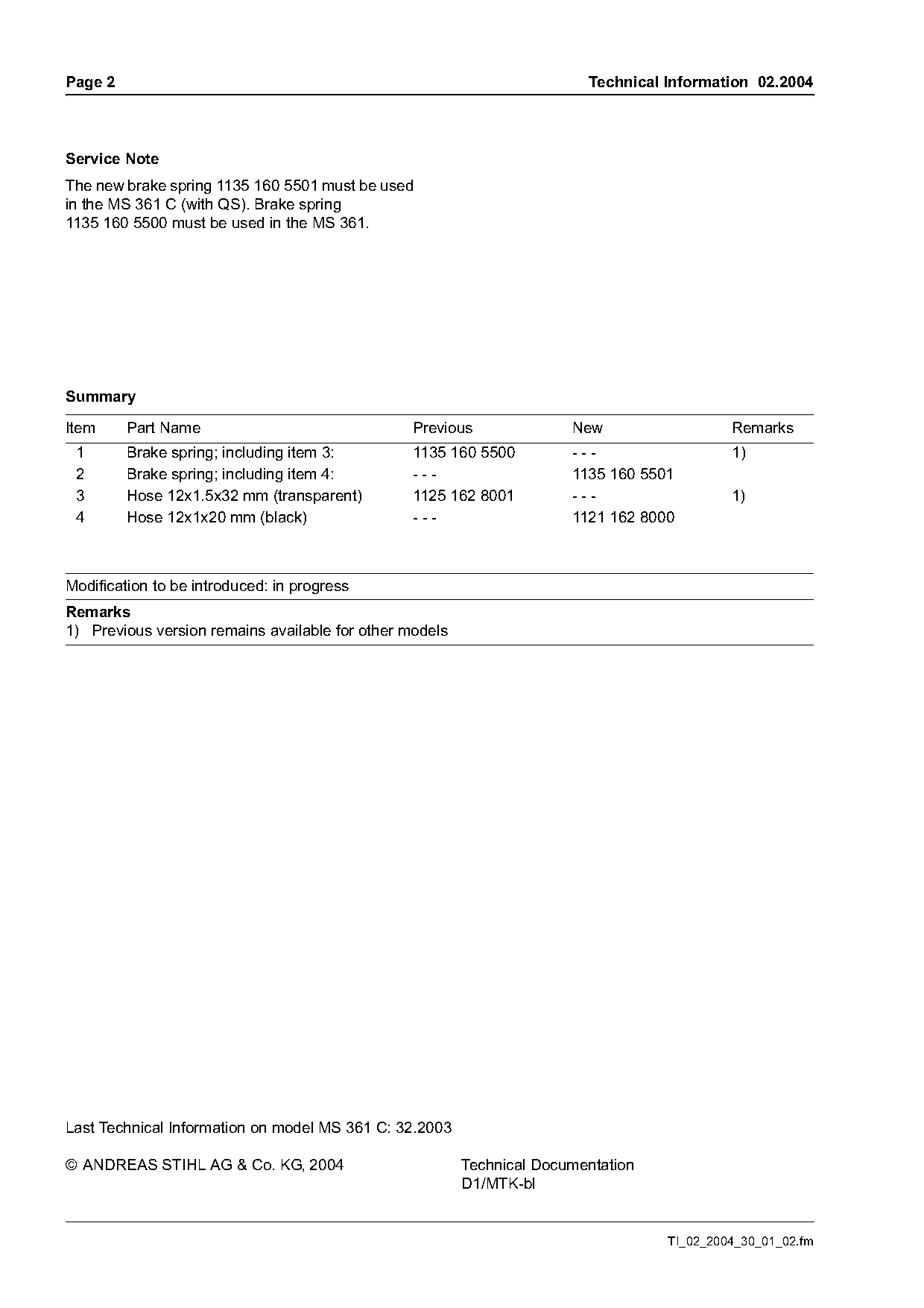

)m~ge 2                                                                   Technical Information 02.2004

Service Note
The new brake spring 1135 160 5501 must be used
in the MS 361 C (with QS). Brake spring
1135 160 5500 must be used in the MS 361.

Summary

Item     Part Name                               Previous              New                  Remarks
 1       Brake spring; including item 3:         1135 160 5500         ---                  1)
 2       Brake spring; including item 4:         ---                   1135 160 5501
 3       Hose 12x1.5x32 mm (transparent)         1125 162 8001         ---                  1)
 4       Hose 12x1x20 mm (black)                 ---                   1121 162 8000

Modification to be introduced: in progress
Remarks
1) Previous version remains available for other models

Last Technical Information on model MS 361 C: 32.2003

© ANDREAS STIHL AG & Co. KG, 2004                        Technical Documentation
                                                         D1/MTK-bl

                                                                                   TI_02_2004_30_01_02.fm

Page 2 of 2
