New STIHL FixCut 5-2 and STIHL FixCut 25-2 Mowing Heads
IssueTI 4/2004
Full text
Page 1 of 7
STIH)
Technical Information
04.2004
New Cutting Tools for STIHL Brushcutters
Contents
1. New STIHL FixCut 5-2 and STIHL FixCut 25-2 Mowing Heads
1.1 Approved Usage
1.2 Component Parts of Mowing Head
1.3 Mounting the Mowing Head
1.4 Checking Mowing Head for Wear
1.5 Fitting Lines in Mowing Head
1.6 Service Note
1.7 Spare Parts
1. New STIHL FixCut 5-2 and
STIHL FixCut 25-2 Mowing Heads

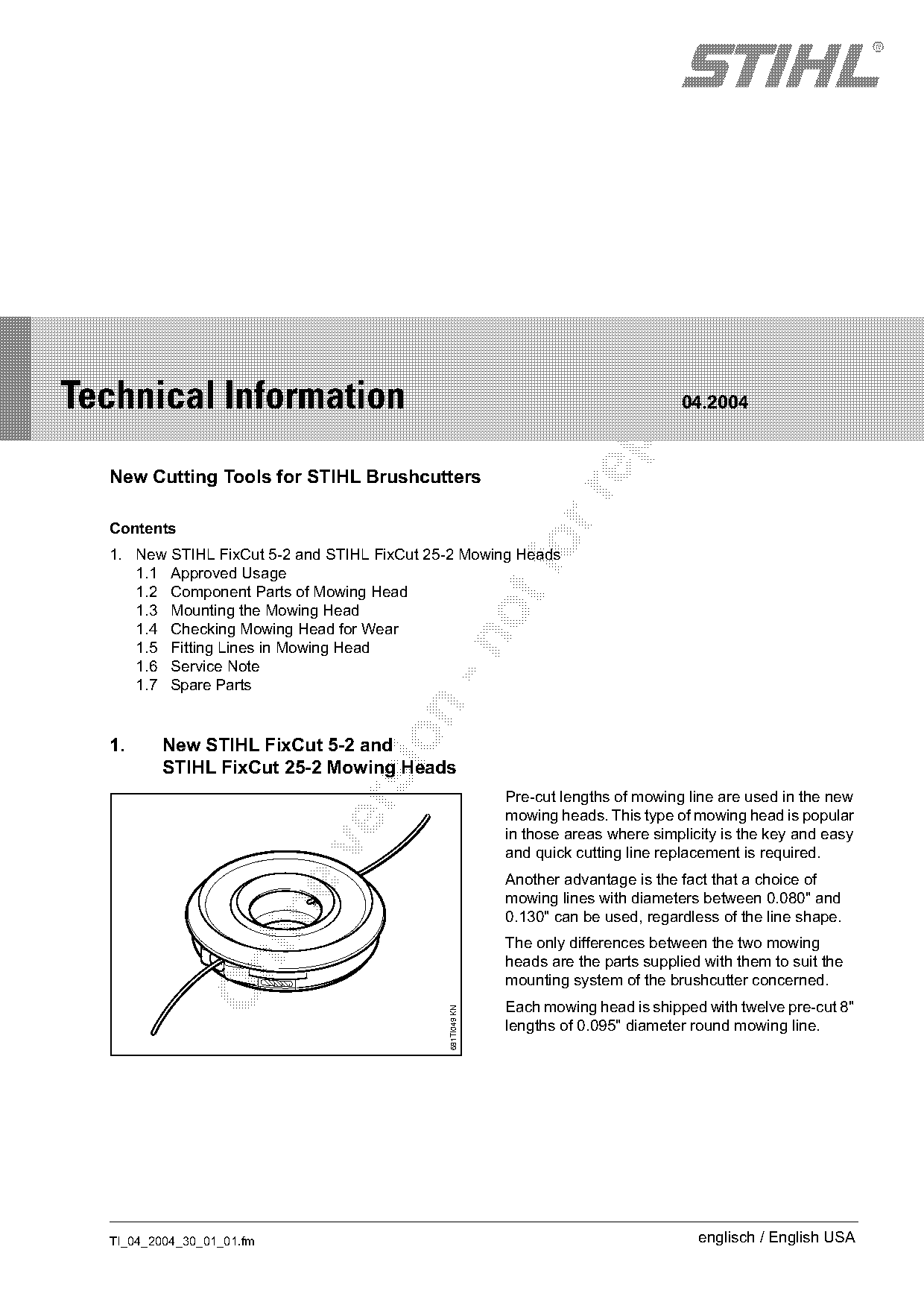

Pre-cut lengths of mowing line are used in the new
mowing heads. This type of mowing head is popular
in those areas where simplicity is the key and easy
and quick cutting line replacement is required.
Another advantage is the fact that a choice of
mowing lines with diameters between 0.080" and
0.130" can be used, regardless of the line shape.
The only differences between the two mowing
heads are the parts supplied with them to suit the
mounting system of the brushcutter concerned.
Each mowing head is shipped with twelve pre-cut 8"
681TI049 KN
lengths of 0.095" diameter round mowing line.
TI_04_2004_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 04.2004
Pre-cut replacement mowing lines are available in
packs of 50, 100 and 500 – see "1.7 Spare Parts".

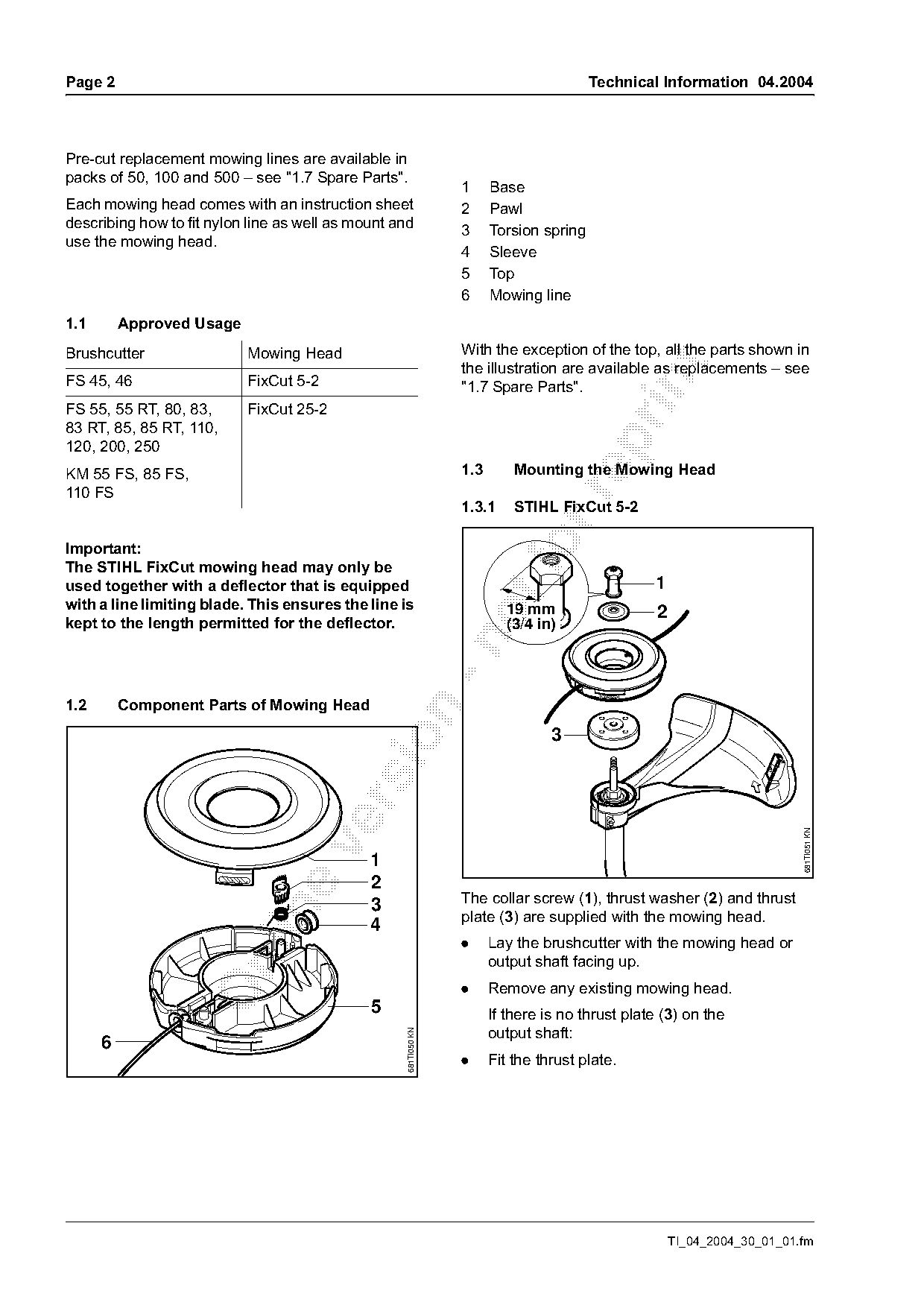

1 Base
Each mowing head comes with an instruction sheet 2 Pawl
describing how to fit nylon line as well as mount and 3 Torsion spring
use the mowing head.
4 Sleeve
5 Top
6 Mowing line
1.1 Approved Usage
Brushcutter Mowing Head With the exception of the top, all the parts shown in
the illustration are available as replacements – see
FS 45, 46 FixCut 5-2
"1.7 Spare Parts".
FS 55, 55 RT, 80, 83, FixCut 25-2
83 RT, 85, 85 RT, 110,
120, 200, 250
KM 55 FS, 85 FS, 1.3 Mounting the Mowing Head
110 FS
1.3.1 STIHL FixCut 5-2
Important:
The STIHL FixCut mowing head may only be
used together with a deflector that is equipped 1
with a line limiting blade. This ensures the line is 19 mm 2
kept to the length permitted for the deflector. (3/4 in)
1.2 Component Parts of Mowing Head
681TI051 KN
1
2
3 The collar screw (1), thrust washer (2) and thrust
plate (3) are supplied with the mowing head.
4
. Lay the brushcutter with the mowing head or
output shaft facing up.
. Remove any existing mowing head.
5 If there is no thrust plate (3) on the
output shaft:
681TI050 KN
6
. Fit the thrust plate.
TI_04_2004_30_01_01.fm Page 2 of 7
Technical Information 04.2004 Page 3

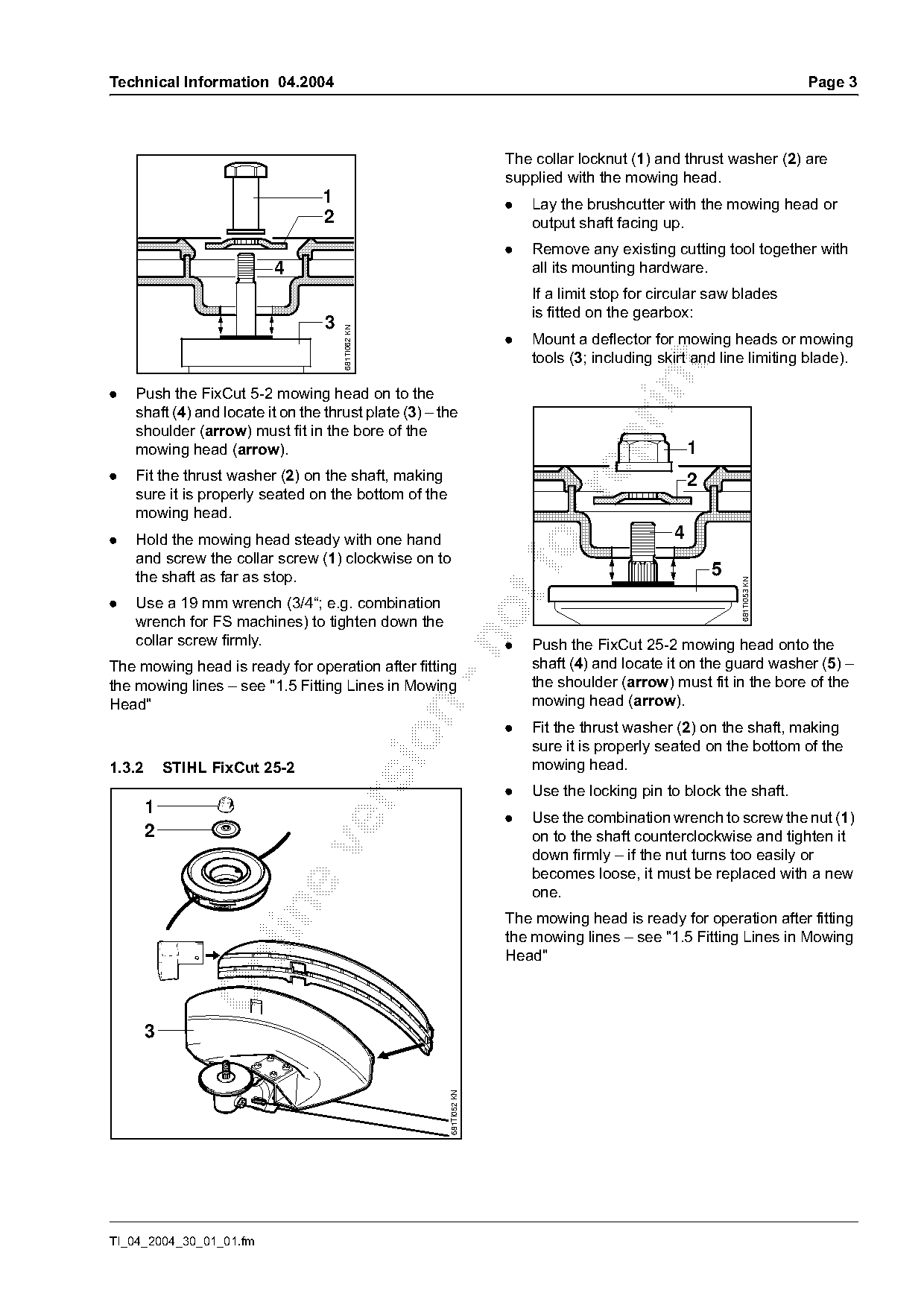

The collar locknut (1) and thrust washer (2) are
supplied with the mowing head.
1 . Lay the brushcutter with the mowing head or
2 output shaft facing up.
. Remove any existing cutting tool together with
4 all its mounting hardware.
If a limit stop for circular saw blades
is fitted on the gearbox:
3
681TI062 KN
. Mount a deflector for mowing heads or mowing
tools (3; including skirt and line limiting blade).
. Push the FixCut 5-2 mowing head on to the
shaft (4) and locate it on the thrust plate (3) – the
shoulder (arrow) must fit in the bore of the
mowing head (arrow). 1
. Fit the thrust washer (2) on the shaft, making 2
sure it is properly seated on the bottom of the
mowing head.
. Hold the mowing head steady with one hand 4
and screw the collar screw (1) clockwise on to
the shaft as far as stop.
fo 5
681TI053 KN
. Use a 19 mm wrench (3/4“; e.g. combination
wrench for FS machines) to tighten down the
collar screw firmly.
. Push the FixCut 25-2 mowing head onto the
The mowing head is ready for operation after fitting shaft (4) and locate it on the guard washer (5) –
the mowing lines – see "1.5 Fitting Lines in Mowing the shoulder (arrow) must fit in the bore of the
Head" mowing head (arrow).
. Fit the thrust washer (2) on the shaft, making
sure it is properly seated on the bottom of the
1.3.2 STIHL FixCut 25-2 mowing head.
. Use the locking pin to block the shaft.
1
. Use the combination wrench to screw the nut (1)
2 on to the shaft counterclockwise and tighten it
down firmly – if the nut turns too easily or
becomes loose, it must be replaced with a new
one.
The mowing head is ready for operation after fitting
the mowing lines – see "1.5 Fitting Lines in Mowing
Head"
3
681TI052 KN
TI_04_2004_30_01_01.fm
)m~ge 4 Technical Information 04.2004

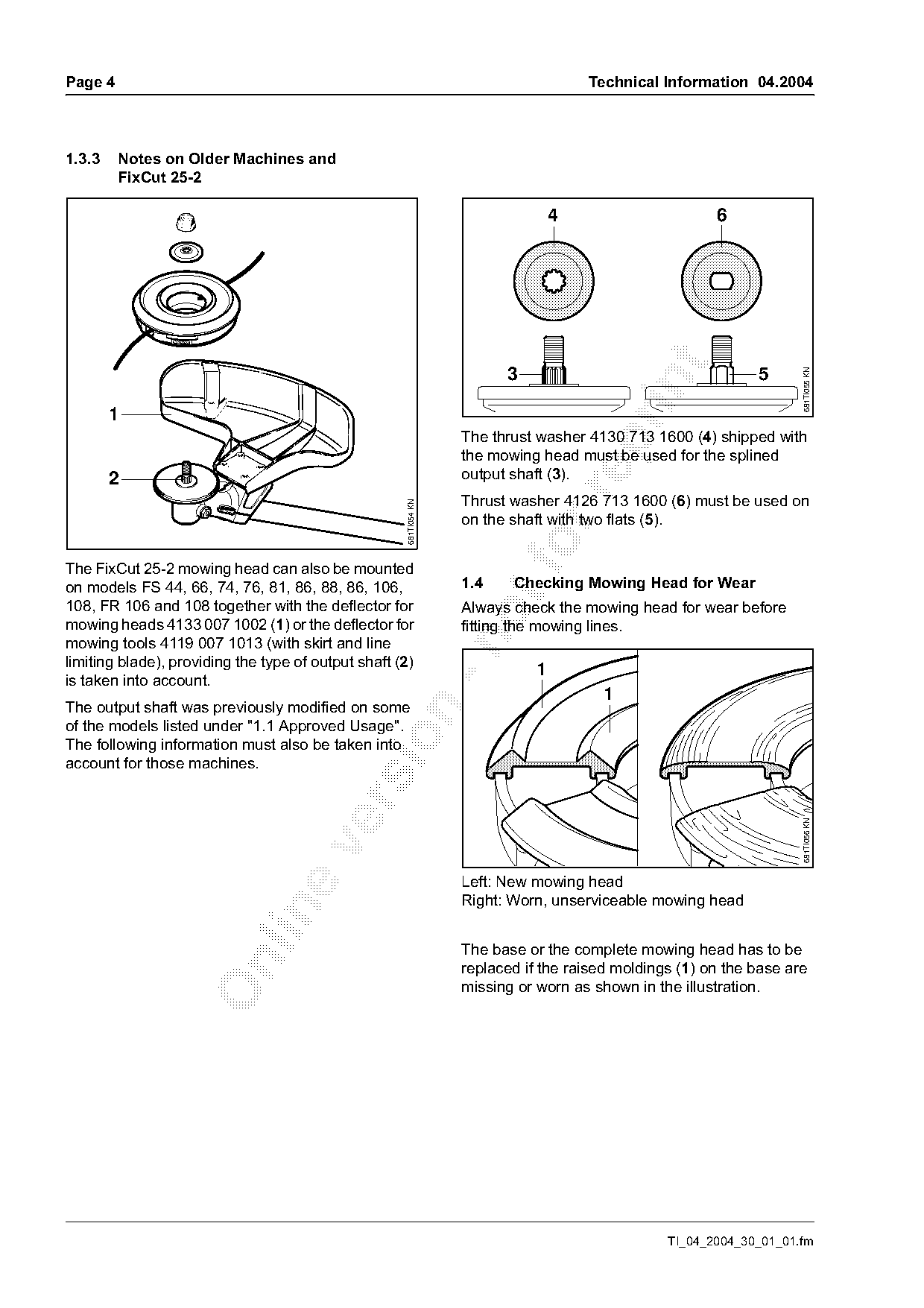

1.3.3 Notes on Older Machines and
FixCut 25-2
4 6
3 5
681TI055 KN
1
The thrust washer 4130 713 1600 (4) shipped with
the mowing head must be used for the splined
2 output shaft (3).
Thrust washer 4126 713 1600 (6) must be used on
681TI054 KN
on the shaft with two flats (5).
The FixCut 25-2 mowing head can also be mounted
on models FS 44, 66, 74, 76, 81, 86, 88, 86, 106, 1.4 Checking Mowing Head for Wear
108, FR 106 and 108 together with the deflector for Always check the mowing head for wear before
mowing heads 4133 007 1002 (1) or the deflector for fitting the mowing lines.
mowing tools 4119 007 1013 (with skirt and line
limiting blade), providing the type of output shaft (2) 1
is taken into account.
1
The output shaft was previously modified on some
of the models listed under "1.1 Approved Usage".
The following information must also be taken into
account for those machines.
681TI056 KN
Left: New mowing head
Right: Worn, unserviceable mowing head
The base or the complete mowing head has to be
replaced if the raised moldings (1) on the base are
missing or worn as shown in the illustration.
TI_04_2004_30_01_01.fm Page 3 of 7
Technical Information 04.2004 Page 5

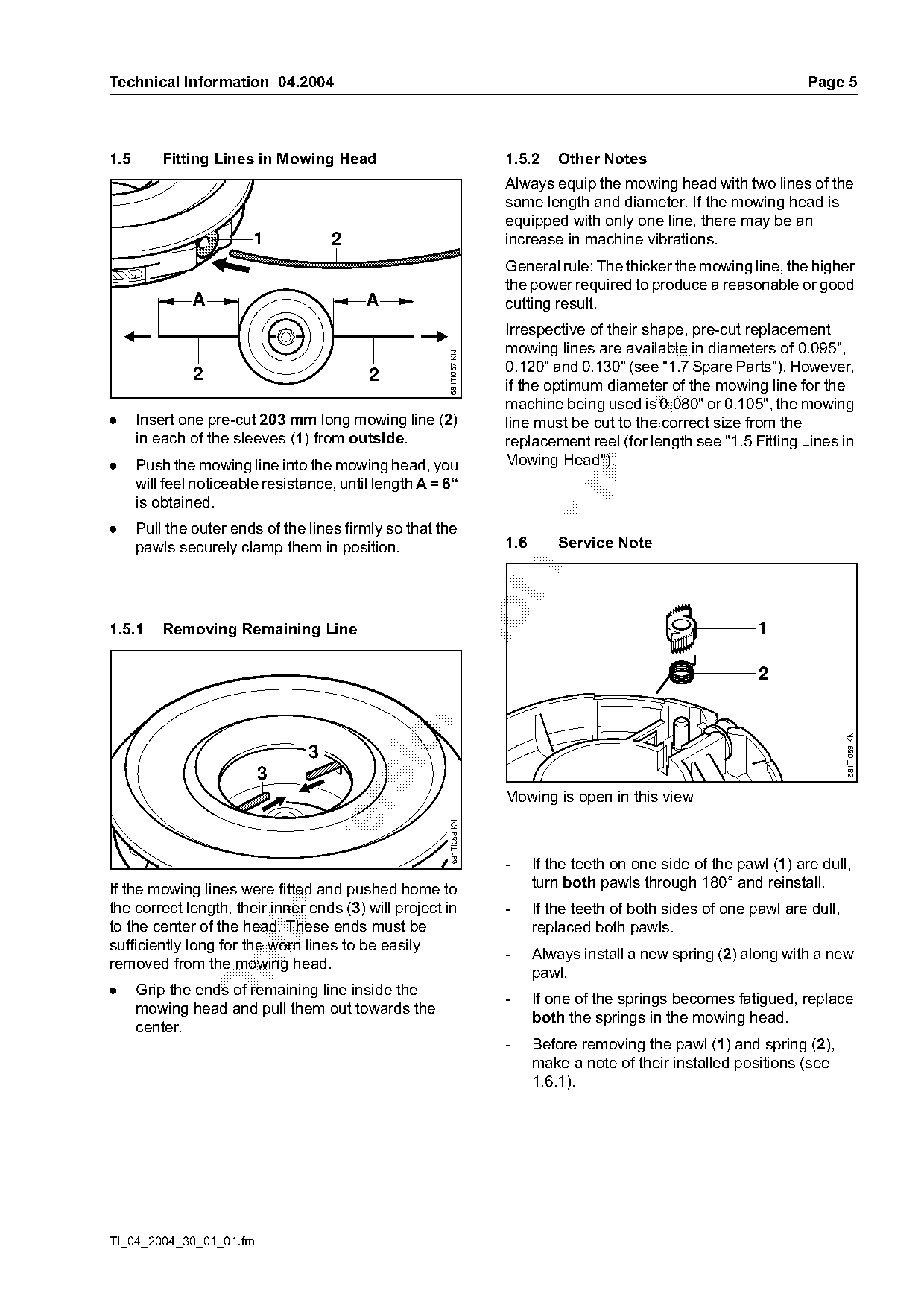

1.5 Fitting Lines in Mowing Head 1.5.2 Other Notes
Always equip the mowing head with two lines of the
same length and diameter. If the mowing head is
equipped with only one line, there may be an
1 2 increase in machine vibrations.
General rule: The thicker the mowing line, the higher
the power required to produce a reasonable or good
A A cutting result.
Irrespective of their shape, pre-cut replacement
mowing lines are available in diameters of 0.095",
681TI057 KN
0.120" and 0.130" (see "1.7 Spare Parts"). However,
2 2
if the optimum diameter of the mowing line for the
machine being used is 0.080" or 0.105", the mowing
. Insert one pre-cut 203 mm long mowing line (2) line must be cut to the correct size from the
in each of the sleeves (1) from outside. replacement reel (for length see "1.5 Fitting Lines in
. Push the mowing line into the mowing head, you Mowing Head").
will feel noticeable resistance, until length A = 6“
is obtained.
. Pull the outer ends of the lines firmly so that the
1.6 Service Note
pawls securely clamp them in position. fo
1.5.1 Removing Remaining Line 1
681TI059 KN
3
3
Mowing is open in this view
681TI058 KN
- If the teeth on one side of the pawl (1) are dull,
If the mowing lines were fitted and pushed home to turn both pawls through 180° and reinstall.
the correct length, their inner ends (3) will project in - If the teeth of both sides of one pawl are dull,
to the center of the head. These ends must be replaced both pawls.
sufficiently long for the worn lines to be easily
- Always install a new spring (2) along with a new
removed from the mowing head.
pawl.
. Grip the ends of remaining line inside the
- If one of the springs becomes fatigued, replace
mowing head and pull them out towards the
both the springs in the mowing head.
center.
- Before removing the pawl (1) and spring (2),
make a note of their installed positions (see
1.6.1).
TI_04_2004_30_01_01.fm
)m~ge 6 Technical Information 04.2004

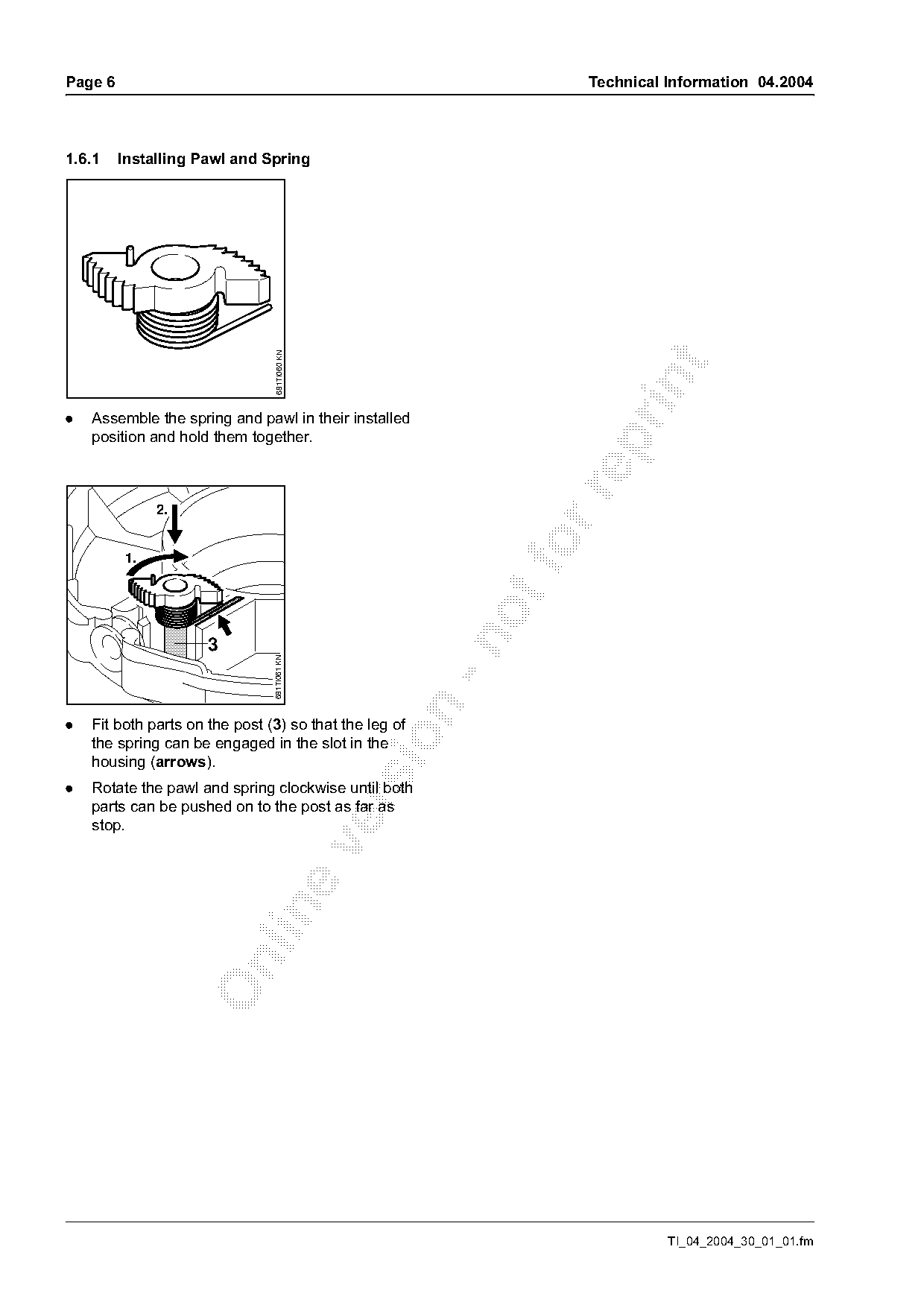

1.6.1 Installing Pawl and Spring
681TI060 KN
. Assemble the spring and pawl in their installed
position and hold them together.
2.
1.
3
681TI061 KN
. Fit both parts on the post (3) so that the leg of
the spring can be engaged in the slot in the
housing (arrows).
. Rotate the pawl and spring clockwise until both
parts can be pushed on to the post as far as
stop.
TI_04_2004_30_01_01.fm Page 4 of 7
Technical Information 04.2004 Page 7

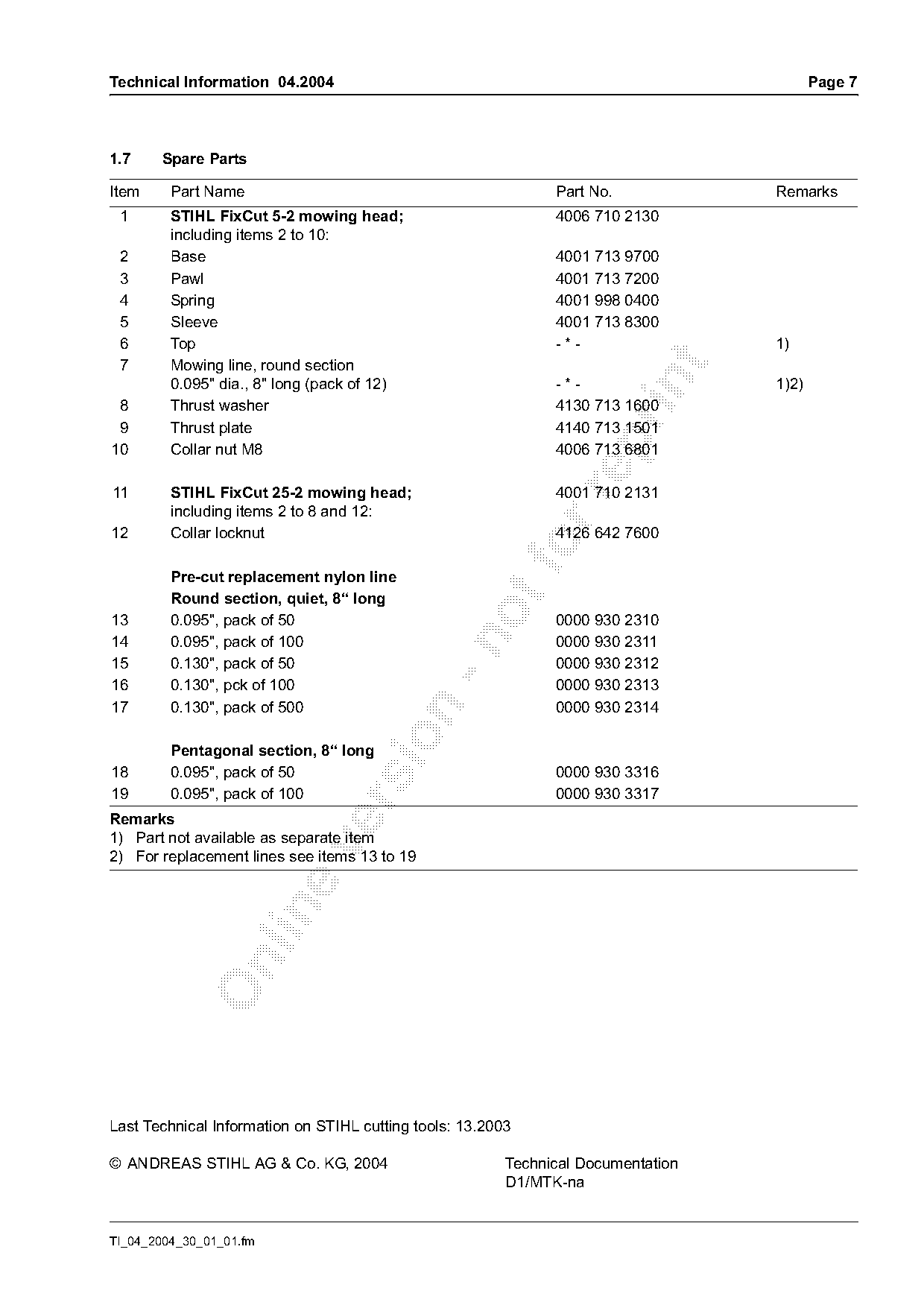

1.7 Spare Parts
Item Part Name Part No. Remarks
1 STIHL FixCut 5-2 mowing head; 4006 710 2130
including items 2 to 10:
2 Base 4001 713 9700
3 Pawl 4001 713 7200
4 Spring 4001 998 0400
5 Sleeve 4001 713 8300
6 Top -*- 1)
7 Mowing line, round section
0.095" dia., 8" long (pack of 12) -*- 1)2)
8 Thrust washer 4130 713 1600
9 Thrust plate 4140 713 1501
10 Collar nut M8 4006 713 6801
11 STIHL FixCut 25-2 mowing head; 4001 710 2131
including items 2 to 8 and 12:
12 Collar locknut 4126 642 7600
Pre-cut replacement nylon line
Round section, quiet, 8“ long
13 0.095", pack of 50 0000 930 2310
14 0.095", pack of 100 0000 930 2311
15 0.130", pack of 50 0000 930 2312
16 0.130", pck of 100 0000 930 2313
17 0.130", pack of 500 0000 930 2314
Pentagonal section, 8“ long
18 0.095", pack of 50 0000 930 3316
19 0.095", pack of 100 0000 930 3317
Remarks
1) Part not available as separate item
2) For replacement lines see items 13 to 19
Last Technical Information on STIHL cutting tools: 13.2003
