Technical Information · issue 11 of 2004
Carburetor; Grommet; Summary
IssueTI 11/2004
Engine family 1124
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1124 120 0650 | 1124 120 0609 | Carburetor The previous carburetor 1124 120 0650 will be Service note replaced by the new version 1124 120 0609 in the The new carburetor can also be installed in older future. |
Full text

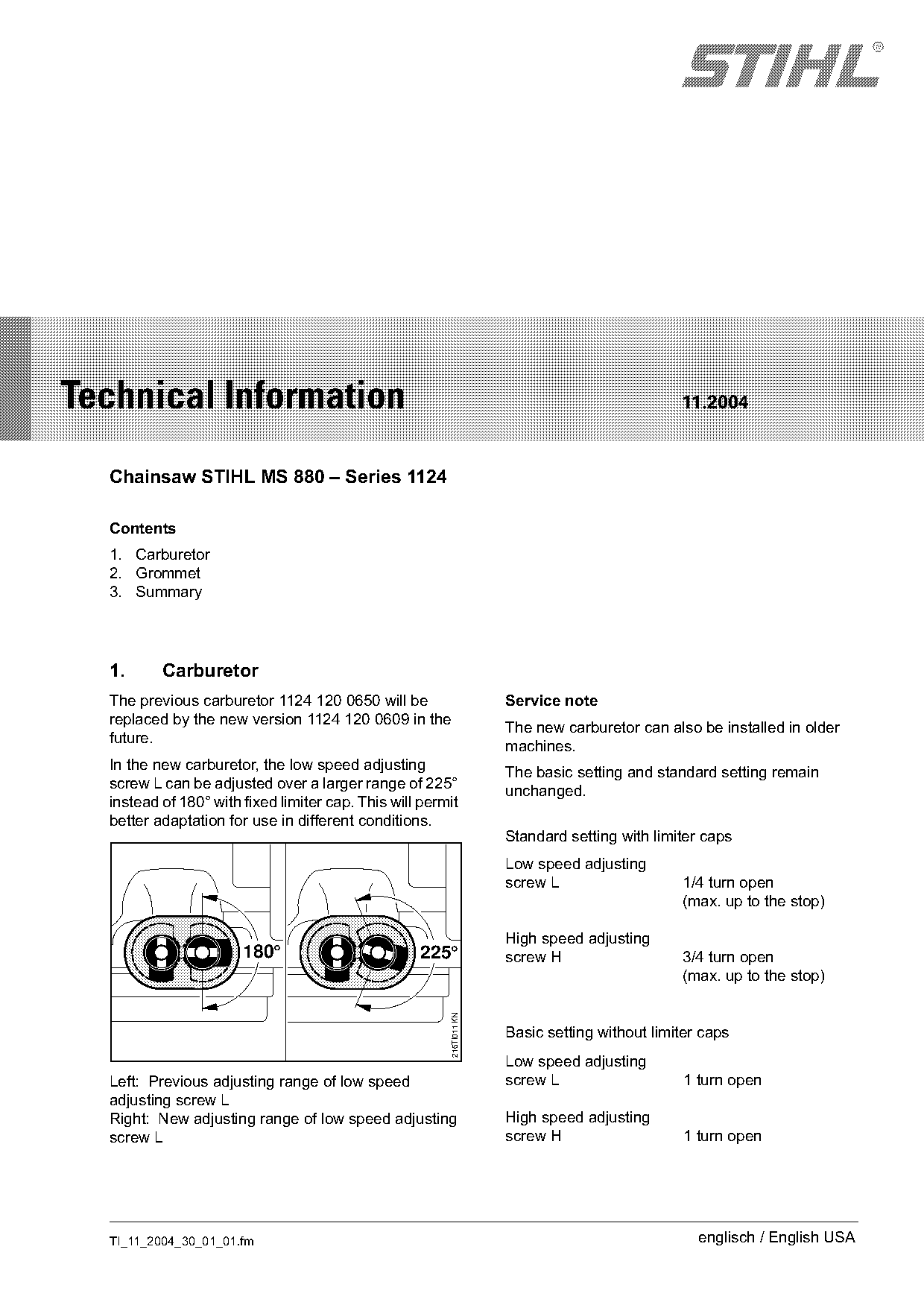

Page 1 of 2
STIH)
Technical Information 11.2004
Chainsaw STIHL MS 880 – Series 1124
Contents
1. Carburetor
2. Grommet
3. Summary
1. Carburetor
The previous carburetor 1124 120 0650 will be Service note
replaced by the new version 1124 120 0609 in the The new carburetor can also be installed in older
future. machines.
In the new carburetor, the low speed adjusting
The basic setting and standard setting remain
screw L can be adjusted over a larger range of 225°
unchanged.
instead of 180° with fixed limiter cap. This will permit
better adaptation for use in different conditions.
Standard setting with limiter caps
Low speed adjusting
screw L 1/4 turn open
(max. up to the stop)
High speed adjusting
180° 225° screw H 3/4 turn open
(max. up to the stop)
216TI011 KN
Basic setting without limiter caps
Low speed adjusting
Left: Previous adjusting range of low speed screw L 1 turn open
adjusting screw L
Right: New adjusting range of low speed adjusting High speed adjusting
screw L screw H 1 turn open
TI_11_2004_30_01_01.fm englisch / English USA

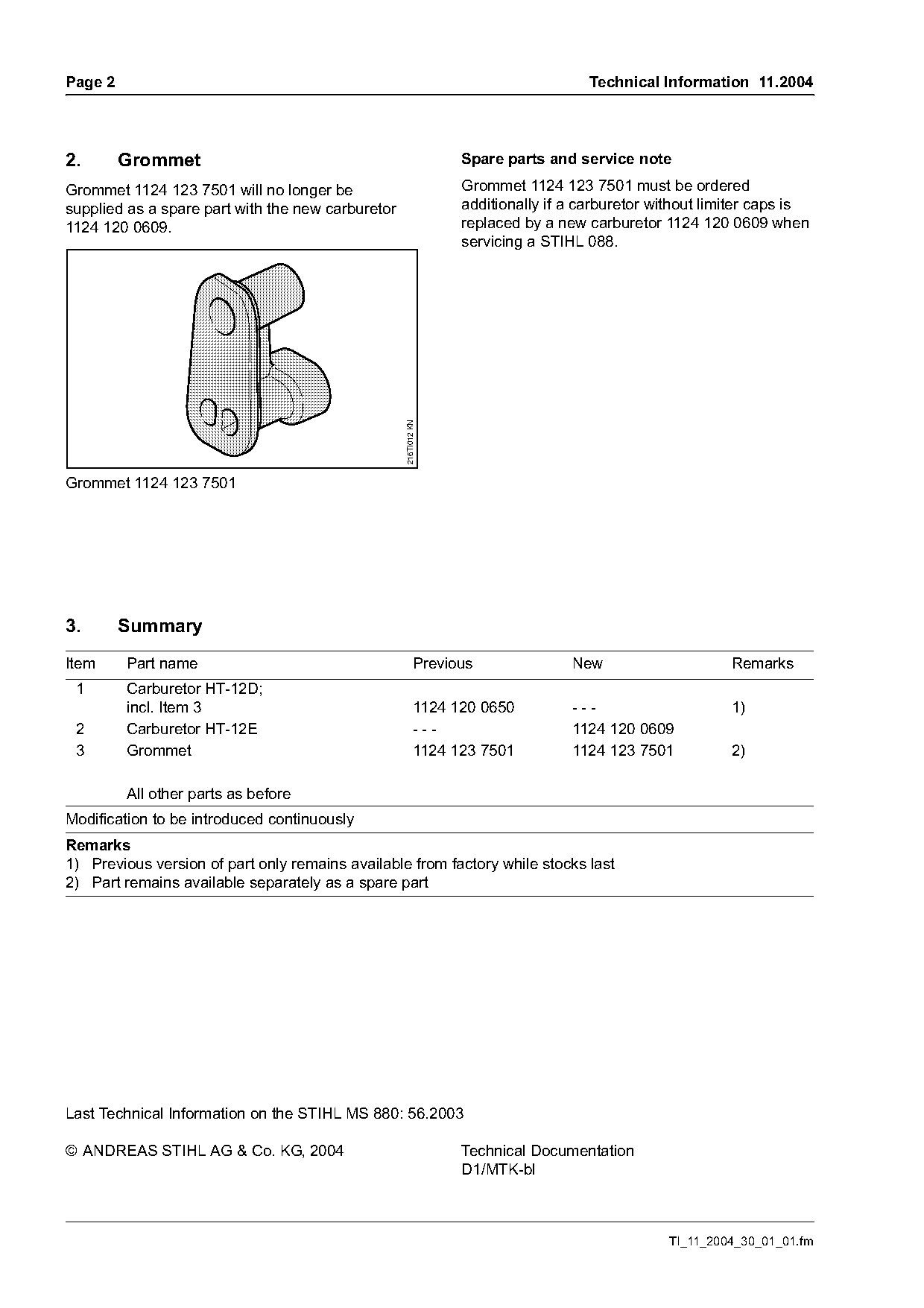

)m~ge 2 Technical Information 11.2004
2. Grommet Spare parts and service note
Grommet 1124 123 7501 will no longer be Grommet 1124 123 7501 must be ordered
supplied as a spare part with the new carburetor additionally if a carburetor without limiter caps is
1124 120 0609. replaced by a new carburetor 1124 120 0609 when
servicing a STIHL 088.
216TI012 KN
Grommet 1124 123 7501
3. Summary
Item Part name Previous New Remarks
1 Carburetor HT-12D;
incl. Item 3 1124 120 0650 --- 1)
2 Carburetor HT-12E --- 1124 120 0609
3 Grommet 1124 123 7501 1124 123 7501 2)
All other parts as before
Modification to be introduced continuously
Remarks
1) Previous version of part only remains available from factory while stocks last
2) Part remains available separately as a spare part
Last Technical Information on the STIHL MS 880: 56.2003
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-bl
TI_11_2004_30_01_01.fm Page 2 of 2
