Technical Information · issue 13 of 2004
Control handle (with throttle cable); Summary
IssueTI 13/2004
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4134 790 1350 | 4128 121 8901 | If the pin 4128 121 8900 for attaching the throttle Top: Throttle cable 4128 180 1102 cable to the carburetor is still fitted on older models, Bottom: Control handle 4134 790 1350 it must be replaced by the version 4128 121 8901. |
Full text

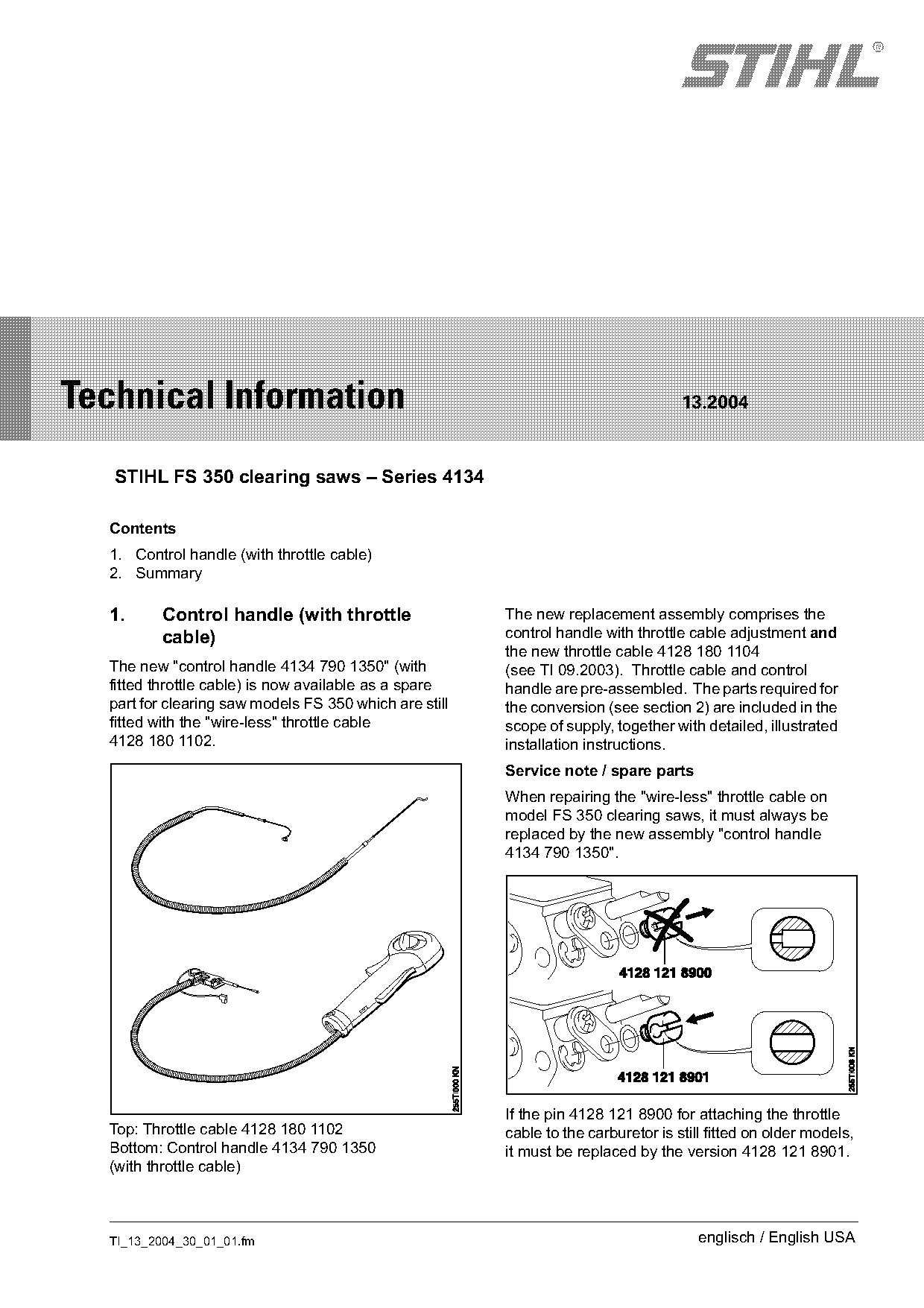

Page 1 of 2
STIH)
Technical Information 13.2004
STIHL FS 350 clearing saws – Series 4134
Contents
1. Control handle (with throttle cable)
2. Summary
1. Control handle (with throttle The new replacement assembly comprises the
cable) control handle with throttle cable adjustment and
the new throttle cable 4128 180 1104
The new "control handle 4134 790 1350" (with (see TI 09.2003). Throttle cable and control
fitted throttle cable) is now available as a spare handle are pre-assembled. The parts required for
part for clearing saw models FS 350 which are still the conversion (see section 2) are included in the
fitted with the "wire-less" throttle cable scope of supply, together with detailed, illustrated
4128 180 1102. installation instructions.
Service note / spare parts
When repairing the "wire-less" throttle cable on
model FS 350 clearing saws, it must always be
replaced by the new assembly "control handle
4134 790 1350".
If the pin 4128 121 8900 for attaching the throttle
Top: Throttle cable 4128 180 1102 cable to the carburetor is still fitted on older models,
Bottom: Control handle 4134 790 1350 it must be replaced by the version 4128 121 8901.
(with throttle cable)
TI_13_2004_30_01_01.fm englisch / English USA

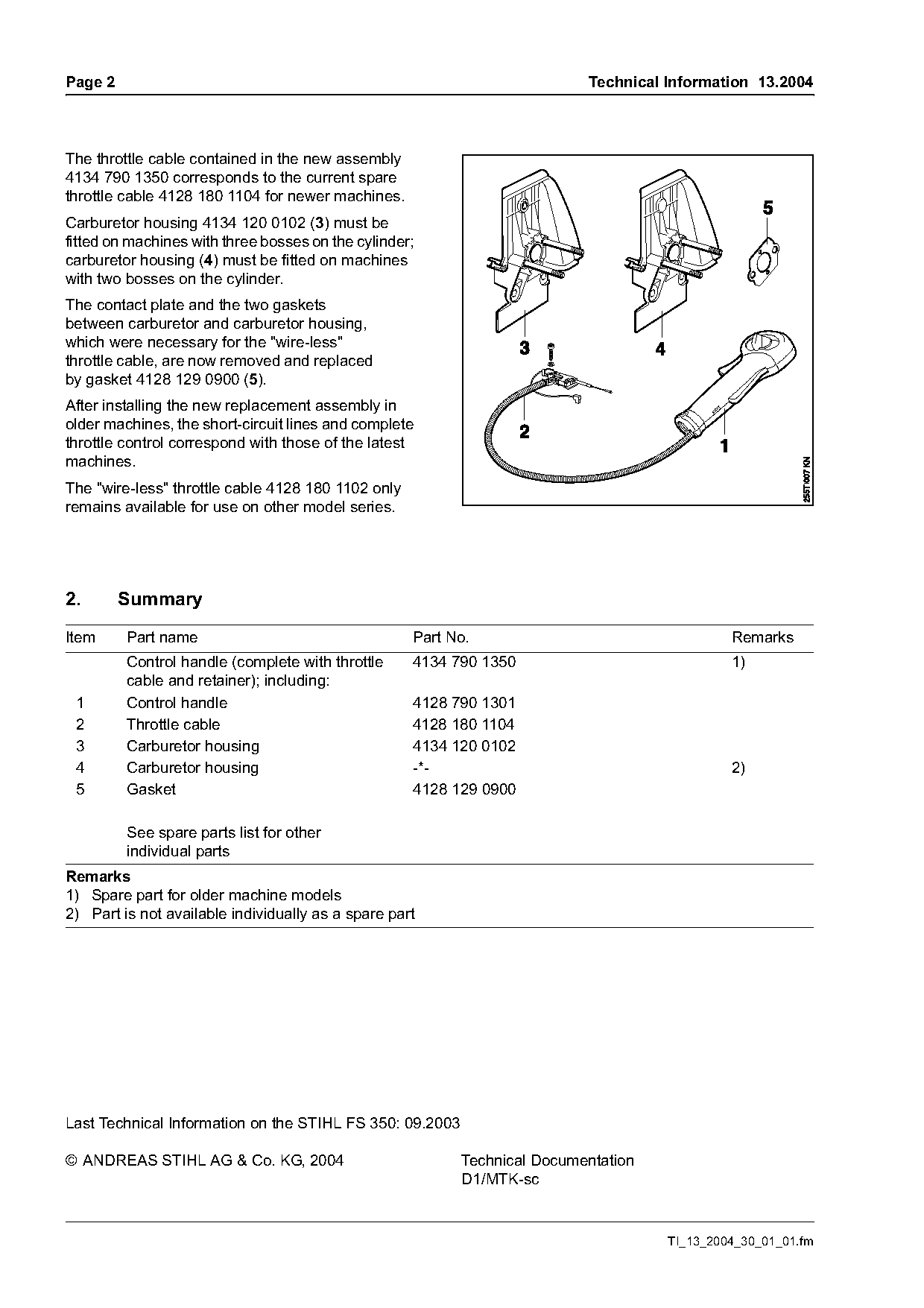

)m~ge 2 Technical Information 13.2004
The throttle cable contained in the new assembly
4134 790 1350 corresponds to the current spare
throttle cable 4128 180 1104 for newer machines.
Carburetor housing 4134 120 0102 (3) must be
fitted on machines with three bosses on the cylinder;
carburetor housing (4) must be fitted on machines
with two bosses on the cylinder.
The contact plate and the two gaskets
between carburetor and carburetor housing,
which were necessary for the "wire-less"
throttle cable, are now removed and replaced
by gasket 4128 129 0900 (5).
After installing the new replacement assembly in
older machines, the short-circuit lines and complete
throttle control correspond with those of the latest
machines.
The "wire-less" throttle cable 4128 180 1102 only
remains available for use on other model series.
2. Summary
Item Part name Part No. Remarks
Control handle (complete with throttle 4134 790 1350 1)
cable and retainer); including:
1 Control handle 4128 790 1301
2 Throttle cable 4128 180 1104
3 Carburetor housing 4134 120 0102
4 Carburetor housing -*- 2)
5 Gasket 4128 129 0900
See spare parts list for other
individual parts
Remarks
1) Spare part for older machine models
2) Part is not available individually as a spare part
Last Technical Information on the STIHL FS 350: 09.2003
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-sc
TI_13_2004_30_01_01.fm Page 2 of 2
