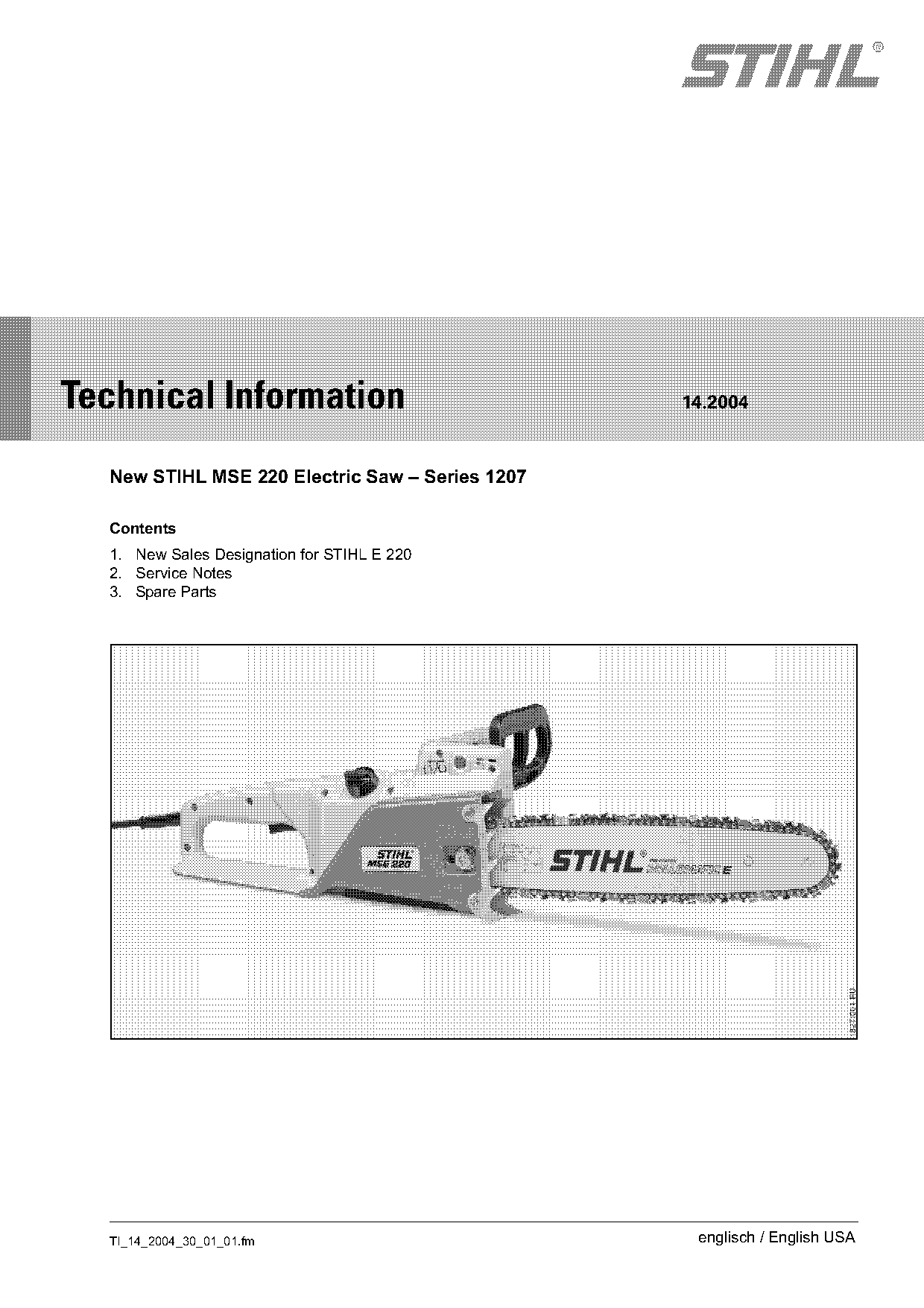

Page 1 of 2
STIH)
Technical Information 14.2004
New STIHL MSE 220 Electric Saw – Series 1207
Contents
1. New Sales Designation for STIHL E 220
2. Service Notes
3. Spare Parts
TI_14_2004_30_01_01.fm englisch / English USA

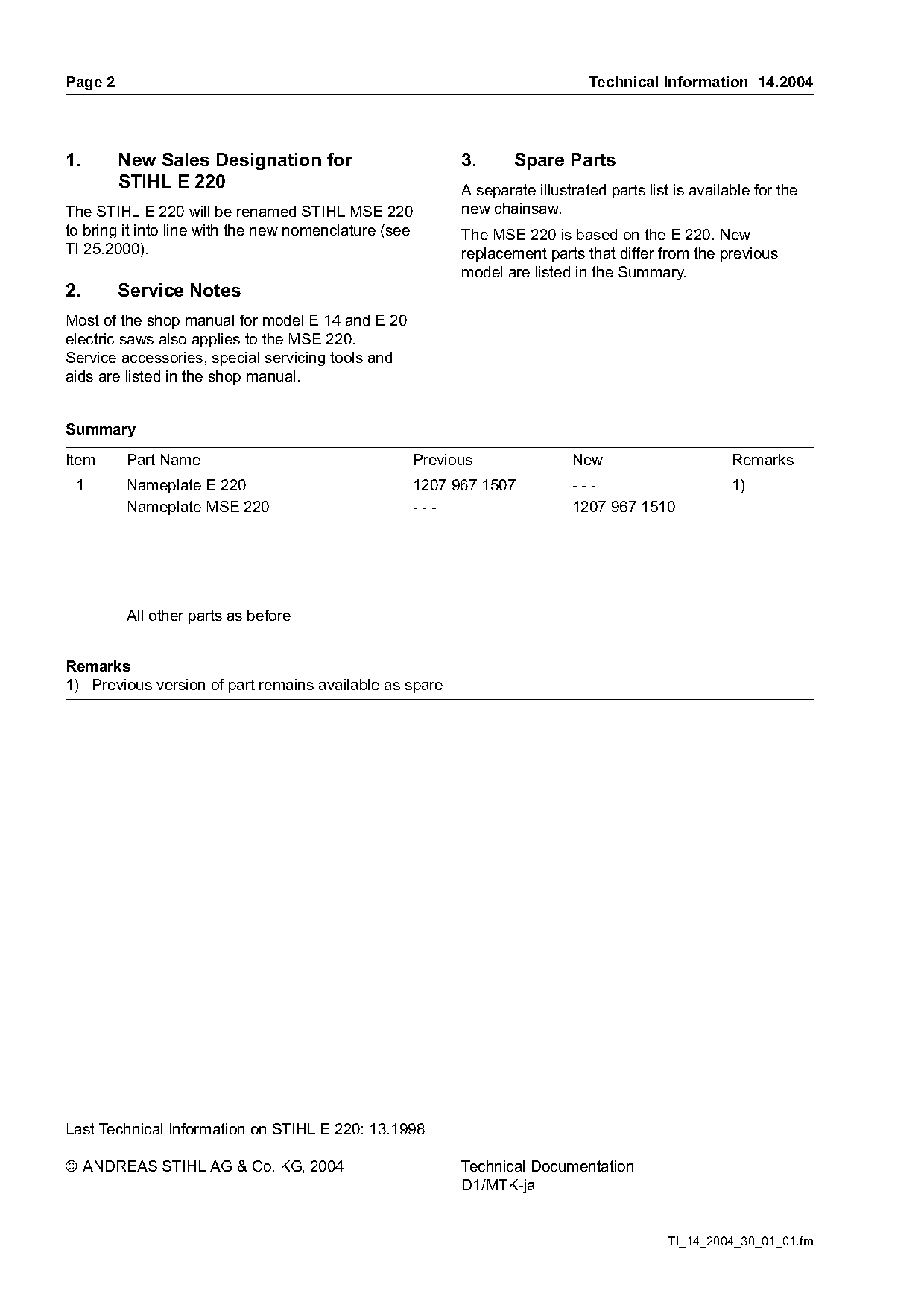

)m~ge 2 Technical Information 14.2004
1. New Sales Designation for 3. Spare Parts
STIHL E 220 A separate illustrated parts list is available for the
The STIHL E 220 will be renamed STIHL MSE 220 new chainsaw.
to bring it into line with the new nomenclature (see The MSE 220 is based on the E 220. New
TI 25.2000). replacement parts that differ from the previous
model are listed in the Summary.
2. Service Notes
Most of the shop manual for model E 14 and E 20
electric saws also applies to the MSE 220.
Service accessories, special servicing tools and
aids are listed in the shop manual.
Summary
Item Part Name Previous New Remarks
1 Nameplate E 220 1207 967 1507 --- 1)
Nameplate MSE 220 --- 1207 967 1510
All other parts as before
Remarks
1) Previous version of part remains available as spare
Last Technical Information on STIHL E 220: 13.1998
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-ja
TI_14_2004_30_01_01.fm Page 2 of 2
