Technical Information · issue 16 of 2004
Pentagonal nylon line; Symbols for mowing lines
IssueTI 16/2004
Full text
Page 1 of 5
STIH)

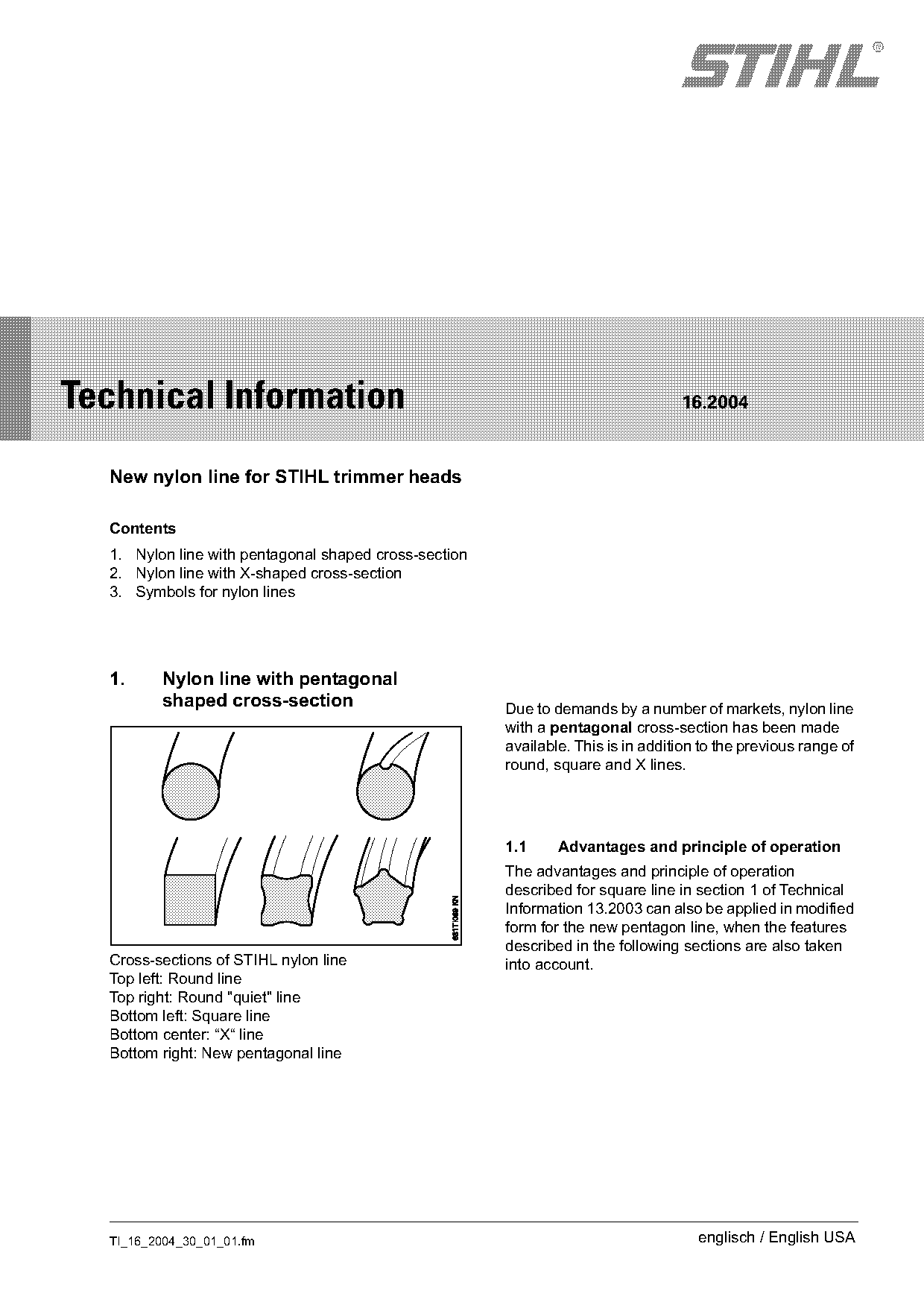

Technical Information 16.2004
New nylon line for STIHL trimmer heads
Contents
1. Nylon line with pentagonal shaped cross-section
2. Nylon line with X-shaped cross-section
3. Symbols for nylon lines
1. Nylon line with pentagonal
shaped cross-section Due to demands by a number of markets, nylon line
with a pentagonal cross-section has been made
available. This is in addition to the previous range of
round, square and X lines.
1.1 Advantages and principle of operation
The advantages and principle of operation
described for square line in section 1 of Technical
Information 13.2003 can also be applied in modified
form for the new pentagon line, when the features
described in the following sections are also taken
Cross-sections of STIHL nylon line into account.
Top left: Round line
Top right: Round "quiet" line
Bottom left: Square line
Bottom center: “X“ line
Bottom right: New pentagonal line
TI_16_2004_30_01_01.fm englisch / English USA

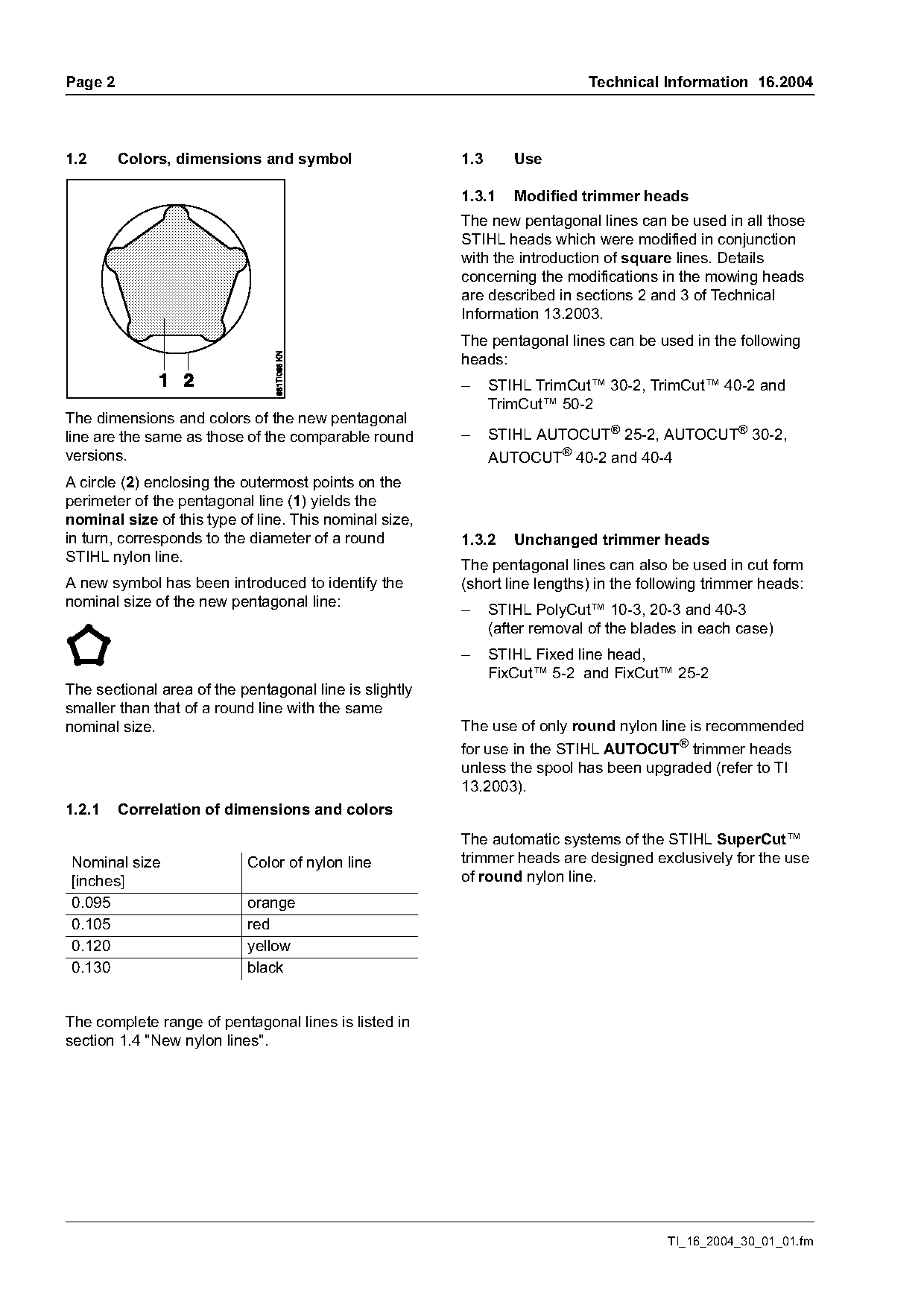

)m~ge 2 Technical Information 16.2004
1.2 Colors, dimensions and symbol 1.3 Use
1.3.1 Modified trimmer heads
The new pentagonal lines can be used in all those
STIHL heads which were modified in conjunction
with the introduction of square lines. Details
concerning the modifications in the mowing heads
are described in sections 2 and 3 of Technical
Information 13.2003.
The pentagonal lines can be used in the following
heads:
– STIHL TrimCut™ 30-2, TrimCut™ 40-2 and
TrimCut™ 50-2
The dimensions and colors of the new pentagonal
line are the same as those of the comparable round – STIHL AUTOCUT® 25-2, AUTOCUT® 30-2,
versions. AUTOCUT® 40-2 and 40-4
A circle (2) enclosing the outermost points on the
perimeter of the pentagonal line (1) yields the
nominal size of this type of line. This nominal size,
in turn, corresponds to the diameter of a round 1.3.2 Unchanged trimmer heads
STIHL nylon line.
The pentagonal lines can also be used in cut form
A new symbol has been introduced to identify the (short line lengths) in the following trimmer heads:
nominal size of the new pentagonal line:
– STIHL PolyCut™ 10-3, 20-3 and 40-3
(after removal of the blades in each case)
– STIHL Fixed line head,
FixCut™ 5-2 and FixCut™ 25-2
The sectional area of the pentagonal line is slightly
smaller than that of a round line with the same
nominal size. The use of only round nylon line is recommended
for use in the STIHL AUTOCUT® trimmer heads
unless the spool has been upgraded (refer to TI
13.2003).
1.2.1 Correlation of dimensions and colors
The automatic systems of the STIHL SuperCut™
Nominal size Color of nylon line trimmer heads are designed exclusively for the use
[inches] of round nylon line.
0.095 orange
0.105 red
0.120 yellow
0.130 black
The complete range of pentagonal lines is listed in
section 1.4 "New nylon lines".
TI_16_2004_30_01_01.fm Page 2 of 5

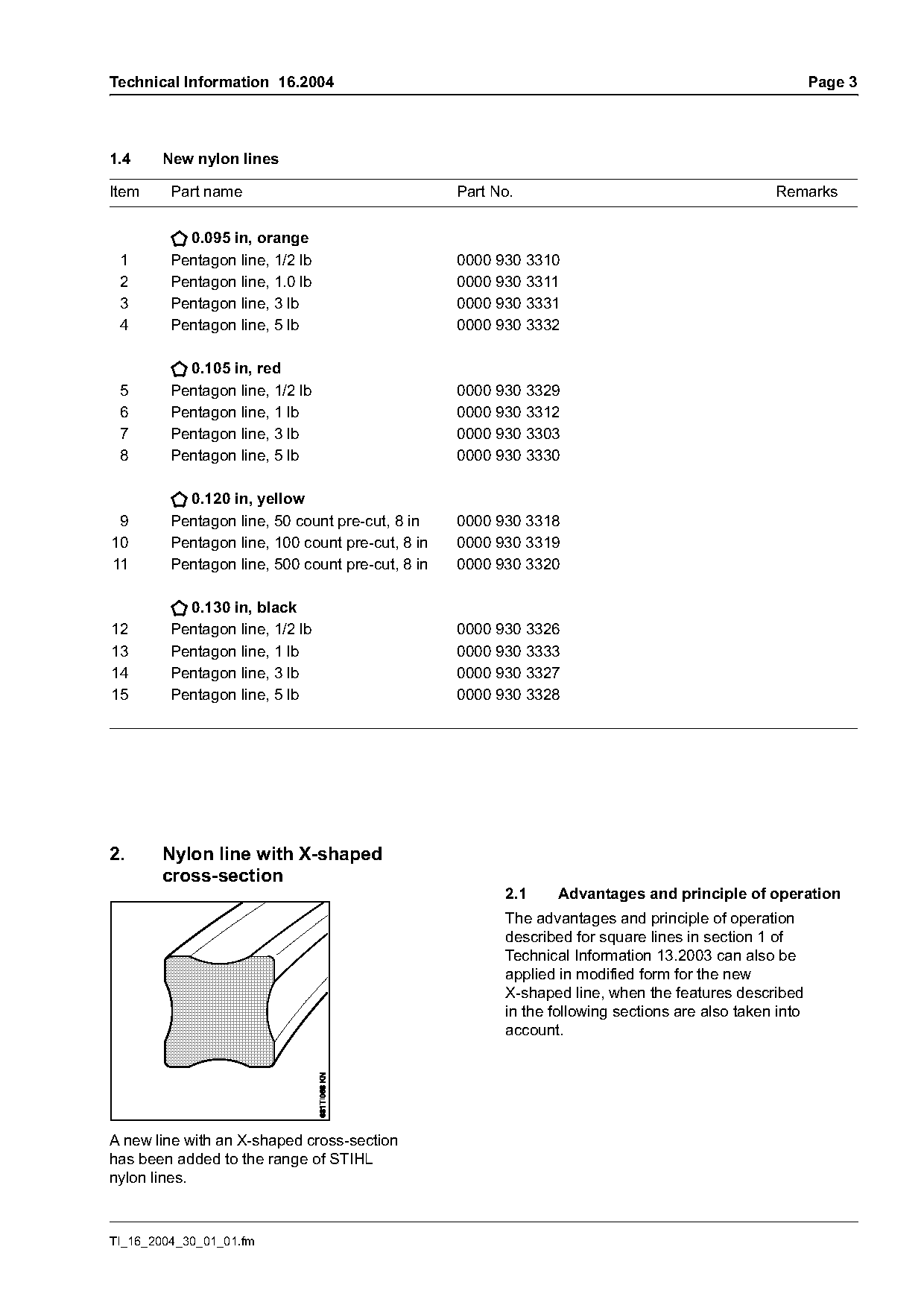

Technical Information 16.2004 Page 3
1.4 New nylon lines
Item Part name Part No. Remarks
0.095 in, orange
1 Pentagon line, 1/2 lb 0000 930 3310
2 Pentagon line, 1.0 lb 0000 930 3311
3 Pentagon line, 3 lb 0000 930 3331
4 Pentagon line, 5 lb 0000 930 3332
0.105 in, red
5 Pentagon line, 1/2 lb 0000 930 3329
6 Pentagon line, 1 lb 0000 930 3312
7 Pentagon line, 3 lb 0000 930 3303
8 Pentagon line, 5 lb 0000 930 3330
0.120 in, yellow
9 Pentagon line, 50 count pre-cut, 8 in 0000 930 3318
10 Pentagon line, 100 count pre-cut, 8 in 0000 930 3319
11 Pentagon line, 500 count pre-cut, 8 in 0000 930 3320
0.130 in, black
12 Pentagon line, 1/2 lb 0000 930 3326
13 Pentagon line, 1 lb 0000 930 3333
14 Pentagon line, 3 lb 0000 930 3327
15 Pentagon line, 5 lb 0000 930 3328
2. Nylon line with X-shaped
cross-section
2.1 Advantages and principle of operation
The advantages and principle of operation
described for square lines in section 1 of
Technical Information 13.2003 can also be
applied in modified form for the new
X-shaped line, when the features described
in the following sections are also taken into
account.
A new line with an X-shaped cross-section
has been added to the range of STIHL
nylon lines.
TI_16_2004_30_01_01.fm

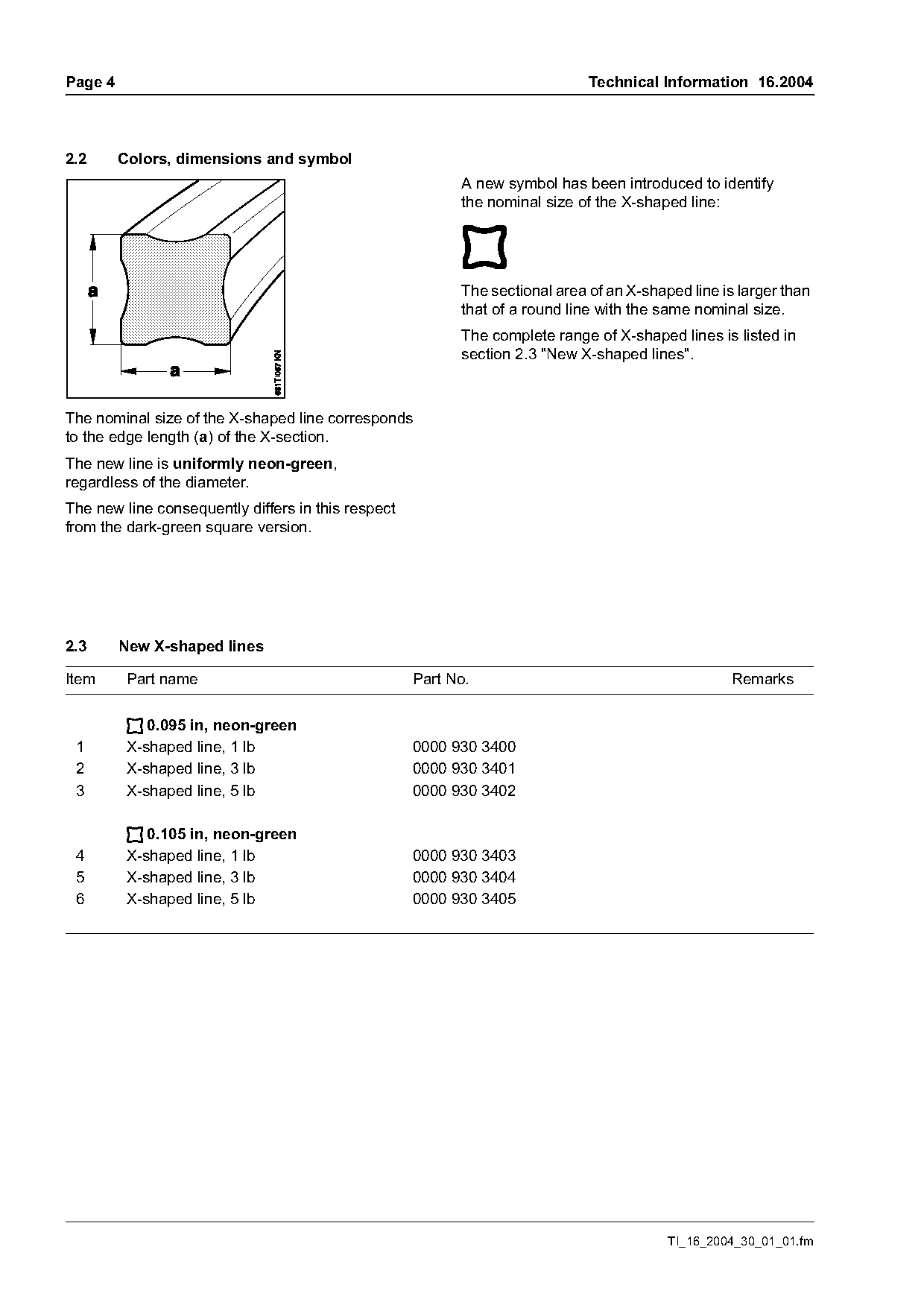

)m~ge 4 Technical Information 16.2004
2.2 Colors, dimensions and symbol
A new symbol has been introduced to identify
the nominal size of the X-shaped line:
The sectional area of an X-shaped line is larger than
that of a round line with the same nominal size.
The complete range of X-shaped lines is listed in
section 2.3 "New X-shaped lines".
The nominal size of the X-shaped line corresponds
to the edge length (a) of the X-section.
The new line is uniformly neon-green,
regardless of the diameter.
The new line consequently differs in this respect
from the dark-green square version.
2.3 New X-shaped lines
Item Part name Part No. Remarks
0.095 in, neon-green
1 X-shaped line, 1 lb 0000 930 3400
2 X-shaped line, 3 lb 0000 930 3401
3 X-shaped line, 5 lb 0000 930 3402
0.105 in, neon-green
4 X-shaped line, 1 lb 0000 930 3403
5 X-shaped line, 3 lb 0000 930 3404
6 X-shaped line, 5 lb 0000 930 3405
TI_16_2004_30_01_01.fm Page 3 of 5

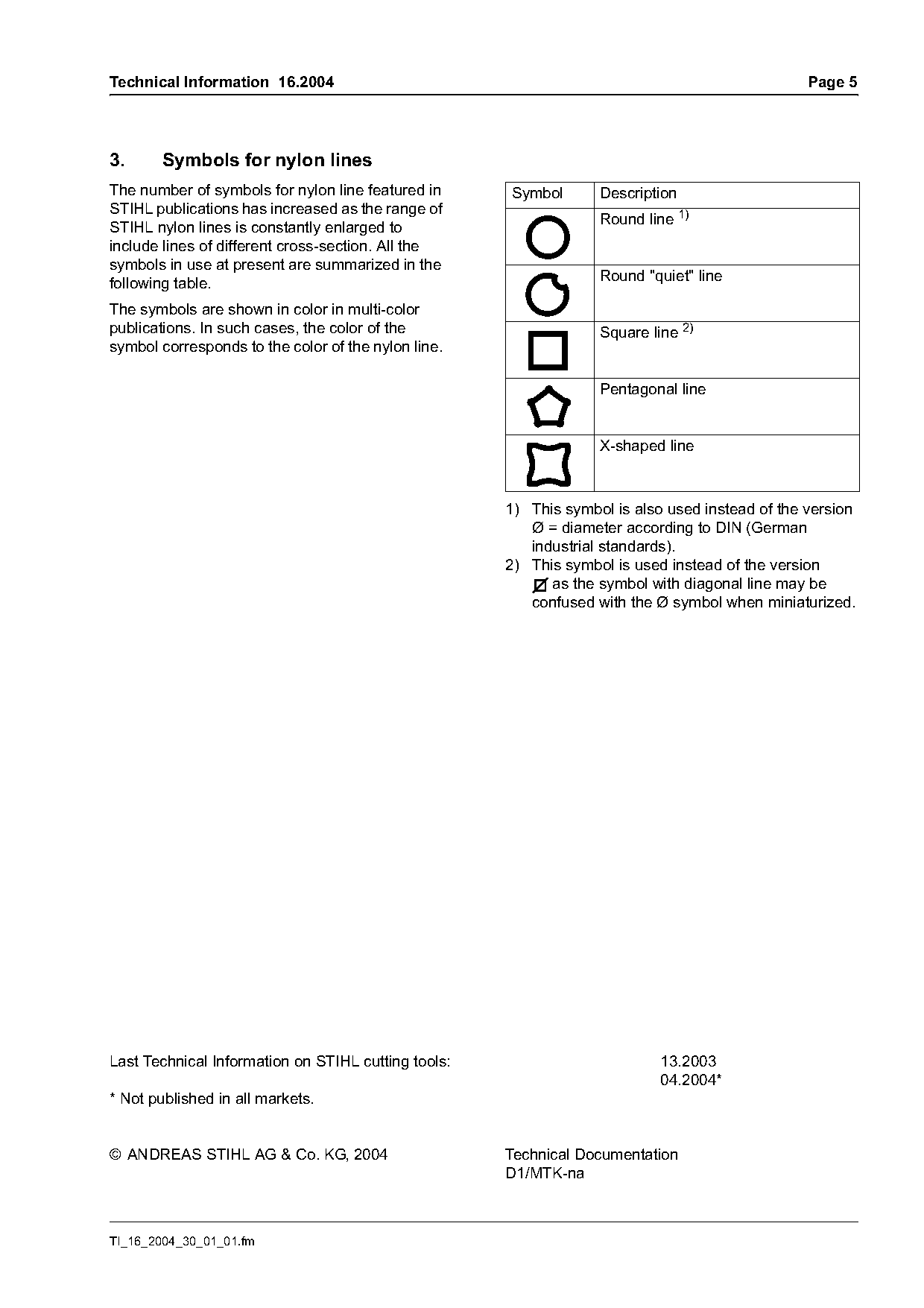

Technical Information 16.2004 Page 5
3. Symbols for nylon lines
The number of symbols for nylon line featured in Symbol Description
STIHL publications has increased as the range of
Round line 1)
STIHL nylon lines is constantly enlarged to
include lines of different cross-section. All the
symbols in use at present are summarized in the
following table. Round "quiet" line
The symbols are shown in color in multi-color
publications. In such cases, the color of the Square line 2)
symbol corresponds to the color of the nylon line.
Pentagonal line
X-shaped line
1) This symbol is also used instead of the version
Ø = diameter according to DIN (German
industrial standards).
2) This symbol is used instead of the version
as the symbol with diagonal line may be
confused with the Ø symbol when miniaturized.
Last Technical Information on STIHL cutting tools: 13.2003
04.2004*
* Not published in all markets.
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-na
TI_16_2004_30_01_01.fm Page 4 of 5
