Engine family 1129
Part changes (1)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 1129 080 1803 | 1129 080 1806 | To further improve the function and reduce the The form of the eye for hooking in the anchor loop weight, the previous fan housing 1129 080 1803 and the installed position of the rewind spring are is replaced by the new version 1129 080 1806. |
Full text
Page 1 of 2
STIH)
Technical Information 22.2004
Chainsaws STIHL 020 T, MS 200 T – Series 1129
Contents

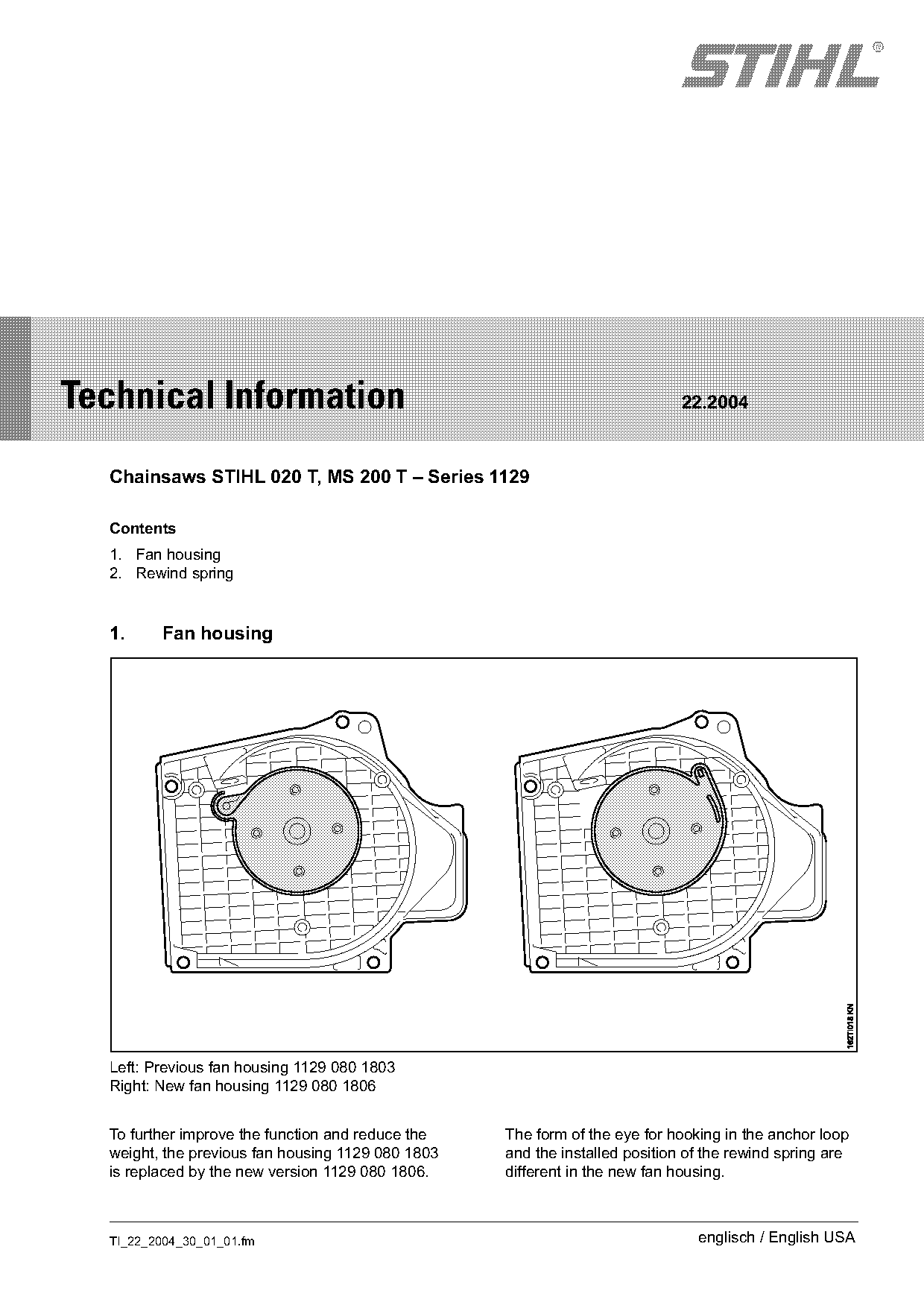

1. Fan housing
2. Rewind spring
1. Fan housing
Left: Previous fan housing 1129 080 1803
Right: New fan housing 1129 080 1806
To further improve the function and reduce the The form of the eye for hooking in the anchor loop
weight, the previous fan housing 1129 080 1803 and the installed position of the rewind spring are
is replaced by the new version 1129 080 1806. different in the new fan housing.
TI_22_2004_30_01_01.fm englisch / English USA
)m~ge 2 Technical Information 22.2004

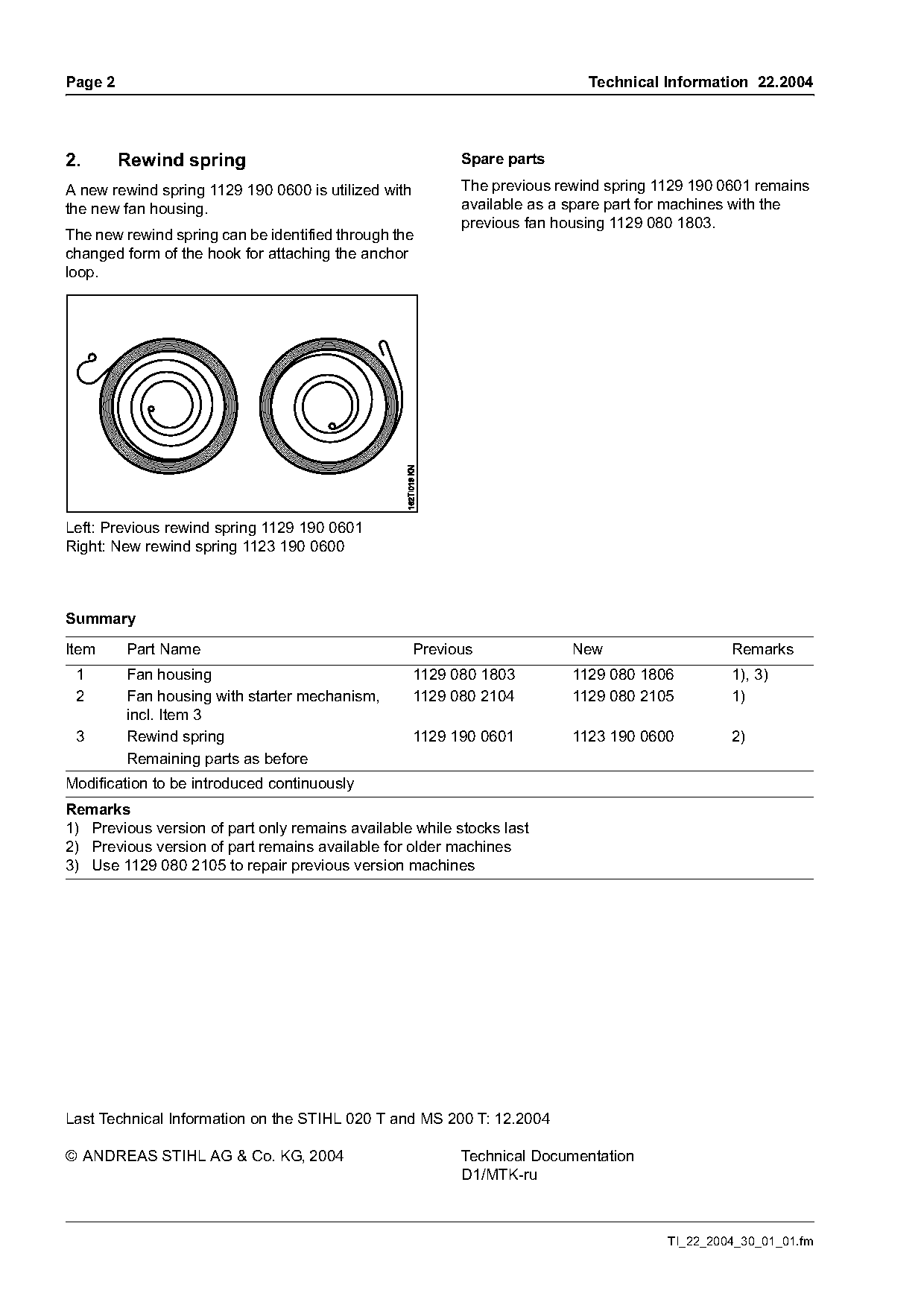

2. Rewind spring Spare parts
A new rewind spring 1129 190 0600 is utilized with The previous rewind spring 1129 190 0601 remains
the new fan housing. available as a spare part for machines with the
previous fan housing 1129 080 1803.
The new rewind spring can be identified through the
changed form of the hook for attaching the anchor
loop.
Left: Previous rewind spring 1129 190 0601
Right: New rewind spring 1123 190 0600
Summary
Item Part Name Previous New Remarks
1 Fan housing 1129 080 1803 1129 080 1806 1), 3)
2 Fan housing with starter mechanism, 1129 080 2104 1129 080 2105 1)
incl. Item 3
3 Rewind spring 1129 190 0601 1123 190 0600 2)
Remaining parts as before
Modification to be introduced continuously
Remarks
1) Previous version of part only remains available while stocks last
2) Previous version of part remains available for older machines
3) Use 1129 080 2105 to repair previous version machines
Last Technical Information on the STIHL 020 T and MS 200 T: 12.2004
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-ru
TI_22_2004_30_01_01.fm Page 2 of 2
