Technical Information · issue 27 of 2004
Chain Sprocket Cover; Spiked Bumper; Spare Parts; Service Note; Summary
Model MSE 140, MSE 180 C Electric Chainsaws – Series 1208
IssueTI 27/2004
Full text
Page 1 of 4

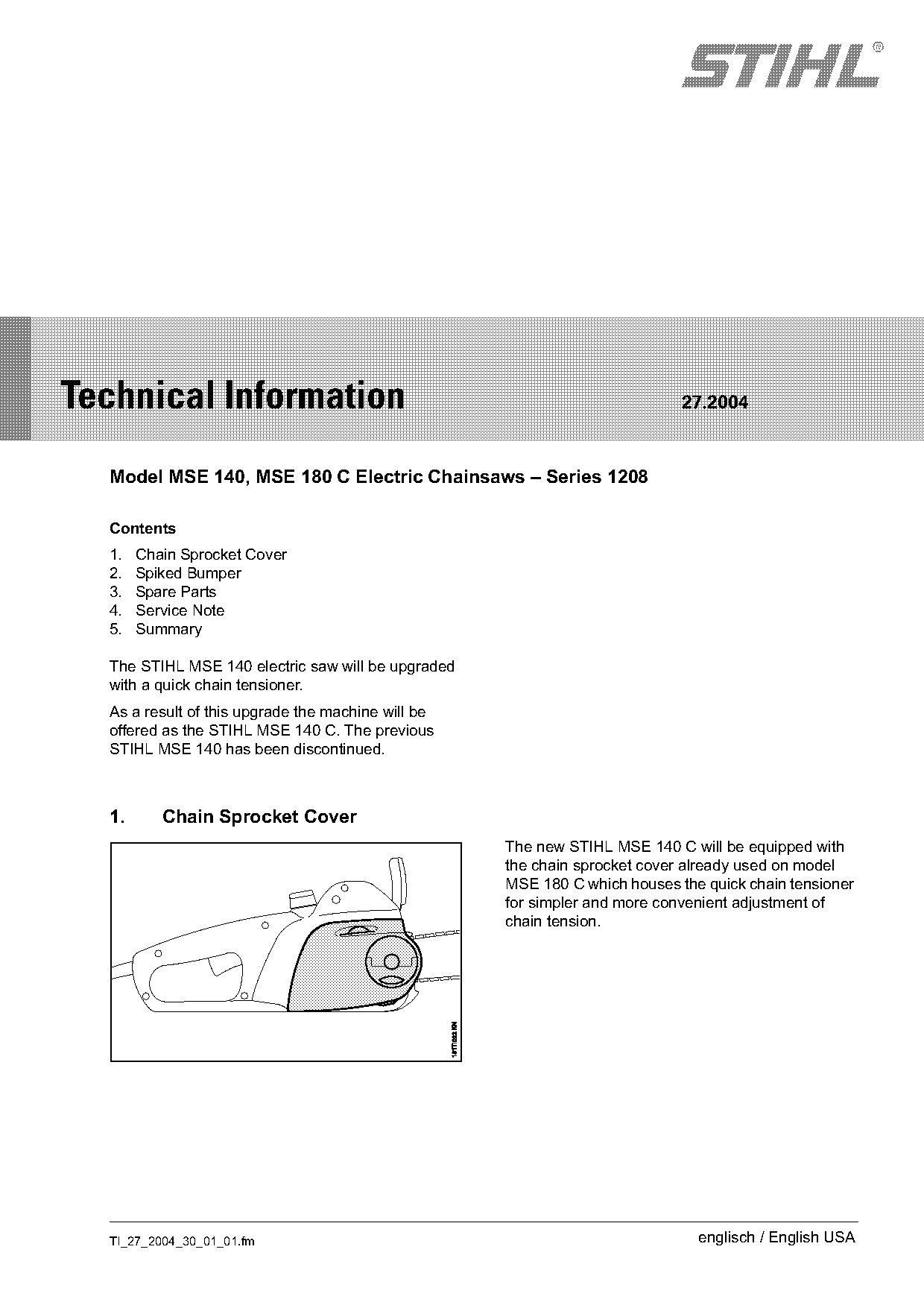

STIH)
Technical Information 27.2004
Model MSE 140, MSE 180 C Electric Chainsaws – Series 1208
Contents
1. Chain Sprocket Cover
2. Spiked Bumper
3. Spare Parts
4. Service Note
5. Summary
The STIHL MSE 140 electric saw will be upgraded
with a quick chain tensioner.
As a result of this upgrade the machine will be
offered as the STIHL MSE 140 C. The previous
STIHL MSE 140 has been discontinued.
1. Chain Sprocket Cover
The new STIHL MSE 140 C will be equipped with
the chain sprocket cover already used on model
MSE 180 C which houses the quick chain tensioner
for simpler and more convenient adjustment of
chain tension.
TI_27_2004_30_01_01.fm englisch / English USA

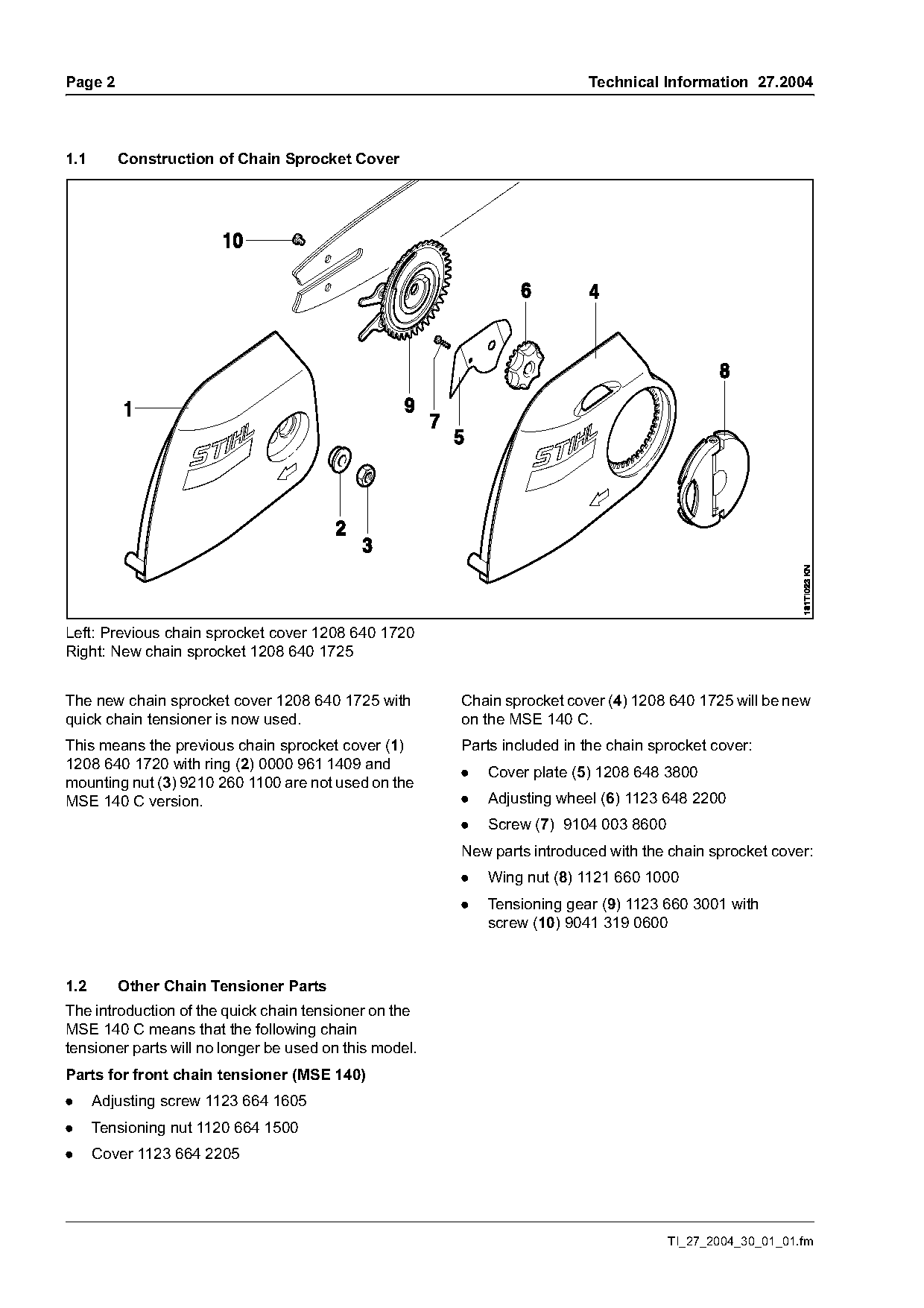

)m~ge 2 Technical Information 27.2004
1.1 Construction of Chain Sprocket Cover
Left: Previous chain sprocket cover 1208 640 1720
Right: New chain sprocket 1208 640 1725
The new chain sprocket cover 1208 640 1725 with Chain sprocket cover (4) 1208 640 1725 will be new
quick chain tensioner is now used. on the MSE 140 C.
This means the previous chain sprocket cover (1) Parts included in the chain sprocket cover:
1208 640 1720 with ring (2) 0000 961 1409 and
. Cover plate (5) 1208 648 3800
mounting nut (3) 9210 260 1100 are not used on the
MSE 140 C version. . Adjusting wheel (6) 1123 648 2200
. Screw (7) 9104 003 8600
New parts introduced with the chain sprocket cover:
. Wing nut (8) 1121 660 1000
. Tensioning gear (9) 1123 660 3001 with
screw (10) 9041 319 0600
1.2 Other Chain Tensioner Parts
The introduction of the quick chain tensioner on the
MSE 140 C means that the following chain
tensioner parts will no longer be used on this model.
Parts for front chain tensioner (MSE 140)
. Adjusting screw 1123 664 1605
. Tensioning nut 1120 664 1500
. Cover 1123 664 2205
TI_27_2004_30_01_01.fm Page 2 of 4

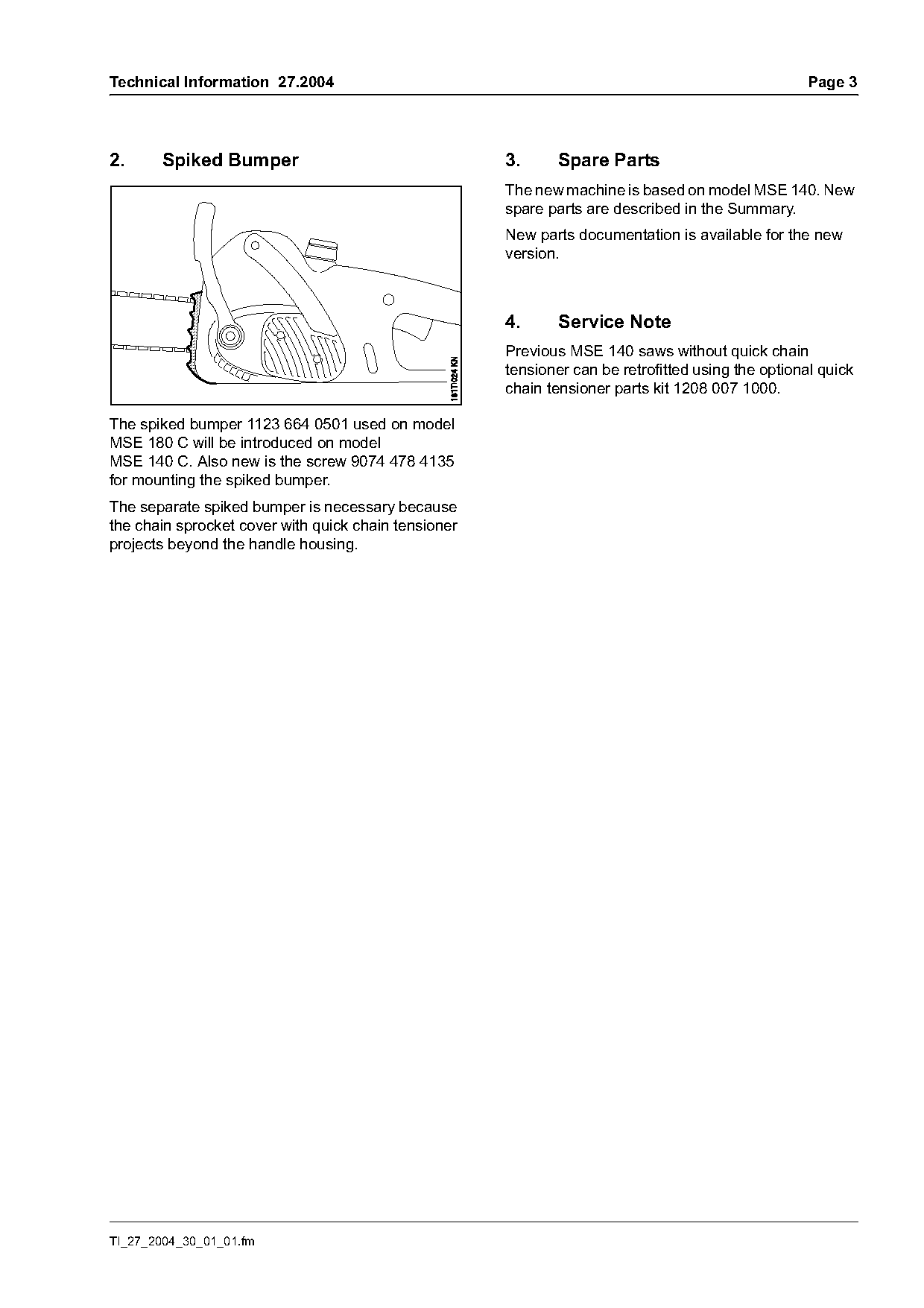

Technical Information 27.2004 Page 3
2. Spiked Bumper 3. Spare Parts
The new machine is based on model MSE 140. New
spare parts are described in the Summary.
New parts documentation is available for the new
version.
4. Service Note
Previous MSE 140 saws without quick chain
tensioner can be retrofitted using the optional quick
chain tensioner parts kit 1208 007 1000.
The spiked bumper 1123 664 0501 used on model
MSE 180 C will be introduced on model
MSE 140 C. Also new is the screw 9074 478 4135
for mounting the spiked bumper.
The separate spiked bumper is necessary because
the chain sprocket cover with quick chain tensioner
projects beyond the handle housing.
TI_27_2004_30_01_01.fm

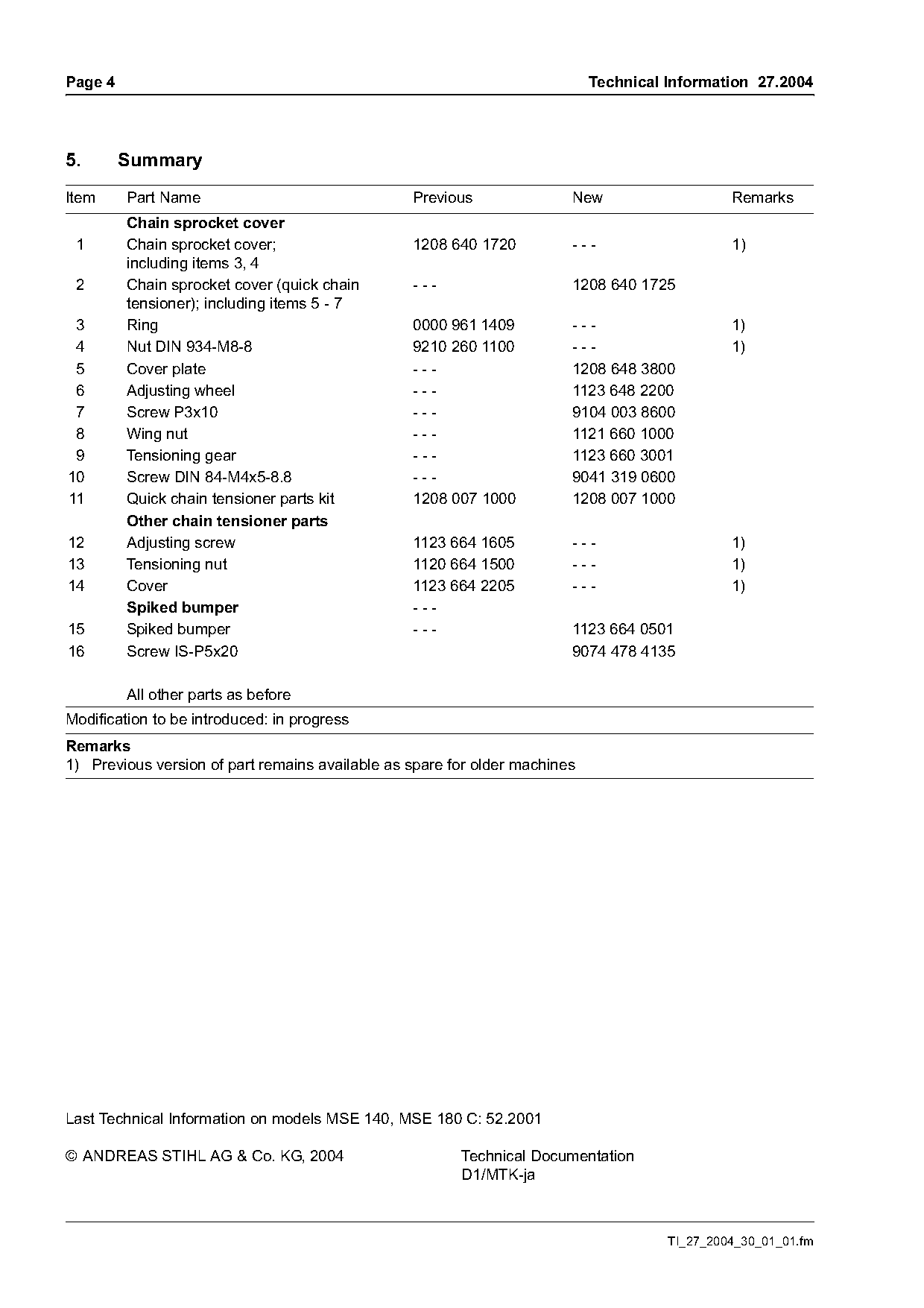

)m~ge 4 Technical Information 27.2004
5. Summary
Item Part Name Previous New Remarks
Chain sprocket cover
1 Chain sprocket cover; 1208 640 1720 --- 1)
including items 3, 4
2 Chain sprocket cover (quick chain --- 1208 640 1725
tensioner); including items 5 - 7
3 Ring 0000 961 1409 --- 1)
4 Nut DIN 934-M8-8 9210 260 1100 --- 1)
5 Cover plate --- 1208 648 3800
6 Adjusting wheel --- 1123 648 2200
7 Screw P3x10 --- 9104 003 8600
8 Wing nut --- 1121 660 1000
9 Tensioning gear --- 1123 660 3001
10 Screw DIN 84-M4x5-8.8 --- 9041 319 0600
11 Quick chain tensioner parts kit 1208 007 1000 1208 007 1000
Other chain tensioner parts
12 Adjusting screw 1123 664 1605 --- 1)
13 Tensioning nut 1120 664 1500 --- 1)
14 Cover 1123 664 2205 --- 1)
Spiked bumper ---
15 Spiked bumper --- 1123 664 0501
16 Screw IS-P5x20 9074 478 4135
All other parts as before
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available as spare for older machines
Last Technical Information on models MSE 140, MSE 180 C: 52.2001
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-ja
TI_27_2004_30_01_01.fm Page 3 of 4
Page 4 of 4
