Technical Information · issue 28 of 2004
Carburetor; Air Filter System with Paper Element; Special Accessories; Sleeve
IssueTI 28/2004
Part changes (3)
| Was | Becomes | What the bulletin says |
|---|---|---|
| 4140 141 0502 | 4140 140 1001 | Special Accessories The previous filter cover 4140 141 0502 has been replaced by the new filter cover (2) 4140 140 1001. |
| 4140 141 3801 | 4601 007 1009 | 3 Deflector Kit The previous choke shutter 4140 141 3801 has ben replaced by the new choke shutter (5) Deflector kit 4601 007 1009 is available for the 4140 141 3802. |
| 4601 713 8300 | 4601 713 8302 | Sleeve On the FC-MM edger the sleeve 4601 713 8300 has been replaced by sleeve 4601 713 8302. |
Full text
Page 1 of 4
STIH)

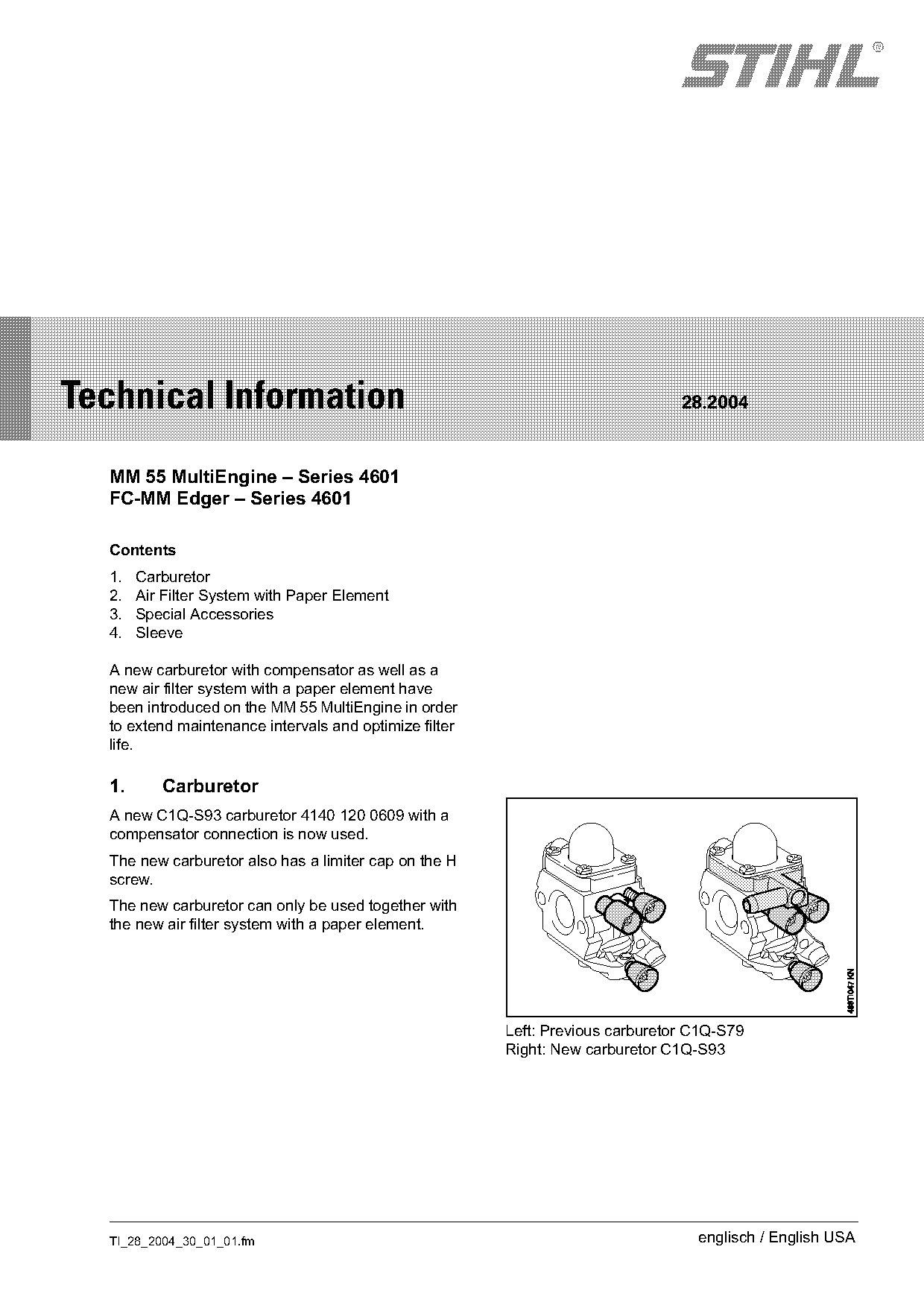

Technical Information 28.2004
MM 55 MultiEngine – Series 4601
FC-MM Edger – Series 4601
Contents
1. Carburetor
2. Air Filter System with Paper Element
3. Special Accessories
4. Sleeve
A new carburetor with compensator as well as a
new air filter system with a paper element have
been introduced on the MM 55 MultiEngine in order
to extend maintenance intervals and optimize filter
life.
1. Carburetor
A new C1Q-S93 carburetor 4140 120 0609 with a
compensator connection is now used.
The new carburetor also has a limiter cap on the H
screw.
The new carburetor can only be used together with
the new air filter system with a paper element.
Left: Previous carburetor C1Q-S79
Right: New carburetor C1Q-S93
TI_28_2004_30_01_01.fm englisch / English USA

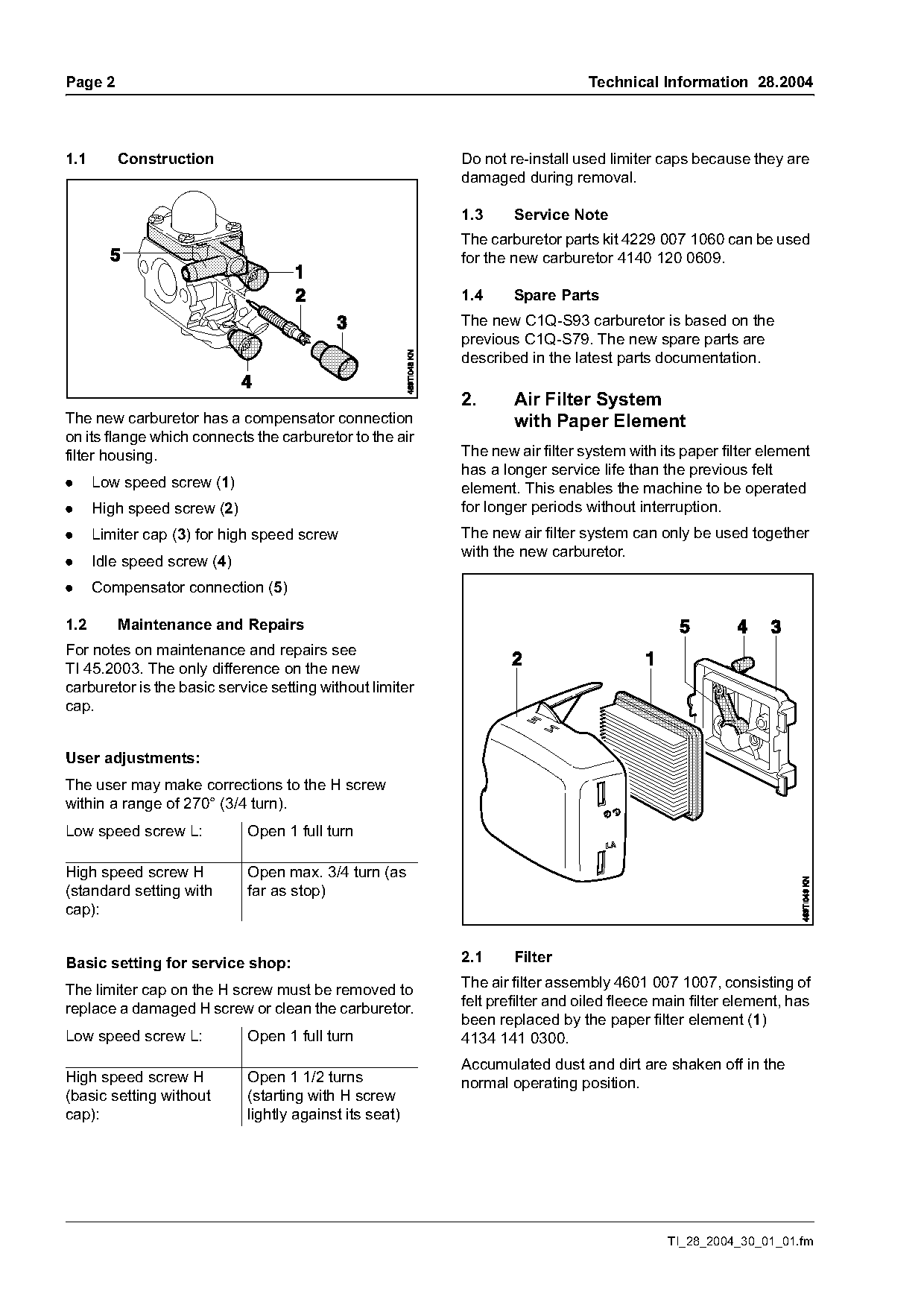

)m~ge 2 Technical Information 28.2004
1.1 Construction Do not re-install used limiter caps because they are
damaged during removal.
1.3 Service Note
The carburetor parts kit 4229 007 1060 can be used
for the new carburetor 4140 120 0609.
1.4 Spare Parts
The new C1Q-S93 carburetor is based on the
previous C1Q-S79. The new spare parts are
described in the latest parts documentation.
2. Air Filter System
The new carburetor has a compensator connection with Paper Element
on its flange which connects the carburetor to the air
filter housing. The new air filter system with its paper filter element
has a longer service life than the previous felt
. Low speed screw (1) element. This enables the machine to be operated
. High speed screw (2) for longer periods without interruption.
. Limiter cap (3) for high speed screw The new air filter system can only be used together
with the new carburetor.
. Idle speed screw (4)
. Compensator connection (5)
1.2 Maintenance and Repairs
For notes on maintenance and repairs see
TI 45.2003. The only difference on the new
carburetor is the basic service setting without limiter
cap.
User adjustments:
The user may make corrections to the H screw
within a range of 270° (3/4 turn). H
Low speed screw L: Open 1 full turn
High speed screw H Open max. 3/4 turn (as
(standard setting with far as stop)
cap):
Basic setting for service shop: 2.1 Filter
The limiter cap on the H screw must be removed to The air filter assembly 4601 007 1007, consisting of
replace a damaged H screw or clean the carburetor. felt prefilter and oiled fleece main filter element, has
been replaced by the paper filter element (1)
Low speed screw L: Open 1 full turn 4134 141 0300.
Accumulated dust and dirt are shaken off in the
High speed screw H Open 1 1/2 turns normal operating position.
(basic setting without (starting with H screw
cap): lightly against its seat)
TI_28_2004_30_01_01.fm Page 2 of 4

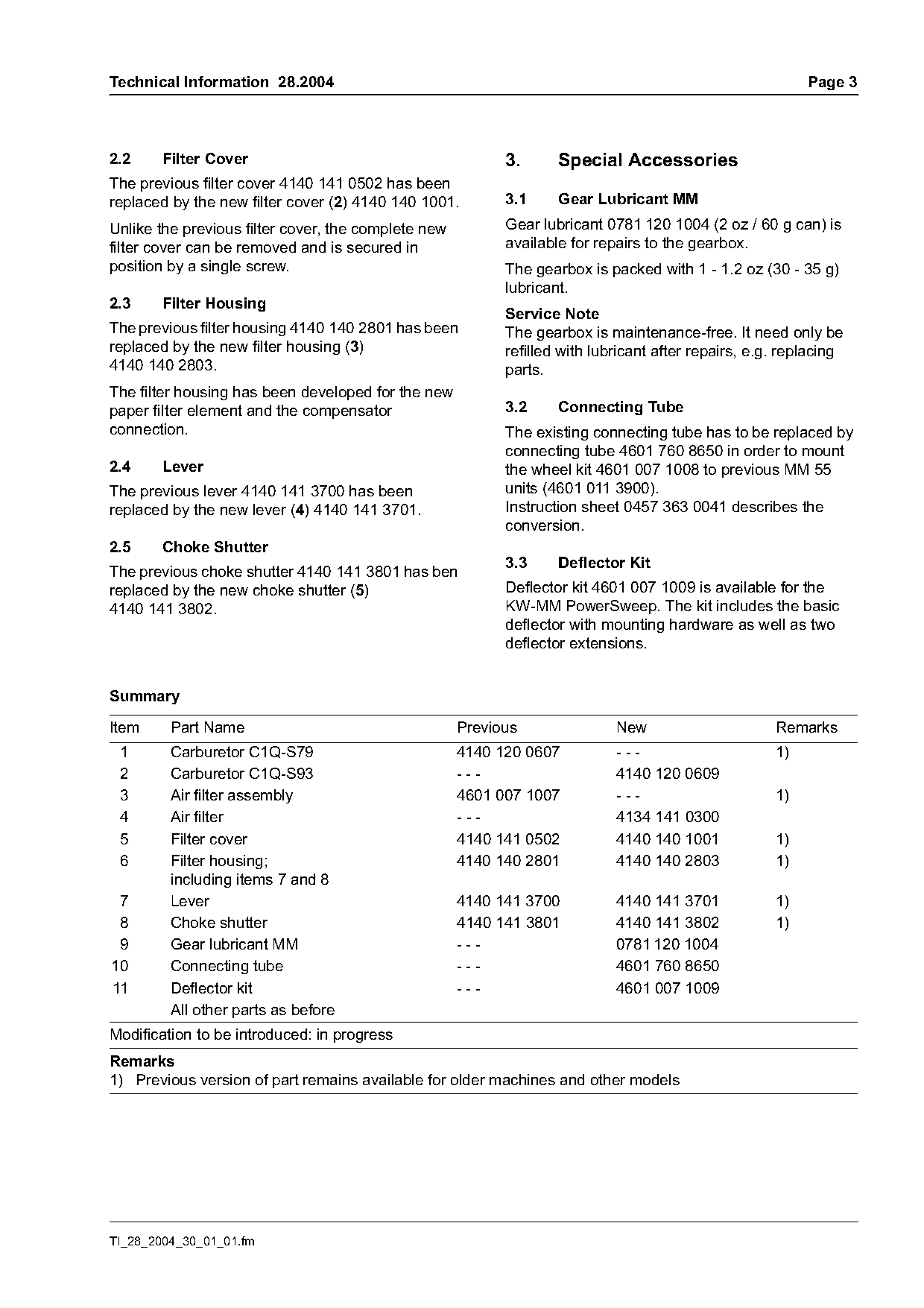

Technical Information 28.2004 Page 3
2.2 Filter Cover 3. Special Accessories
The previous filter cover 4140 141 0502 has been
replaced by the new filter cover (2) 4140 140 1001. 3.1 Gear Lubricant MM
Unlike the previous filter cover, the complete new Gear lubricant 0781 120 1004 (2 oz / 60 g can) is
filter cover can be removed and is secured in available for repairs to the gearbox.
position by a single screw. The gearbox is packed with 1 - 1.2 oz (30 - 35 g)
lubricant.
2.3 Filter Housing
Service Note
The previous filter housing 4140 140 2801 has been The gearbox is maintenance-free. It need only be
replaced by the new filter housing (3) refilled with lubricant after repairs, e.g. replacing
4140 140 2803. parts.
The filter housing has been developed for the new
paper filter element and the compensator 3.2 Connecting Tube
connection. The existing connecting tube has to be replaced by
connecting tube 4601 760 8650 in order to mount
2.4 Lever the wheel kit 4601 007 1008 to previous MM 55
The previous lever 4140 141 3700 has been units (4601 011 3900).
replaced by the new lever (4) 4140 141 3701. Instruction sheet 0457 363 0041 describes the
conversion.
2.5 Choke Shutter
3.3 Deflector Kit
The previous choke shutter 4140 141 3801 has ben
replaced by the new choke shutter (5) Deflector kit 4601 007 1009 is available for the
4140 141 3802. KW-MM PowerSweep. The kit includes the basic
deflector with mounting hardware as well as two
deflector extensions.
Summary
Item Part Name Previous New Remarks
1 Carburetor C1Q-S79 4140 120 0607 --- 1)
2 Carburetor C1Q-S93 --- 4140 120 0609
3 Air filter assembly 4601 007 1007 --- 1)
4 Air filter --- 4134 141 0300
5 Filter cover 4140 141 0502 4140 140 1001 1)
6 Filter housing; 4140 140 2801 4140 140 2803 1)
including items 7 and 8
7 Lever 4140 141 3700 4140 141 3701 1)
8 Choke shutter 4140 141 3801 4140 141 3802 1)
9 Gear lubricant MM --- 0781 120 1004
10 Connecting tube --- 4601 760 8650
11 Deflector kit --- 4601 007 1009
All other parts as before
Modification to be introduced: in progress
Remarks
1) Previous version of part remains available for older machines and other models
TI_28_2004_30_01_01.fm

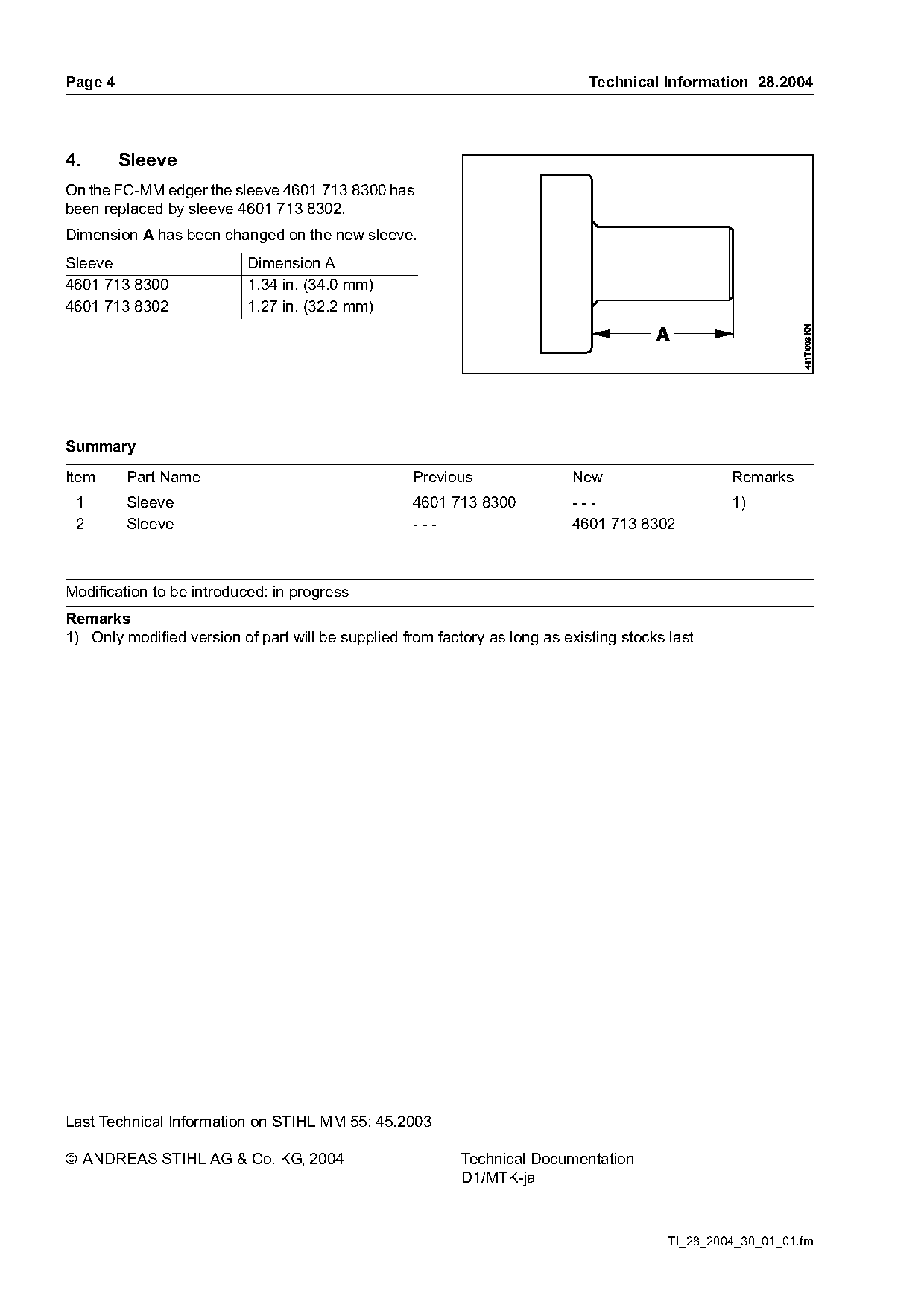

)m~ge 4 Technical Information 28.2004
4. Sleeve
On the FC-MM edger the sleeve 4601 713 8300 has
been replaced by sleeve 4601 713 8302.
Dimension A has been changed on the new sleeve.
Sleeve Dimension A
4601 713 8300 1.34 in. (34.0 mm)
4601 713 8302 1.27 in. (32.2 mm)
Summary
Item Part Name Previous New Remarks
1 Sleeve 4601 713 8300 --- 1)
2 Sleeve --- 4601 713 8302
Modification to be introduced: in progress
Remarks
1) Only modified version of part will be supplied from factory as long as existing stocks last
Last Technical Information on STIHL MM 55: 45.2003
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-ja
TI_28_2004_30_01_01.fm Page 3 of 4
