Technical Information · issue 33 of 2004
STIHL MS 180 C with ErgoStart, Starting the chainsaw, Handle frame, Spare parts, Summary
IssueTI 33/2004
Engine family 1130
Full text

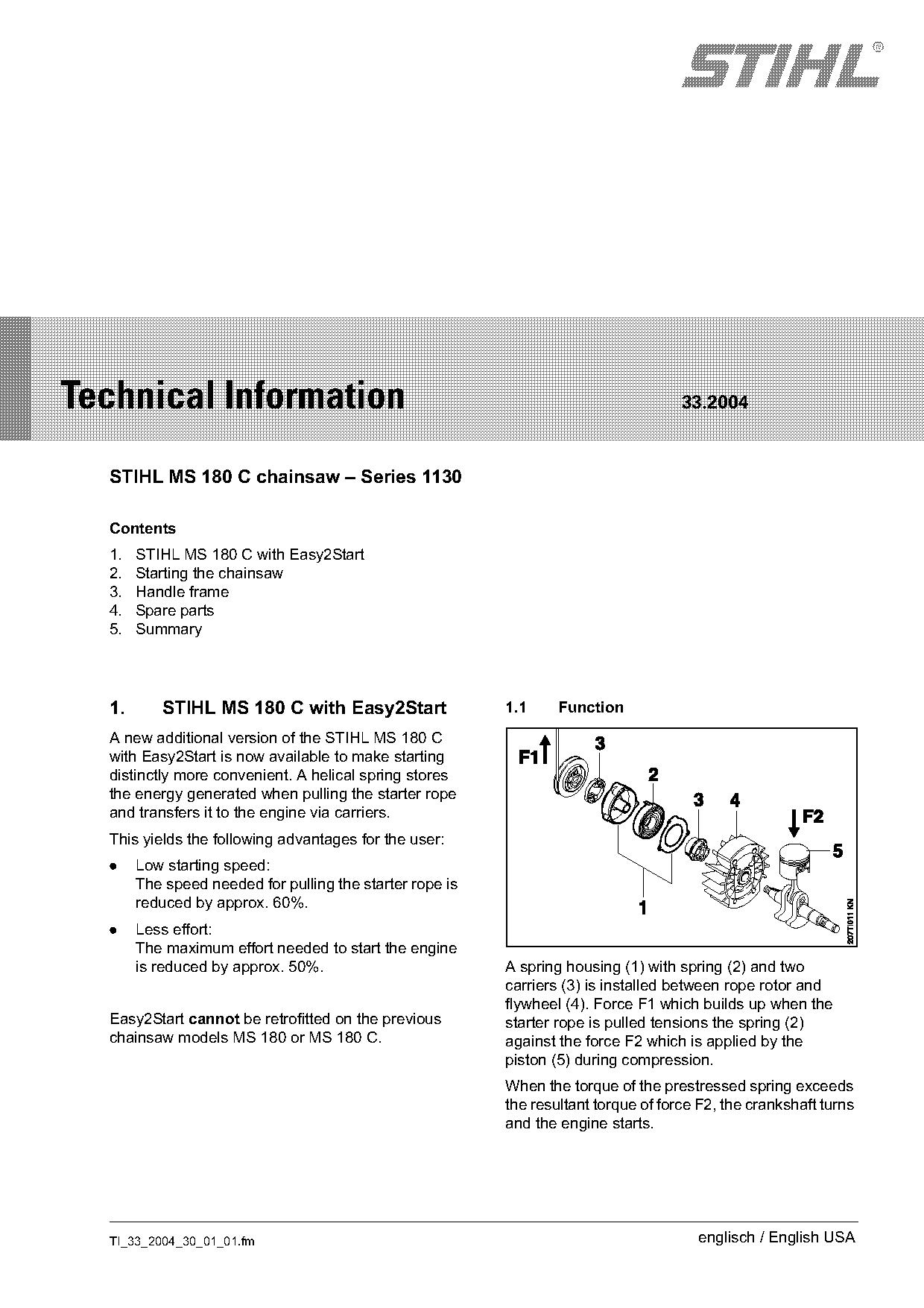

Page 1 of 4
STIH)
Technical Information 33.2004
STIHL MS 180 C chainsaw – Series 1130
Contents
1. STIHL MS 180 C with Easy2Start
2. Starting the chainsaw
3. Handle frame
4. Spare parts
5. Summary
1. STIHL MS 180 C with Easy2Start 1.1 Function
A new additional version of the STIHL MS 180 C
with Easy2Start is now available to make starting
distinctly more convenient. A helical spring stores
the energy generated when pulling the starter rope
and transfers it to the engine via carriers.
This yields the following advantages for the user:
. Low starting speed:
The speed needed for pulling the starter rope is
reduced by approx. 60%.
. Less effort:
The maximum effort needed to start the engine
is reduced by approx. 50%. A spring housing (1) with spring (2) and two
carriers (3) is installed between rope rotor and
flywheel (4). Force F1 which builds up when the
Easy2Start cannot be retrofitted on the previous starter rope is pulled tensions the spring (2)
chainsaw models MS 180 or MS 180 C. against the force F2 which is applied by the
piston (5) during compression.
When the torque of the prestressed spring exceeds
the resultant torque of force F2, the crankshaft turns
and the engine starts.
TI_33_2004_30_01_01.fm englisch / English USA

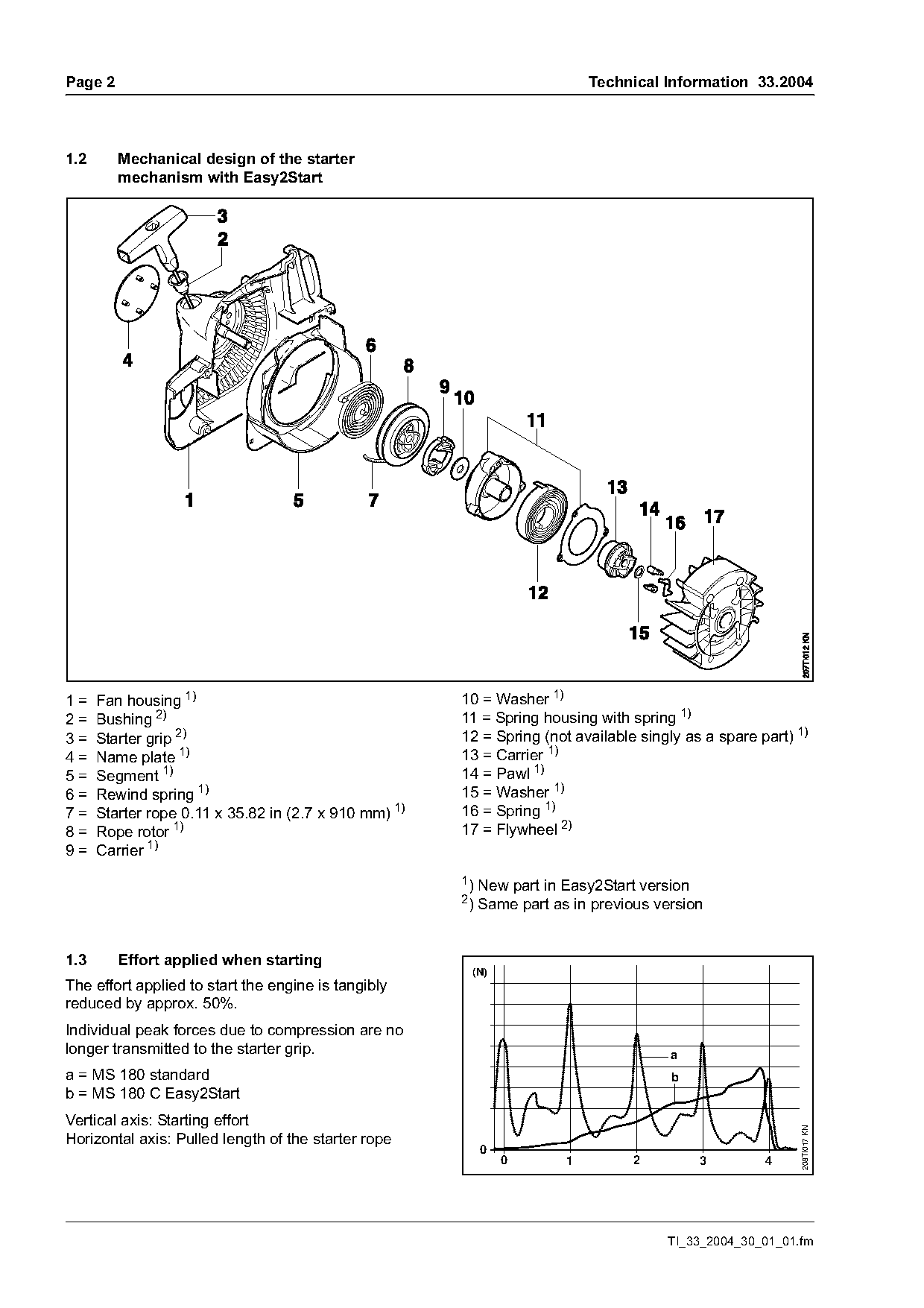

)m~ge 2 Technical Information 33.2004
1.2 Mechanical design of the starter
mechanism with Easy2Start
1 = Fan housing 1) 10 = Washer 1)
2 = Bushing 2) 11 = Spring housing with spring 1)
3 = Starter grip 2) 12 = Spring (not available singly as a spare part) 1)
4 = Name plate 1) 13 = Carrier 1)
5 = Segment 1) 14 = Pawl 1)
6 = Rewind spring 1) 15 = Washer 1)
7 = Starter rope 0.11 x 35.82 in (2.7 x 910 mm) 1) 16 = Spring 1)
8 = Rope rotor 1) 17 = Flywheel 2)
9 = Carrier 1)
1) New part in Easy2Start version
2) Same part as in previous version
1.3 Effort applied when starting
(N)
The effort applied to start the engine is tangibly
reduced by approx. 50%.
Individual peak forces due to compression are no
longer transmitted to the starter grip. a
a = MS 180 standard b
b = MS 180 C Easy2Start
Vertical axis: Starting effort
208TI017 KN
Horizontal axis: Pulled length of the starter rope
0
0 1 2 3 4
TI_33_2004_30_01_01.fm Page 2 of 4

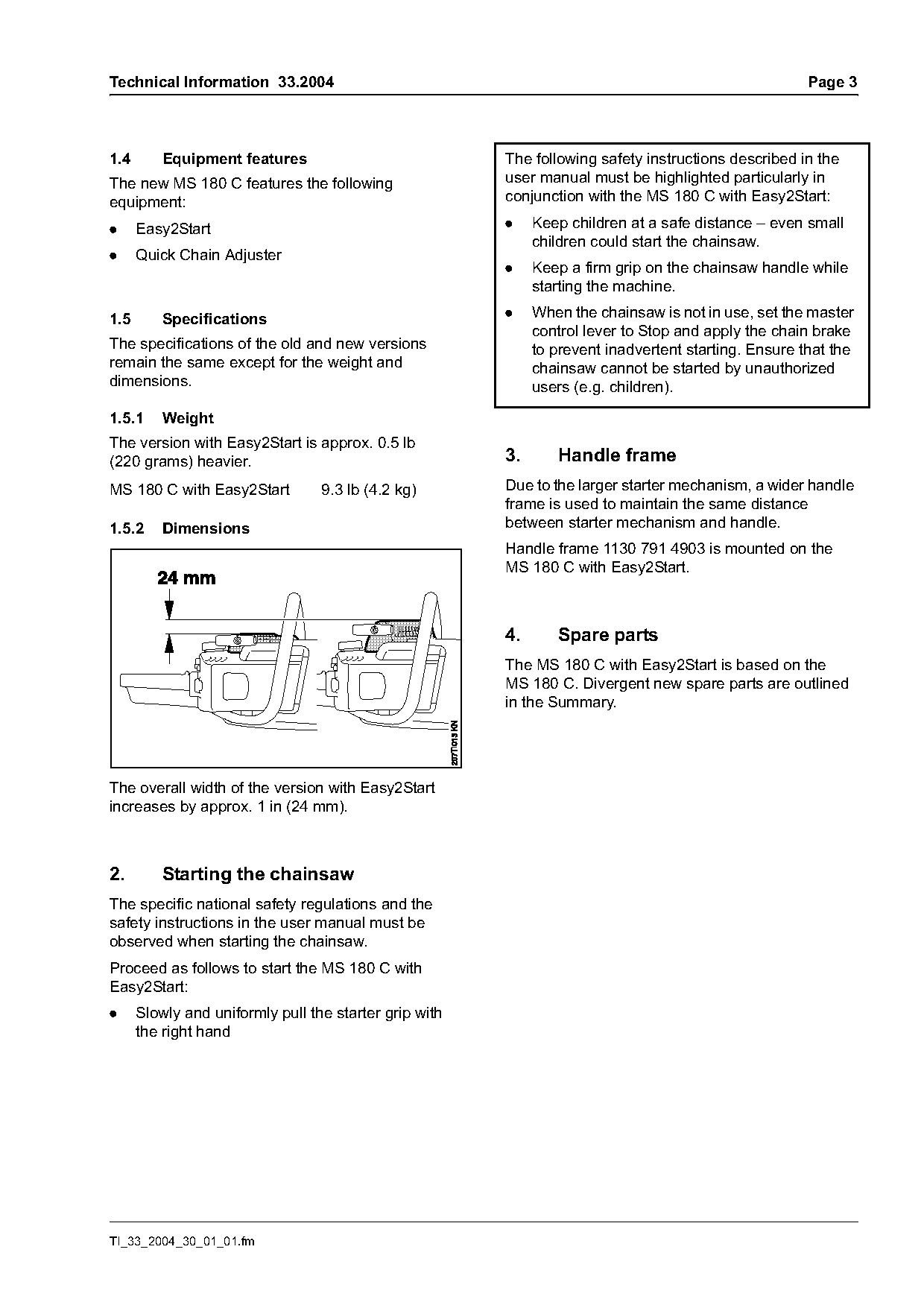

Technical Information 33.2004 Page 3
1.4 Equipment features The following safety instructions described in the
The new MS 180 C features the following user manual must be highlighted particularly in
equipment: conjunction with the MS 180 C with Easy2Start:
. Easy2Start . Keep children at a safe distance – even small
children could start the chainsaw.
. Quick Chain Adjuster
. Keep a firm grip on the chainsaw handle while
starting the machine.
1.5 Specifications . When the chainsaw is not in use, set the master
control lever to Stop and apply the chain brake
The specifications of the old and new versions to prevent inadvertent starting. Ensure that the
remain the same except for the weight and chainsaw cannot be started by unauthorized
dimensions. users (e.g. children).
1.5.1 Weight
The version with Easy2Start is approx. 0.5 lb
(220 grams) heavier. 3. Handle frame
MS 180 C with Easy2Start 9.3 lb (4.2 kg) Due to the larger starter mechanism, a wider handle
frame is used to maintain the same distance
1.5.2 Dimensions between starter mechanism and handle.
Handle frame 1130 791 4903 is mounted on the
MS 180 C with Easy2Start.
4. Spare parts
The MS 180 C with Easy2Start is based on the
MS 180 C. Divergent new spare parts are outlined
in the Summary.
The overall width of the version with Easy2Start
increases by approx. 1 in (24 mm).
2. Starting the chainsaw
The specific national safety regulations and the
safety instructions in the user manual must be
observed when starting the chainsaw.
Proceed as follows to start the MS 180 C with
Easy2Start:
. Slowly and uniformly pull the starter grip with
the right hand
TI_33_2004_30_01_01.fm
)m~ge 4 Technical Information 33.2004

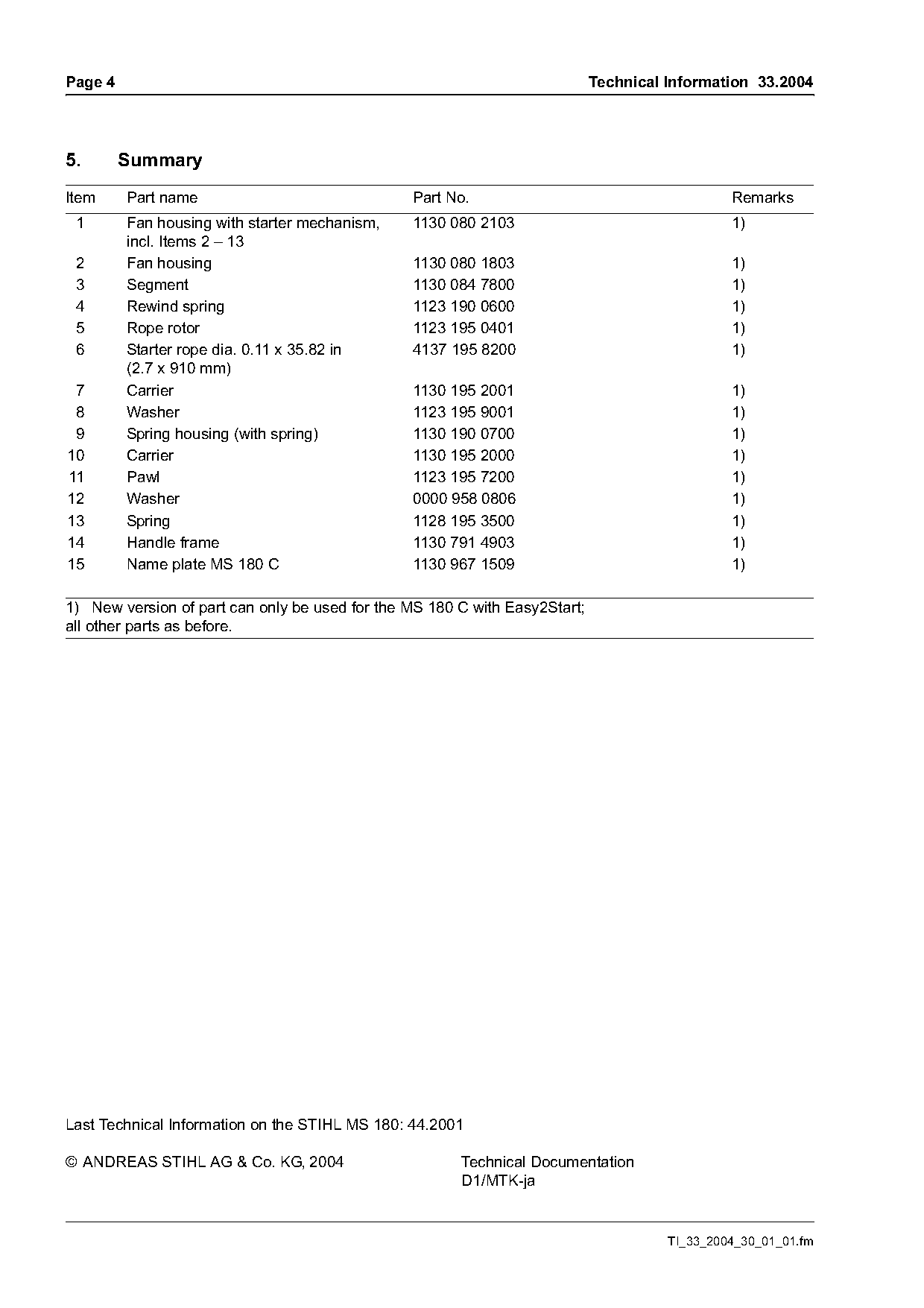

5. Summary
Item Part name Part No. Remarks
1 Fan housing with starter mechanism, 1130 080 2103 1)
incl. Items 2 – 13
2 Fan housing 1130 080 1803 1)
3 Segment 1130 084 7800 1)
4 Rewind spring 1123 190 0600 1)
5 Rope rotor 1123 195 0401 1)
6 Starter rope dia. 0.11 x 35.82 in 4137 195 8200 1)
(2.7 x 910 mm)
7 Carrier 1130 195 2001 1)
8 Washer 1123 195 9001 1)
9 Spring housing (with spring) 1130 190 0700 1)
10 Carrier 1130 195 2000 1)
11 Pawl 1123 195 7200 1)
12 Washer 0000 958 0806 1)
13 Spring 1128 195 3500 1)
14 Handle frame 1130 791 4903 1)
15 Name plate MS 180 C 1130 967 1509 1)
1) New version of part can only be used for the MS 180 C with Easy2Start;
all other parts as before.
Last Technical Information on the STIHL MS 180: 44.2001
© ANDREAS STIHL AG & Co. KG, 2004 Technical Documentation
D1/MTK-ja
TI_33_2004_30_01_01.fm Page 3 of 4
Page 4 of 4
